BQ3B100H - Siemens 100 Amp 3-Pole 240V Bolt-On Molded Case Circuit Breaker, Type BQ, Thermal/Magnetic Trip, 22 kA Interrupt

BQ3B100H

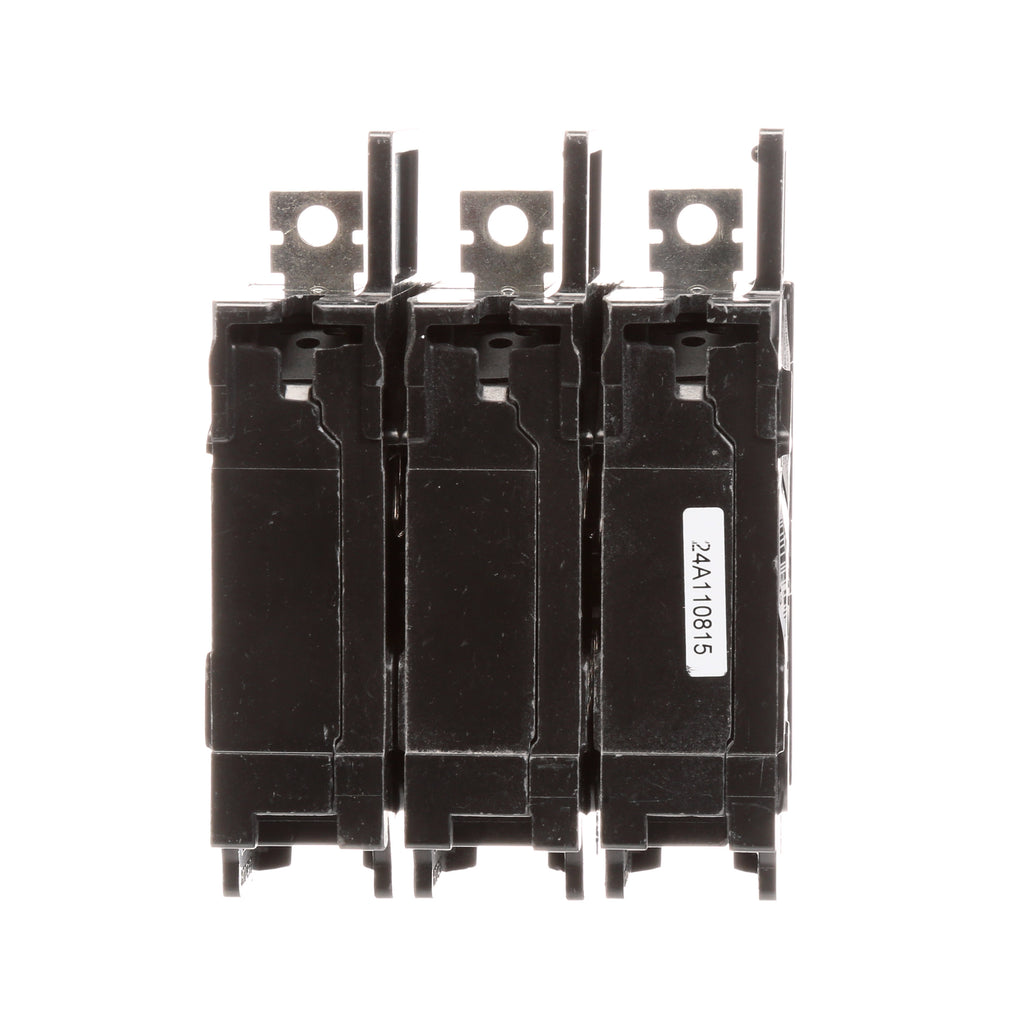

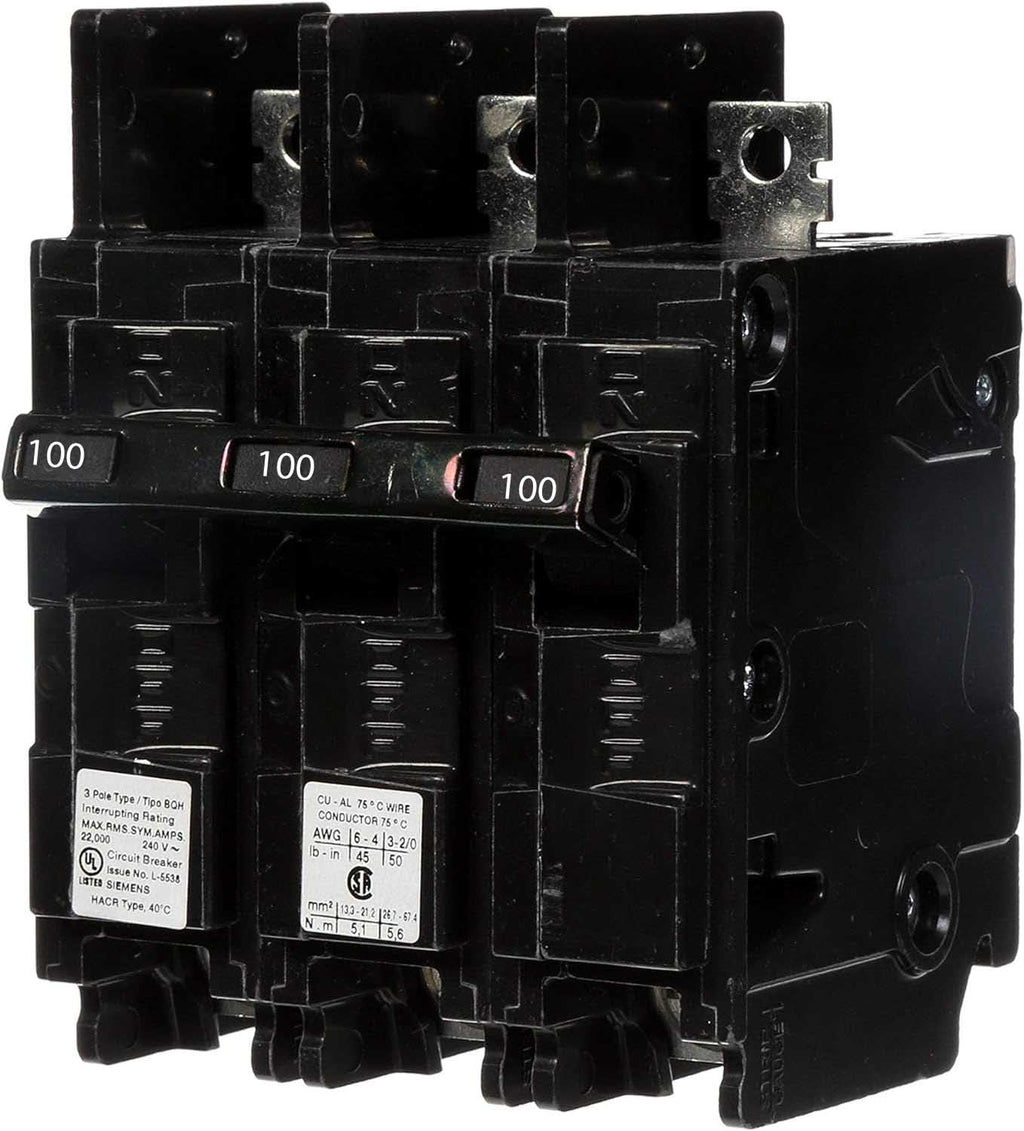

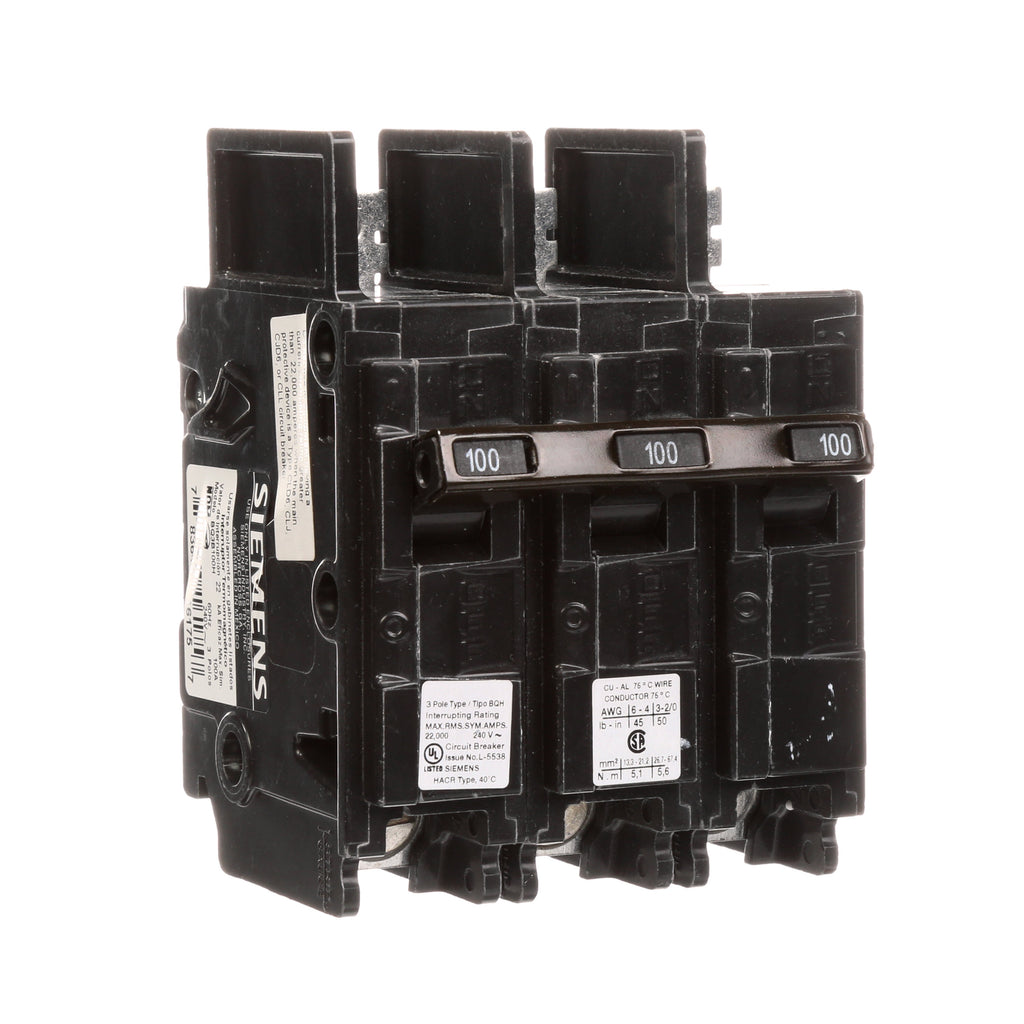

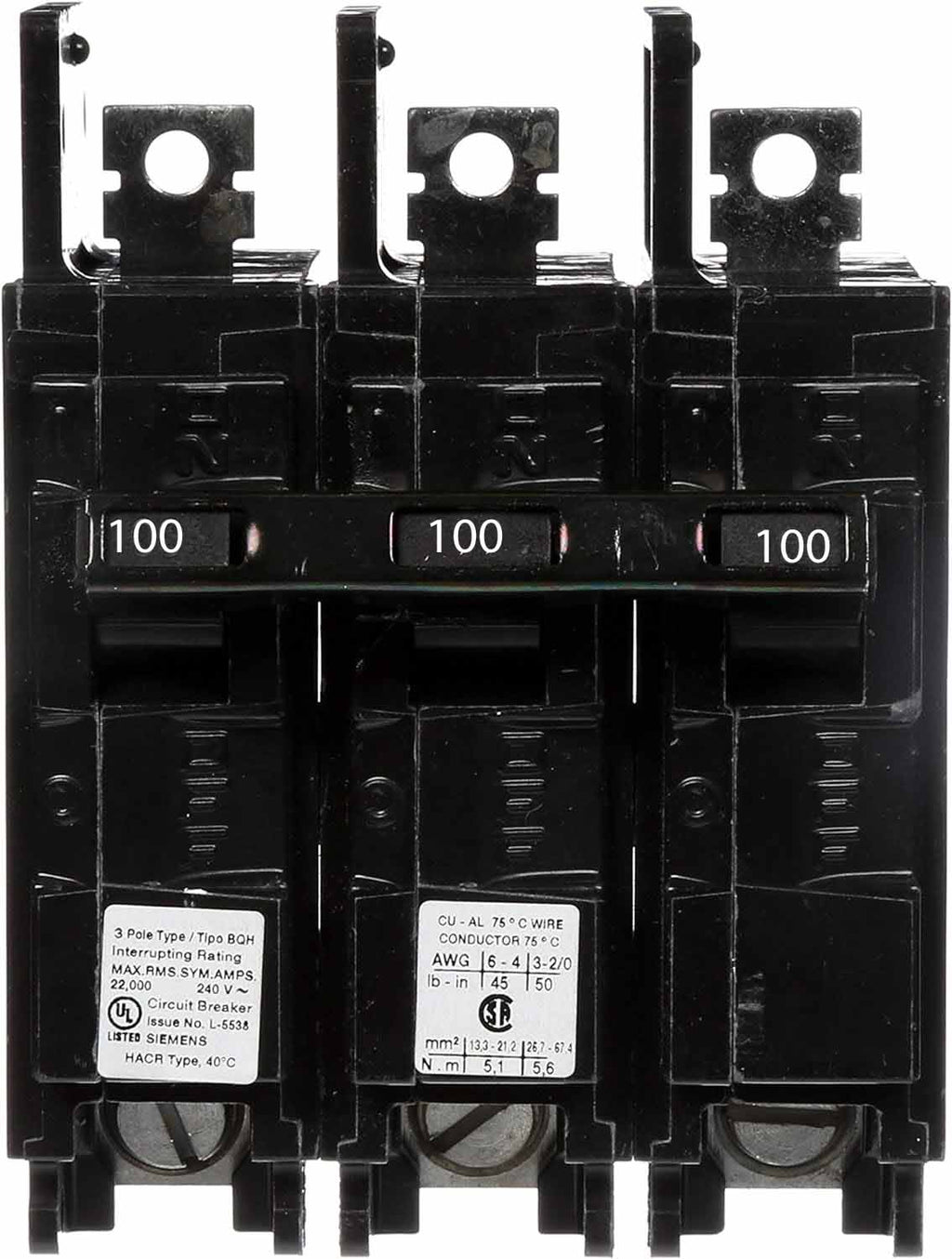

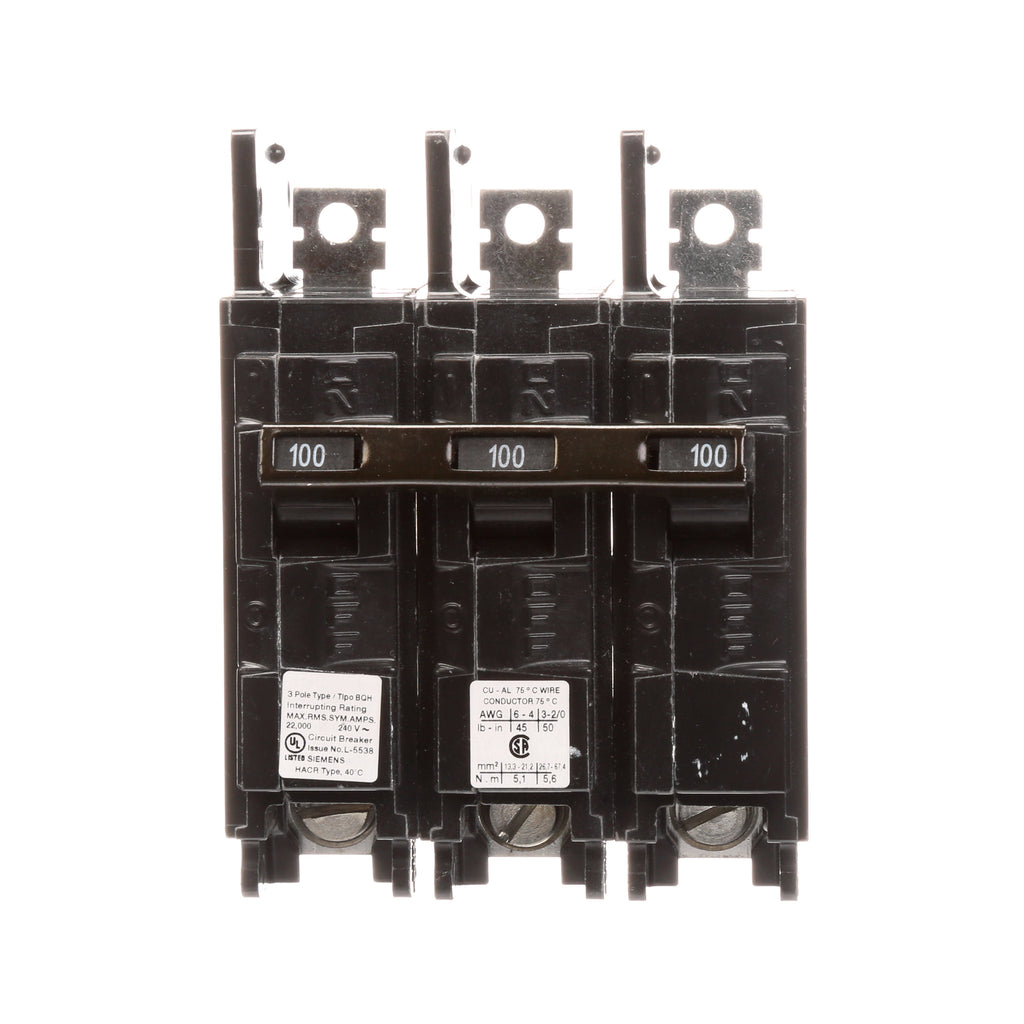

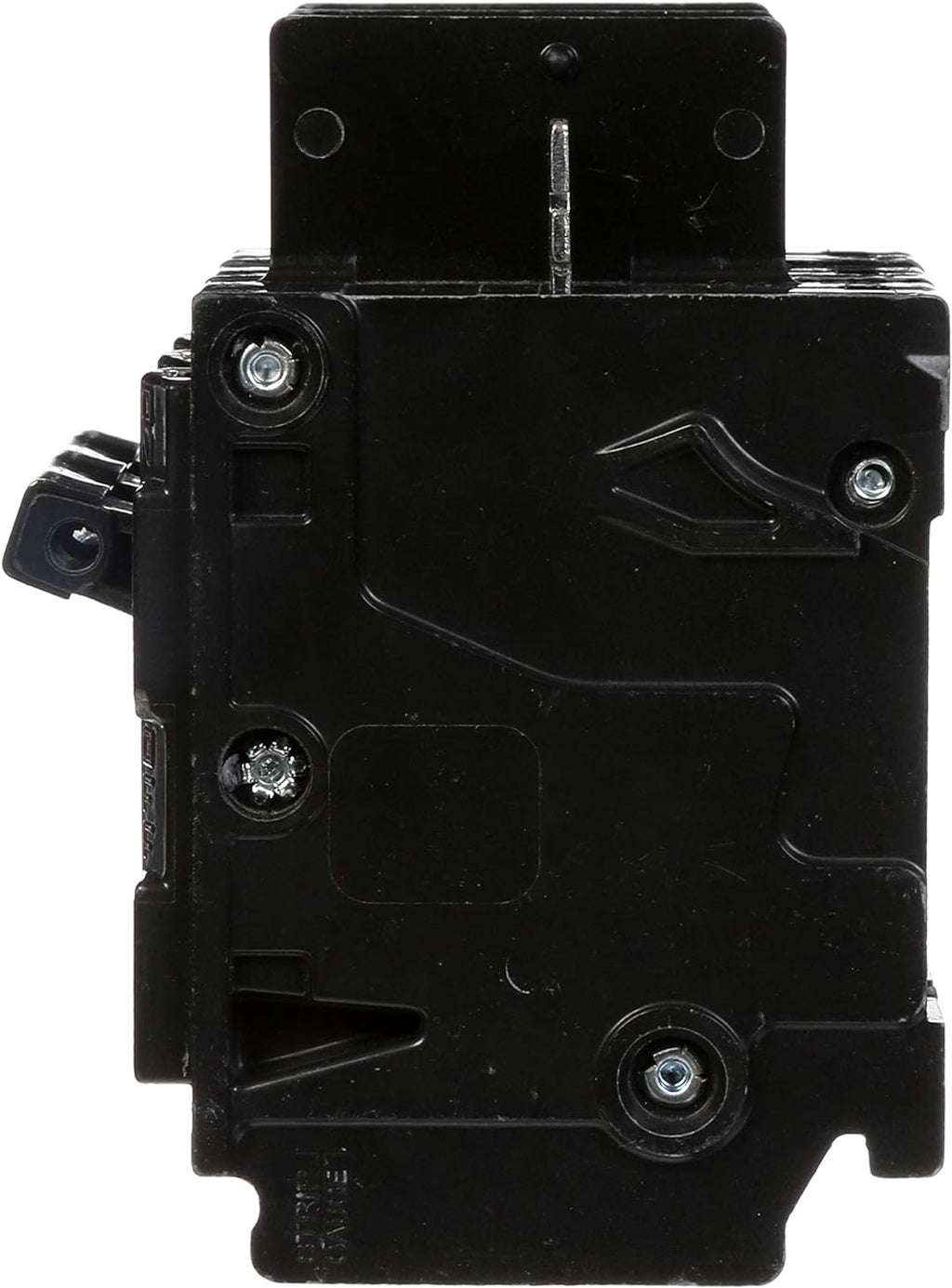

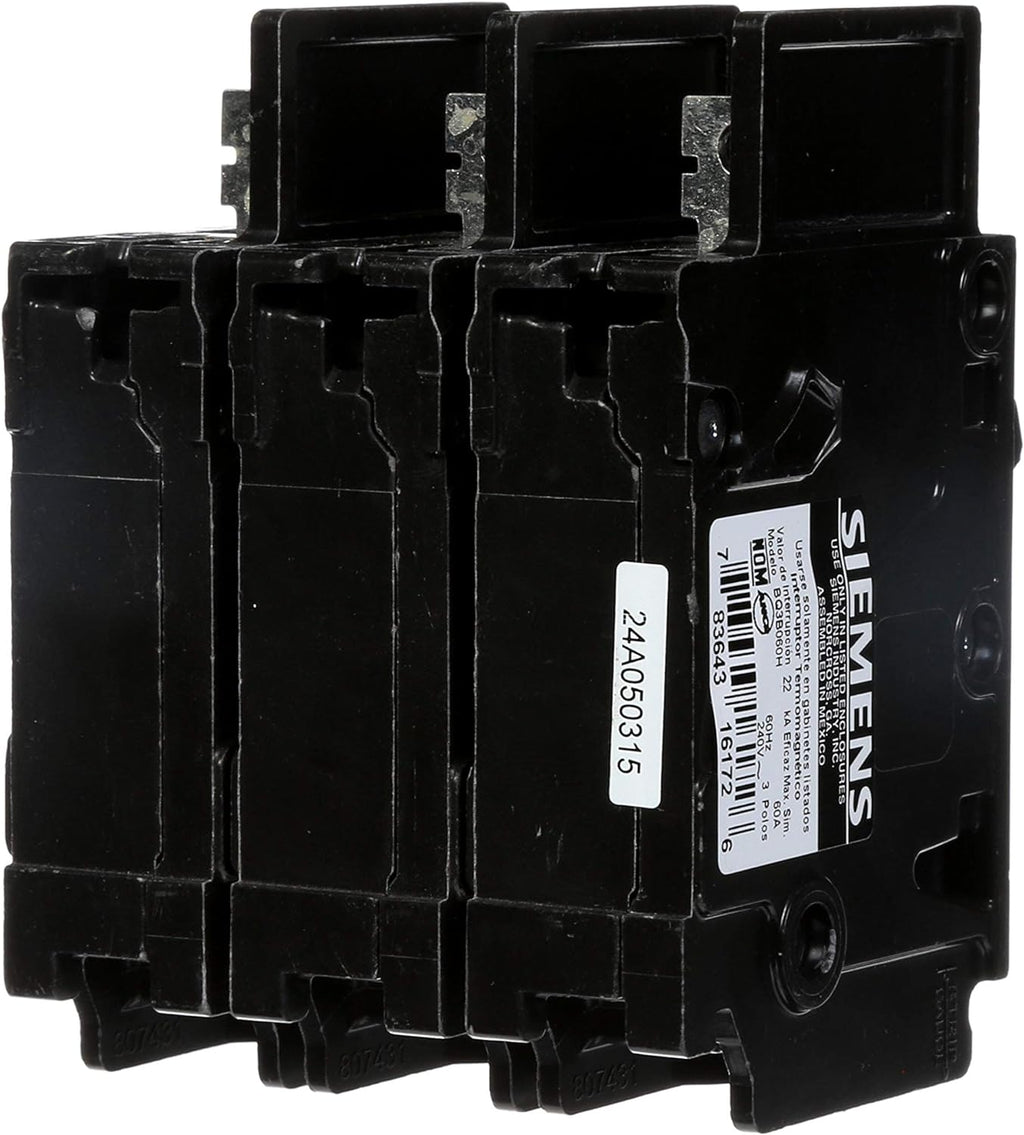

BQ3B100H is a Siemens 100 Amp, 3-pole, bolt-on molded case circuit breaker designed for reliable low voltage power distribution.

This thermal/magnetic trip circuit breaker is part of the Siemens BQ series, offering robust protection for three-phase systems up to 240V. It features a common-trip mechanism and is engineered for durability and safety in commercial and industrial applications.

Key Specifications
• Part Number: BQ3B100H
• Manufacturer: Siemens
• Amperage: 100 A
• Voltage: 240 VAC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 22 kA
• Series/Frame: BQ
• Trip Unit: Thermal/Magnetic
• Phase: 3
• Color: Black
• Certifications: Not specified in available data

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BQ3B100H
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BQ Series
• Type : BQH
• Voltage : 240
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 22kA@240V
• Connection : Bolt-on
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/BQH
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 8 AWG Max. Wire Size 2 AWG (Al), 4 AWG (Cu)
• Breaker Type : High Interrupting Capacity
• Protection : Thermal Magnetic

Product Data

• UPC : 783643161757
• GTIN : 00783643161757
• Country of Origin : Mexico
• Dimensions : 2.756 x 2.756 x 3.937 inch
• Weight : 1.036
• Panel Type : Siemens Panelboards
• Standards : HACR Rated, UL Listed
• Certification : CSA, HACR, UL
