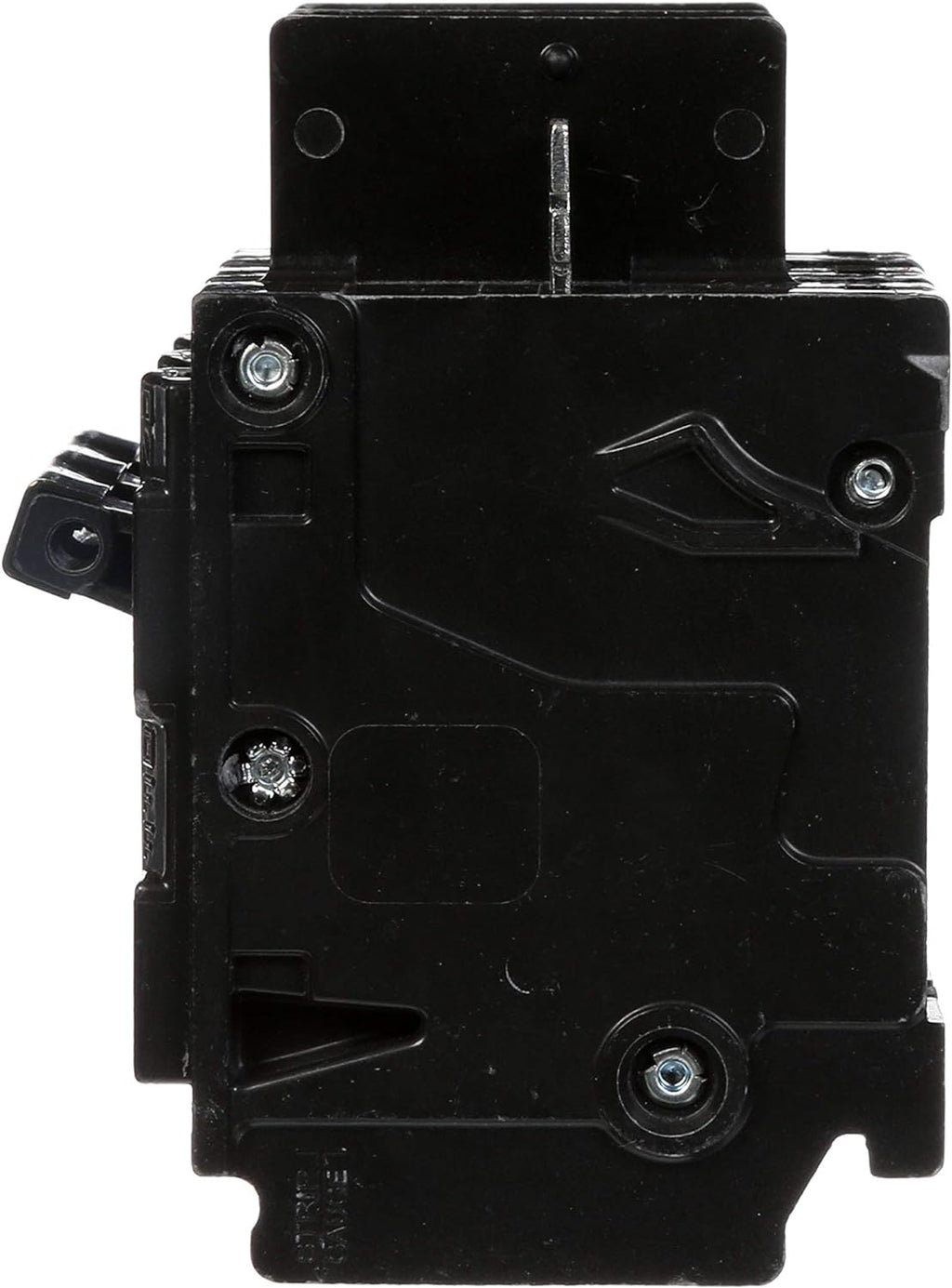

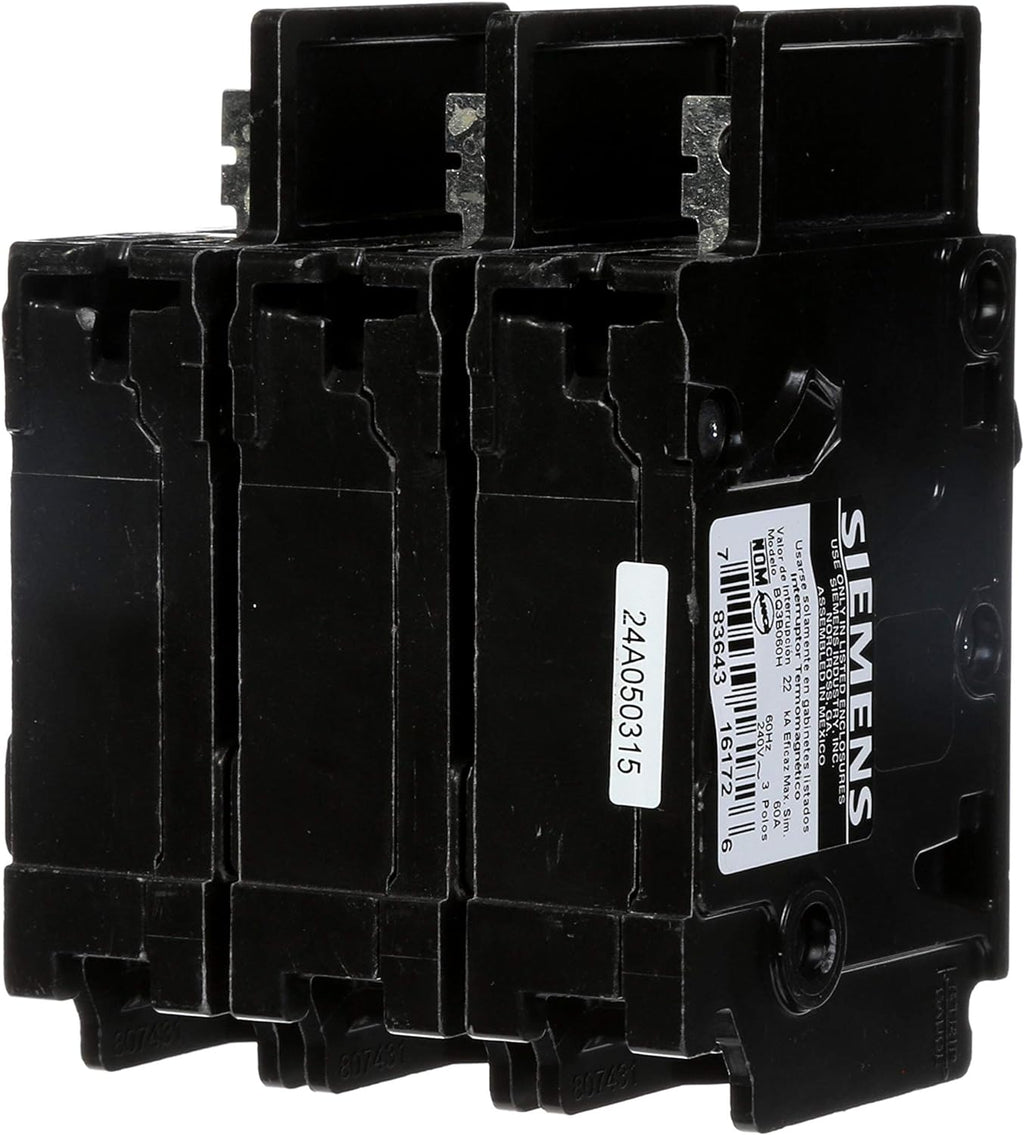

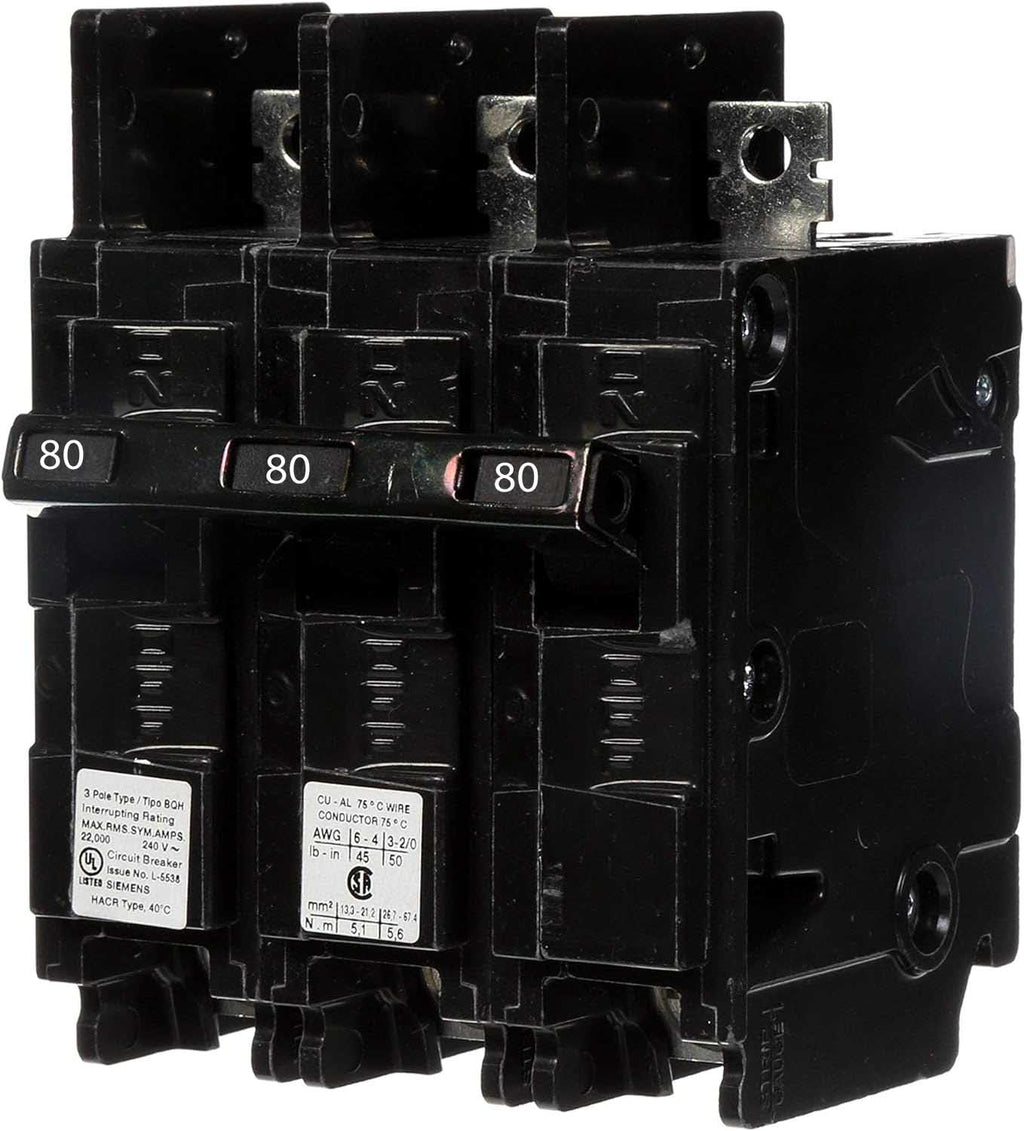

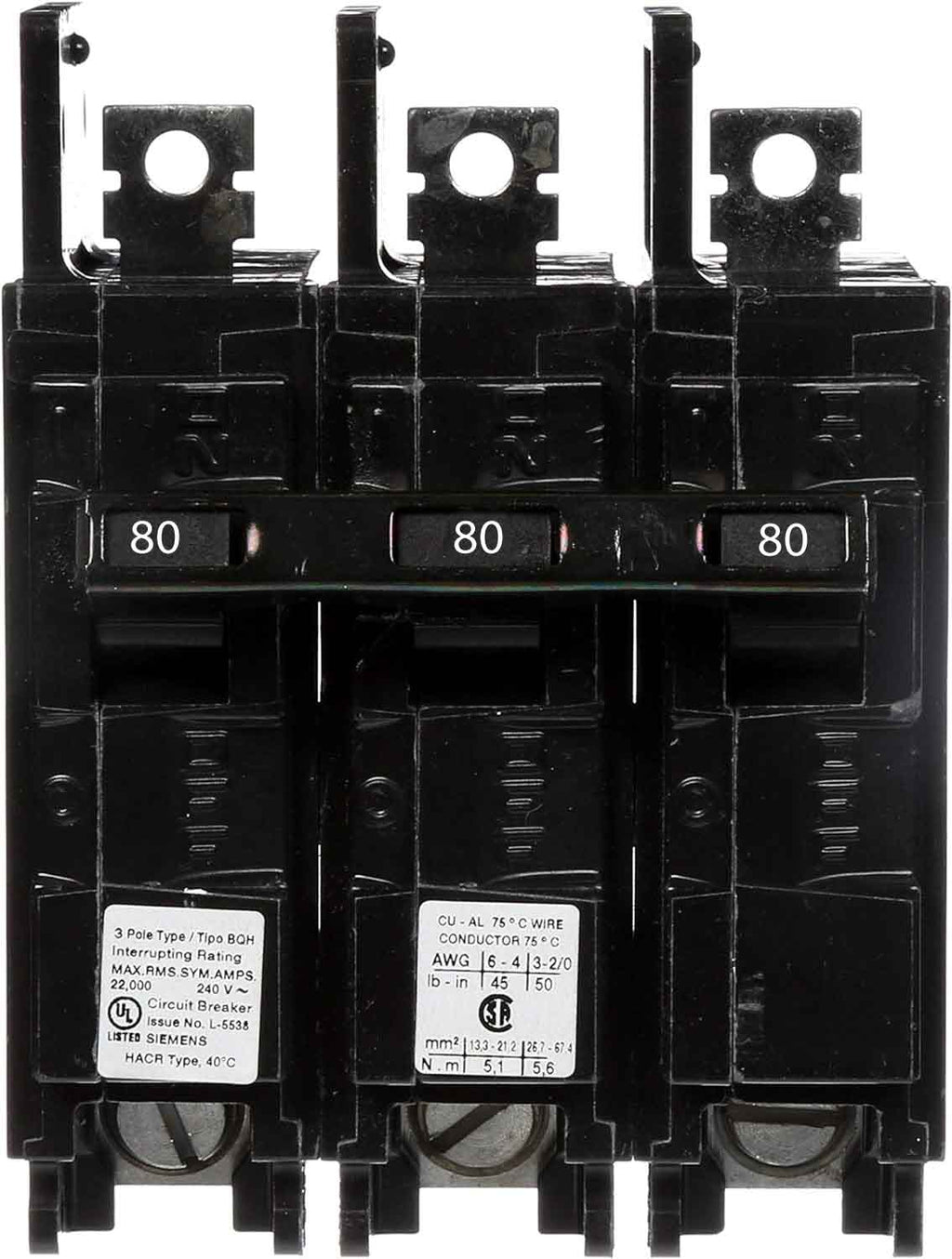

BQ3B080H - Siemens 80A 240V 3-Pole Bolt-On Molded Case Circuit Breaker BQ Frame

BQ3B080H

BQ3B080H is a Siemens 3-pole molded case circuit breaker rated for 80 amperes and 240 volts AC, designed for bolt-on mounting in electrical distribution systems.This Siemens BQ series breaker features thermal magnetic trip units for reliable overcurrent protection. It has a 22kA interrupting rating at 240VAC, suitable for commercial and industrial applications. The breaker is designed for 3-pole, 80 amp service with bolt-on mounting type, providing secure and easy installation. It complies with industry standards for safety and performance.

Key Specifications
• Amperage: 80A
• Voltage: 240VAC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupting Rating: 22kA
• Frame Type: BQ
• Trip Unit: Thermal Magnetic
• Standards: UL Listed, CSA Certified (typical for Siemens BQ series)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BQ3B080H
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BQ Series
• Type : BQH
• Voltage : 240
• Amperage : 80
• Phase : 3
• Poles : 3
• AIC rating : 22kA@240V
• Connection : Bolt-on
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/BQH
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 8 AWG Max. Wire Size 2 AWG (Al), 4 AWG (Cu)
• Breaker Type : High Interrupting Capacity
• Protection : Thermal Magnetic

Product Data

• UPC : 783643224841
• GTIN : 00783643224841
• Country of Origin : Mexico
• Dimensions : 2.756 x 2.756 x 3.937 inch
• Weight : 1.146
• Panel Type : Siemens Panelboards
• Standards : HACR Rated, UL Listed
• Certification : CSA, HACR, UL
