Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
BQ3B08000S01

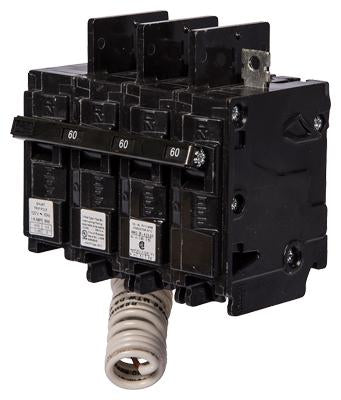

BQ3B08000S01 - Siemens 3-pole molded case circuit breaker, 80A, thermal magnetic, bolt-on mounting. This Siemens BQ frame circuit breaker features thermal magnetic trip unit, 240V AC rating, and 10kA interrupting capacity at 240V. It is designed for reliable overcurrent protection in various panelboards.
- Part Number: BQ3B08000S01
- Manufacturer: Siemens
- Amperage: 80A
- Voltage: 240VAC
- Poles: 3
- Frame: BQ
- Mounting Type: Bolt-On
- Trip Unit: Thermal Magnetic
- Interrupt Rating: 10kA at 240V
- Type: Molded Case
Additional Information
complete with non-interchangeable 120V shunt trip
Specifications
- Part Number: BQ3B08000S01
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : BQ Series
- Type : BQ
- Voltage : 240
- Amperage : 80
- Phase : 3
- Poles : 3
- AIC rating : 10kA@240V
- Connection : Bolt-on
- Functions : Long Time and Instantaneous Trip
- Terminal Connection : Lug
- Frame Size : 125A/BQ
- Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
- MCM Size : Min. Wire Size 8 AWG Max. Wire Size 4 AWG (Al), 6 AWG (Cu)
- Breaker Type : Shunt Trip
- Protection : Thermal Magnetic
Product Data
- UPC : 783643237896
- GTIN : 00783643237896
- Country of Origin : Mexico
- Dimensions : 4.724 x 3.937 x 3.937 inch
- Weight : 1.653
- Panel Type : Siemens Panelboards
- Standards : HACR Rated, UL Listed
- Certification : CSA, HACR, UL
