BQ3B070H - Siemens 70 Amp 3 Pole 240V BQ Series Bolt-On Molded Case Circuit Breaker, 22kA Interrupt, Thermal Magnetic Trip, UL Listed, CSA Certified

BQ3B070H

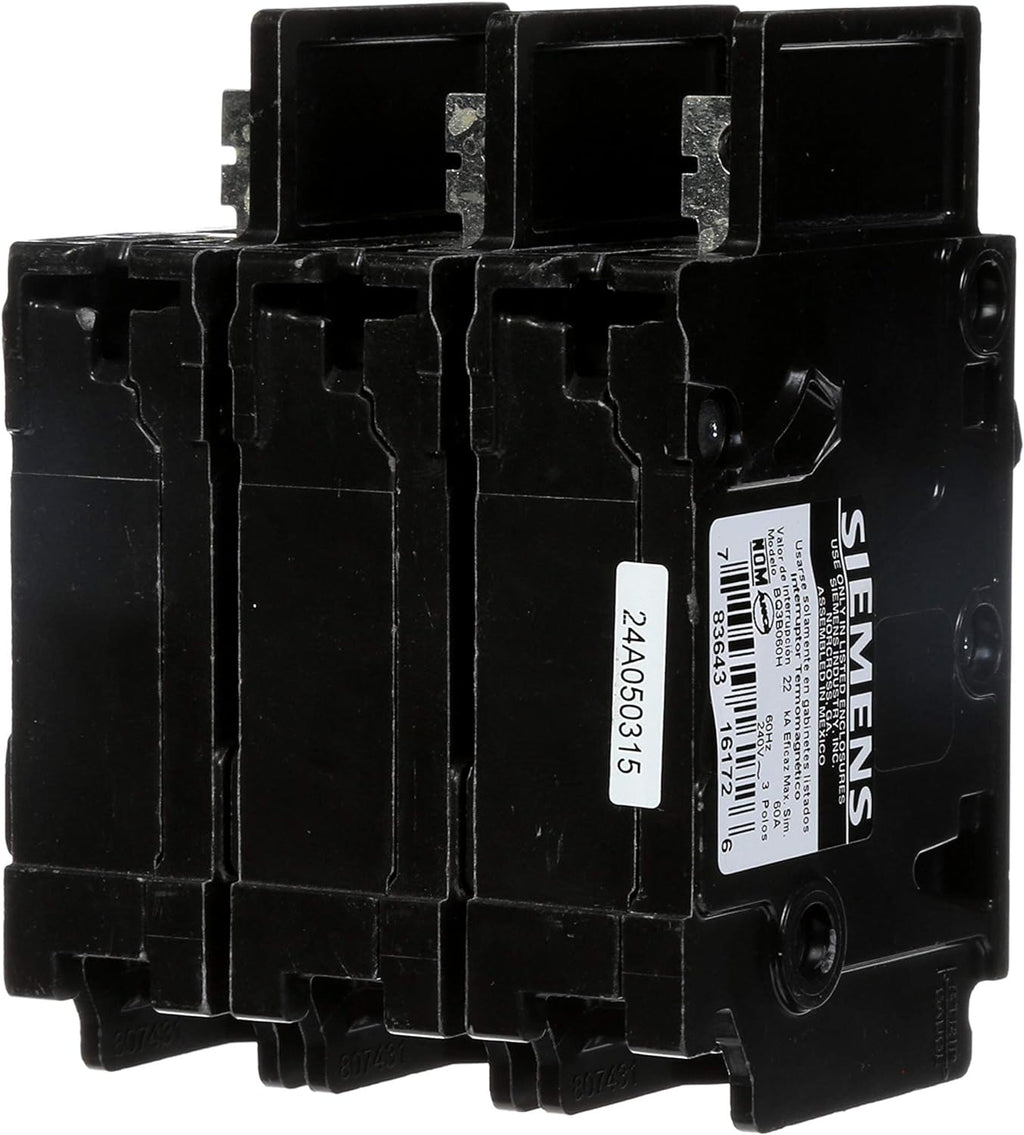

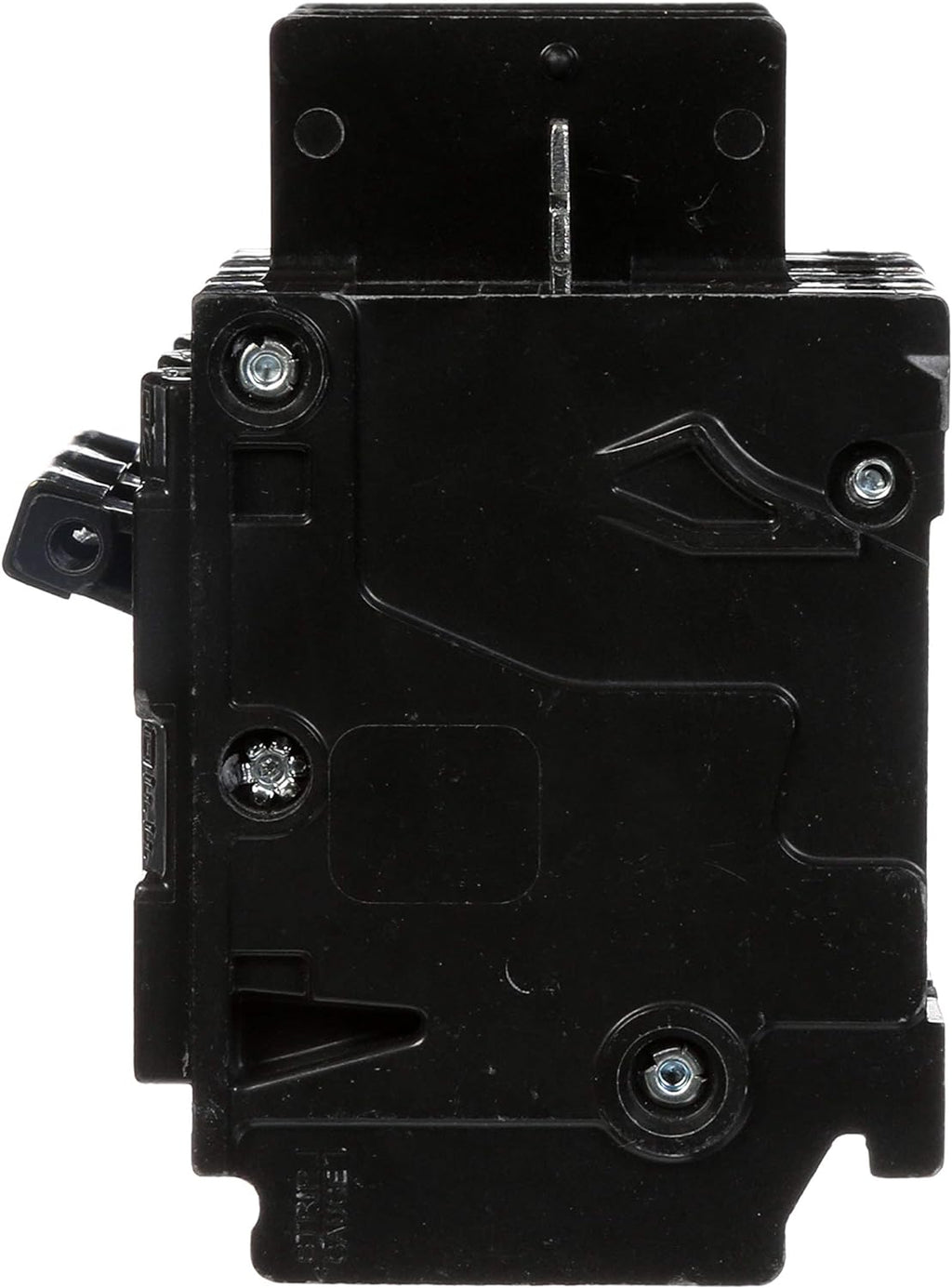

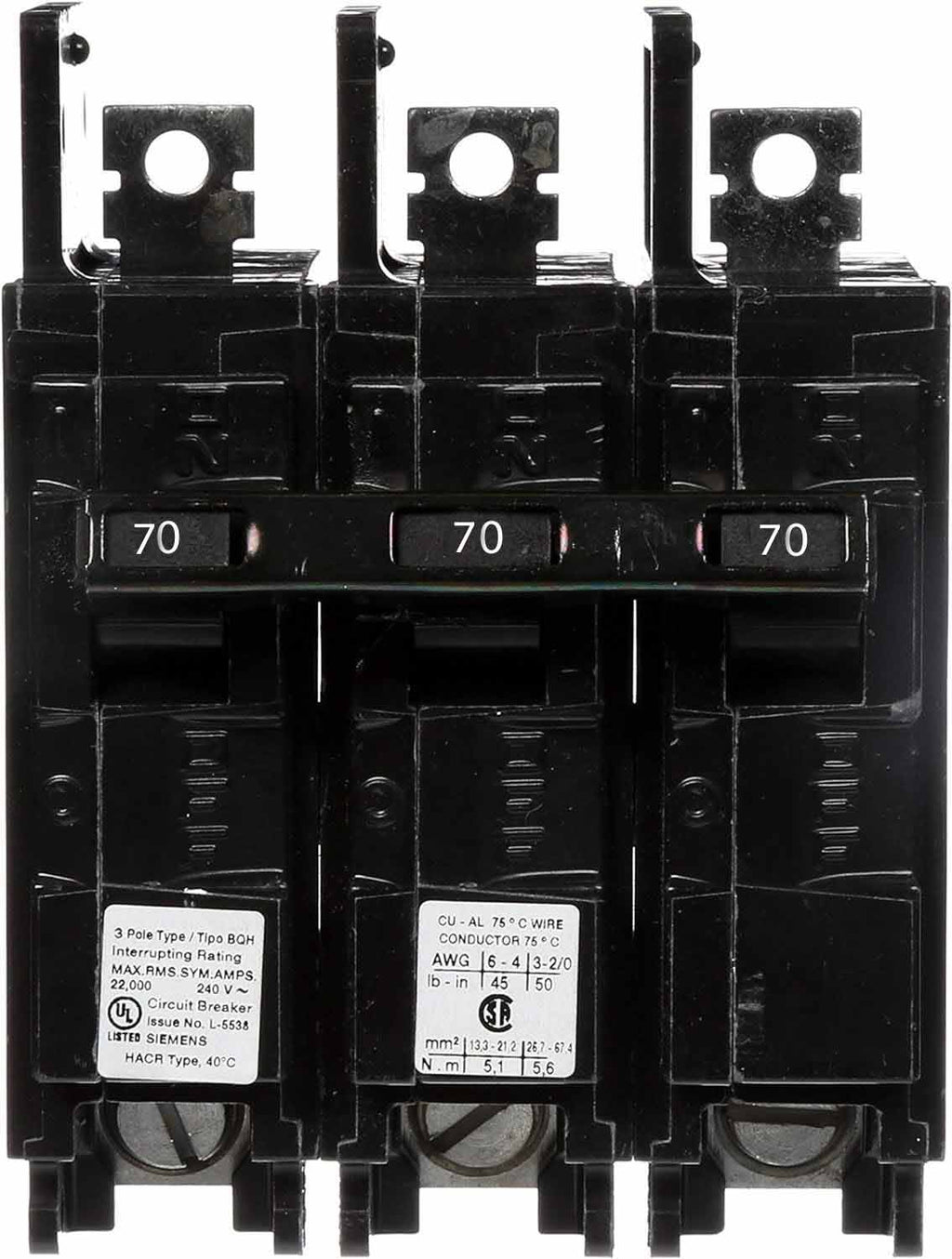

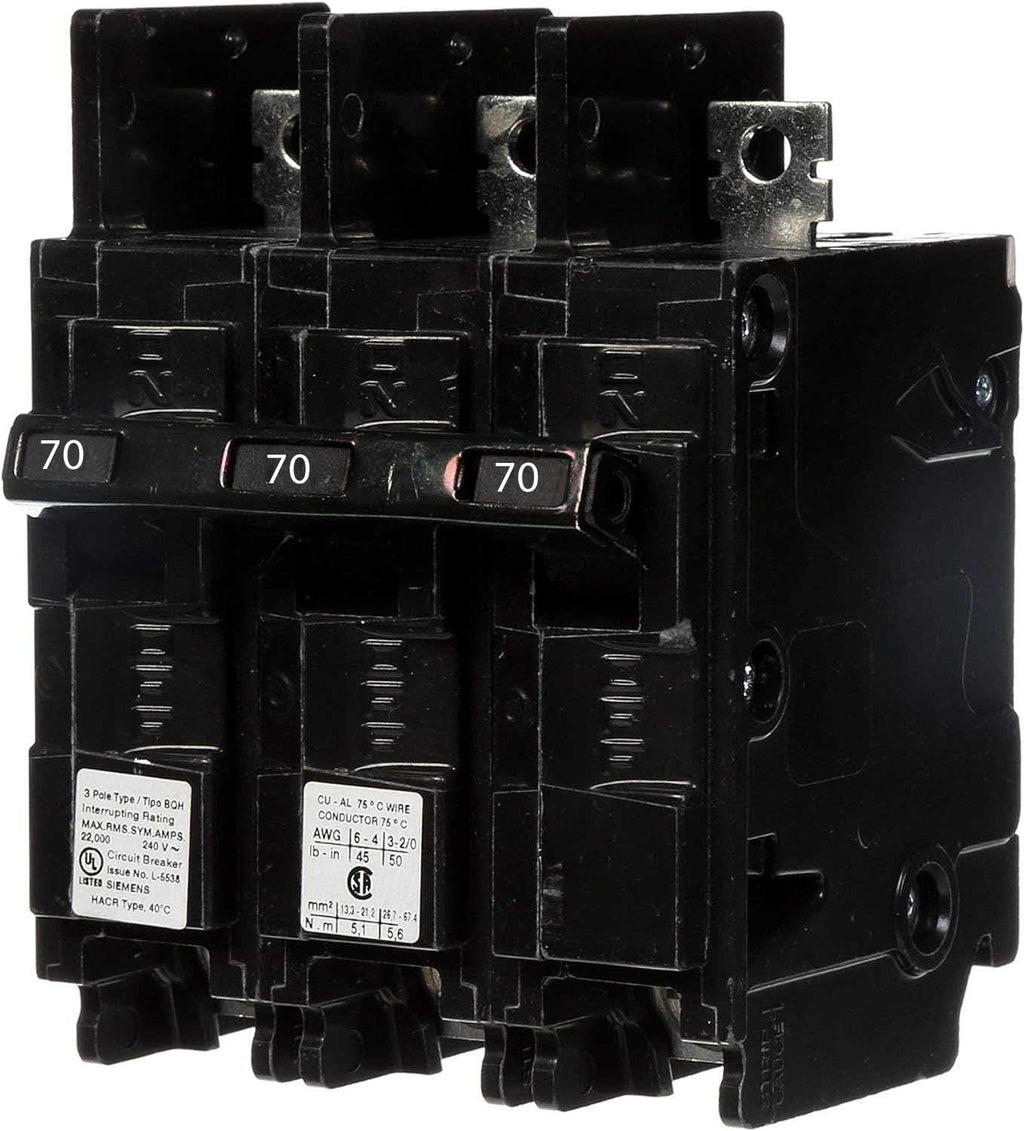

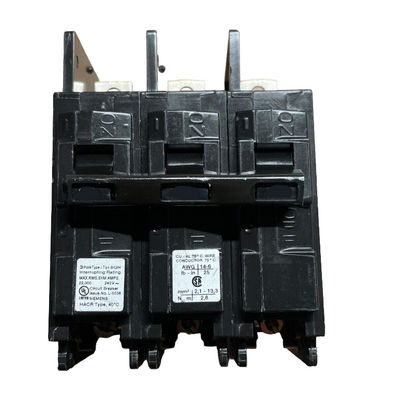

BQ3B070H - Siemens 3-pole, 70 Amp molded case circuit breaker with thermal-magnetic trip protection.This Siemens BQ3B070H is a compact bolt-on molded case circuit breaker featuring thermal-magnetic overcurrent protection. It offers a 22 kA interrupting rating at 240 VAC, 60 Hz, with a BQ frame size and operation calibrated at 40 degrees C.

• Part Number: BQ3B070H
• Manufacturer: Siemens
• Amperage: 70A
• Voltage Rating: 240 VAC
• Poles: 3
• Mounting Type: Bolt-On
• Frame/Series: BQ
• Trip Unit: Thermal-Magnetic
• Interrupt Rating: 22 kA @ 240V
• Approvals: UL Listed, CSA Certified, HACR Rated

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BQ3B070H
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BQ Series
• Type : BQH
• Voltage : 240
• Amperage : 70
• Phase : 3
• Poles : 3
• AIC rating : 22kA@240V
• Connection : Bolt-on
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/BQH
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 8 AWG Max. Wire Size 2 AWG (Al), 4 AWG (Cu)
• Breaker Type : High Interrupting Capacity
• Protection : Thermal Magnetic

Product Data

• UPC : 783643161733
• GTIN : 00783643161733
• Country of Origin : Mexico
• Dimensions : 2.756 x 2.756 x 3.937 inch
• Weight : 1.146
• Panel Type : Siemens Panelboards
• Standards : HACR Rated, UL Listed
• Certification : CSA, HACR, UL
