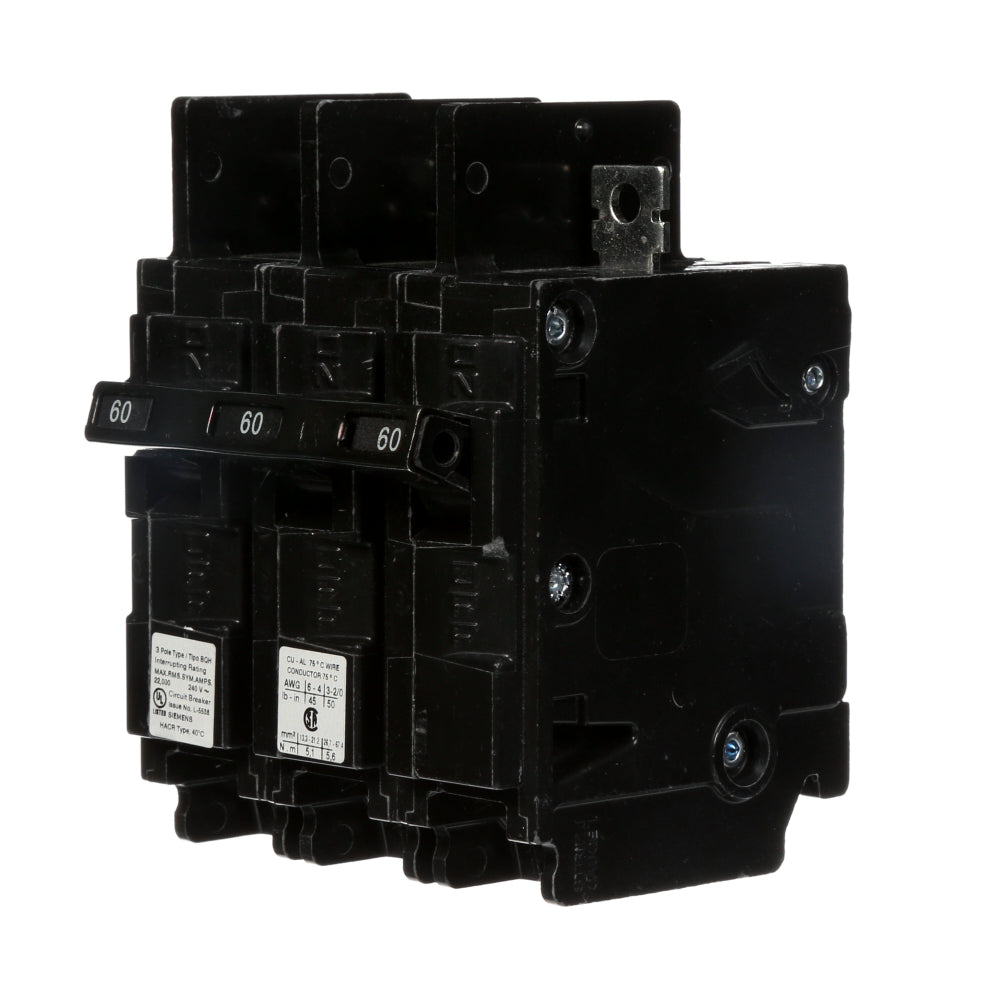

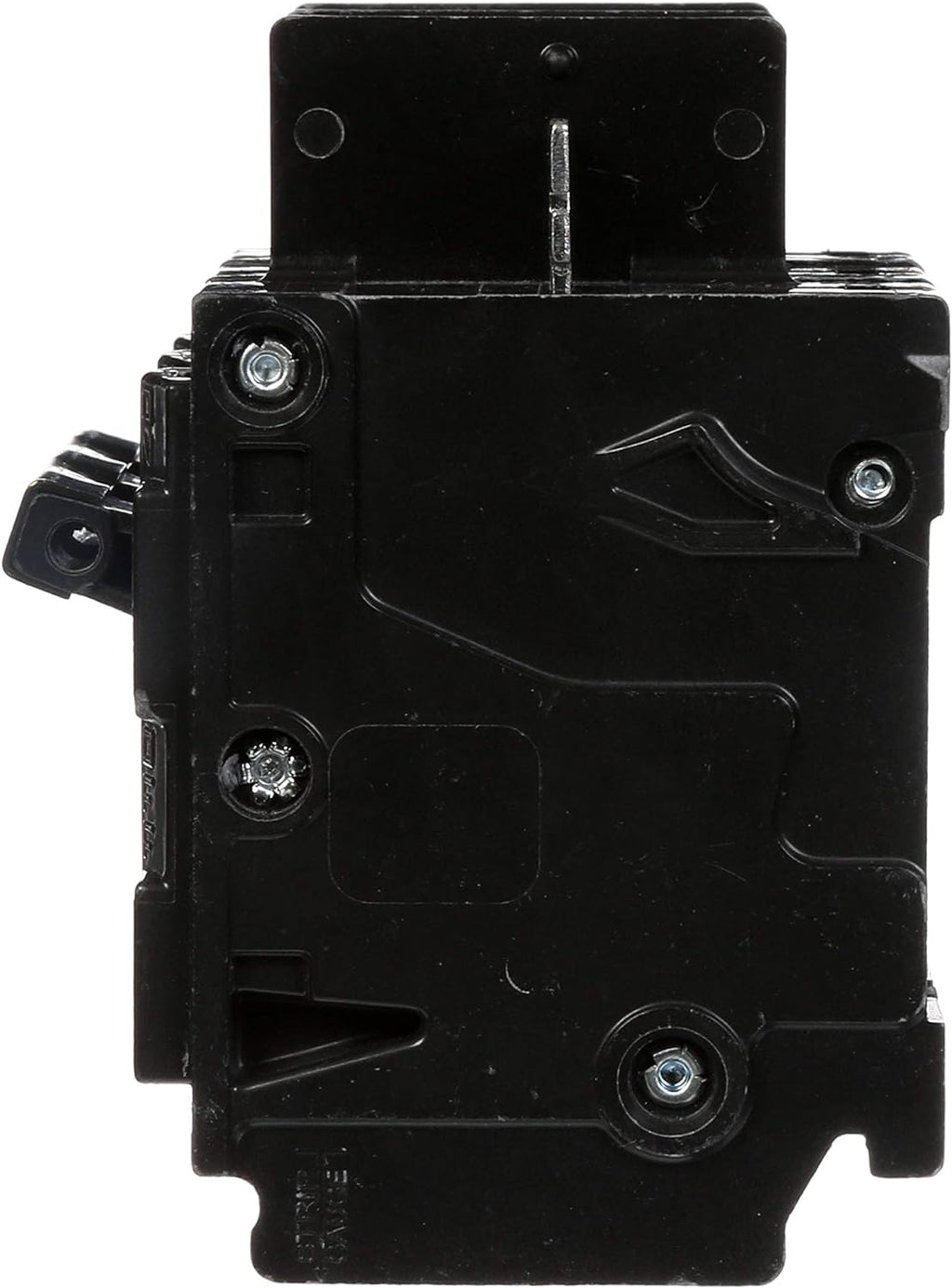

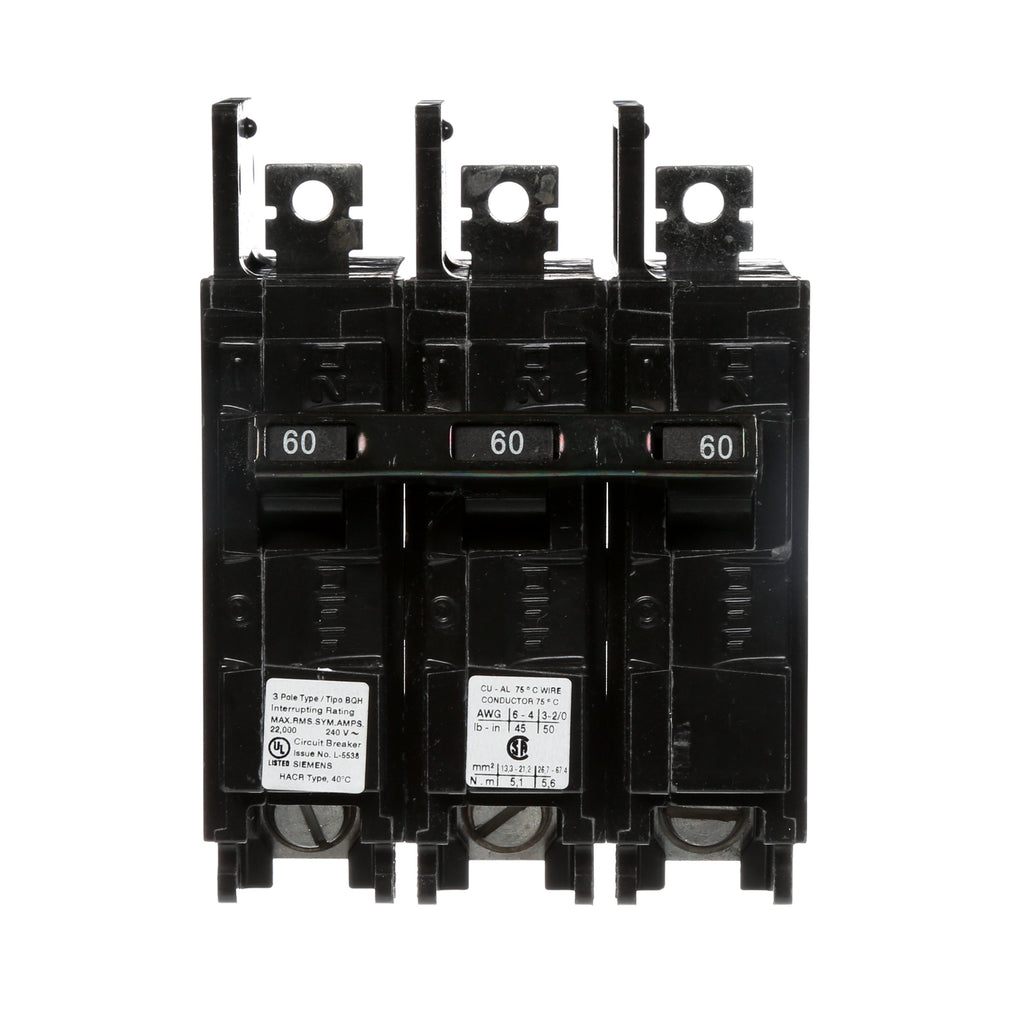

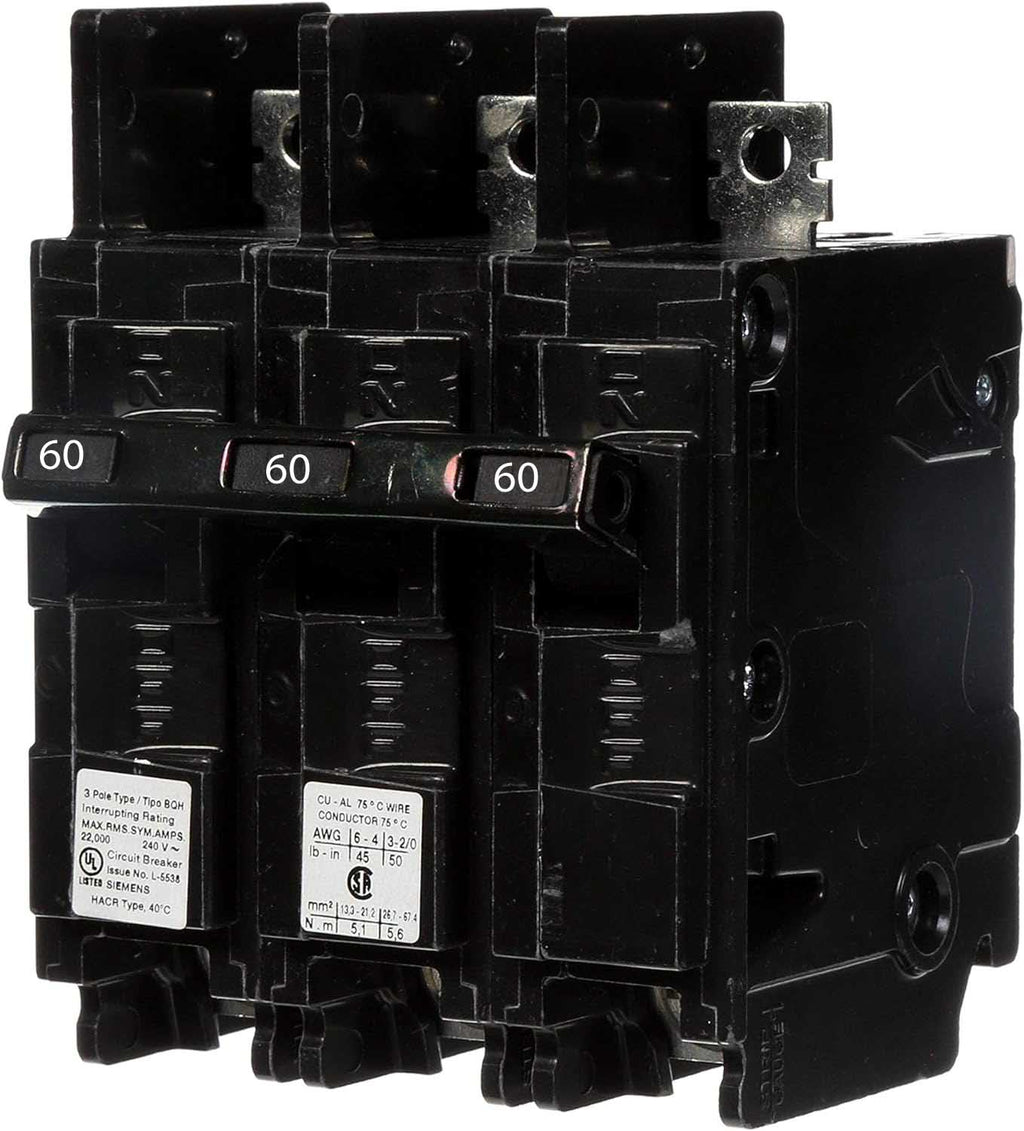

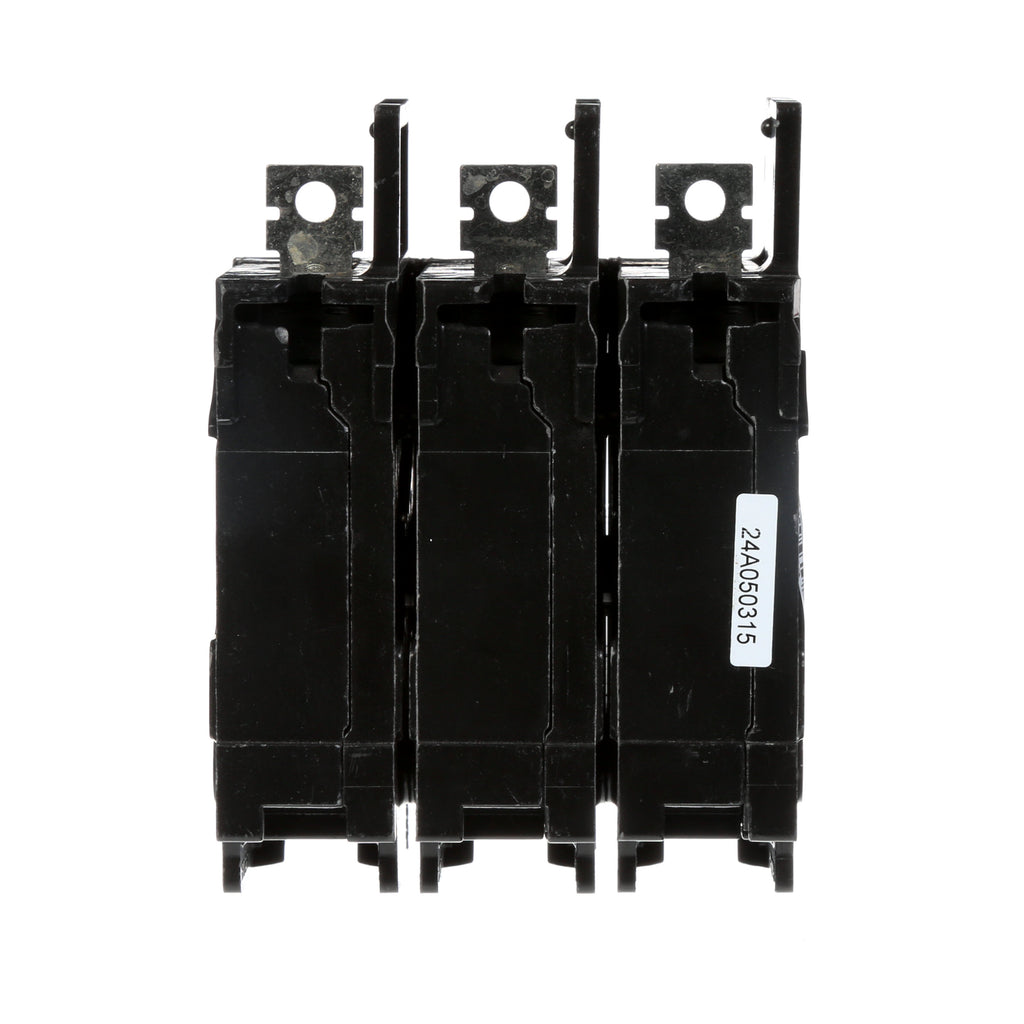

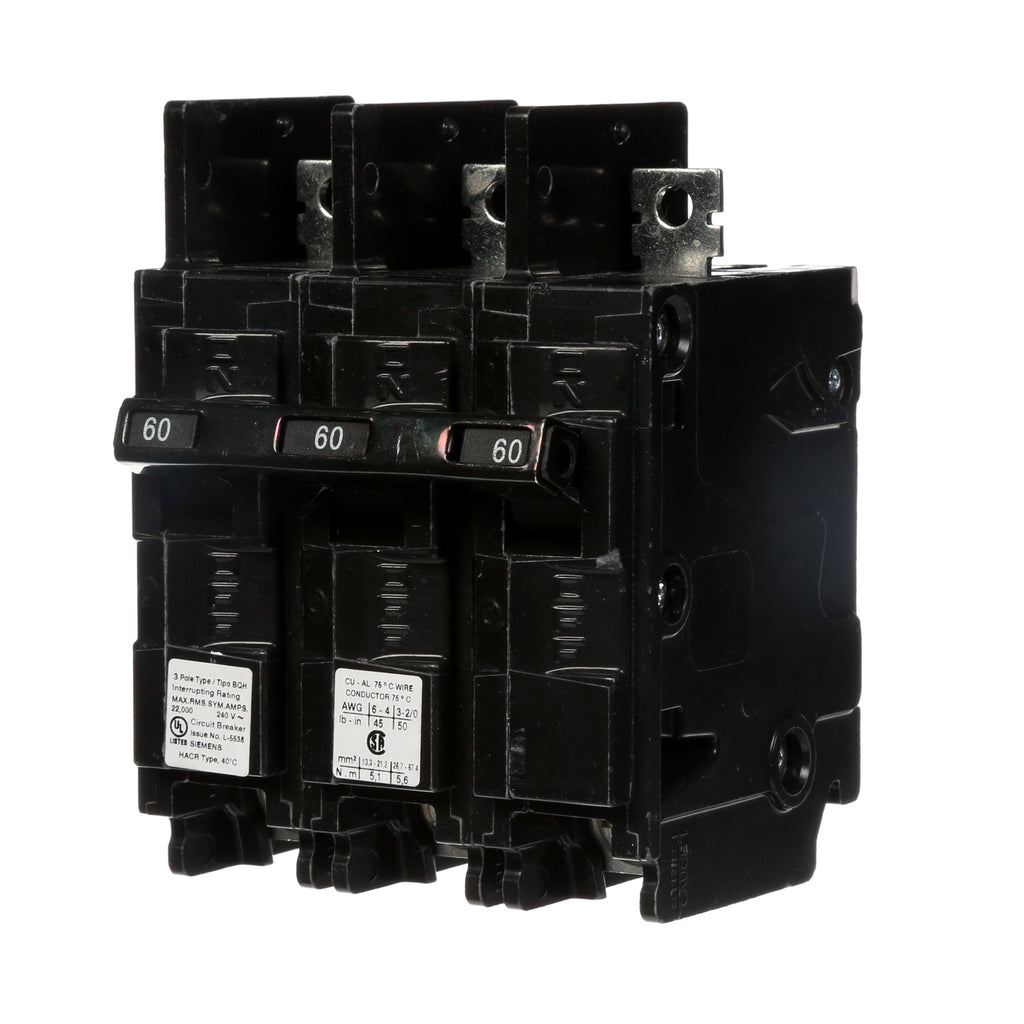

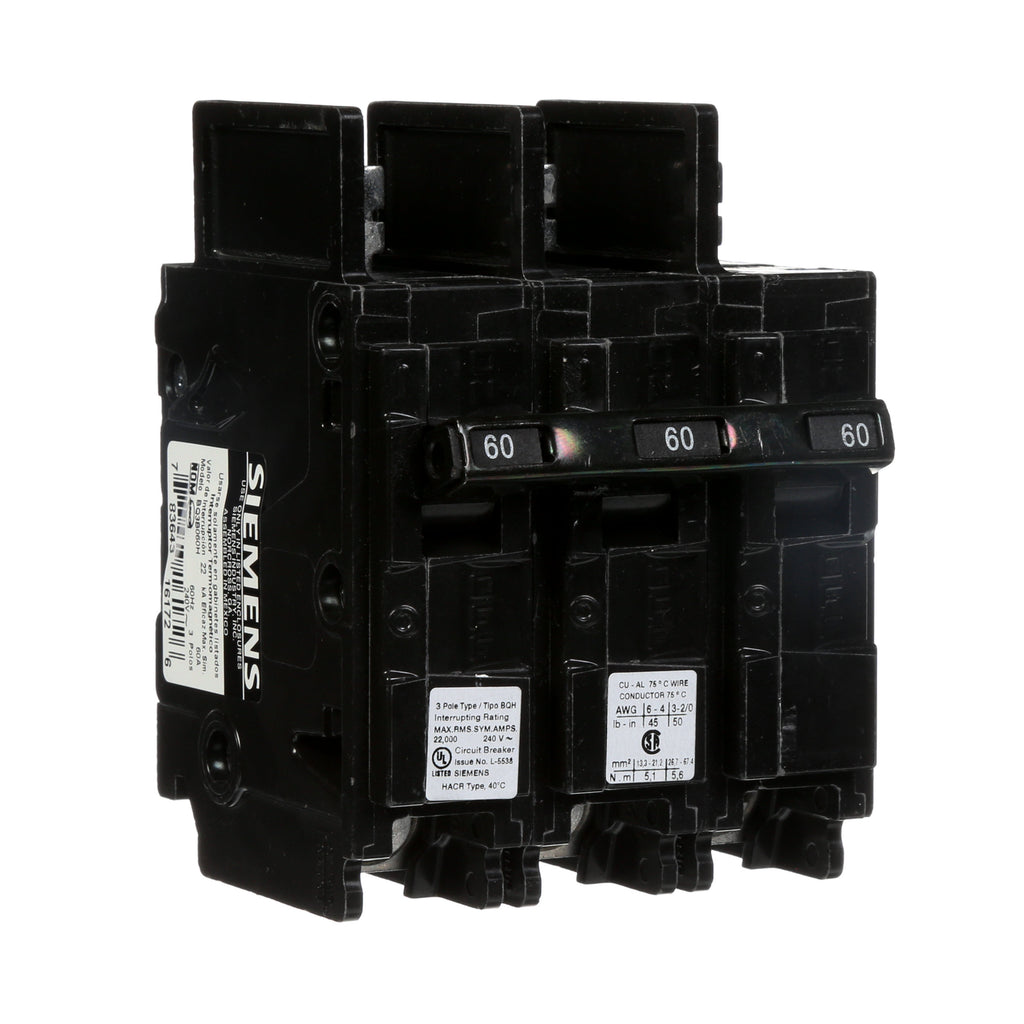

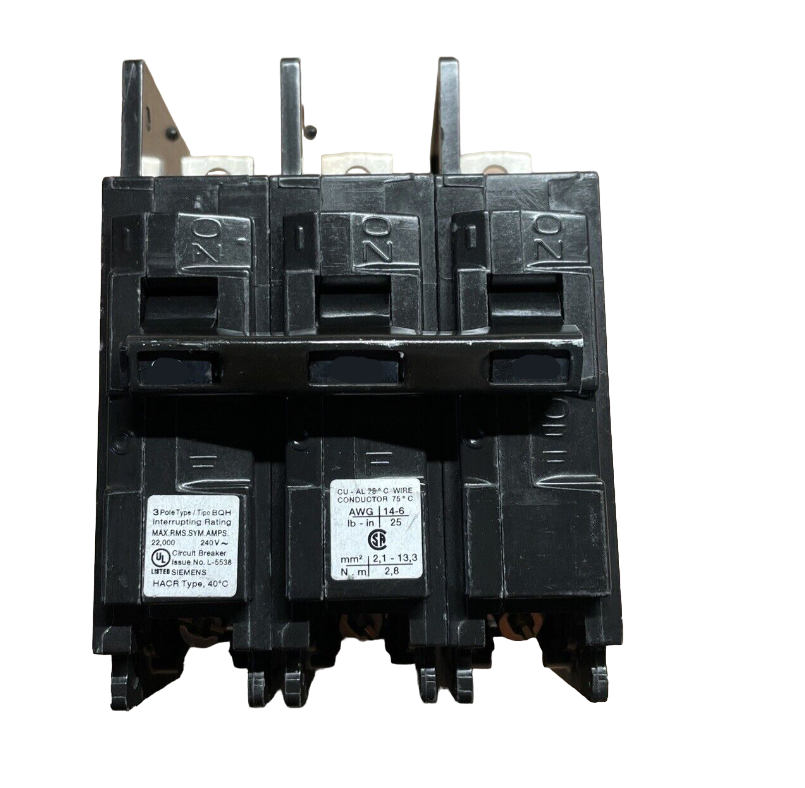

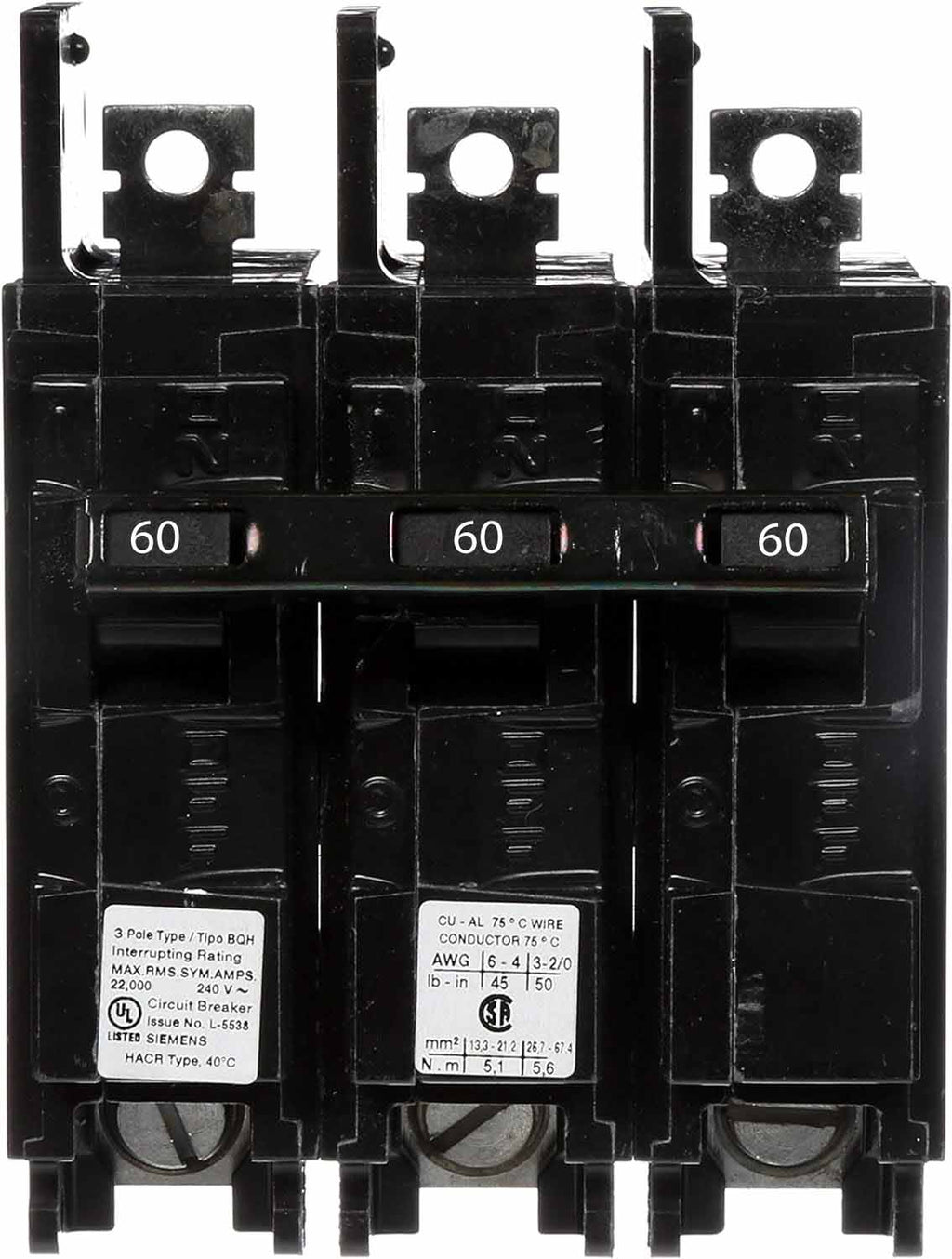

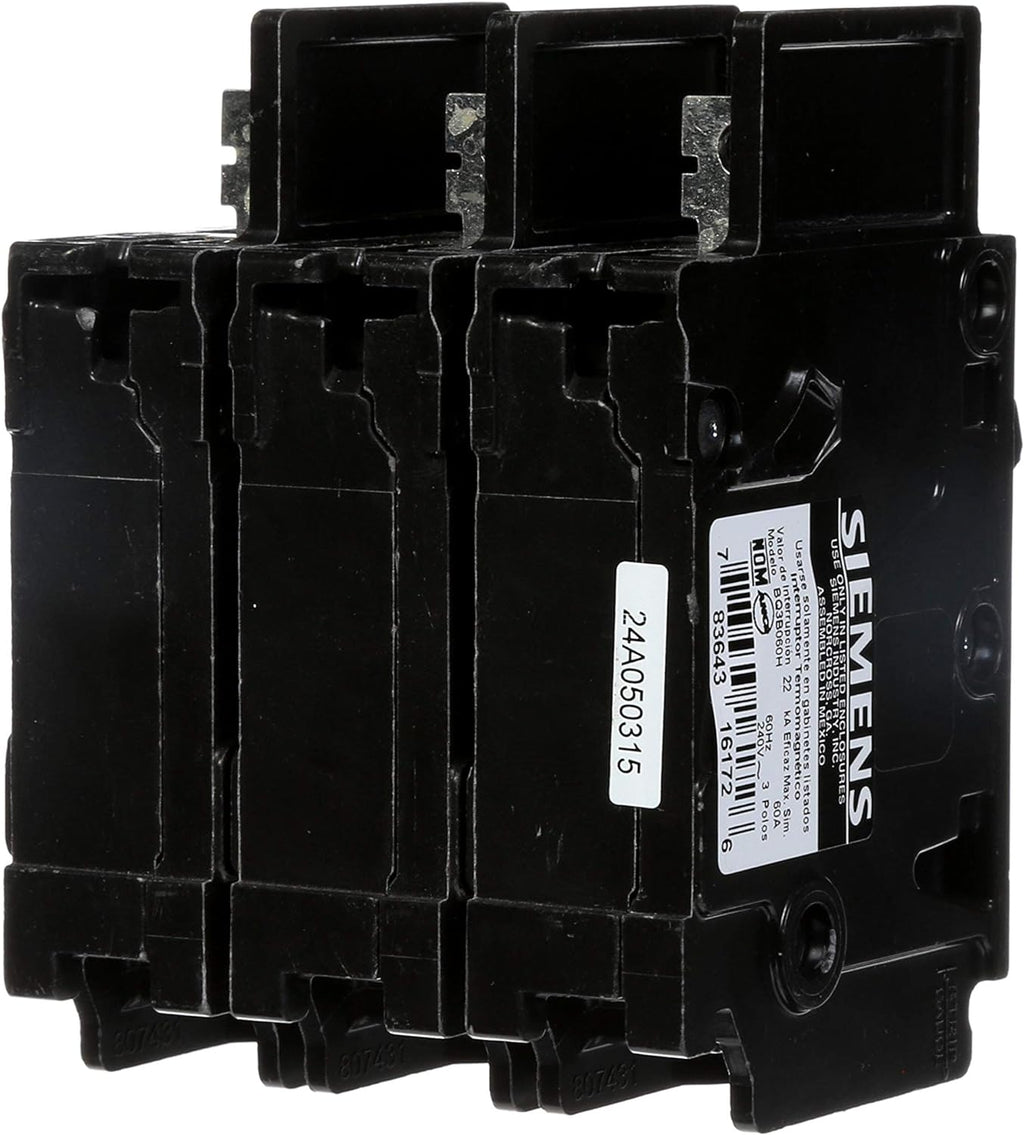

BQ3B060H - Siemens 60 Amp 240 Volt 3 Pole BQ Series Molded Case Circuit Breaker

BQ3B060H

BQ3B060H is a Siemens 60 Amp, 240 Volt, 3 Pole molded case circuit breaker designed for reliable circuit protection.This Siemens BQ Series bolt-on circuit breaker features a thermal/magnetic trip unit with a 22 kA interrupt rating at 240 VAC. It is designed for low voltage applications and provides common-trip protection across three poles. The breaker is suitable for panelboards and switchboards requiring a compact, high-performance protective device.

Key Specifications
• Amperage: 60 Amps
• Voltage Rating: 240 Volts AC
• Number of Poles: 3
• Interrupt Rating: 22,000 Amps (22 kA)
• Trip Unit: Thermal/Magnetic
• Mounting Type: Bolt-On
• Series/Frame: BQ
• Certifications: UL Listed, CSA Certified (typical for Siemens BQ series)
• Application: Low Voltage Circuit Protection
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: BQ3B060H
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BQ Series
• Type : BQH
• Voltage : 240
• Amperage : 60
• Phase : 3
• Poles : 3
• AIC rating : 22kA@240V
• Connection : Bolt-on
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/BQH
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 8 AWG Max. Wire Size 2 AWG (Al), 4 AWG (Cu)
• Breaker Type : High Interrupting Capacity
• Protection : Thermal Magnetic



Product Data

• UPC : 783643161726
• GTIN : 00783643161726
• Country of Origin : Mexico
• Dimensions : 2.563 x 3.00 x 3.122 inch
• Weight : 1.014
• Panel Type : Siemens Panelboards
• Standards : HACR Rated, UL Listed
• Certification : CSA, HACR, UL
