Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
BQ3B02000S01

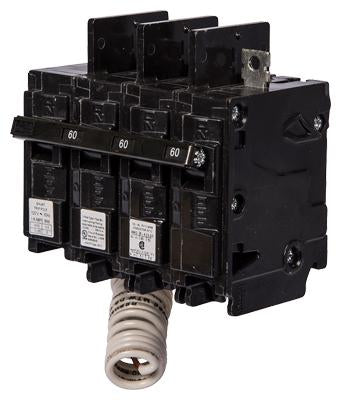

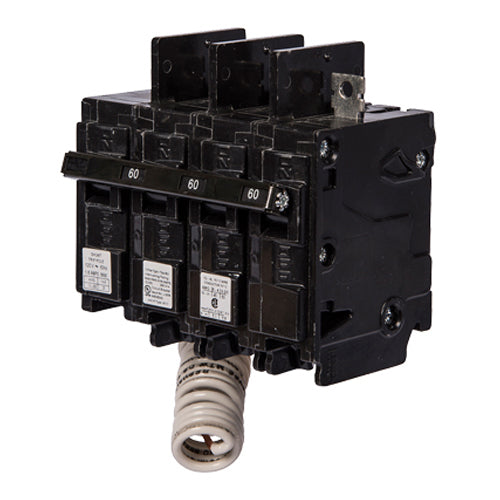

BQ3B02000S01 - Siemens 3-pole molded case circuit breaker with 120V shunt trip for bolt-on mounting.
This BQ series breaker provides thermal magnetic protection with long time and instantaneous trip functions, featuring a 10kA interrupting rating at 240V AC and non-interchangeable 120V shunt trip for remote operation in 3-phase systems.
Key Specifications
- Amperage: 20A
- Voltage: 240V AC
- Poles: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 10kA at 240V
- Series/Frame: BQ
- Trip Unit: Thermal Magnetic
- Shunt Trip: 120V Non-Interchangeable
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Additional Information
complete with non-interchangeable 120V shunt trip
Specifications
- Part Number: BQ3B02000S01
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : BQ Series
- Type : BQ
- Voltage : 240
- Amperage : 20
- Phase : 3
- Poles : 3
- AIC rating : 10kA@240V
- Connection : Bolt-on
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Lug
- Frame Size : 125A/BQ
- Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
- MCM Size : Min. Wire Size 8 AWG Max. Wire Size 4 AWG (Al), 6 AWG (Cu)
- Breaker Type : Shunt Trip
- Protection : Thermal Magnetic
Product Data
- UPC : 783643237827
- GTIN : 00783643237827
- Country of Origin : Mexico
- Dimensions : 5.906 x 3.937 x 3.937 inch
- Weight : 1.565
- Panel Type : Siemens Panelboards
- Standards : HACR Rated, UL Listed
- Certification : CSA, HACR, UL
