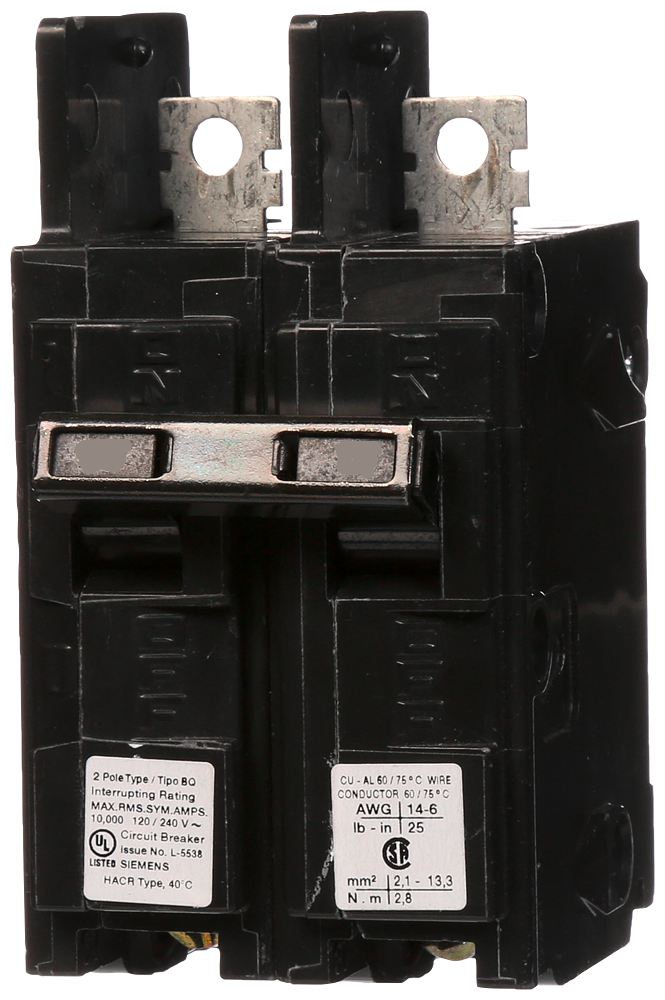

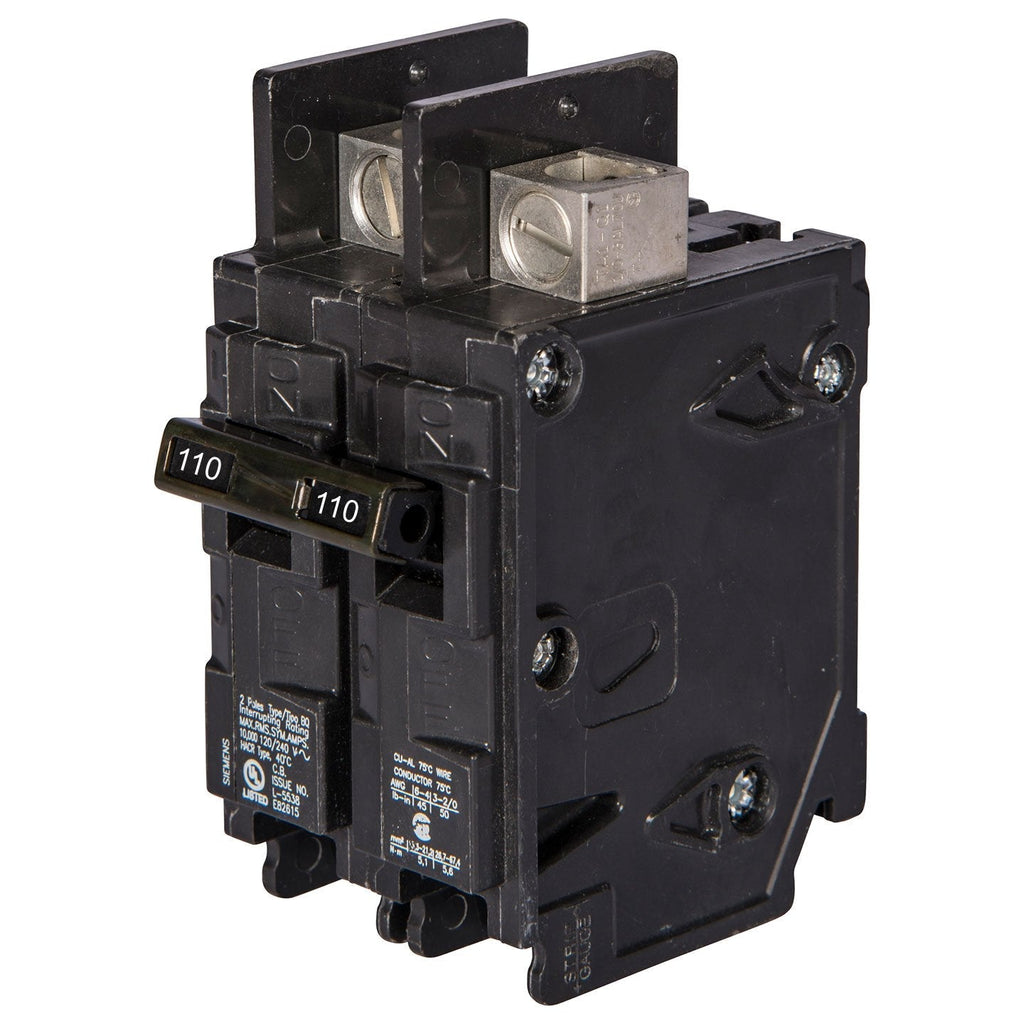

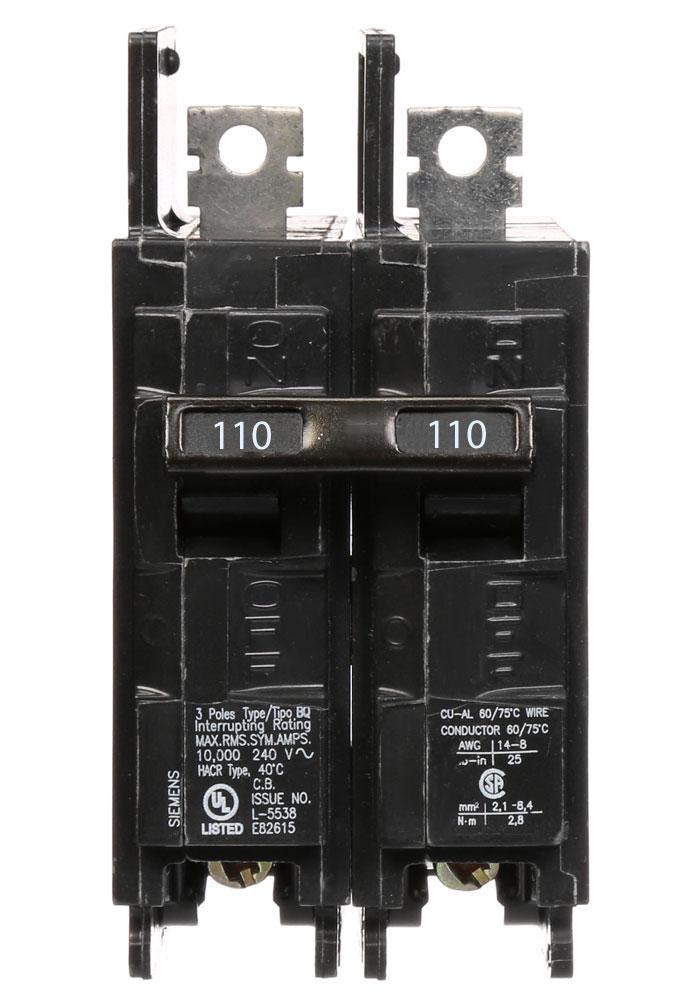

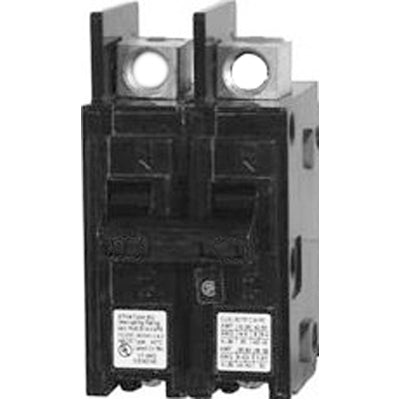

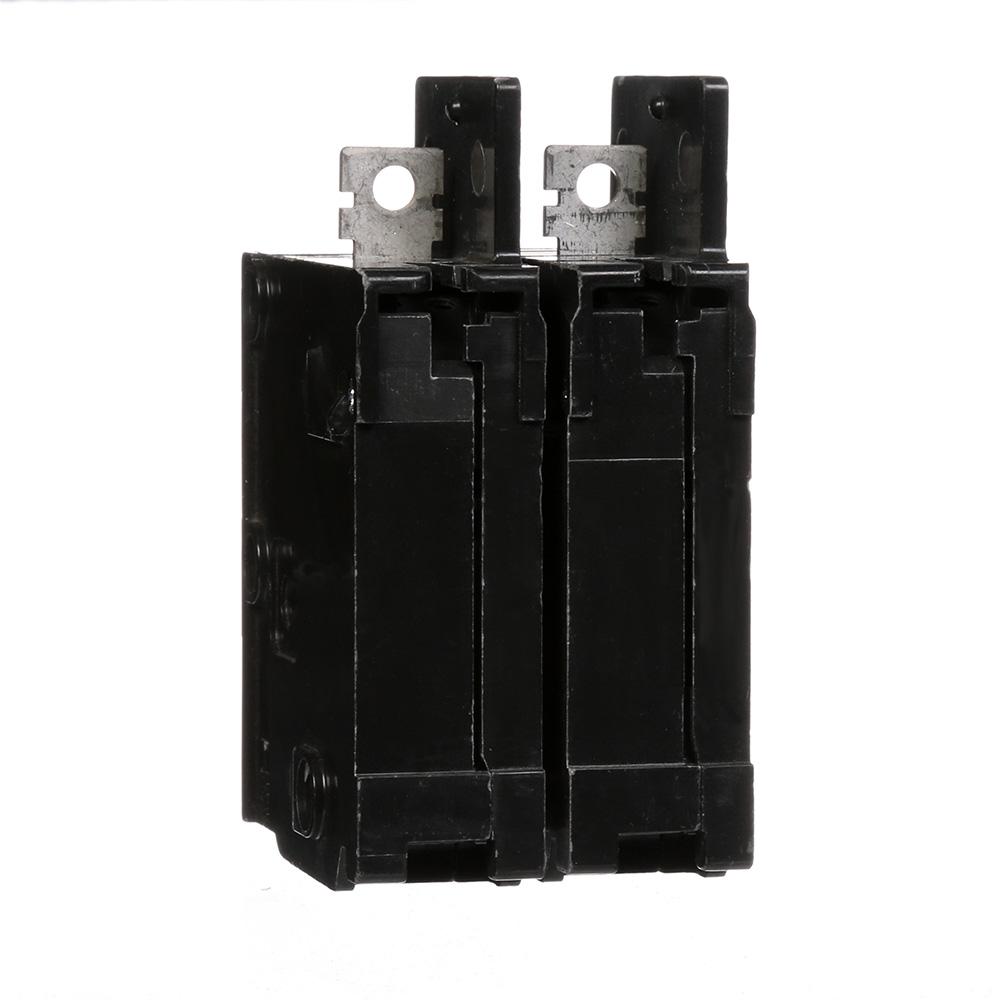

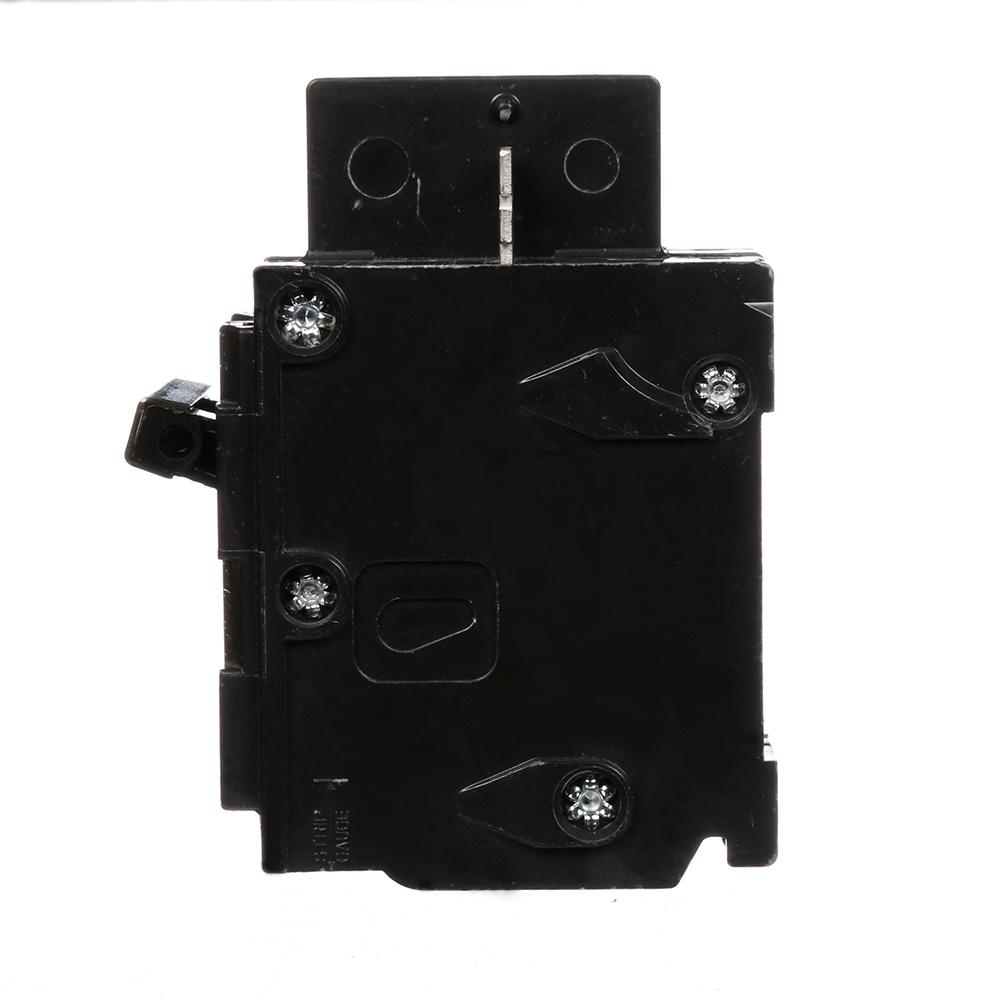

BQ2B110 - Siemens 110 Amp 2 Pole 120/240V Bolt-On Thermal Magnetic Circuit Breaker 10kA BQ Frame

BQ2B110

BQ2B110 is a Siemens 2 pole, 110 amp, 120/240 Volt bolt-on thermal magnetic circuit breaker with a 10kA interrupting rating and BQ frame.This Siemens BQ2B110 circuit breaker features a common-trip design with long time and instantaneous trip functions, thermal magnetic trip unit, and load side lugs included. It is a non-interchangeable trip molded case breaker suitable for single-phase applications requiring reliable overcurrent protection.

• Amperage: 110 Amps
• Voltage: 120/240 VAC
• Poles: 2 Pole
• Mounting Type: Bolt-On
• Interrupting Rating: 10,000 AIC @ 240V
• Frame/Series: BQ
• Trip Unit: Thermal Magnetic
• Common-Trip Design
• Load Side Lugs Included
• Non-Interchangeable Trip
• Single Phase

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BQ2B110
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BQ Series
• Type : BQ
• Voltage : 240
• Amperage : 110
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Protection : Thermal Magnetic

Product Data

• UPC : 783643191655
• GTIN : 00783643191655
• Country of Origin : Mexico
• Dimensions : 3.937 x 2.756 x 1.969 inch
• Weight : 0.705
• Panel Type : Siemens Panelboards
• Standards : HACR Rated, UL Listed
• Certification : CSA, HACR, UL
