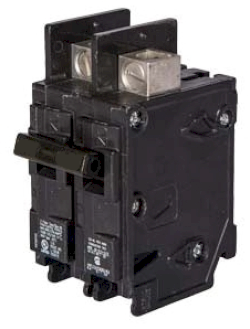

BQ2B07000S01 - Siemens 70A 2-Pole 120/240VAC Bolt-On Molded Case Circuit Breaker with 120V Shunt Trip

BQ2B07000S01

BQ2B07000S01 is a Siemens 2-pole, 70A molded case circuit breaker with bolt-on mounting for reliable overcurrent protection.This thermal-magnetic circuit breaker from the BQ frame series operates at 120/240VAC, 60Hz, providing overload and short circuit protection in panelboard applications. It features a 10kA interrupt rating at 240V and is designed for 1-phase systems at 40C ambient temperature.

• Part Number: BQ2B07000S01
• Manufacturer: Siemens
• Amperage Rating: 70A
• Voltage Rating: 120/240VAC, 60Hz
• Poles: 2
• Frame Size: BQ (125A)
• Mounting Type: Bolt-On
• Trip Type: Thermal-Magnetic
• Interrupt Rating: 10kA at 240V
• Phases: 1

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

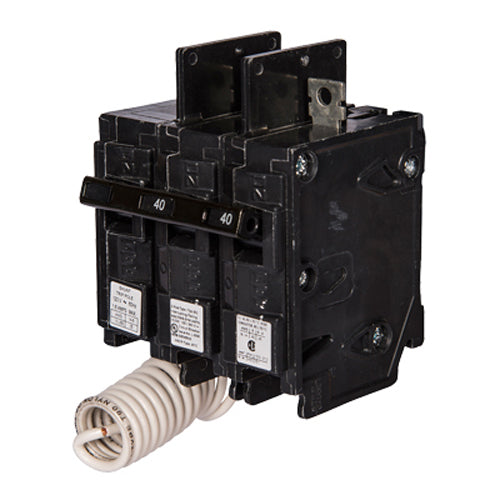

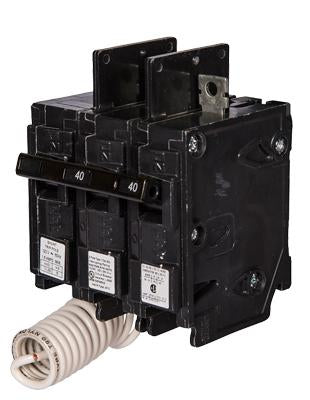

complete with non-interchangeable 120V shunt trip

Specifications

• Part Number: BQ2B07000S01
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BQ Series
• Type : BQ
• Voltage : 120/240
• Amperage : 70
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Bolt-on
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/BQ
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 8 AWG Max. Wire Size 2 AWG (Al), 4 AWG (Cu)
• Breaker Type : Shunt Trip
• Protection : Thermal Magnetic

Product Data

• UPC : 783643237773
• GTIN : 00783643237773
• Country of Origin : Mexico
• Dimensions : 5.906 x 3.937 x 2.756 inch
• Weight : 1.213
• Panel Type : Siemens Panelboards
• Standards : HACR Rated, UL Listed
• Certification : CSA, HACR, UL
