Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
BQ2B04500S01

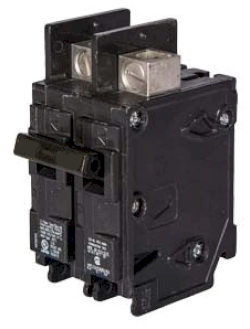

BQ2B04500S01 is a Siemens 45 Amp, 2-pole molded case circuit breaker designed for general purpose electrical distribution and protection.This circuit breaker features a BQ frame with thermal magnetic trip unit, suitable for 120/240 VAC applications. It provides reliable overload and short circuit protection with a 10,000 A interrupting rating. The breaker is UL 489 and HACR rated, compatible with wire sizes 8 to 6 AWG and 8 to 4 AWG, and mounts as a bolt-on type for easy installation.
- Key Specifications
- Amperage: 45 A
- Voltage: 120/240 VAC
- Poles: 2
- Frame: BQ
- Trip Unit: Thermal Magnetic
- Interrupting Rating: 10,000 A
- Mounting Type: Bolt-On
- Certifications: UL 489, HACR Rated
- Wire Size Range: 8 to 6 AWG, 8 to 4 AWG
- Part Number: BQ2B04500S01
- Manufacturer : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : BQ Series
- Type : BQ
- Voltage : 240
- Amperage : 45
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Lug
- Frame Size : 125A/BQ
- Breaker Type : Shunt Trip
- Protection : Thermal Magnetic
- UPC : 662643781335
- GTIN : 00662643781335
- Country of Origin : Mexico
- Weight : 1.08
- Panel Type : Siemens Panelboards
- Standards : HACR Rated, UL Listed
- Certification : CSA, HACR, UL
Additional Information

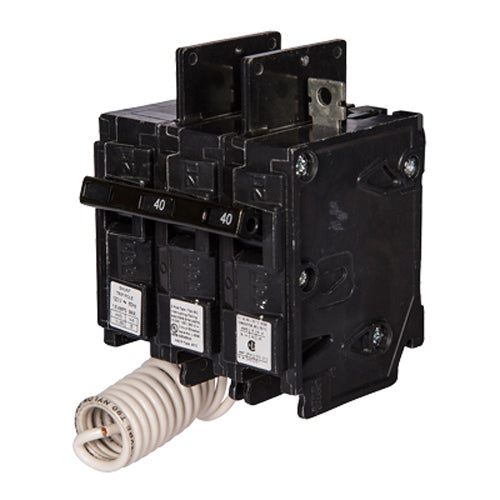

complete with non-interchangeable 120V shunt trip
