Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
BQ2B04000S01

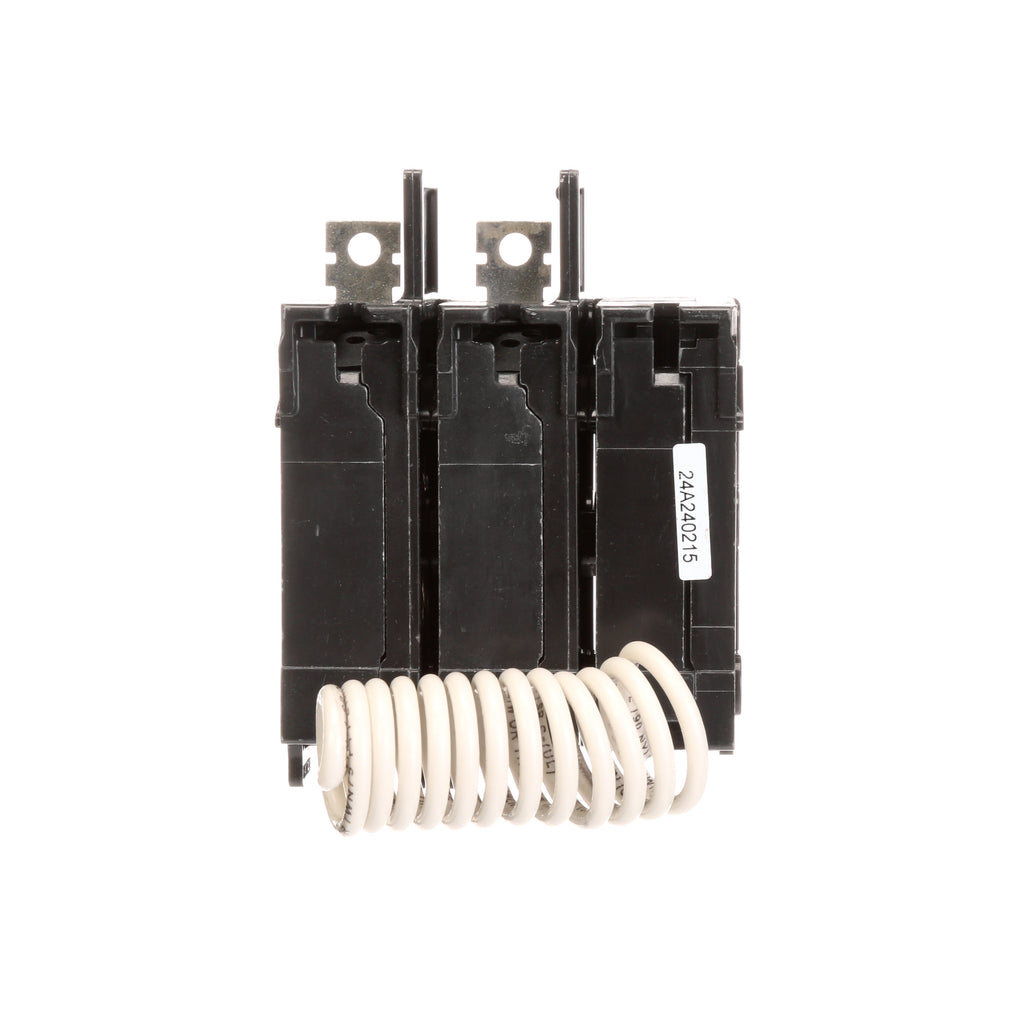

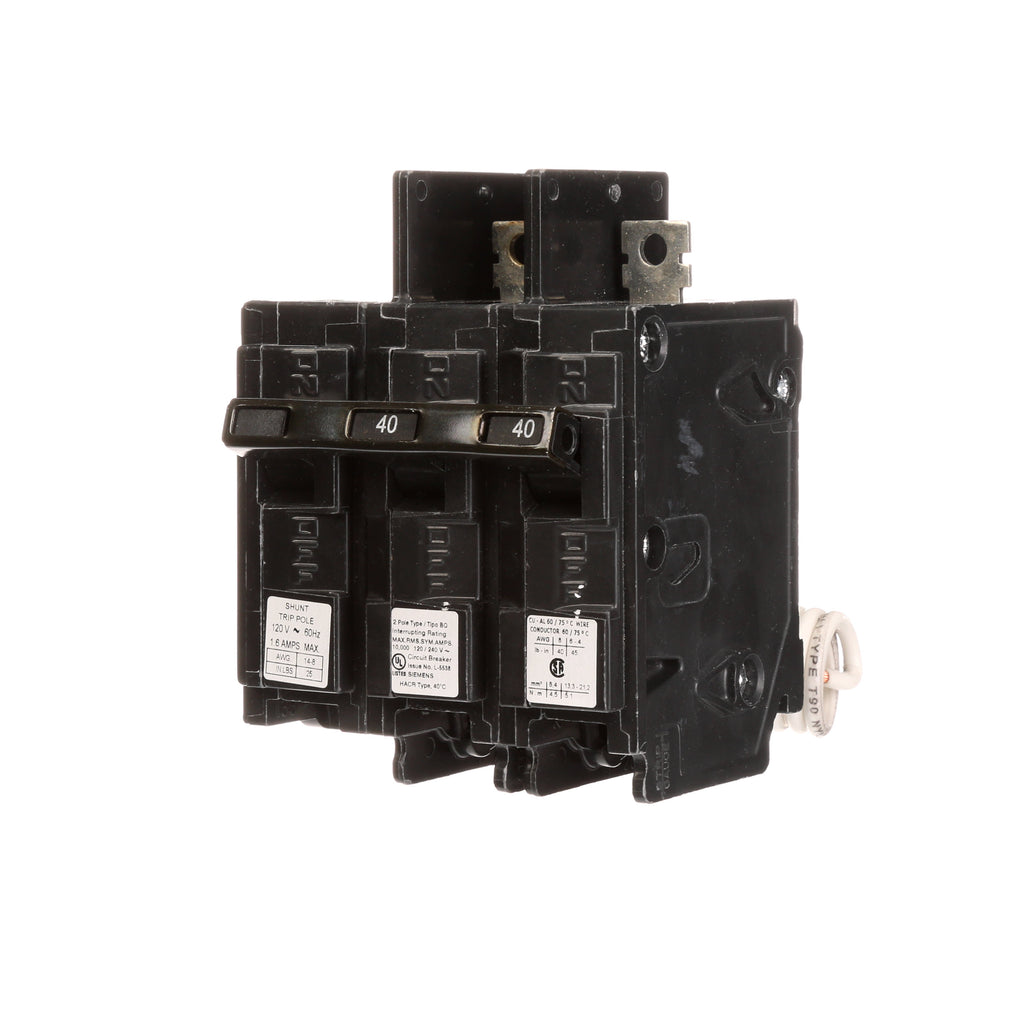

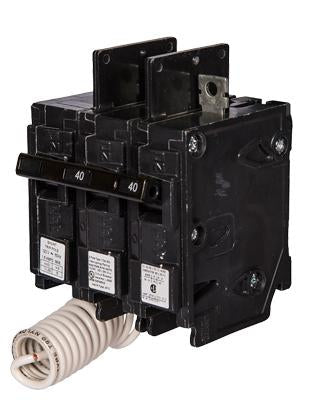

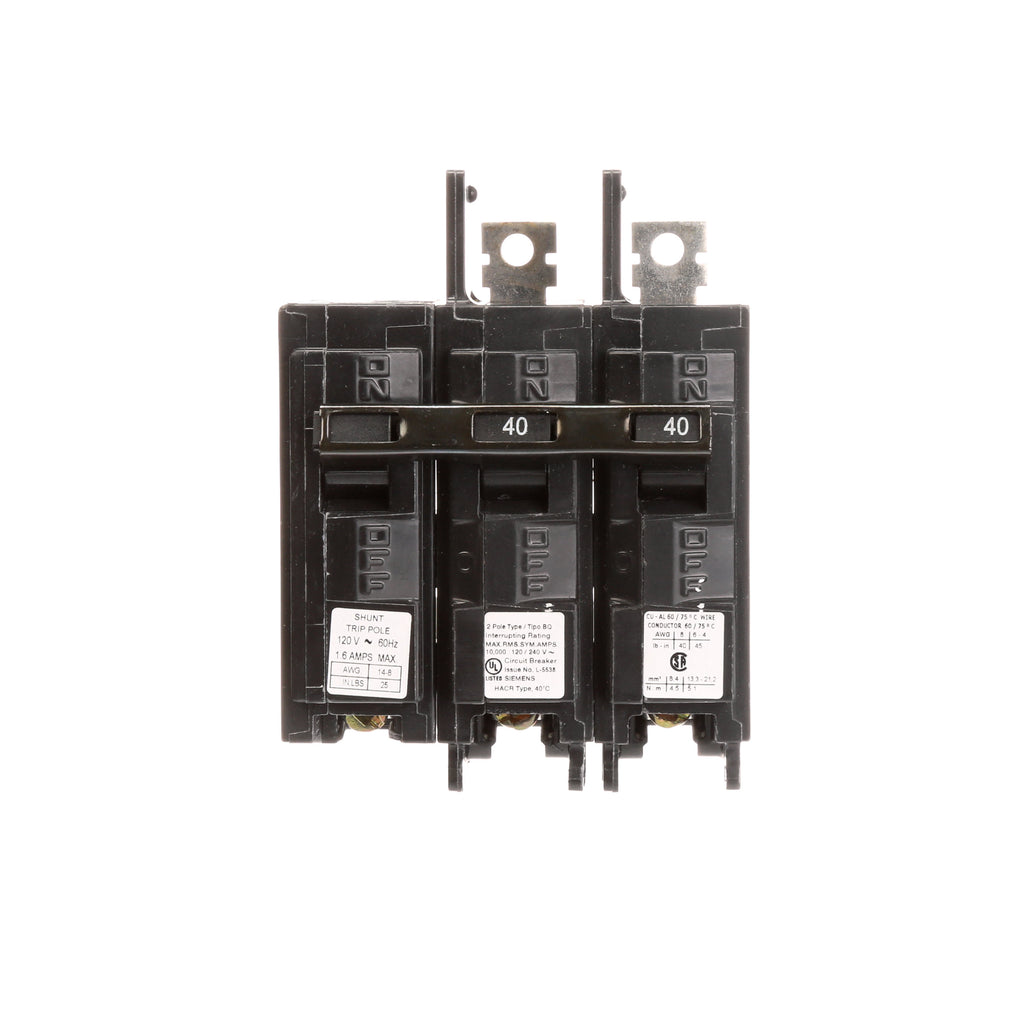

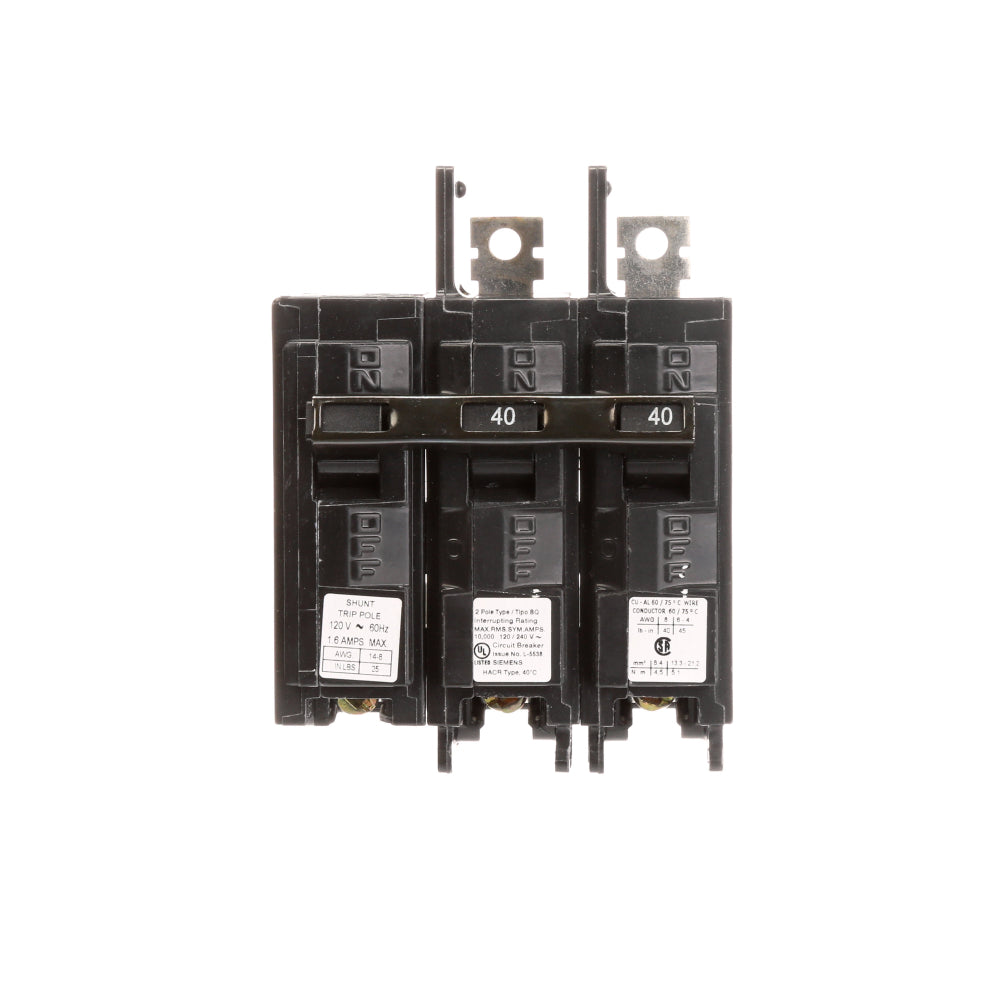

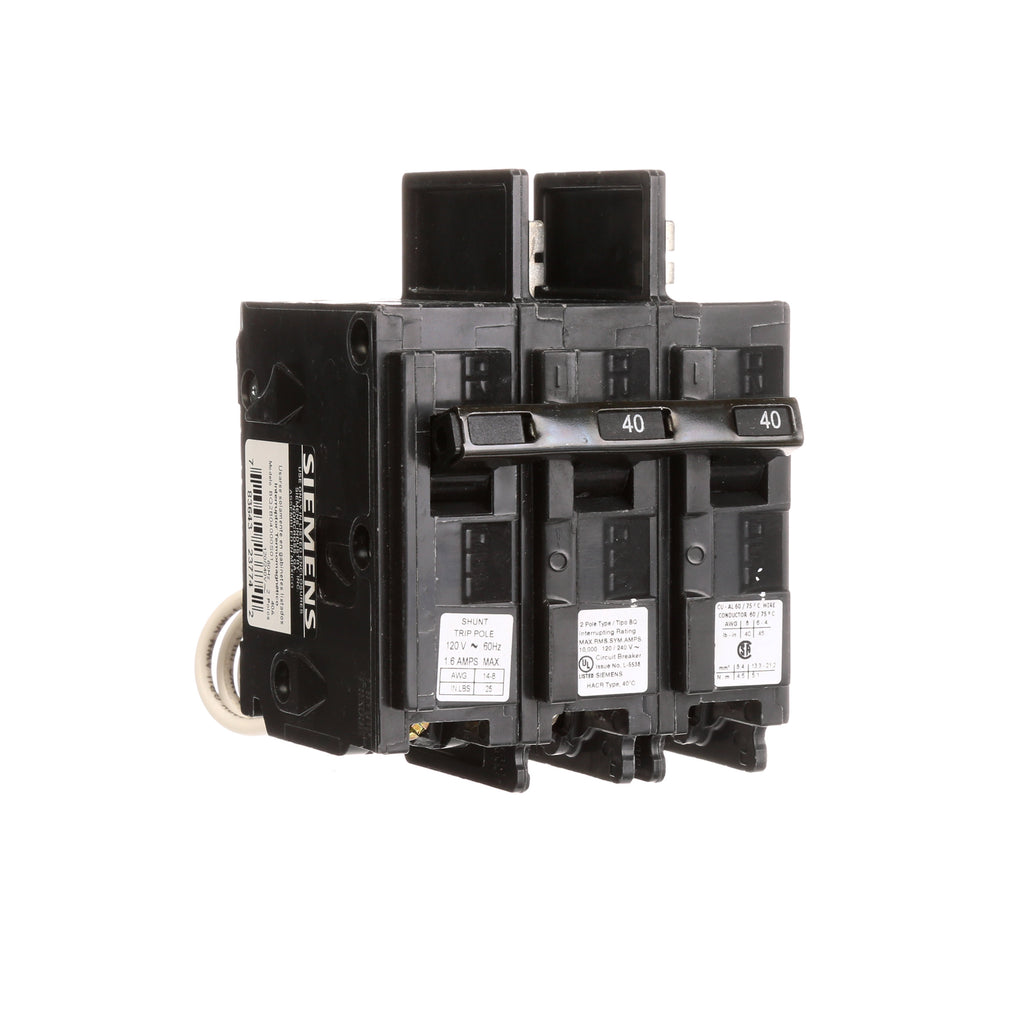

BQ2B04000S01 - Siemens BQ series 2-pole molded case circuit breaker with 120V shunt trip, 40A rating, and bolt-on mounting for 120/240V AC systems.This thermal-magnetic circuit breaker provides overload and short circuit protection in a compact BQ frame design. It features a 10kA interrupting rating at 240V AC, toggle actuator, and is suitable for bolt-on panelboard applications.
- Part Number: BQ2B04000S01
- Manufacturer: Siemens
- Series/Frame: BQ
- Poles: 2
- Amperage: 40A
- Voltage: 120/240V AC
- Mounting Type: Bolt-On
- Trip Unit: Thermal-Magnetic
- Shunt Trip: 120V
- Interrupt Rating: 10kA at 240V AC
Additional Information
complete with non-interchangeable 120V shunt trip
Specifications
- Part Number: BQ2B04000S01
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : BQ Series
- Type : BQ
- Voltage : 120/240
- Amperage : 40
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Bolt-on
- Functions : Long Time and Instantaneous Trip
- Terminal Connection : Lug
- Frame Size : 125A/BQ
- Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
- MCM Size : Min. Wire Size 8 AWG Max. Wire Size 2 AWG (Al), 4 AWG (Cu)
- Breaker Type : Shunt Trip
- Protection : Thermal Magnetic
Product Data
- UPC : 783643237742
- GTIN : 00783643237742
- Country of Origin : Mexico
- Dimensions : 5.906 x 3.937 x 2.756 inch
- Weight : 1.058
- Panel Type : Siemens Panelboards
- Standards : HACR Rated, UL Listed
- Certification : CSA, HACR, UL
