Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
BQ2B030QX

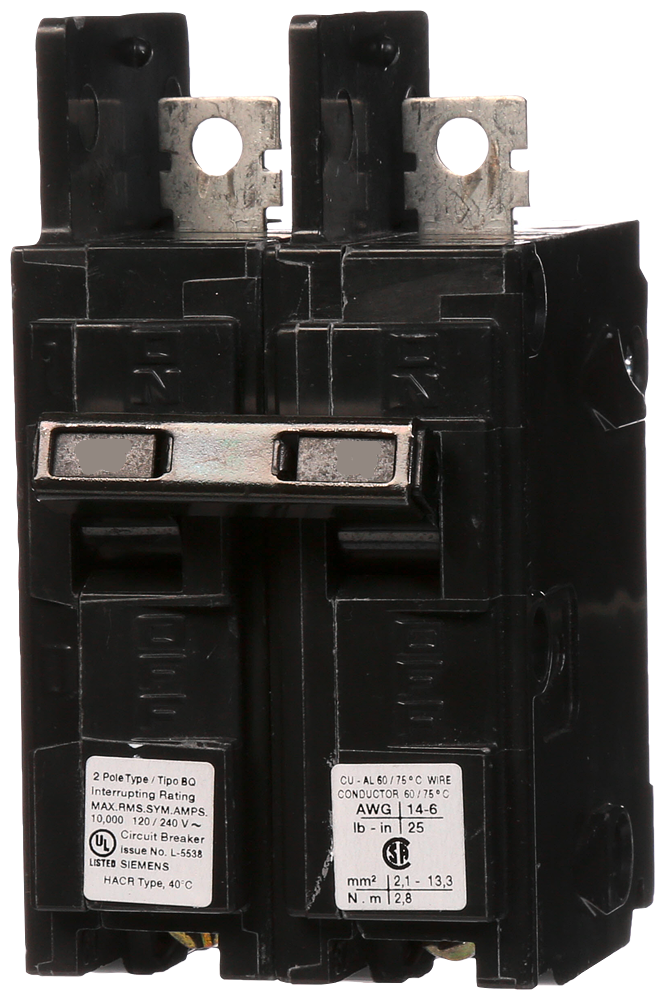

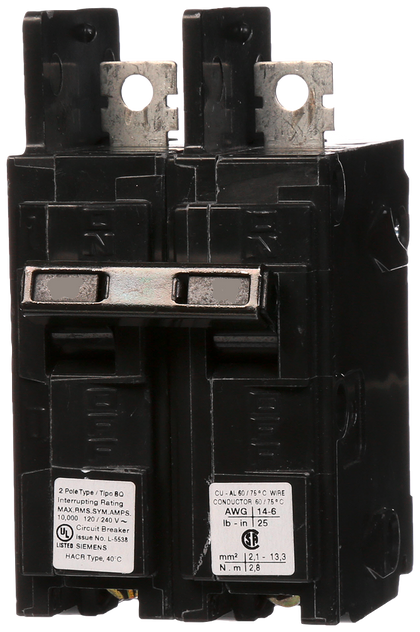

BQ2B030QX is a 2-pole molded case circuit breaker from Siemens rated for 30 amps at 120/240VAC with thermal magnetic trip protection and a 10,000 AIC interrupting rating. This bolt-on breaker features load side lugs and is designed for use in panelboards and low-voltage power distribution systems. The BQ2B030QX delivers reliable protection with long-time and instantaneous trip functions suitable for residential and light commercial applications.
- Amperage: 30A
- Voltage: 120/240VAC
- Poles: 2
- Series: BQ
- Mounting Type: Bolt-On
- Trip Type: Thermal Magnetic
- Interrupting Rating: 10,000 AIC
- Connection: Load Side Lugs Included
- Approval: UL Listed
- Phase: Single
Specifications
- Part Number: BQ2B030QX
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : BQ Series
- Type : BQ
- Voltage : 240
- Amperage : 30
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Lug
- Protection : Thermal Magnetic
Product Data
- UPC : 783643000650
- Country of Origin : Mexico
- Dimensions : 2.756 x 1.969 x 4.724 inch
- Weight : 0.794 lb
- Panel Type : Siemens Panelboards
- Standards : HACR Rated, UL Listed
- Certification : CSA, HACR, UL
