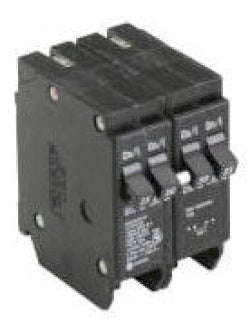

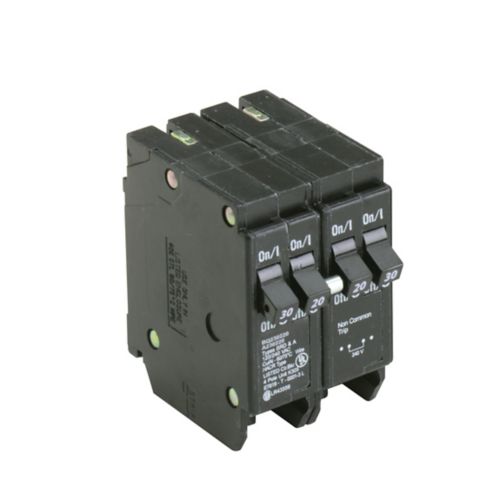

BQ230220 - Cutler Hammer 30A 2-Pole 240V Quadplex Circuit Breaker, Type BQ CTL, Plug-On, 10kAIC, Thermal Magnetic, UL/CSA/CE

BQ230220

BQ230220 is an Eaton BR thermal magnetic circuit breaker featuring a Type BQ 1-inch CTL plug-on design with independent trip operation. This quadplex breaker combines one 30-amp two-pole and one 20-amp two-pole configuration, rated for 120/240V AC service. It includes a rejection tab feature for secure mounting in Type BR loadcenters and is suitable for HACR applications.Key Specifications

• Manufacturer: Eaton
• Part Number: BQ230220
• Circuit Breaker Type: BQ Quadplex
• Amperage Rating: (1) Two-Pole 30A, (1) Two-Pole 20A
• Voltage Rating: 120/240V AC
• Number of Poles: Four-pole
• Mounting Method: Plug-on (1-inch CTL)
• Interrupt Rating: 10 kAIC
• Wire Size: #14-4 AWG Cu/Al
• Trip Type: Thermal Magnetic
• Certifications: UL 489
• Special Features: Rejection tab, Independent trip, HACR listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BQ230220
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BQ Series
• Type : BQ
• Voltage : 240
• Amperage : 30
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Protection : Thermal Magnetic

Product Data

• UPC : 786676004572
• GTIN : 00786676004572
• Country of Origin : Dominican Republic
• Dimensions : 3 in x 3 in x 2 in (Length/Depth x Height x Width)
• Weight : 0.9
• Panel Type : Type BR Loadcenters
• Standards : CSA Certified, HACR Rated, UL Listed
• Certification : UL 489,Federal Specifications Classification W-C394
• Wire Size : AWG 14 to AWG 4, Cu/Al
