BQ2302115 - Westinghouse 30A 2 Pole 240V Quadplex Molded Case Circuit Breaker, 10kA Interrupt, Thermal Magnetic, Independent Trip, BR Frame, Feed-Thru, HACR Rated

BQ2302115

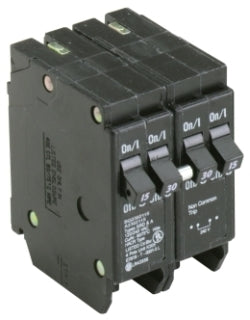

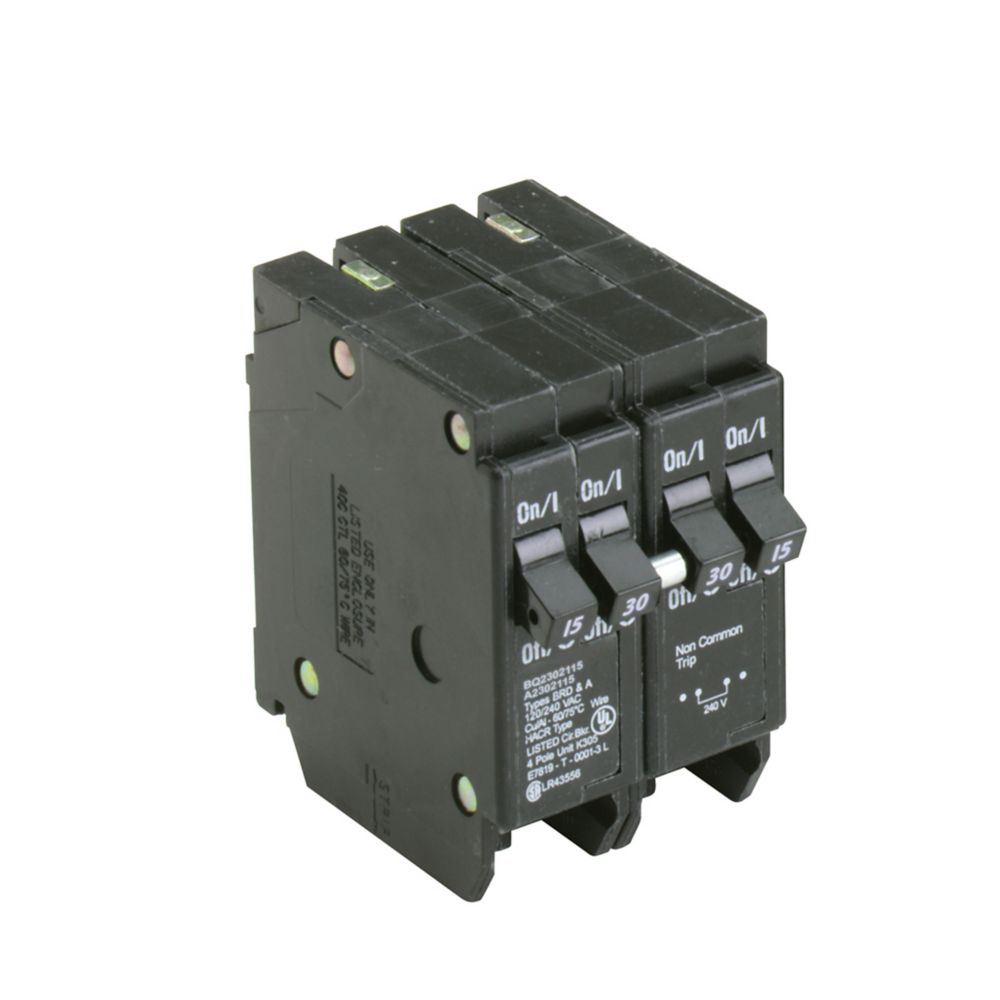

BQ2302115 - Eaton Type BQ quadplex circuit breaker with (2) 15A 1-pole outer and 2-pole 30A center for BR series loadcenters.This CTL quadplex breaker features independent trip, thermal-magnetic operation with long-time and instantaneous functions, rejection tab, feed-thru connection, HACR rated, and plug-on mounting. It supports wire size #14-4 AWG and requires two 1-inch spaces.

• Amperage: 15/30/15A
• Voltage: 120/240 VAC
• Poles: 4
• Interrupt Rating: 10 kAIC
• Frame/Series: BR
• Trip Type: Independent/LI (Thermal-Magnetic)
• Mounting: Plug-On
• Wire Size: #14-4 AWG
• Phase: 1
• HACR Rated: Yes
• Connection: Feed-Thru

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BQ2302115
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BQ Series
• Type : BQ
• Voltage : 240
• Amperage : 30
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Protection : Thermal Magnetic

Product Data

• UPC : 786676371506
• GTIN : 00786676371506
• Country of Origin : Dominican Republic
• Dimensions : 3 in x 3 in x 2 in (Length/Depth x Height x Width)
• Weight : 0.7
• Panel Type : Type BR Loadcenters
• Standards : CSA Certified, HACR Rated, UL Listed
• Certification : UL 489,Federal Specifications Classification W-C391
