Description
BQ220250

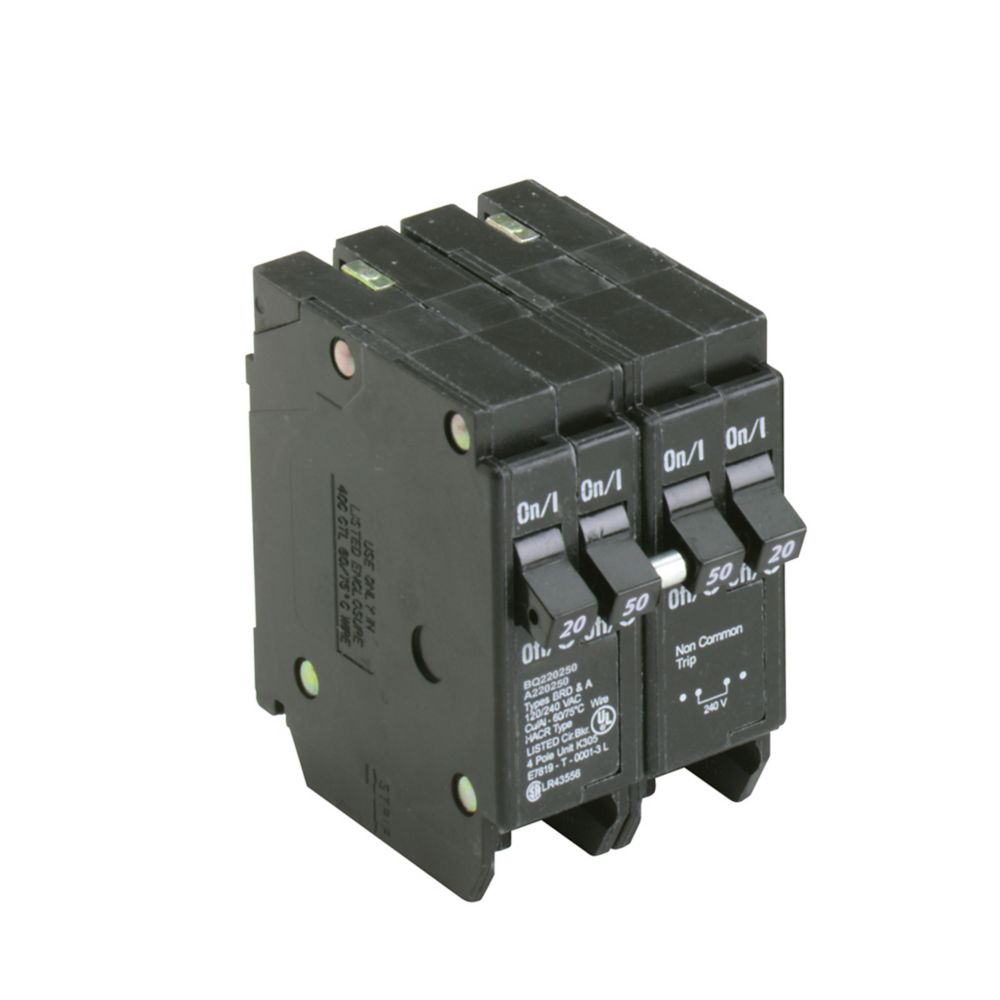

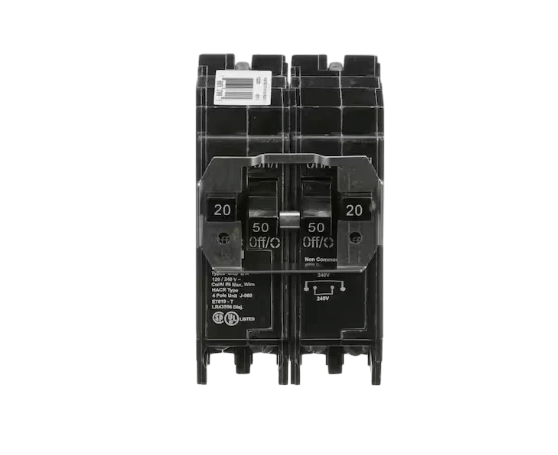

The Eaton BQ220250 is a molded case circuit breaker. This type BQ circuit breaker is a member of The BQ series family. The BQ220250 is a 2 pole, 240 Volt, 50 amp rated circuit breaker, with an AIC rating of 10kA@240V and is manufactured by Eaton and Cutler Hammer. The BQ220250 uses a feed-thru connection and includes thermal magnetic protection. The trip unit features LI - Long-Time and Instantaneous functions. Every part Essential Electric sells is also backed by our industry-leading gold standard 2-year warranty.
Specifications
- Part Number: BQ220250
- Manufacturers: Cutler Hammer
- Sub-Category: Molded Case
- UPC: 786676370905
- Poles: 2
- Phase: 1
- Voltage: 240
- Amperage: 50
- AIC Rating: 10kA@240V
- Connection: Feed-Thru
- Protection: Thermal Magnetic
- Functions: LI - Long-Time and Instantaneous
- Wire size: #14-4 AWG Cu/Al
- Panel Type: Type BR Loadcenters
- Family: BQ Series
- Type: BQ
- Certification: All Type BD Duplex and BQ Quadplex circuit breakers carry listing for HACR applications. All 15 and 20 ampere single poles are switch duty rated. UL listed
- Dimensions: Length 2in Height 2.6in Width 3.1in
- Weight: 1.75 lb
