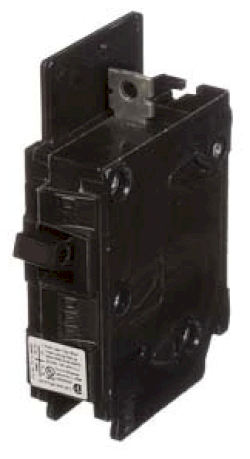

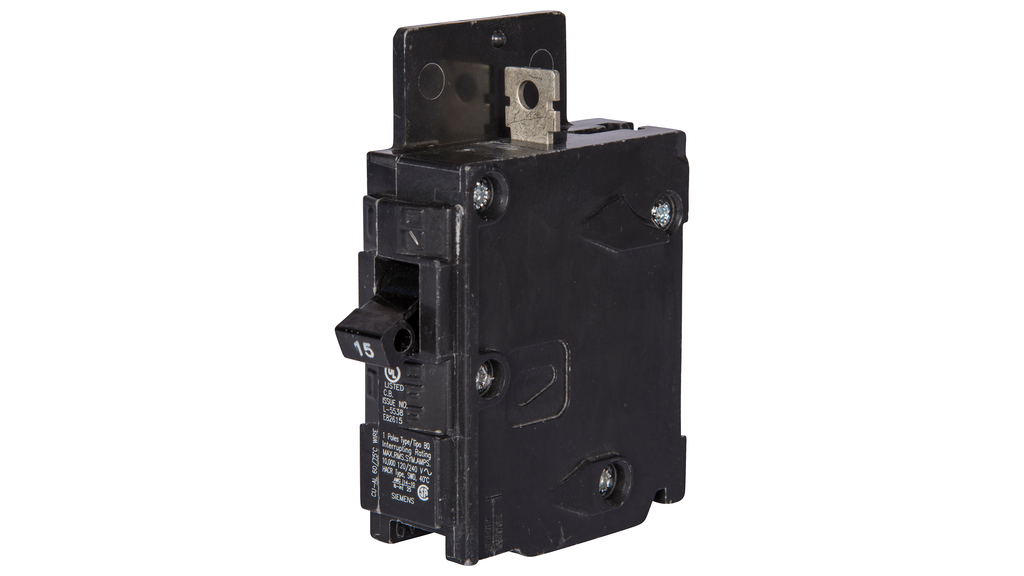

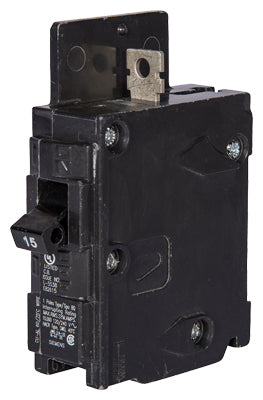

BQ1B060H - Siemens 60 Amp 120V 1 Pole Bolt-On Circuit Breaker 22kA Interrupt Rating BQ Frame

BQ1B060H

BQ1B060H is a Siemens 60 Amp, 1 Pole, 120 Volt bolt-on circuit breaker designed for reliable circuit protection.This Siemens BQ series breaker features a 22kA interrupt rating at 120V, bolt-on mounting type, and is engineered for use in residential and commercial electrical panels. It provides high interrupting capacity and durable performance with a compact 1-inch per pole frame.

Key Specifications
• Amperage: 60 Amp
• Voltage: 120 Volt AC
• Number of Poles: 1
• Mounting Type: Bolt-On
• Interrupt Rating: 22,000 Amps (22kA) at 120V
• Series/Frame: BQ
• Trip Unit: Thermal Magnetic
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BQ1B060H
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BQ Series
• Type : BQH
• Voltage : 120
• Amperage : 60
• Phase : 1
• Poles : 1
• AIC rating : 22kA@120V
• Connection : Bolt-on
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/BQH
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
• Breaker Type : High Interrupting Capacity
• Protection : Thermal Magnetic

Product Data

• UPC : 783643161559
• GTIN : 00783643161559
• Country of Origin : Mexico
• Dimensions : 3.937 x 2.756 x 0.787 inch
• Weight : 0.309
• Panel Type : Siemens Panelboards
• Standards : CSA Certified, HACR Rated, UL Listed
• Certification : CSA, HACR, UL
