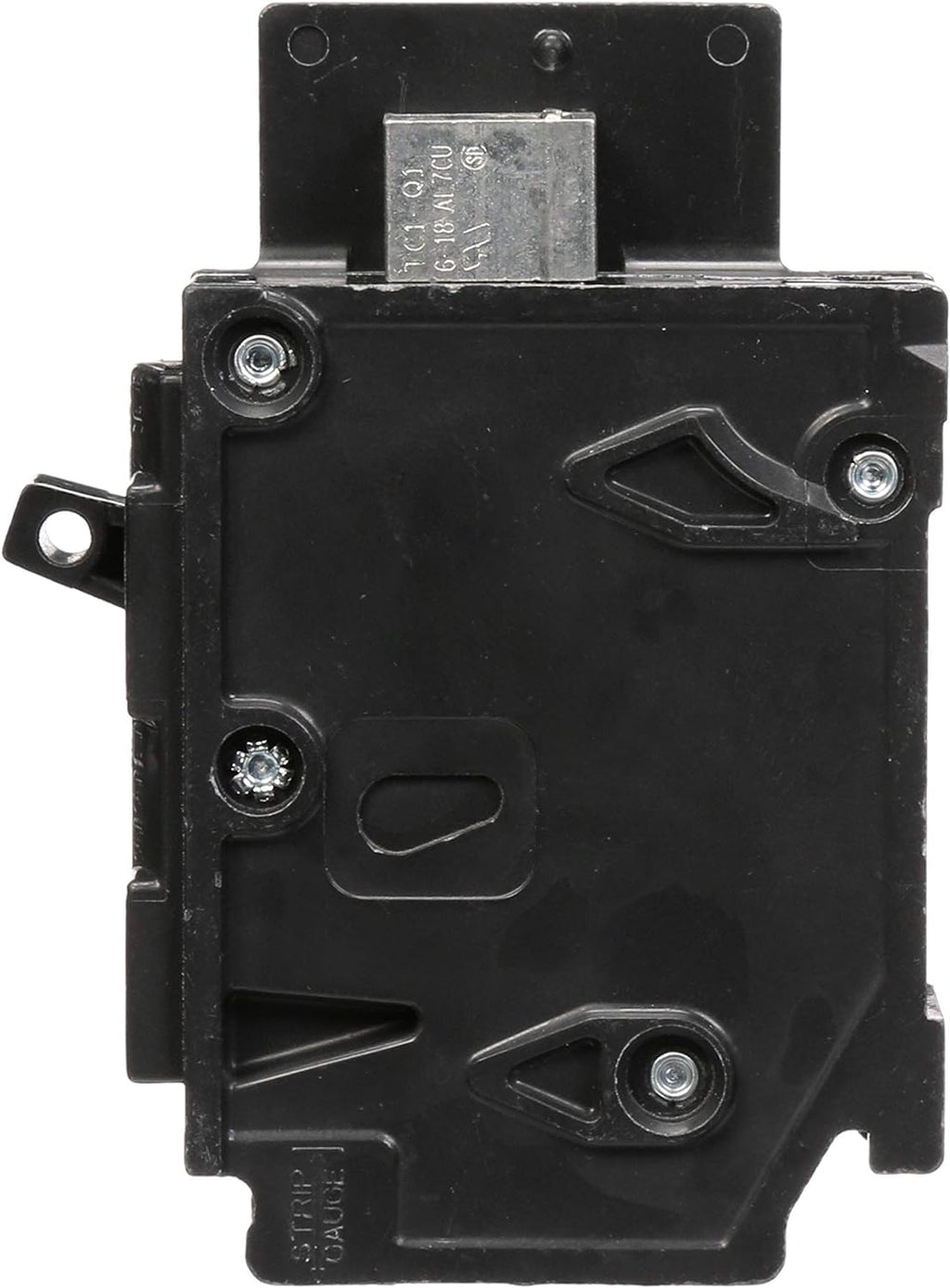

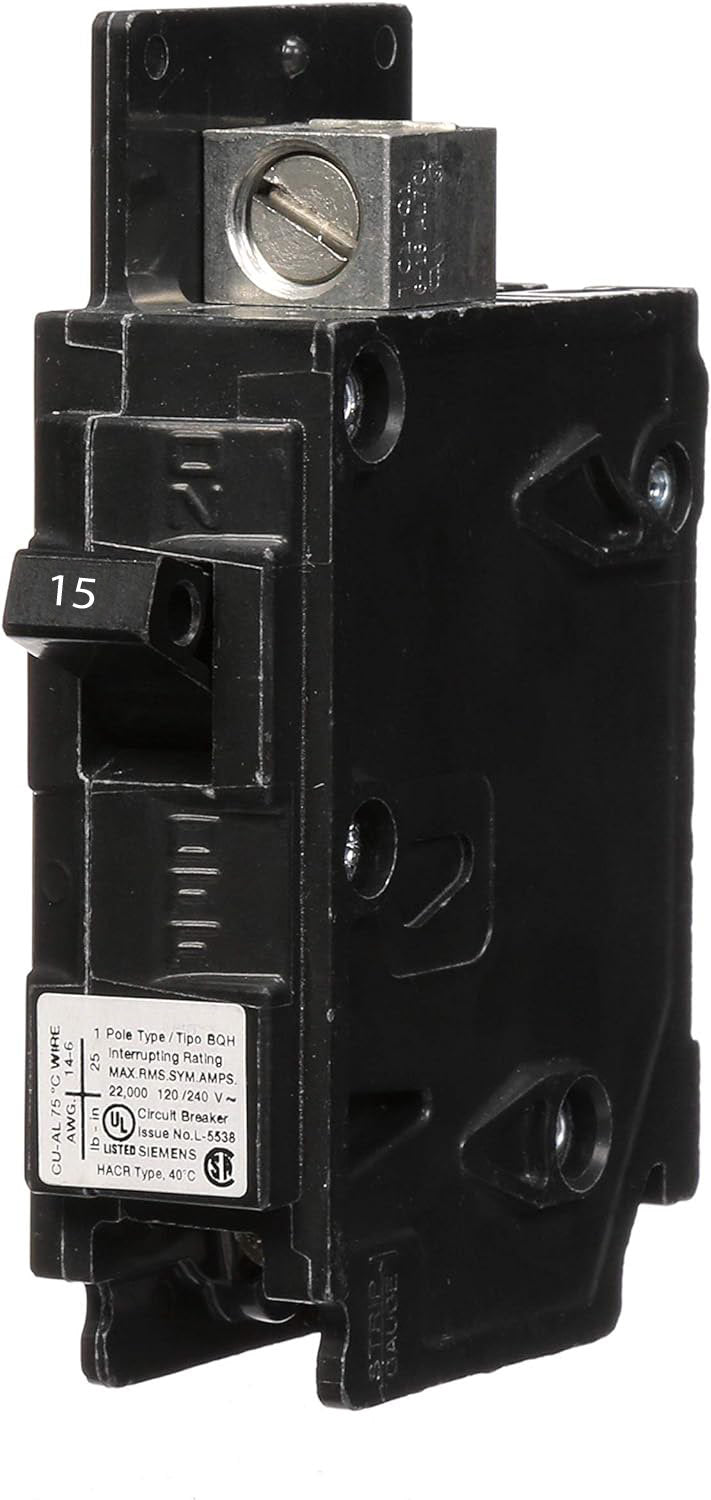

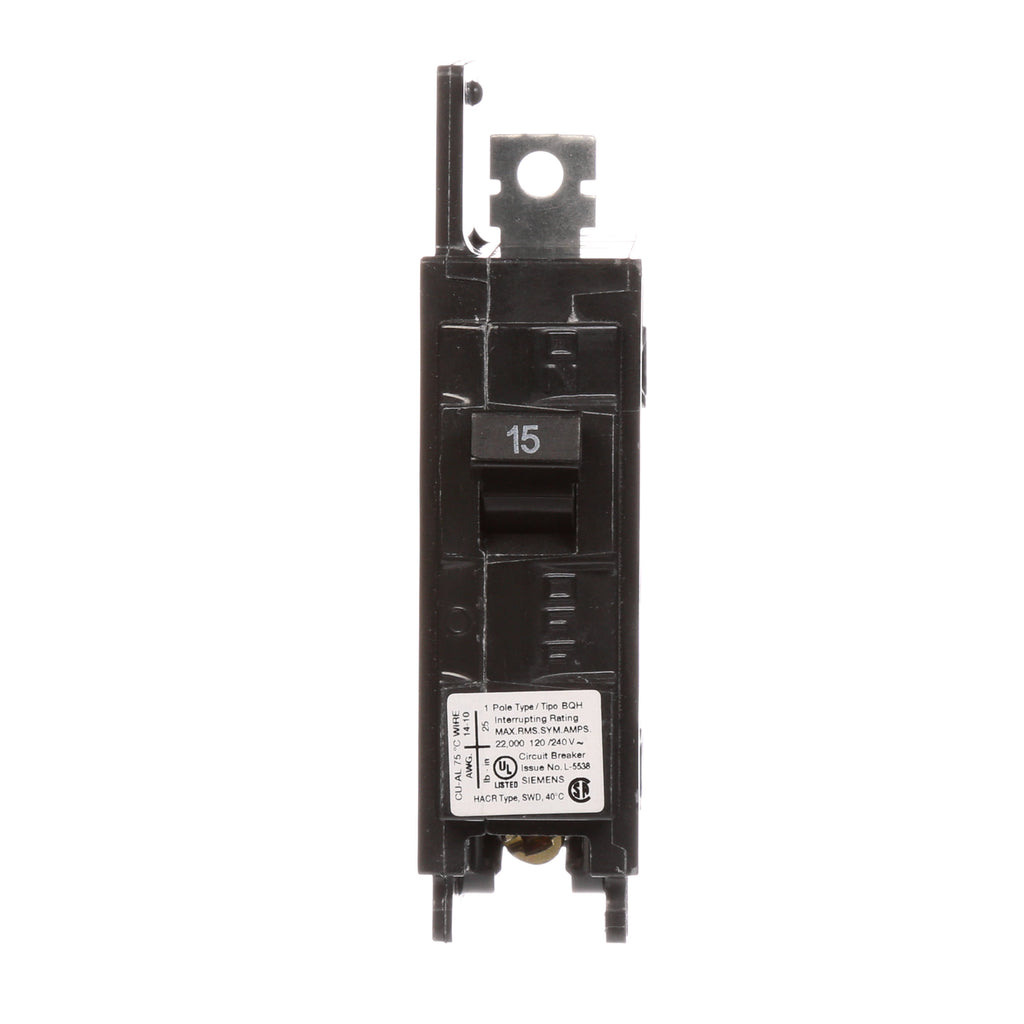

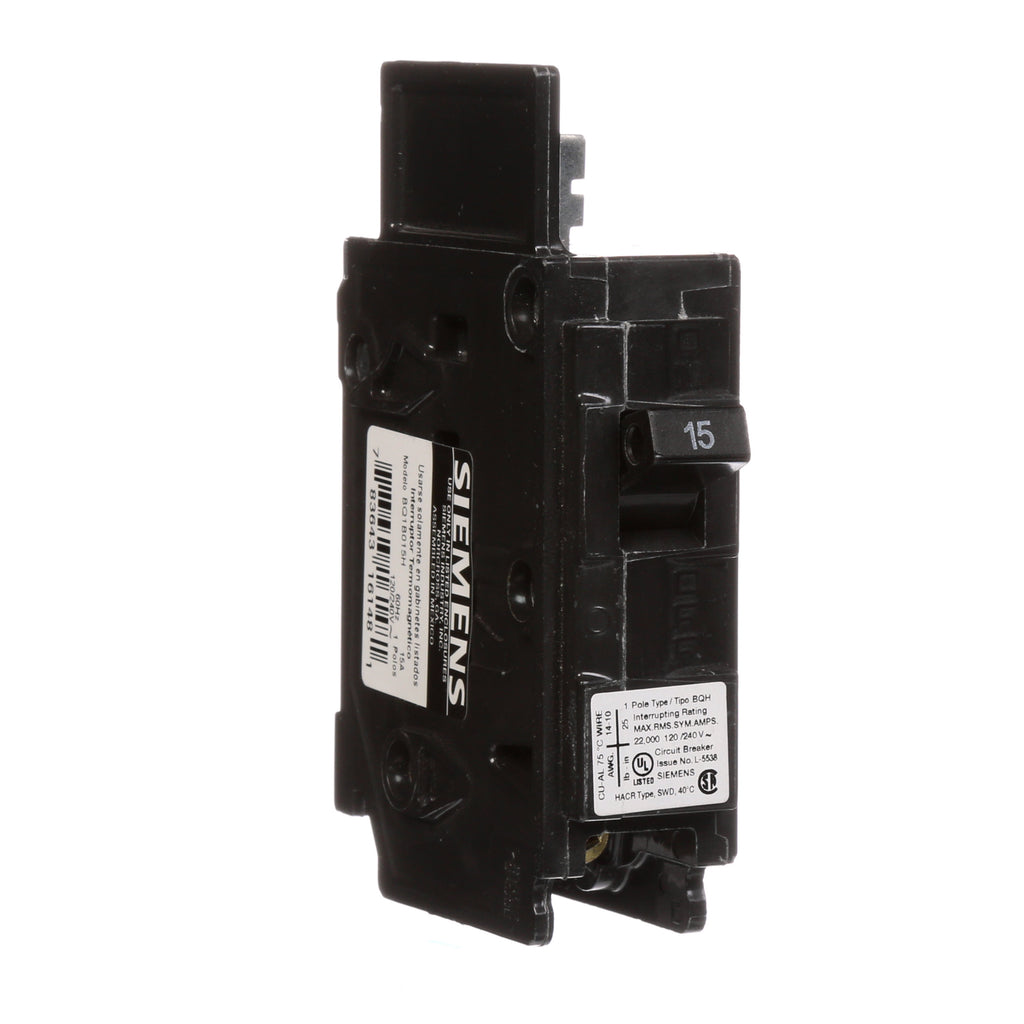

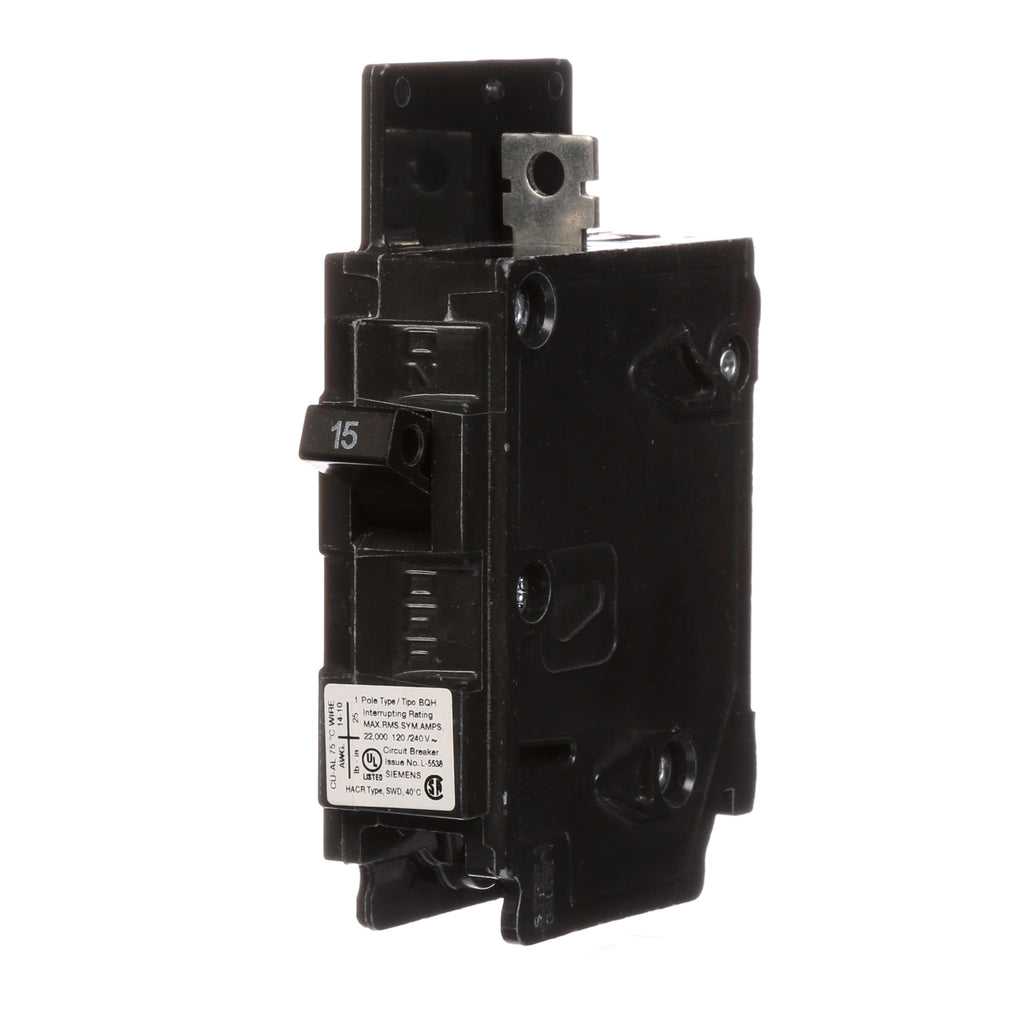

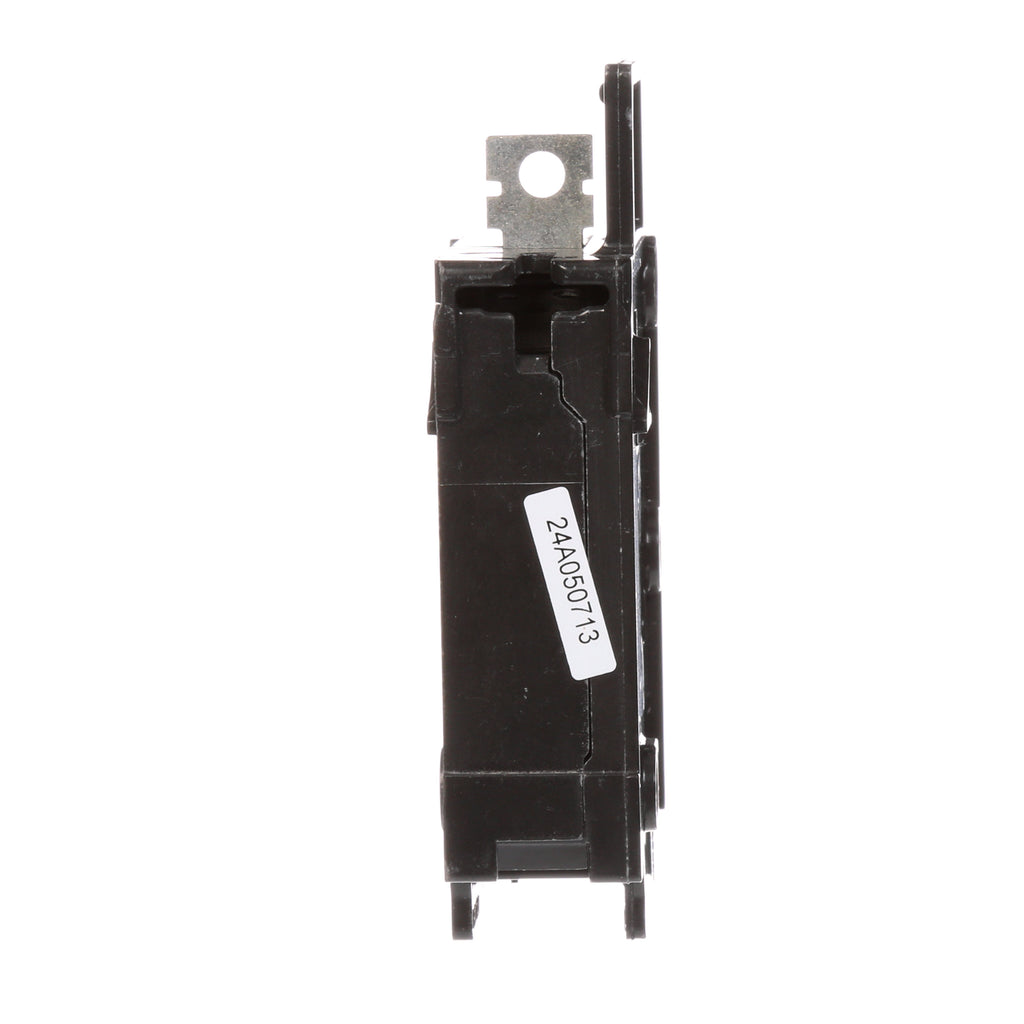

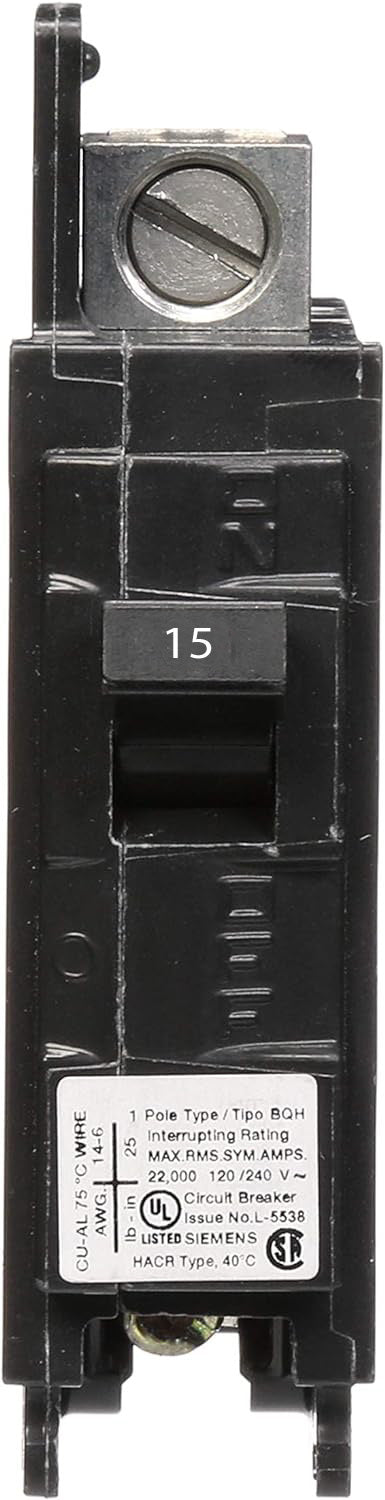

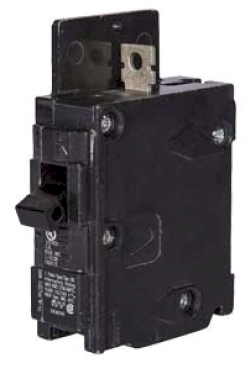

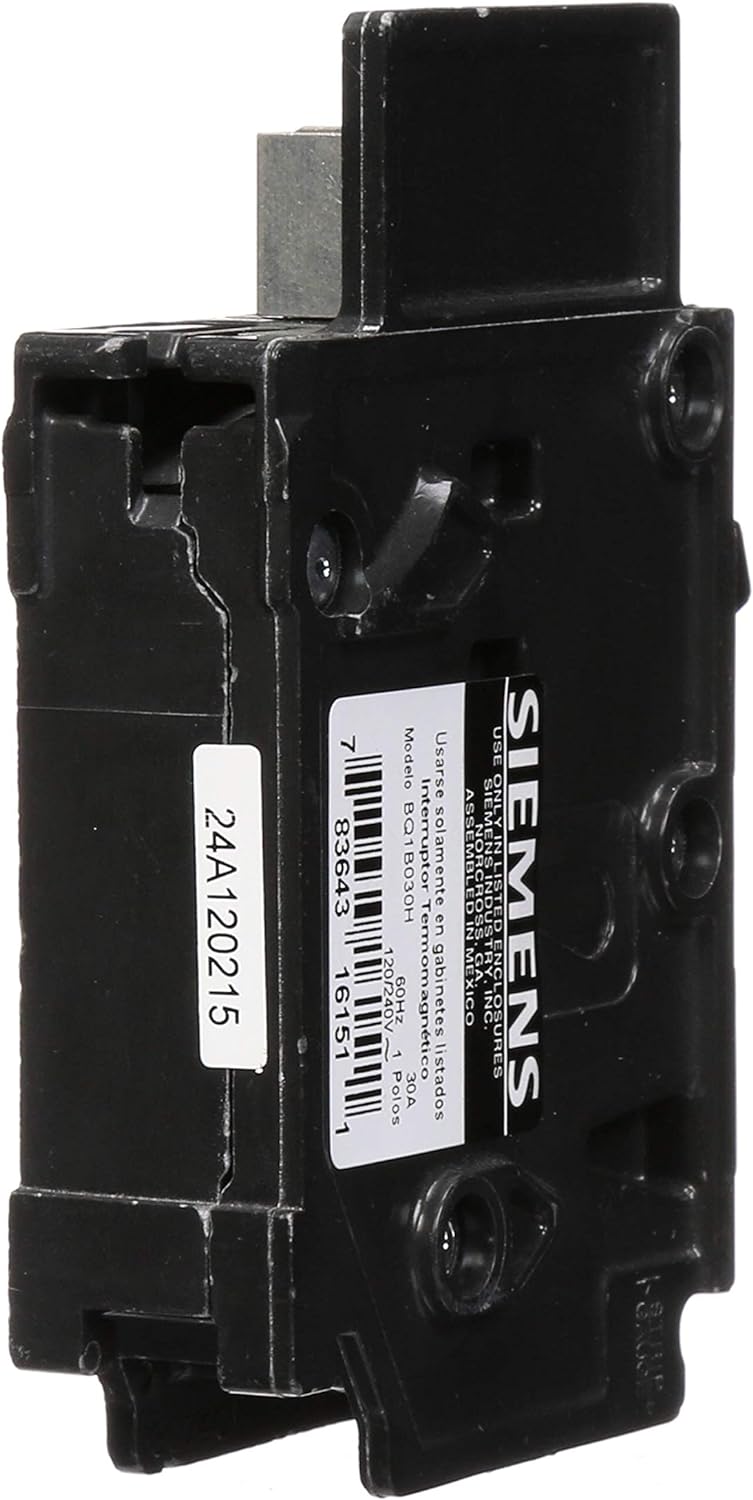

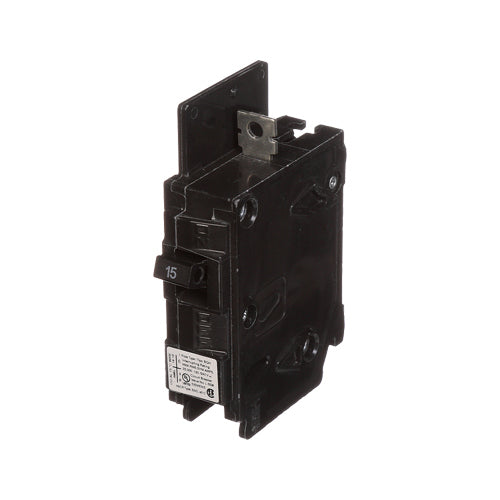

BQ1B015H - Siemens 15A 120/240V 1-Pole BQ Series Molded Case Circuit Breaker Bolt-On Stud

BQ1B015H

BQ1B015H is a Siemens 15 amp, 1-pole molded case circuit breaker designed for low voltage power distribution applications.This Siemens BQ series breaker features a thermal magnetic trip unit, a bolt-on stud terminal connection, and a maximum voltage rating of 120/240 VAC. It has a 22 kA interrupt rating and is suitable for use in Siemens panelboards. The breaker supports wire sizes from 14 to 10 AWG and is designed for reliable circuit protection with a compact bolt-on mounting style.

Key Specifications
• Amperage: 15 A
• Voltage Rating: 120/240 VAC
• Number of Poles: 1
• Interrupt Rating: 22 kA
• Trip Unit: Thermal Magnetic
• Mounting Type: Bolt-On Stud
• Wire Size Range: 14 to 10 AWG
• Series/Frame: BQ
• Terminal Connection: Lug (Bolt-On Stud)
• Compatible with Siemens Panelboards

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BQ1B015H
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BQ Series
• Type : BQH
• Voltage : 120
• Amperage : 15
• Phase : 1
• Poles : 1
• AIC rating : 22kA@120V
• Connection : Bolt-on
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/BQH
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
• Breaker Type : High Interrupting Capacity
• Protection : Thermal Magnetic

Product Data

• UPC : 783643161481
• GTIN : 00783643161481
• Country of Origin : Mexico
• Dimensions : 2.756 x 0.787 x 3.937 inch
• Weight : 0.331
• Panel Type : Siemens Panelboards
• Standards : CSA Certified, HACR Rated, UL Listed
• Certification : CSA, HACR, UL
