2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
BQ1B050H

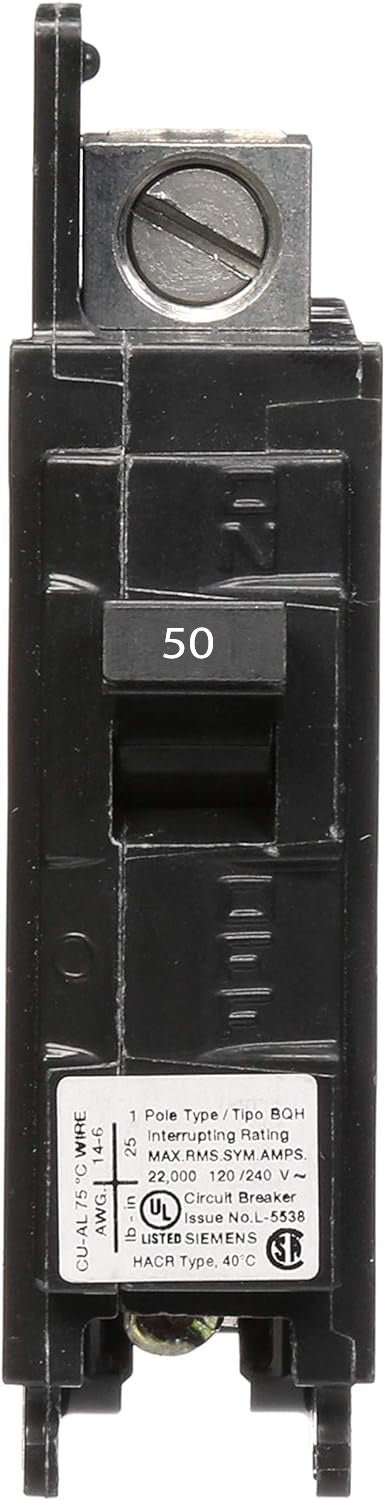

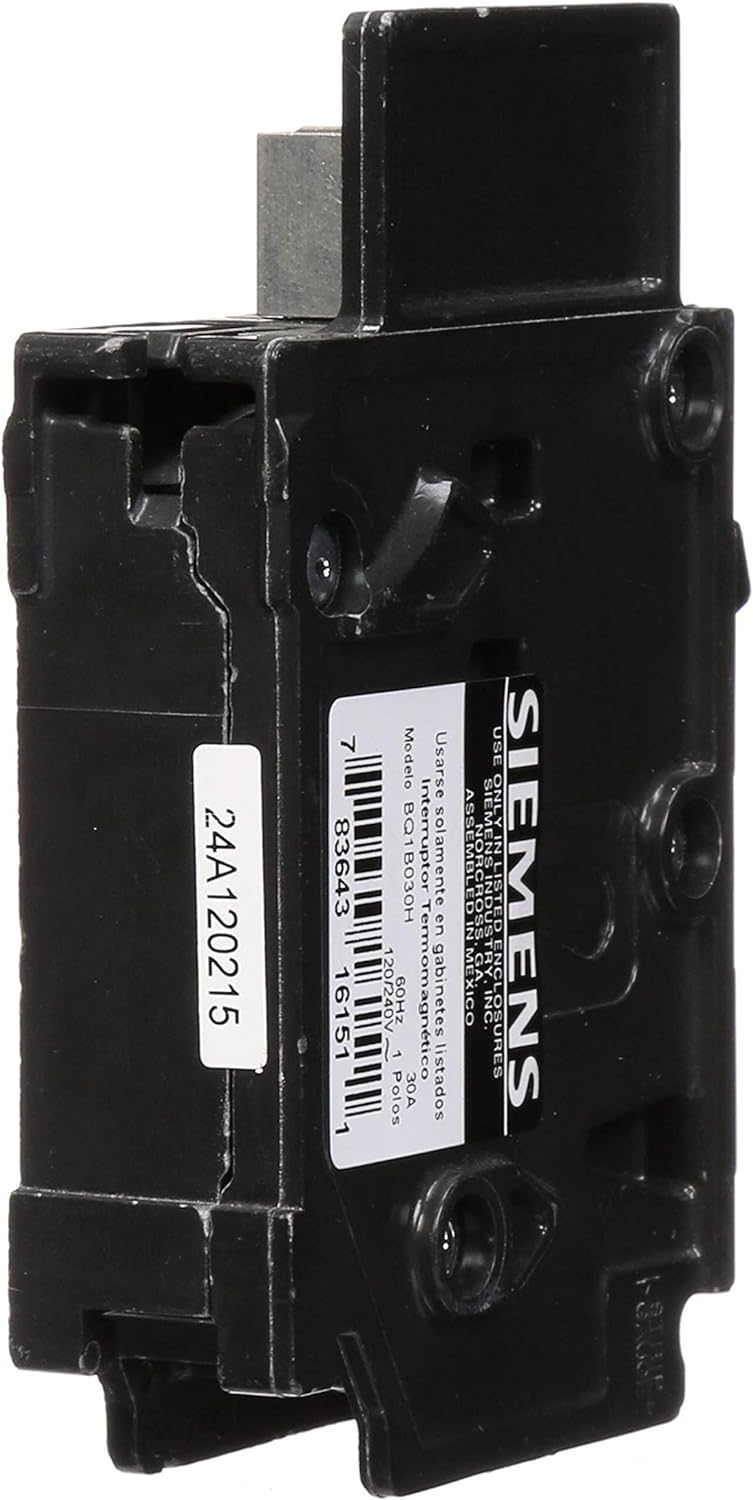

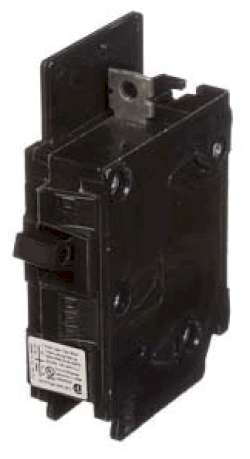

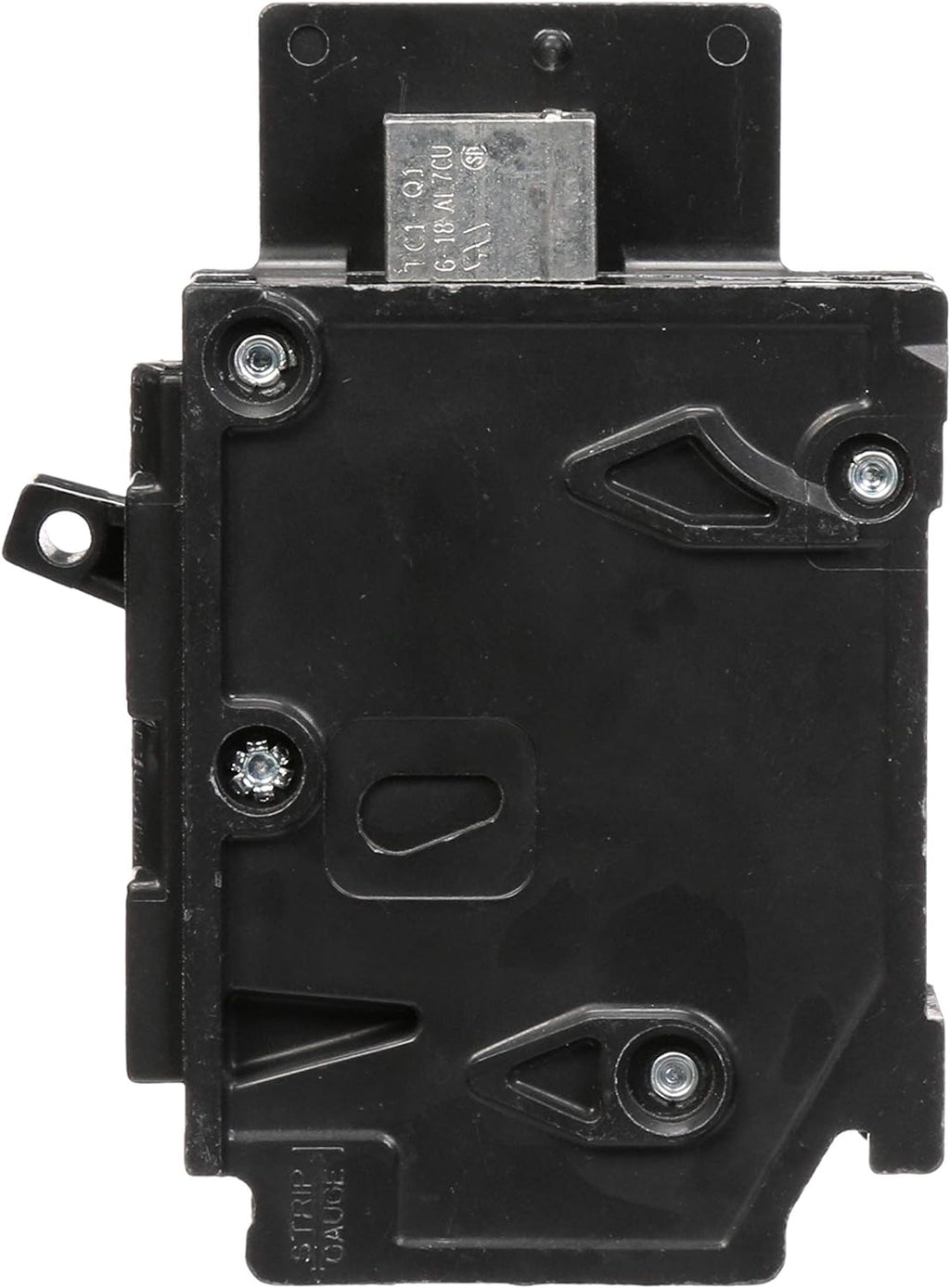

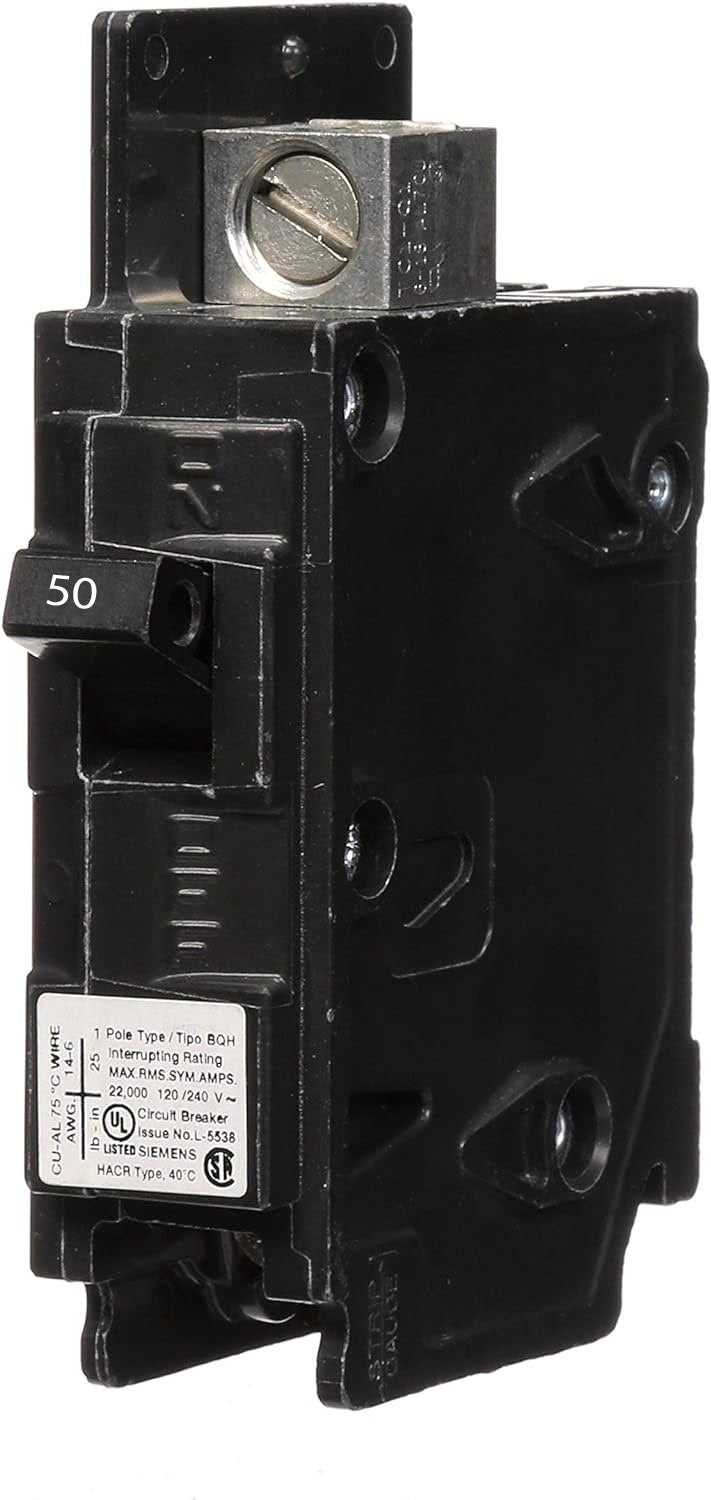

BQ1B050H is a Siemens 50A 1 Pole 120V bolt-on molded case circuit breaker designed for reliable circuit protection in commercial and industrial applications. This Siemens BQ1B050H circuit breaker features a thermal-magnetic trip mechanism, high interrupting capacity, and a bolt-on mounting design for secure installation. It is suitable for use in panelboards and switchgear requiring dependable overcurrent protection.
- Part Number: BQ1B050H
- Manufacturer: Siemens
- Amperage: 50A
- Poles: 1
- Voltage: 120V AC
- Mounting Type: Bolt-On
- Interrupt Rating: 22kAIC at 120V
- Series/Frame: BQ
- Frame Size: 125A
- Trip Unit: Thermal-Magnetic
- Non-Interchangeable Trip
- Compliance: UL Listed
Specifications
- Part Number: BQ1B050H
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : BQ Series
- Type : BQH
- Voltage : 120
- Amperage : 50
- Phase : 1
- Poles : 1
- AIC rating : 22kA@120V
- Connection : Bolt-on
- Functions : LI - Long-Time and Instantaneous Trip
- Terminal Connection : Lug
- Frame Size : 125A/BQH
- MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
- Breaker Type : High Interrupting Capacity
- Protection : Thermal Magnetic
Product Data
- UPC : 783643161535
- GTIN : 00783643161535
- Country of Origin : Mexico
- Dimensions : 3.937 x 2.756 x 0.787 inch
- Weight : 0.353
- Panel Type : Siemens Panelboards
- Standards : CSA Certified, HACR Rated, UL Listed
- Certification : CSA, HACR, UL
