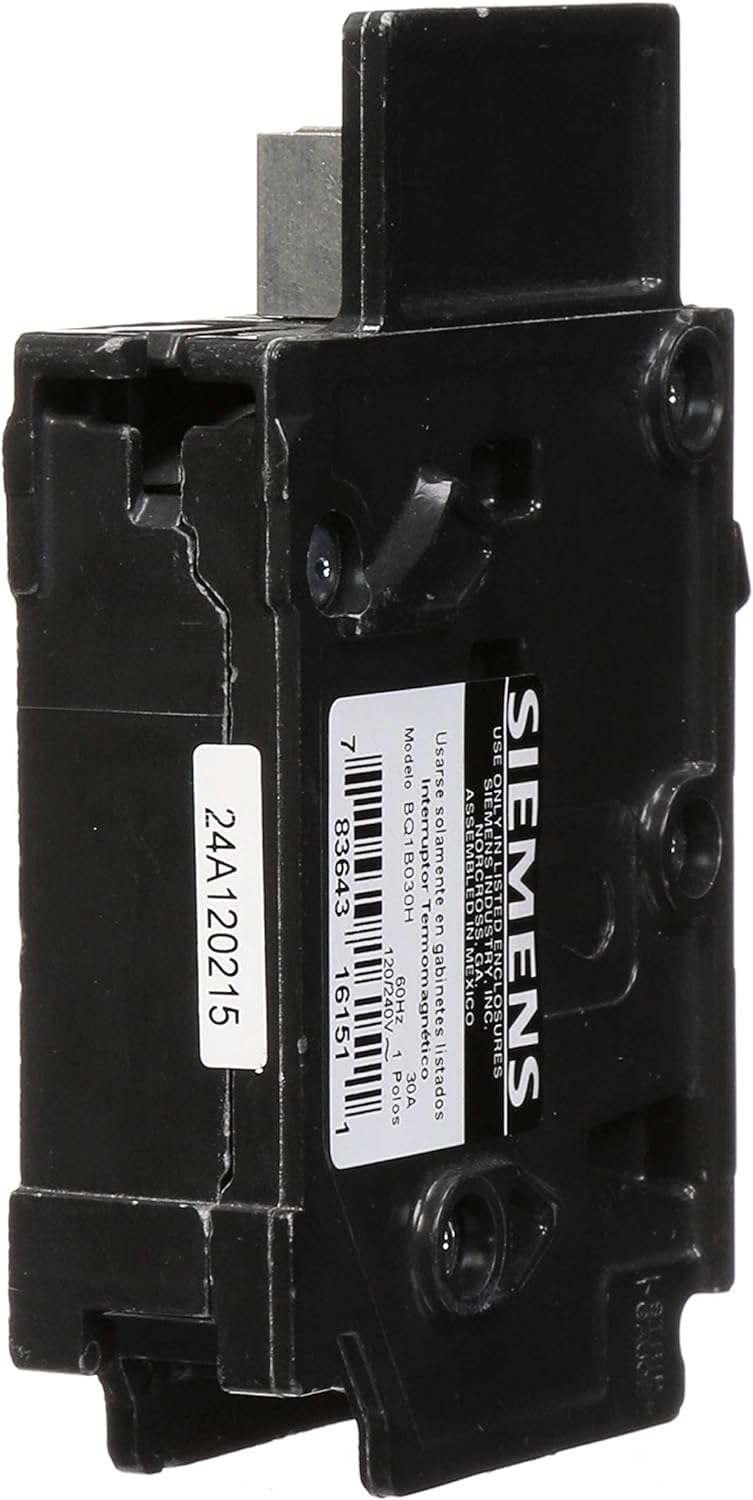

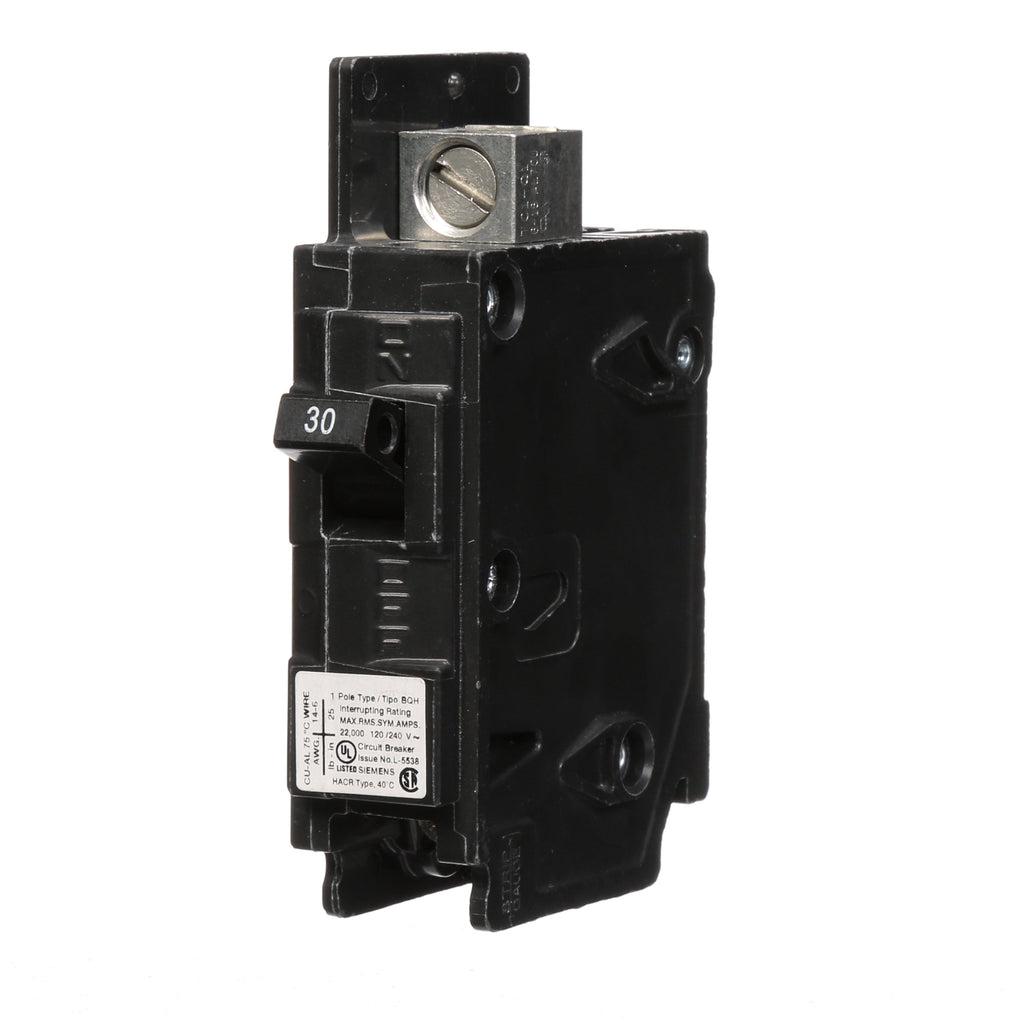

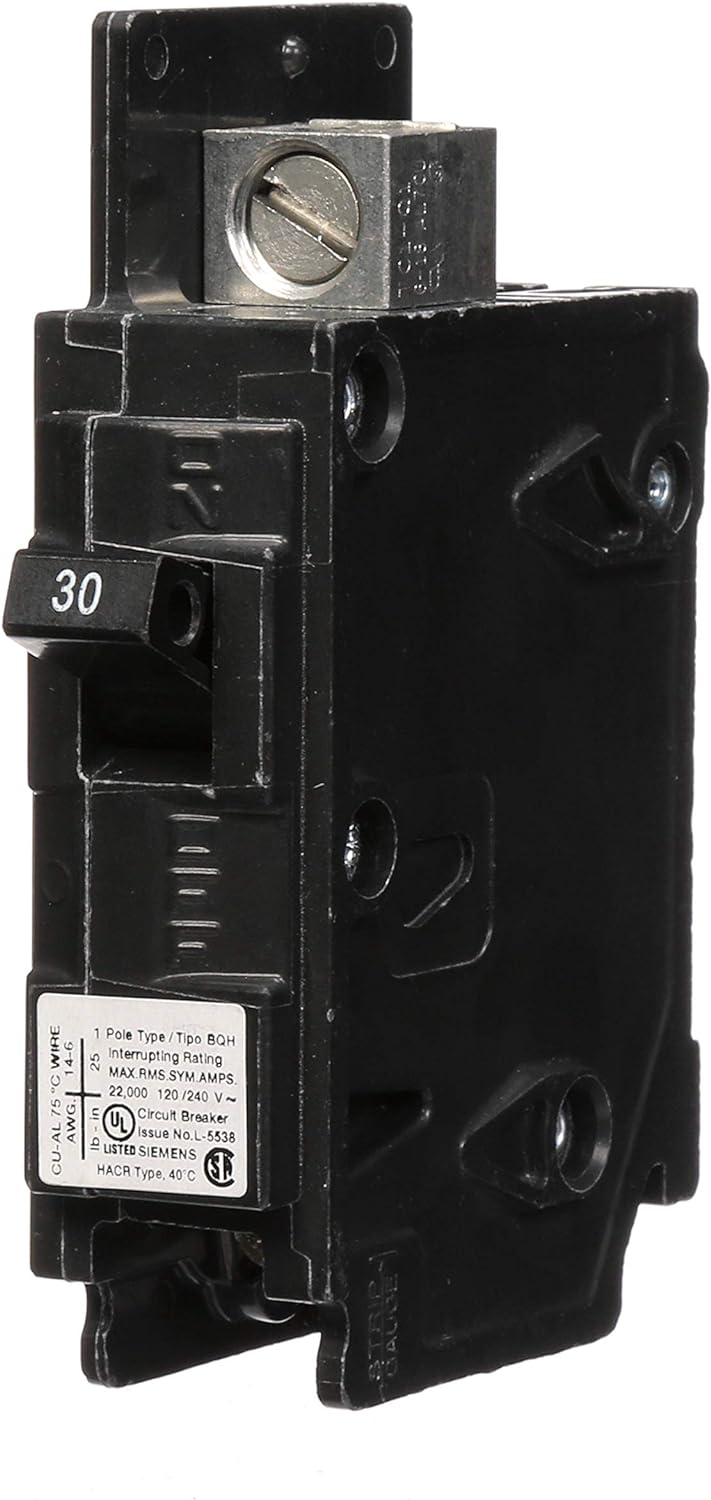

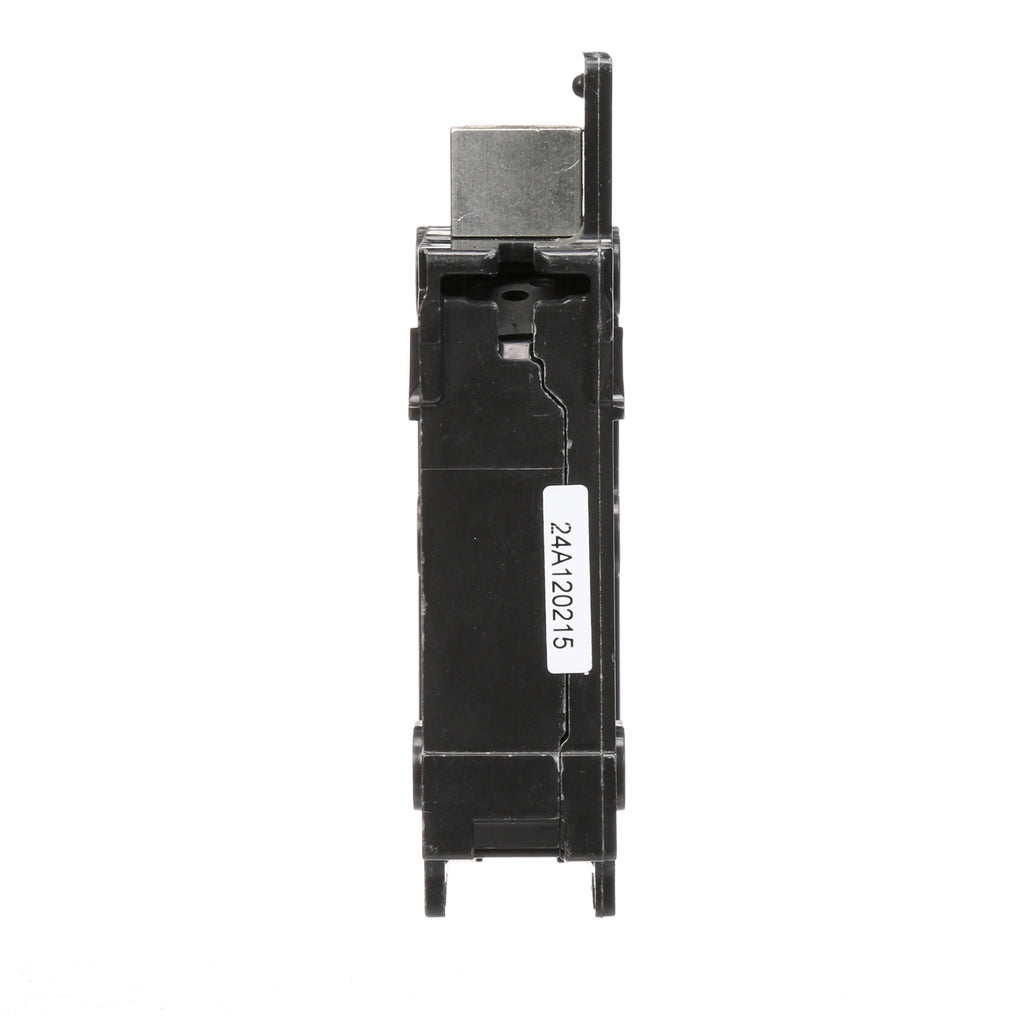

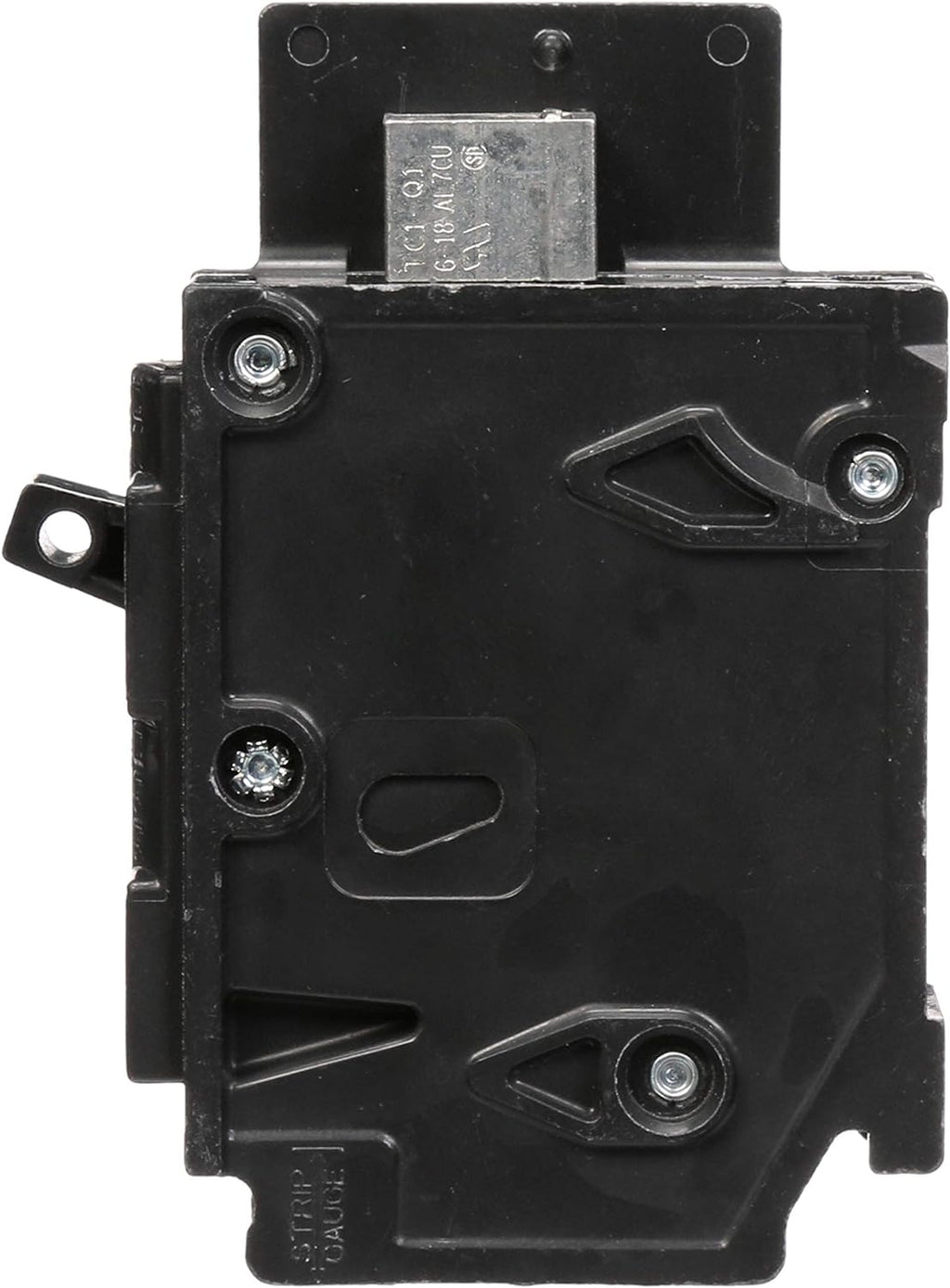

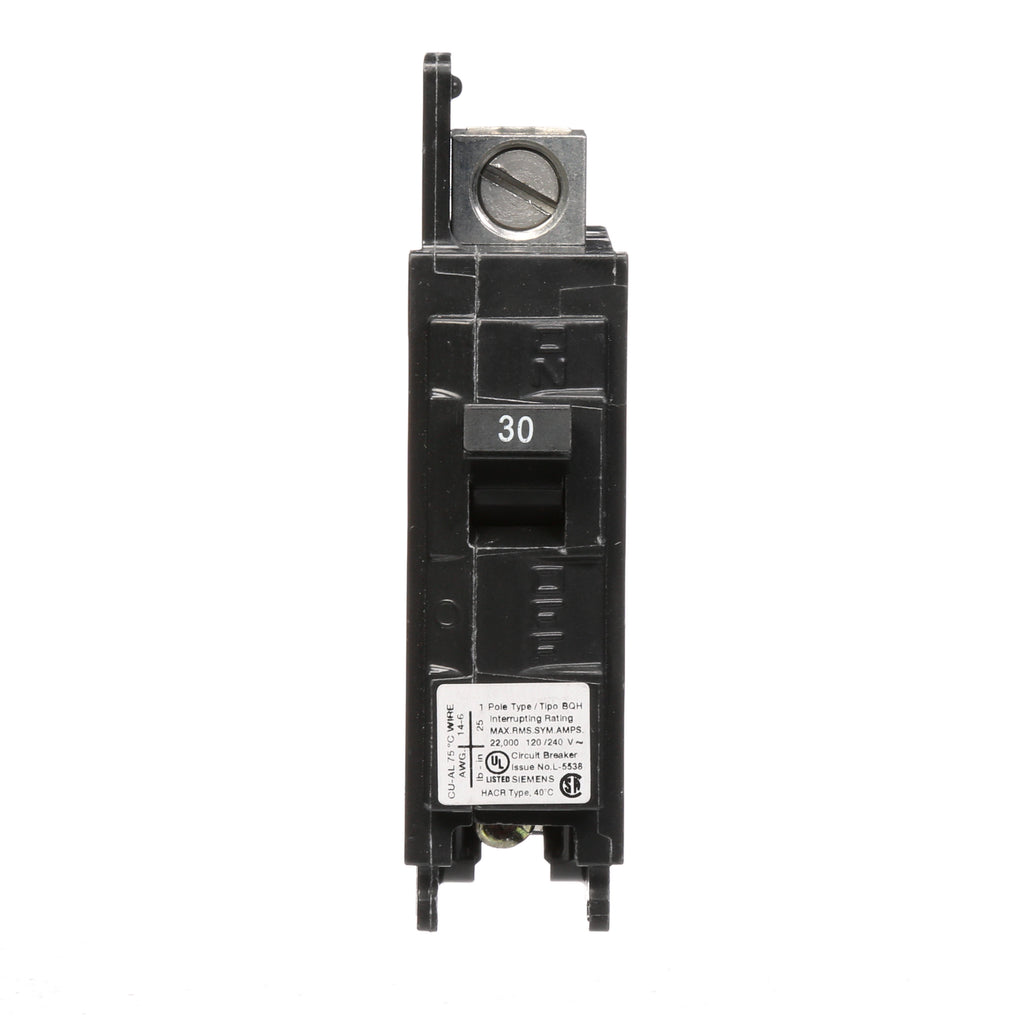

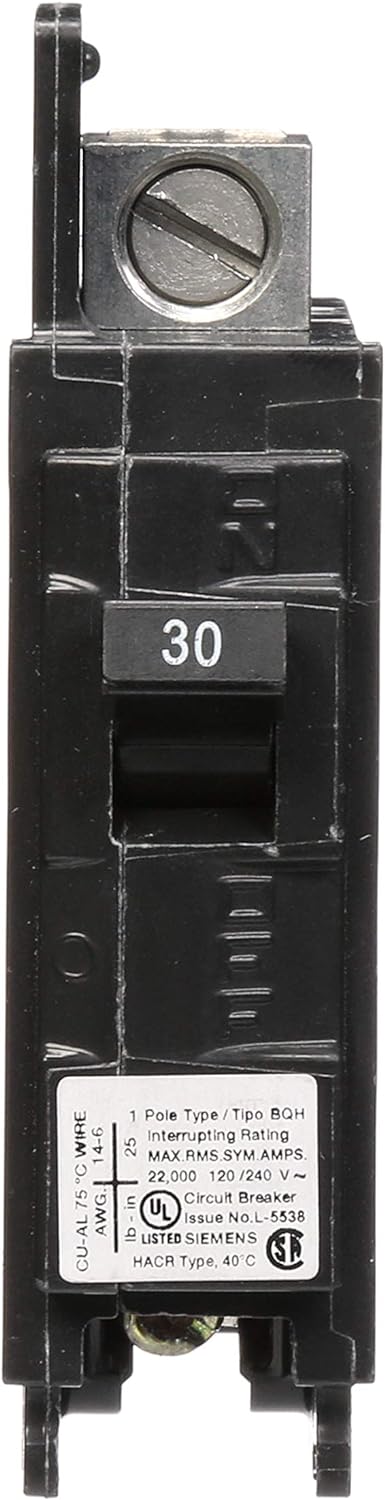

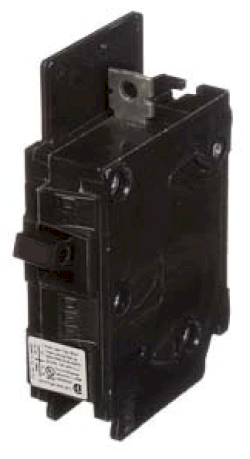

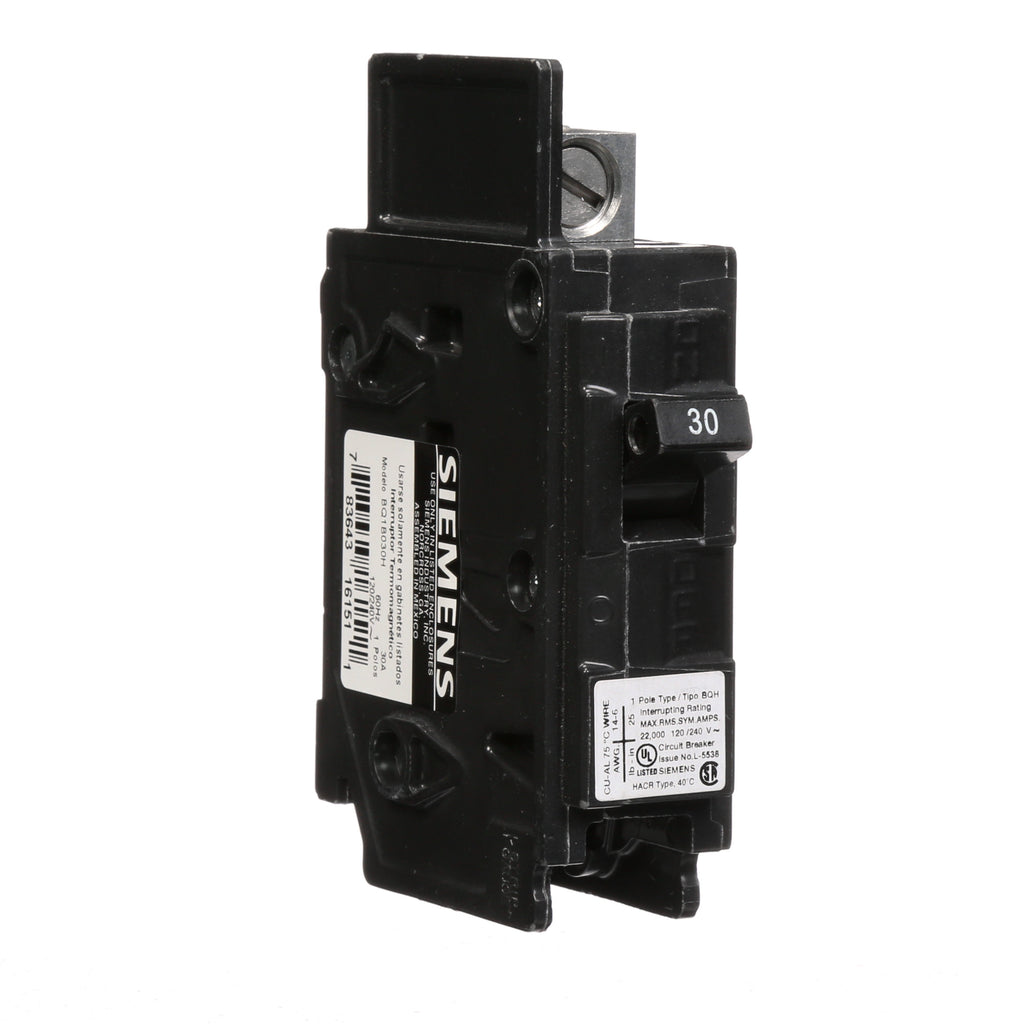

BQ1B030H - Siemens 30 Amp 120V 1-Pole Molded Case Circuit Breaker BQ Series

BQ1B030H

BQ1B030H is a Siemens 30 Amp, 1-pole molded case circuit breaker designed for reliable circuit protection.This breaker features a thermal-magnetic trip unit, a 120V AC voltage rating, and a 22kA interrupt rating. It is part of the Siemens BQ series with a bolt-on mounting type and lug-in/lug-out terminal connections. The breaker is suitable for use in Siemens panelboards and provides high interrupting capacity for safety and durability.

Key Specifications
• Amperage: 30 Amps
• Voltage: 120V AC
• Poles: 1
• Interrupt Rating: 22kA
• Series/Frame: BQ
• Mounting Type: Bolt-On
• Trip Unit: Thermal-Magnetic
• Terminal Connection: Lug-In/Lug-Out
• Compatible with Siemens Panelboards
• UL Listed and CSA Certified
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: BQ1B030H
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BQ Series
• Type : BQH
• Voltage : 120
• Amperage : 30
• Phase : 1
• Poles : 1
• AIC rating : 22kA@120V
• Connection : Bolt-on
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/BQH
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
• Breaker Type : High Interrupting Capacity
• Protection : Thermal Magnetic



Product Data

• UPC : 783643161511
• GTIN : 00783643161511
• Country of Origin : Mexico
• Dimensions : 2.563 x 1.00 x 3.122 inch
• Weight : 0.309
• Panel Type : Siemens Panelboards
• Standards : CSA Certified, HACR Rated, UL Listed
• Certification : CSA, HACR, UL
