BQ1B03000S01 - Siemens 30 Amp 120V 1 Pole BQ Series Bolt-On Circuit Breaker with 120V Shunt Trip

BQ1B03000S01

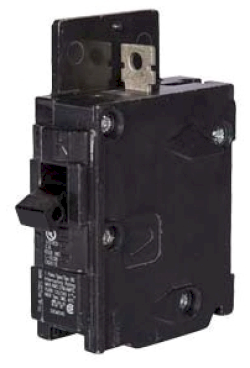

BQ1B03000S01 is a Siemens 30 Amp, 120 Volt, 1 Pole BQ Series bolt-on circuit breaker with a 120V shunt trip feature.This molded case circuit breaker provides reliable circuit protection with thermal magnetic trip functions, including long time and instantaneous trip capabilities. It features a 10,000 A interrupting rating at 120 Volts AC and is designed for bolt-on mounting in electrical panels. The breaker is UL listed and suitable for use in 120/240 VAC systems.

• Amperage: 30 Amp
• Voltage: 120 Volts AC
• Poles: 1
• Frame Type: BQ Series
• Mounting Type: Bolt-On
• Interrupting Rating: 10,000 A at 120V AC
• Trip Unit: Thermal Magnetic with Long Time and Instantaneous Trip
• Shunt Trip: 120V Non-Interchangeable
• Certifications: UL Listed
• Phase: Single Phase

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

complete with non-interchangeable 120V shunt trip

Specifications

• Part Number: BQ1B03000S01
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BQ Series
• Type : BQ
• Voltage : 120
• Amperage : 30
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Bolt-on
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/BQ
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
• Breaker Type : Shunt Trip
• Protection : Thermal Magnetic

Product Data

• UPC : 783643239487
• GTIN : 00783643239487
• Country of Origin : Mexico
• Dimensions : 15.748 x 9.843 x 6.693 inch
• Weight : 0.882
• Panel Type : Siemens Panelboards
• Standards : CSA Certified, HACR Rated, UL Listed
• Certification : CSA, HACR, UL
