Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
BQ1B025H

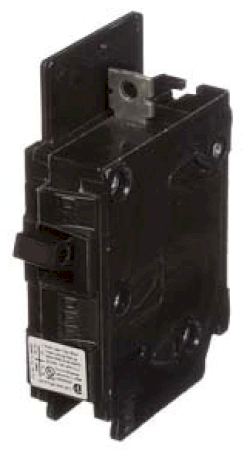

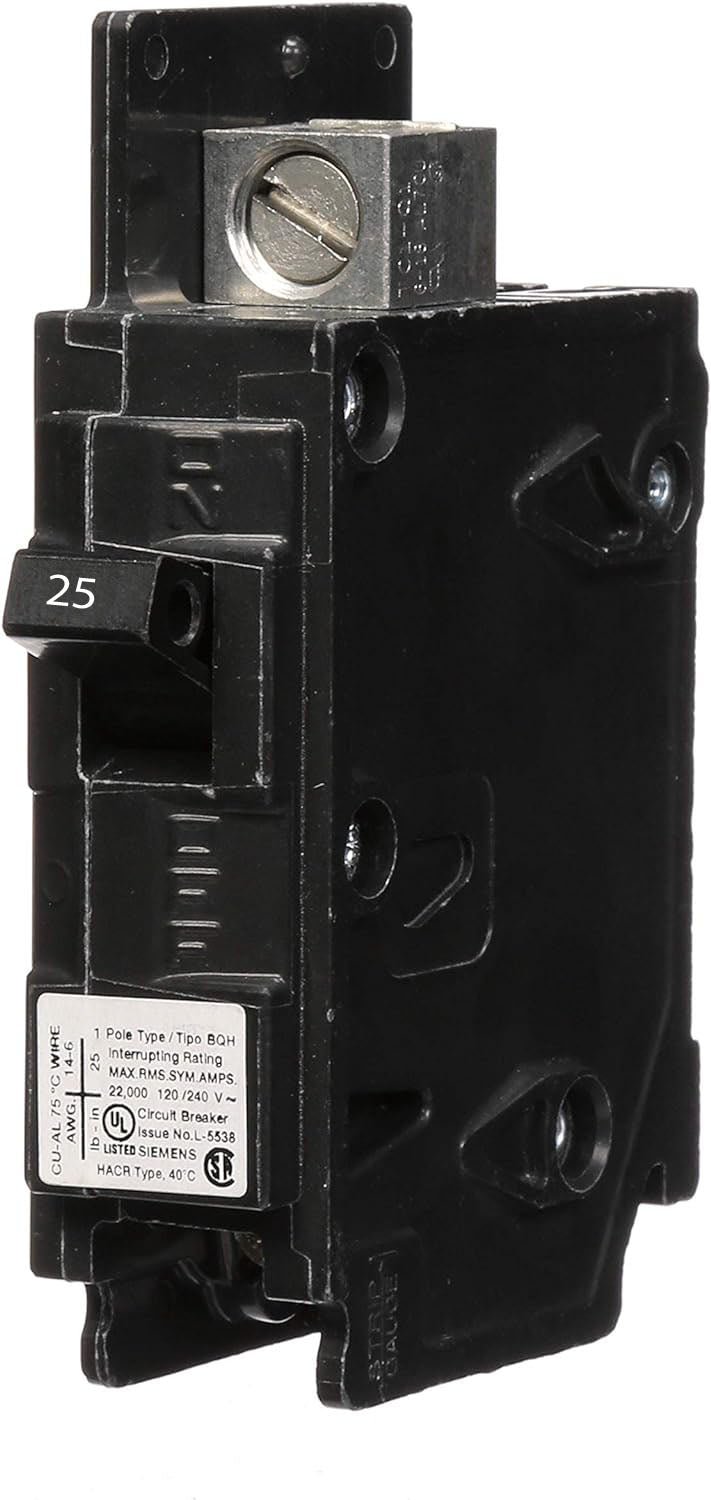

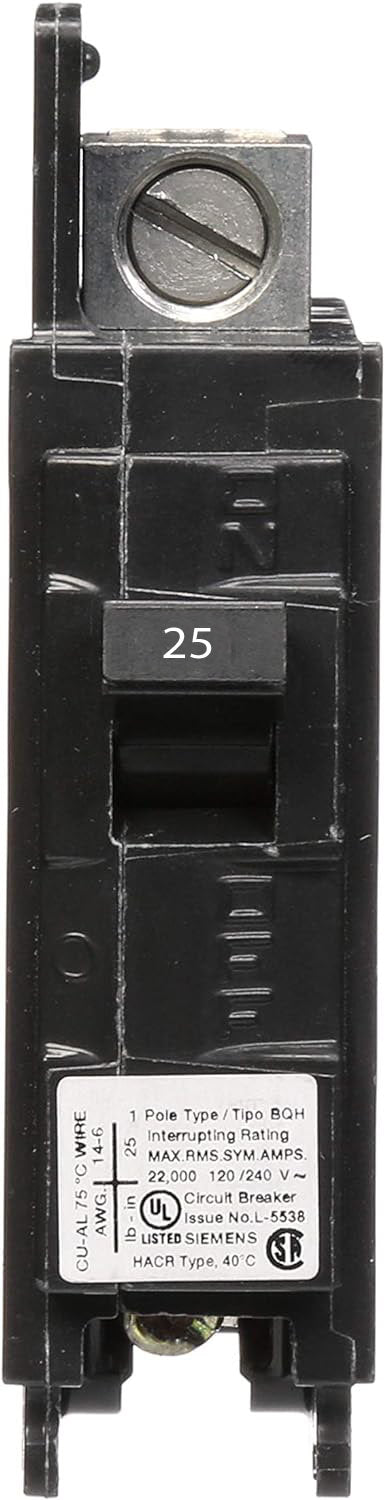

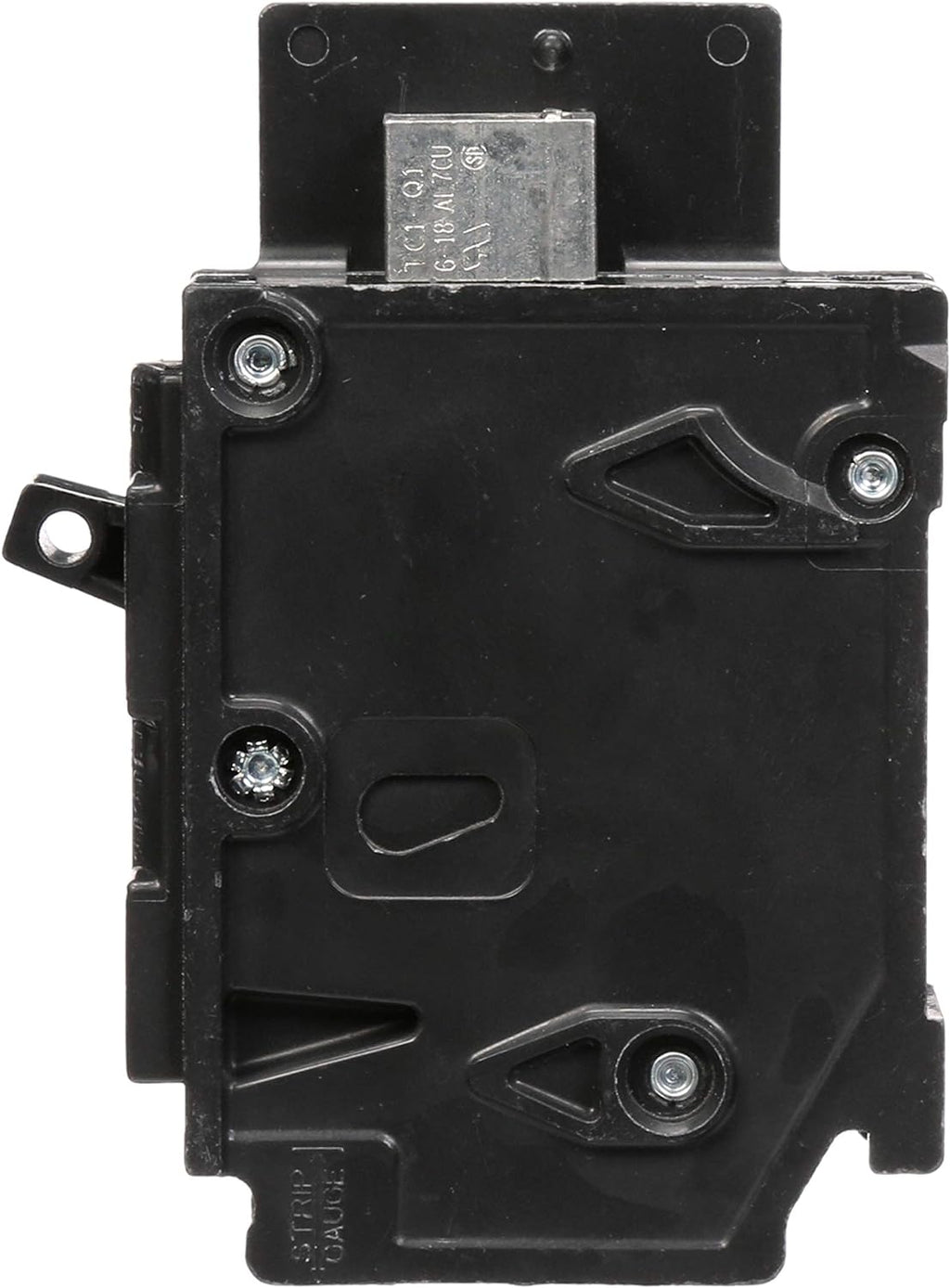

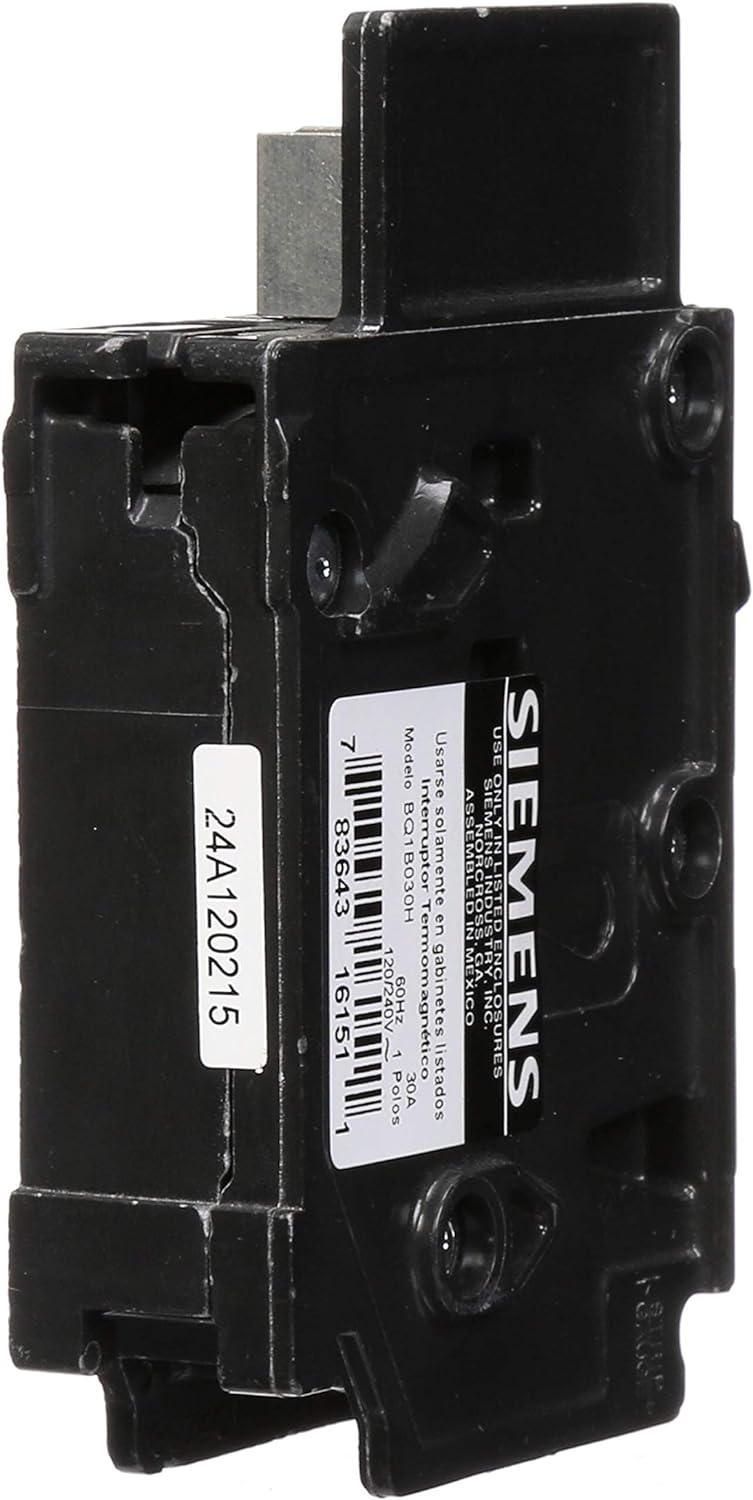

BQ1B025H - Siemens BQ series 1-pole, 25A bolt-on molded case circuit breaker rated for 120V AC.
Siemens BQ1B025H features thermal-magnetic trip with long time and instantaneous functions, non-interchangeable trip, high interrupting capacity of 22kAIC at 120V, and bolt-on mounting for reliable overcurrent protection in panelboards.
Key Specifications
- Amperage: 25A
- Voltage: 120V AC
- Poles: 1
- Mounting Type: Bolt-on
- Interrupt Rating: 22kAIC at 120V
- Series/Frame: BQ
- Trip Unit: Thermal-Magnetic
- Trip Functions: Long Time and Instantaneous
- Voltage Type: AC
- High Interrupting
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: BQ1B025H
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : BQ Series
- Type : BQH
- Voltage : 120
- Amperage : 25
- Phase : 1
- Poles : 1
- AIC rating : 22kA@120V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous Trip
- Terminal Connection : Lug
- Protection : Thermal Magnetic
Product Data
- UPC : 783643239562
- GTIN : 00783643239562
- Country of Origin : Mexico
- Dimensions : 2.756 x 0.787 x 3.937 inch
- Weight : 0.309
- Panel Type : Siemens Panelboards
- Standards : CSA Certified, HACR Rated, UL Listed
- Certification : CSA, HACR, UL
