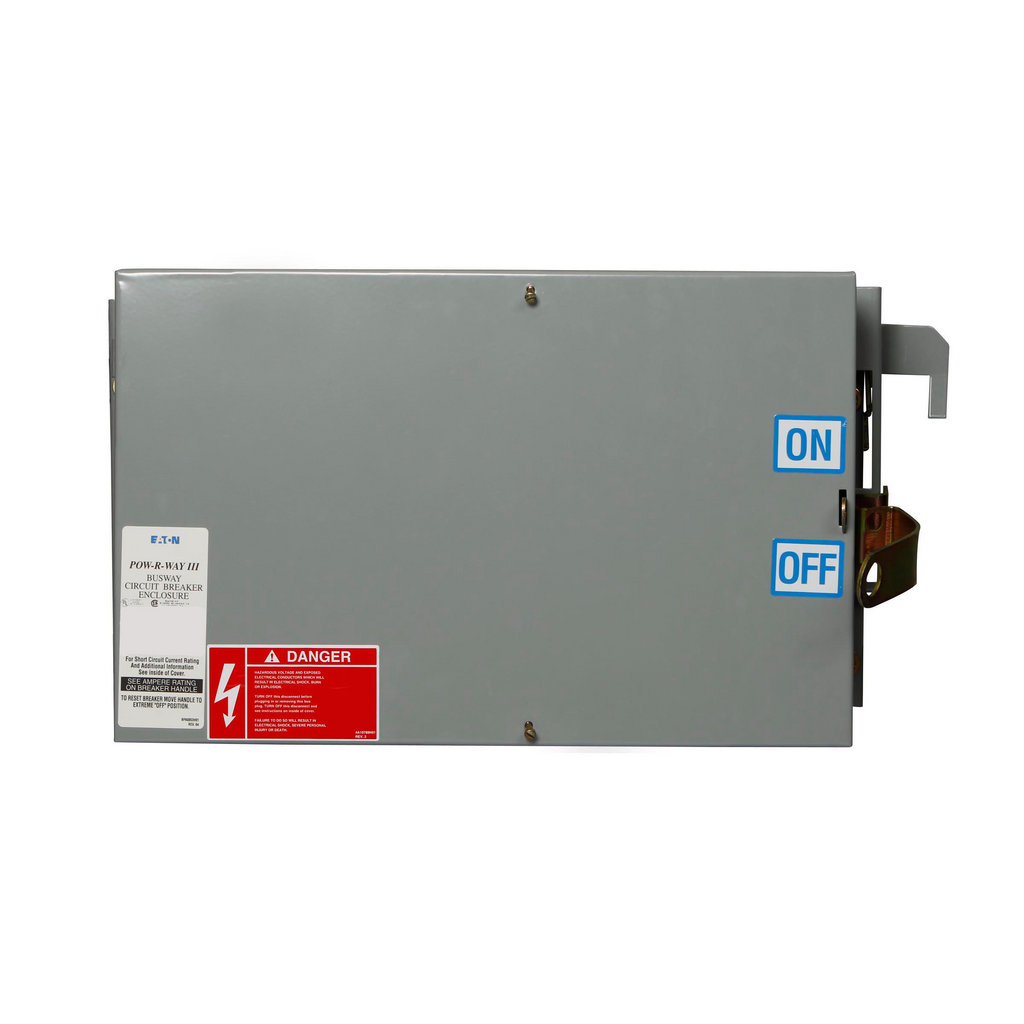

BPFD3090 - Eaton 90A 600V 3-Pole FD Frame Bus Plug Circuit Breaker

BPFD3090

BPFD3090 is an Eaton bus plug circuit breaker designed for low-voltage busway power distribution systems. This three-pole, three-wire unit provides reliable tap-off connectivity for industrial and commercial applications requiring modular power distribution solutions.Technical Overview

The BPFD3090 is a plug-in circuit breaker unit compatible with Eaton Pow-R-Way III busway systems. It features an F-frame design with fixed thermal and fixed magnetic trip protection, delivering consistent performance in demanding electrical environments. The unit integrates seamlessly into busway installations, offering fast connection and disconnection capabilities without requiring permanent wiring modifications.

Key Specifications

• Amperage Rating: 90A
• Voltage Rating: 600V
• Number of Poles: Three-pole
• Wire Configuration: Three-wire
• Frame Size: F Frame
• Mounting Type: Plug-in (Busway)
• Trip Type: Fixed thermal, fixed magnetic
• Interrupt Rating: 35 kAIC at 480V
• Certifications: UL listed, CSA recognized

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BPFD3090
• Manufacturer : Eaton
• Category : Bus Plug
• Item Subcategory : Breaker Type
• Family : Standard Design
• Type : BPFD
• Voltage : 600
• Amperage : 90
• Phase : 3
• AIC rating : 35kA@480V
• Wire : 3
• Compatible Frames : FD

Product Data

• UPC : 786683865456
• GTIN : 00786683865456
• Country of Origin : United States
• Weight : 40
• Certification : UL 857,CSA Certified,ANSI,IEEE Certified,NEMA Compliant
