Description
BOS16452G

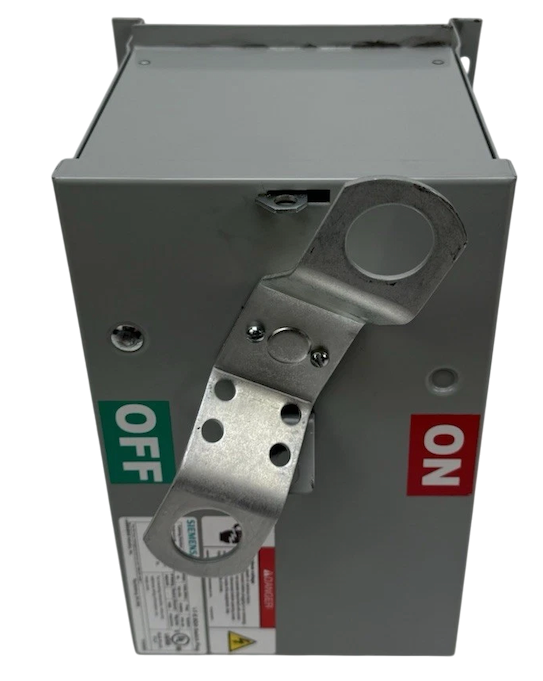

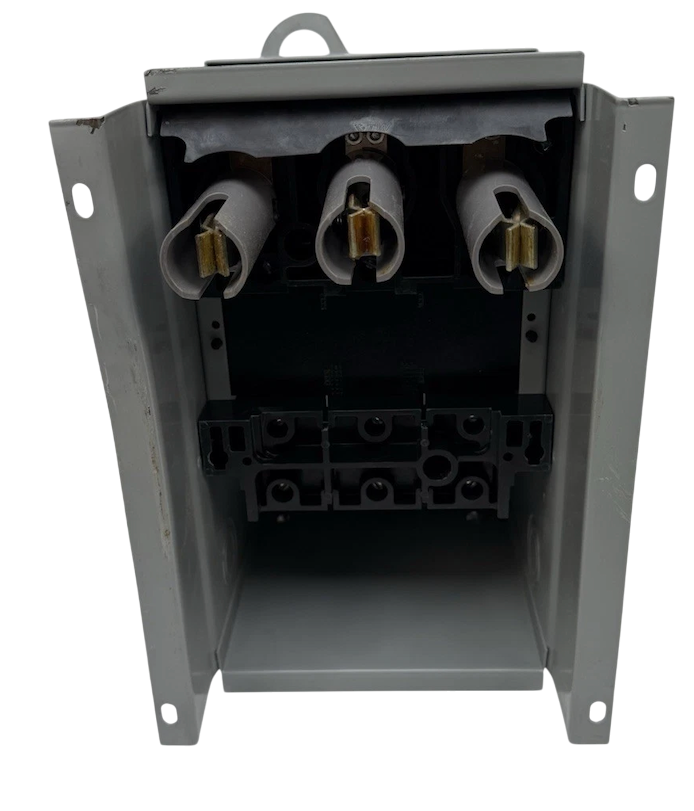

BOS16452G is a fusible bus plug designed for use in 3-phase, 4-wire power distribution systems operating at up to 600V. This unit is rated for 60A and integrates with BD Series busway systems for reliable overcurrent protection and easy installation. The BOS16452G fusible bus plug features a robust design suitable for demanding electrical environments. It provides secure connection to BD Series busway systems and supports Class R, H, and K fuses for flexible protection options. The unit is UL Listed and includes UL Recognized internal components for compliance with safety standards.
- Part Number: BOS16452G
- Manufacturer: Siemens
- Series: BD Series
- Type: Fusible Bus Plug
- Amperage: 60A
- Voltage: 600V
- Phase: 3-Phase
- Wire Configuration: 4-Wire
- Interrupt Rating: 65kA @ 480V
- Mounting Type: Plug-In
- Compatible Fuse Types: Class R, H, K
- Certifications: UL Listed
Specifications
- Part Number: BOS16452G
- Manufacturer : Siemens
- Brand : Siemens
- Category : Bus Plug
- Item Subcategory : Fusible
- Family : BD Series
- Type : BOS
- Voltage : 600
- Amperage : 60
- Phase : 3
- AIC rating : 65kA@480V
- Fuse Class : R,H,K
- Wire : 4
Product Data
- Weight : 35
