Product Info
- Manufacturer:Gould
- Sub-Category:Fusible
Description
BOS16422

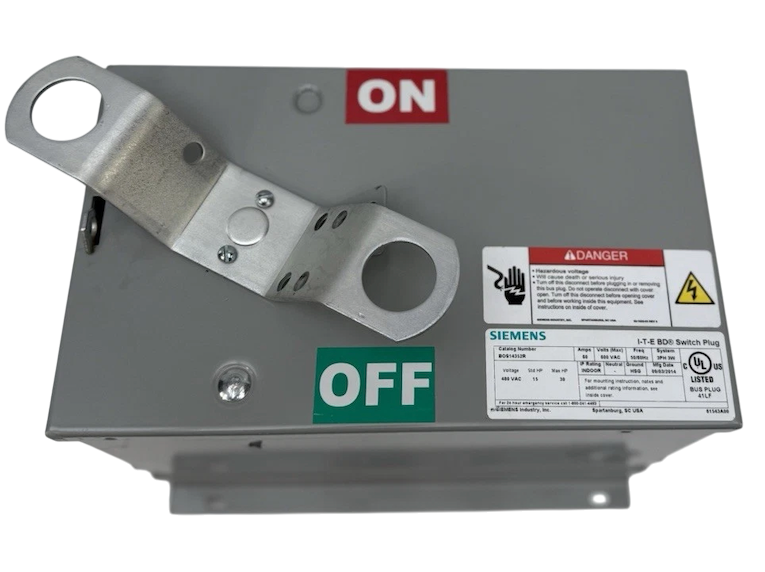

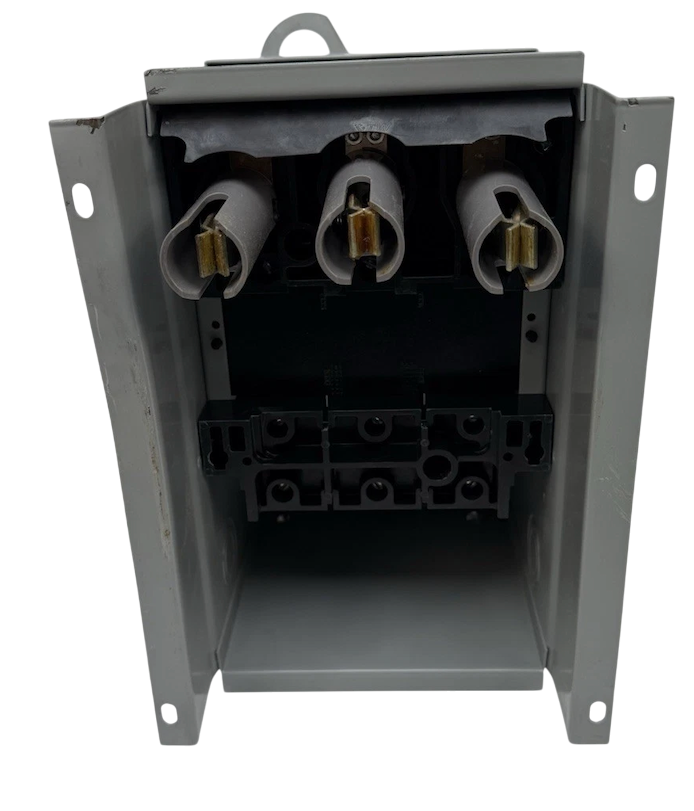

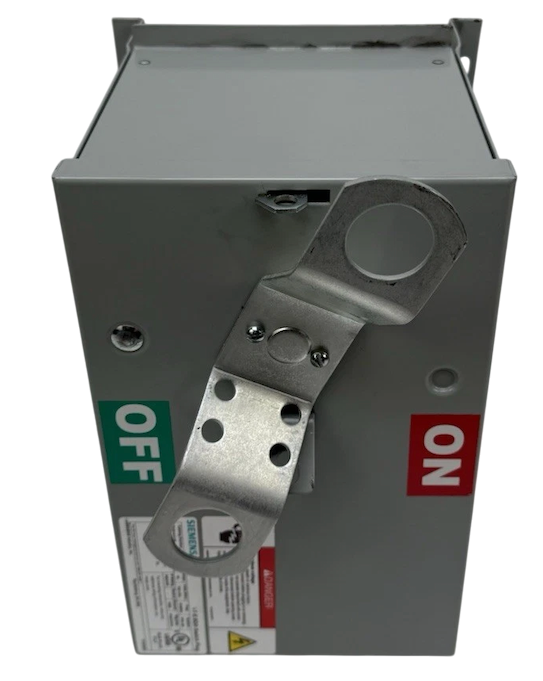

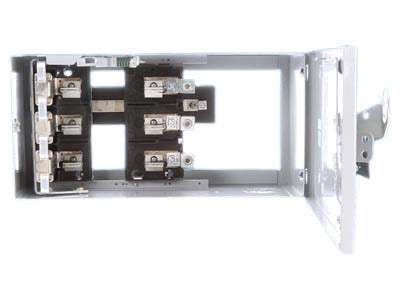

BOS16422 is a 3-phase, 4-wire fusible bus plug rated for 60 amperes at 240 volts, designed for use with BD Series industrial busway systems.
This fusible-style bus plug features a UL Listed assembly with UL Recognized internal switch and components. The BOS16422 accepts Class R, H, and K fuse types and is compatible with Bulldog, Gould, ITE, and Siemens BD Series busway equipment. With a 65kA AIC rating at 240VAC, this bus plug provides reliable performance in industrial power distribution applications.
Key Specifications
- Part Number: BOS16422
- Amperage: 60A
- Voltage: 240V
- Phase: 3-Phase
- Wire: 4-Wire
- Style: Fusible
- Fuse Class: R, H, K
- AIC Rating: 65kA at 240VAC
- Series: BD Series
- UL Listed Assembly
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: BOS16422
- Manufacturer : Gould
- Brand : Siemens
- Category : Bus Plug
- Item Subcategory : Fusible
- Family : BD Series
- Type : BOS
- Voltage : 240
- Amperage : 60
- Phase : 3
- AIC rating : 65kA@240V
- Fuse Class : R,H,K
- Wire : 4
Product Data
- UPC : 783643700499
- GTIN : 00783643700499
- Country of Origin : Mexico
- Dimensions : 15.748 x 9.843 x 12.992 inch
- Weight : 14.903
