Description
BOS16427G

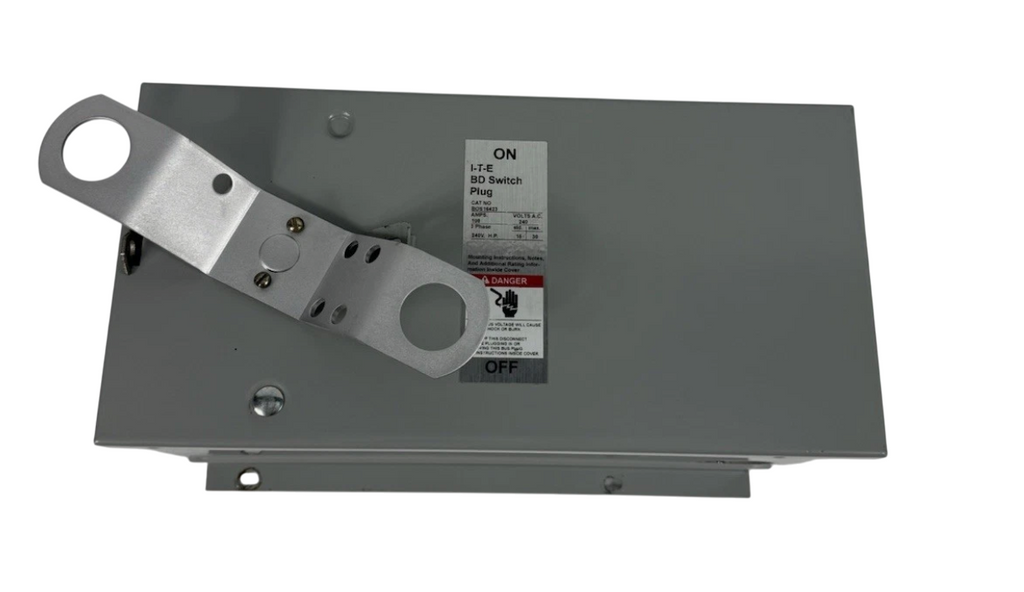

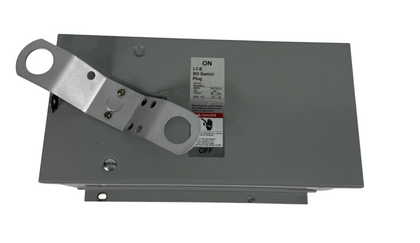

BOS16427G is a 3-phase, 4-wire fusible bus plug rated for 800 amperes at 240 volts, designed for use with BD series busway systems. This Siemens bus plug features a fusible design and is compatible with Bulldog, Gould, ITE, and Siemens BD busway installations. The unit delivers reliable power distribution in industrial and commercial applications requiring high-amperage switching and protection.Key Specifications
- Part Number: BOS16427G
- Manufacturer: Siemens (ITE/Bulldog compatible)
- Amperage Rating: 800 Amps
- Voltage Rating: 240V AC
- Phase: 3-Phase
- Wire Configuration: 4-Wire
- Bus Plug Type: Fusible
- Series: BD (Bulldog)
- Interrupt Rating: 65kA @ 240V
- Mounting: Plug-In Busway
Specifications
- Part Number: BOS16427G
- Manufacturer : Siemens
- Category : Bus Plug
- Item Subcategory : Fusible
- Family : BD Series
- Type : BOS
- Voltage : 240
- Amperage : 800
- Phase : 3
- AIC rating : 65kA@240V
- Fuse Class : R,H,K
- Wire : 4
Product Data
- Weight : 150
