BJA261251 - Square D 125A 2 Pole 600Y/347VAC I-Line PowerPact B-Frame Circuit Breaker

BJA261251

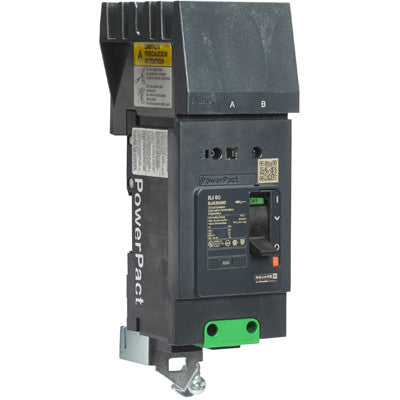

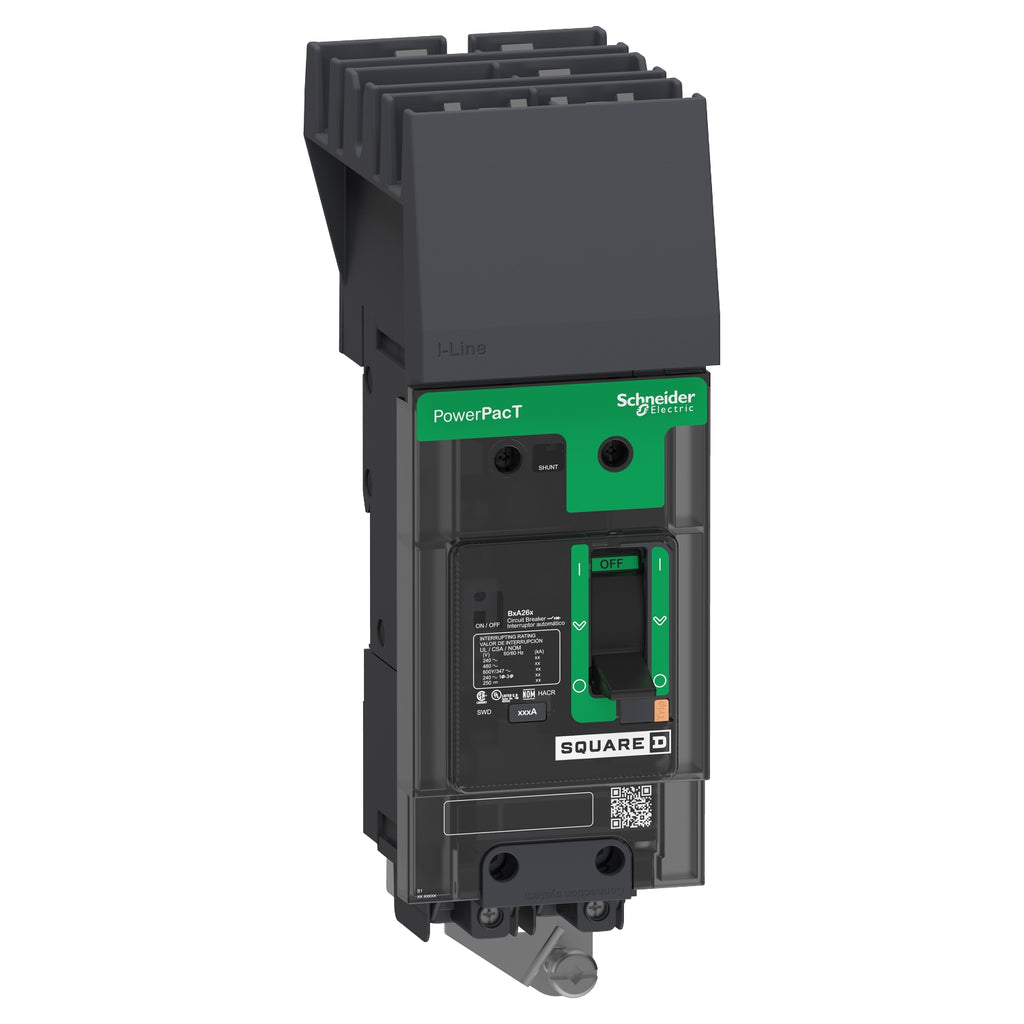

BJA261251 is a Square D PowerPact B-Frame molded case circuit breaker designed for reliable circuit protection.This 2-pole breaker supports 125 amps at 600Y/347 volts AC and 250 VDC, featuring a thermal magnetic trip unit with an interrupt rating of 25 kA. It uses an I-Line style plug-in mounting and is UL, CSA, and CE certified for industrial applications.

Key Specifications
• Amperage: 125 A
• Voltage Rating: 600Y/347 VAC, 250 VDC
• Poles: 2
• Mounting Type: I-Line Style Plug-In
• Interrupt Rating: 25 kA
• Series/Frame: PowerPact B-Frame
• Trip Unit: Thermal Magnetic
• Certifications: UL, CSA, CE
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: BJA261251
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BJA
• Voltage : 600
• Amperage : 125
• Phase : 1
• Poles : 2
• AIC rating : 65kA@480V
• Connection : I-Line Style Plug-In
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Al Mechanical Lug OFF End, I-Line ON End
• Frame Size : 125A/BJ
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 2 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : AB



Product Data

• UPC : 785901058816
• GTIN : 00785901058816
• Country of Origin : United States
• Dimensions : 5.4 in (137 mm) x 2.1 in (54 mm) x 3.5 in (89 mm) (Height x Width x Depth)
• Weight : 1.9
• Panel Type : Electrical Distribution Equipment, Industrial Control Panels
• Standards : CSA C22.2 No 5, EN/IEC 60947-5-1, UL 489, GB 14048.2, NMX J-266, NEMA AB1, EN/IEC 60947-2
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 14...AWG 2/0 aluminium/copper
