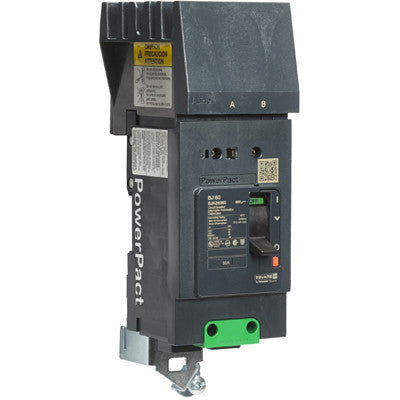

BJA261001 - Schneider Electric PowerPact B 600V 100A 2 Pole I-Line Plug-In Circuit Breaker

BJA261001

BJA261001 is a 2 pole, 600V, 100A rated PowerPact B series circuit breaker designed for I-Line plug-in mounting applications. This breaker features thermal-magnetic trip technology, dual-break contacts, and a push-to-trip button for reliable circuit protection. Engineered for commercial and industrial power distribution, the BJA261001 offers robust performance with a 65kA@480V interrupt rating and is suitable for both AC and DC systems. It is UL, CSA, NOM, IEC, CCC certified, and CE marked for global compliance.

• Part Number: BJA261001
• Manufacturer: Schneider Electric
• Series/Frame: PowerPact B
• Amperage Rating: 100A
• Voltage Rating: 600Y/347V AC, 250V DC
• Poles: 2
• Mounting Type: I-Line Plug-In
• Interrupt Rating: 65kA@480V
• Trip Unit: Thermal-Magnetic
• Features: Dual-Break Contacts, Push-to-Trip Button
• Certifications: UL, CSA, NOM, IEC, CCC, CE
• Color: Gray

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BJA261001
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BJA
• Voltage : 600
• Amperage : 100
• Phase : 1
• Poles : 2
• AIC rating : 65kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901058649
• Country of Origin : United States
• Dimensions : 5.4 in (137 mm) x 2.1 in (54 mm) x 3.5 in (89 mm) (Height x Width x Depth)
• Weight : 1.9
• Standards : NMX J-266, GB 14048.2, CSA C22.2 No 5, NEMA AB1, EN/IEC 60947-5-1, EN/IEC 60947-2, UL 489
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 14...AWG 2/0 aluminium/copper
