BJA260801 - Schneider Electric 80A 2-Pole 600V Thermal Magnetic Circuit Breaker Powerpact BJA Series

BJA260801

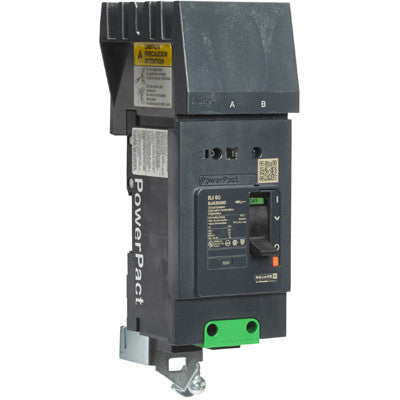

This molded case circuit breaker features a 65kA interrupting rating at 480V and uses an I-Line style plug-in connection for easy installation. It is engineered for reliable protection of electrical circuits with a thermal magnetic trip unit and is suitable for industrial and commercial power distribution systems.

Key Specifications
• Amperage: 80 Amps
• Voltage Rating: 600 Volts
• Number of Poles: 2
• Interrupting Rating: 65kA at 480V
• Trip Unit: Thermal Magnetic
• Mounting Type: I-Line Style Plug-In
• Series: Powerpact BJA
• Manufacturer: Schneider Electric

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.




Specifications

• Part Number: BJA260801
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BJA
• Voltage : 600
• Amperage : 80
• Phase : 1
• Poles : 2
• AIC rating : 65kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic



Product Data

• UPC : 785901058601
• Country of Origin : United States
• Dimensions : 5.4 in (137 mm) x 2.1 in (54 mm) x 3.5 in (89 mm) (Height x Width x Depth)
• Weight : 1.9
• Standards : UL 489, NMX J-266, CSA C22.2 No 5, GB 14048.2, EN/IEC 60947-2, NEMA AB1, EN/IEC 60947-5-1
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 14...AWG 2/0 aluminium/copper
