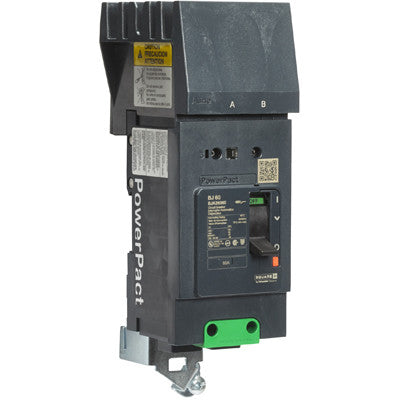

BJA260601 - Schneider Electric PowerPact B Circuit Breaker 60A 2P 600Y/347V AC 25kA I-Line

BJA260601

This circuit breaker features a 25kA interrupt rating at 600Y/347V AC, with an I-Line mounting type and thermal magnetic trip unit. It complies with UL 489 standards and offers an 80% continuous current rating, suitable for reliable protection in electrical panels.

Key Specifications
• Amperage: 60 Amps
• Poles: 2
• Voltage Rating: 600Y/347V AC
• Interrupt Rating: 25kA at 600Y/347V AC
• Mounting Type: I-Line
• Frame Type: PowerPact B
• Trip Unit: Thermal Magnetic
• UL Listing: UL 489
• Continuous Current Rating: 80%
• Manufacturer: Schneider Electric

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.




Specifications

• Part Number: BJA260601
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BJA
• Voltage : 600
• Amperage : 60
• Phase : 1
• Poles : 2
• AIC rating : 65kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Al Mechanical Lug OFF End, I-Line ON End
• Frame Size : 125A/BJ
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 2 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : AB



Product Data

• UPC : 785901058403
• GTIN : 00785901058403
• Country of Origin : United States
• Dimensions : 5.4 in (137 mm) x 2.1 in (54 mm) x 3.5 in (89 mm) (Height x Width x Depth)
• Weight : 1.9
• Panel Type : Electrical Distribution Equipment, Industrial Control Panels
• Standards : CSA C22.2 No 5, GB 14048.2, NEMA AB1, NMX J-266, EN/IEC 60947-2, EN/IEC 60947-5-1, UL 489
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 14...AWG 2/0 aluminium/copper
