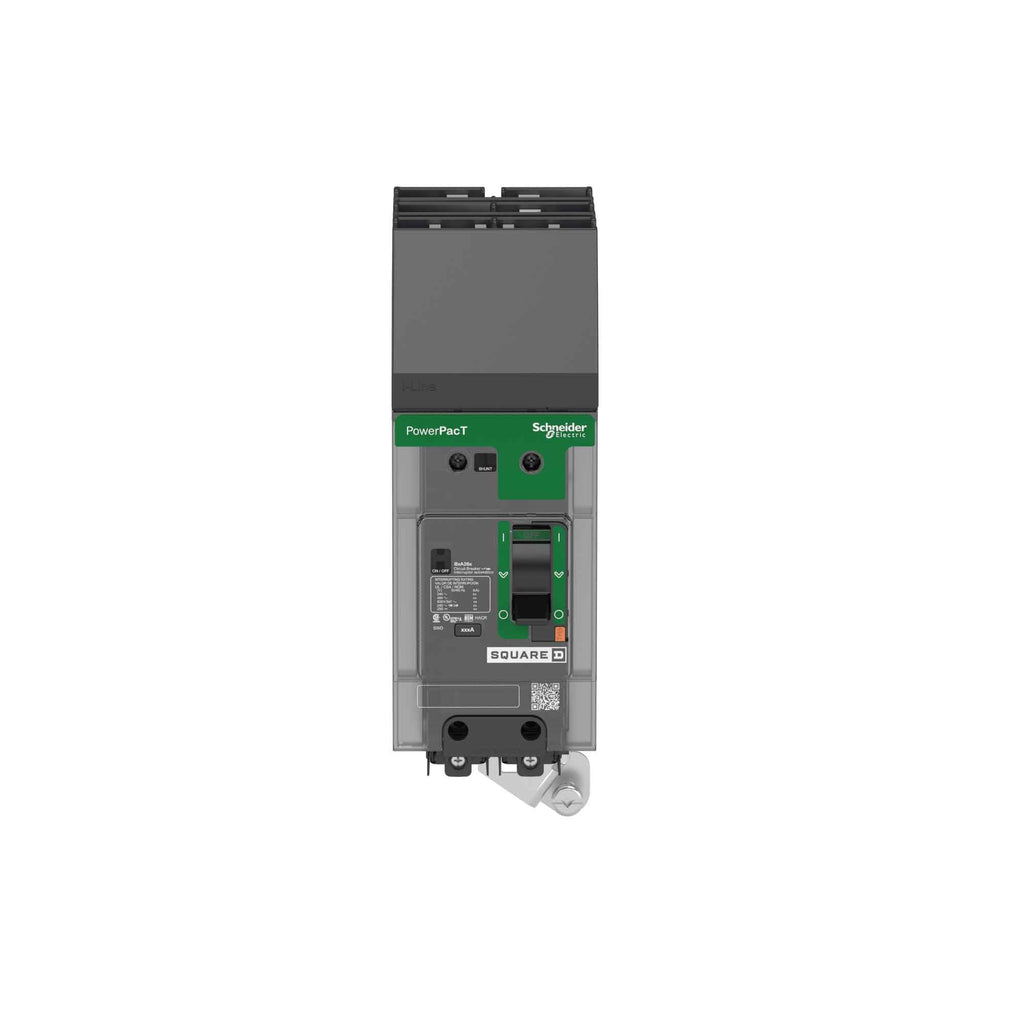

BJA260401 - Square D 40A 600V 2 Pole I-Line Style Molded Case Circuit Breaker 65kA Interrupt Rating

BJA260401

BJA260401 is a 2 pole, 40 amp, 600 Volt I-Line style molded case circuit breaker from Square D designed for reliable thermal magnetic protection.This circuit breaker features a 65kA interrupting rating at 480V, suitable for industrial and commercial power distribution applications. It includes a thermal magnetic trip unit with long-time and instantaneous trip functions, and a plug-in mounting type compatible with I-Line panels. The breaker is UL listed and designed for use in 600Y/347VAC systems.

Key Specifications
• Amperage: 40 Amps
• Voltage Rating: 600 Volts AC
• Number of Poles: 2
• Interrupt Rating: 65kA at 480V
• Mounting Type: I-Line Style Plug-In
• Trip Unit: Thermal Magnetic with Long-Time and Instantaneous
• Frame/Series: BJA
• Phase: Single Phase
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BJA260401
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BJA
• Voltage : 600
• Amperage : 40
• Phase : 1
• Poles : 2
• AIC rating : 65kA@480V
• Connection : I-Line Style Plug-In
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Al Mechanical Lug OFF End, I-Line ON End
• Frame Size : 125A/BJ
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 2 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : AB

Product Data

• UPC : 785901058373
• GTIN : 00785901058373
• Country of Origin : United States
• Dimensions : 5.4 in (137 mm) x 2.1 in (54 mm) x 3.5 in (89 mm) (Height x Width x Depth)
• Weight : 1.9
• Panel Type : Electrical Distribution Equipment, Industrial Control Panels
• Standards : GB 14048.2, NMX J-266, NEMA AB1, EN/IEC 60947-5-1, CSA C22.2 No 5, UL 489, EN/IEC 60947-2
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 14...AWG 2/0 aluminium/copper
