Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description
BJ3200

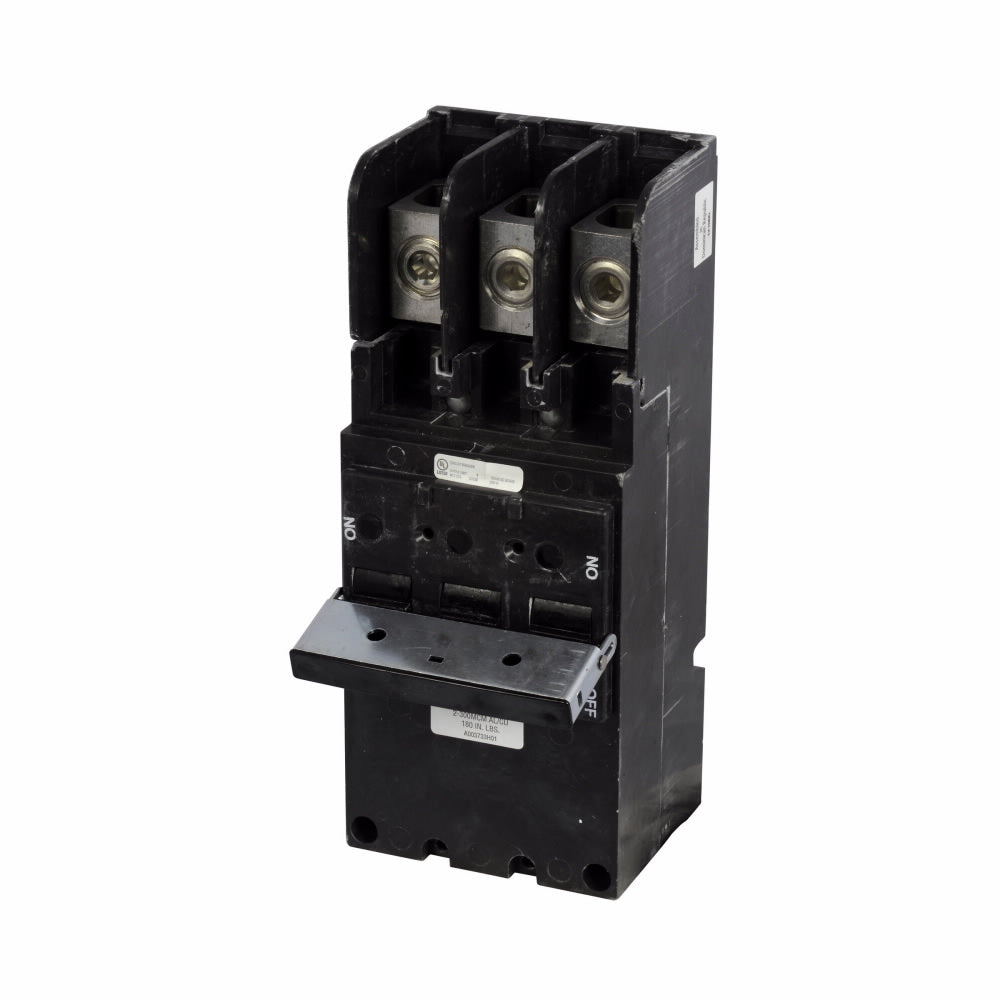

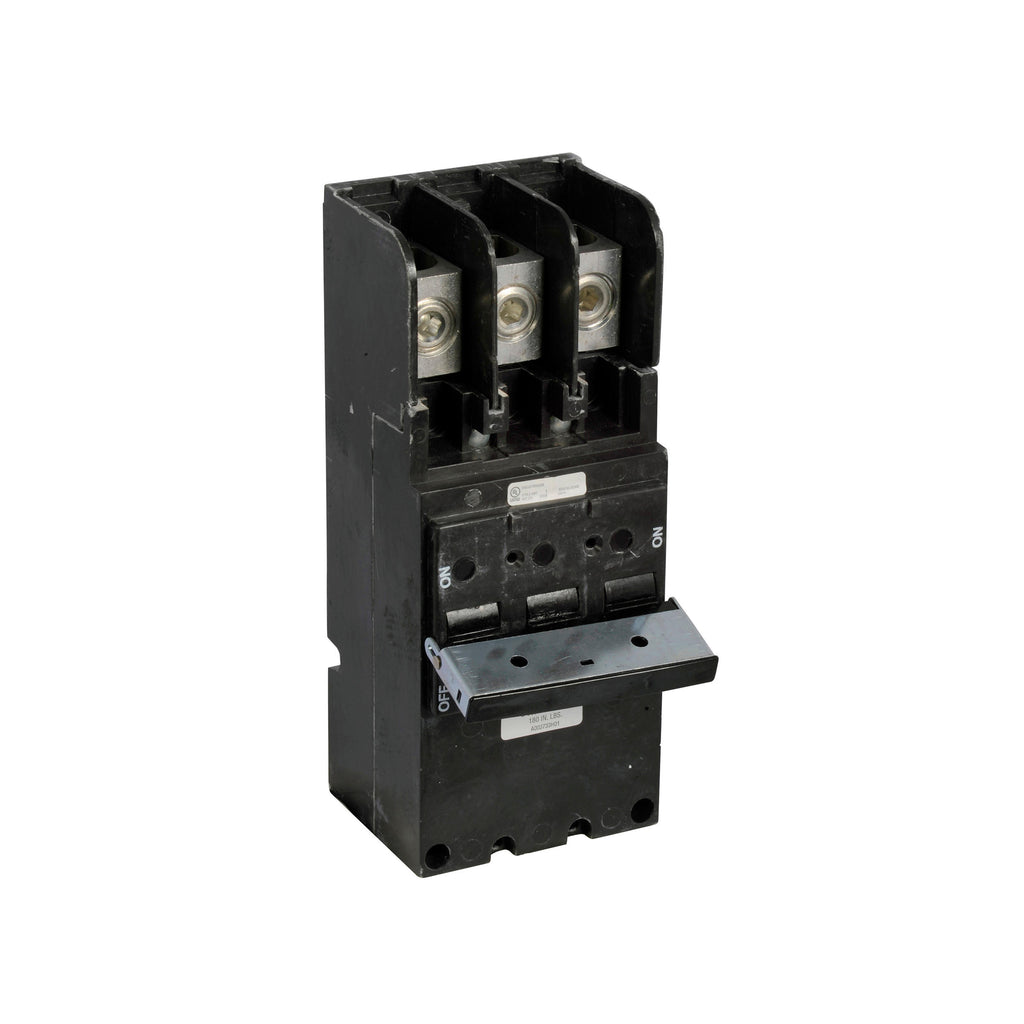

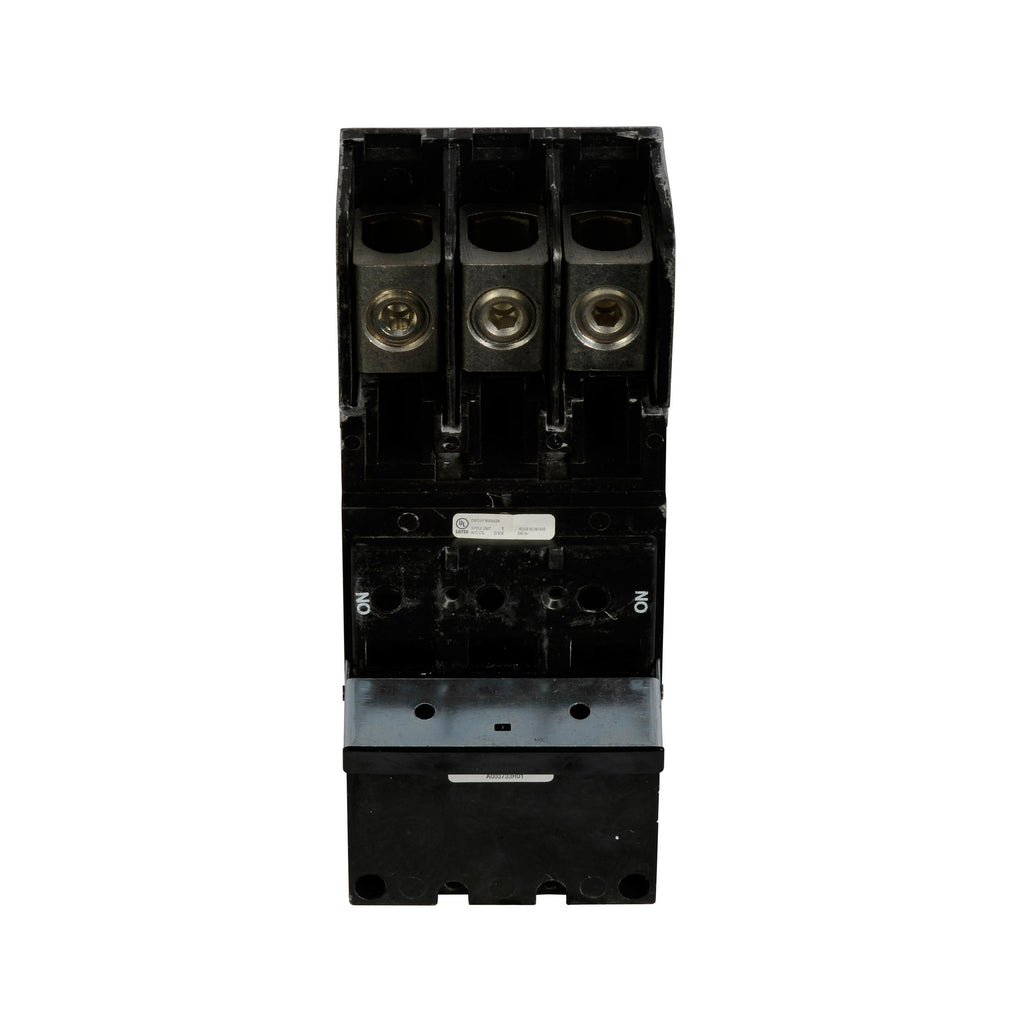

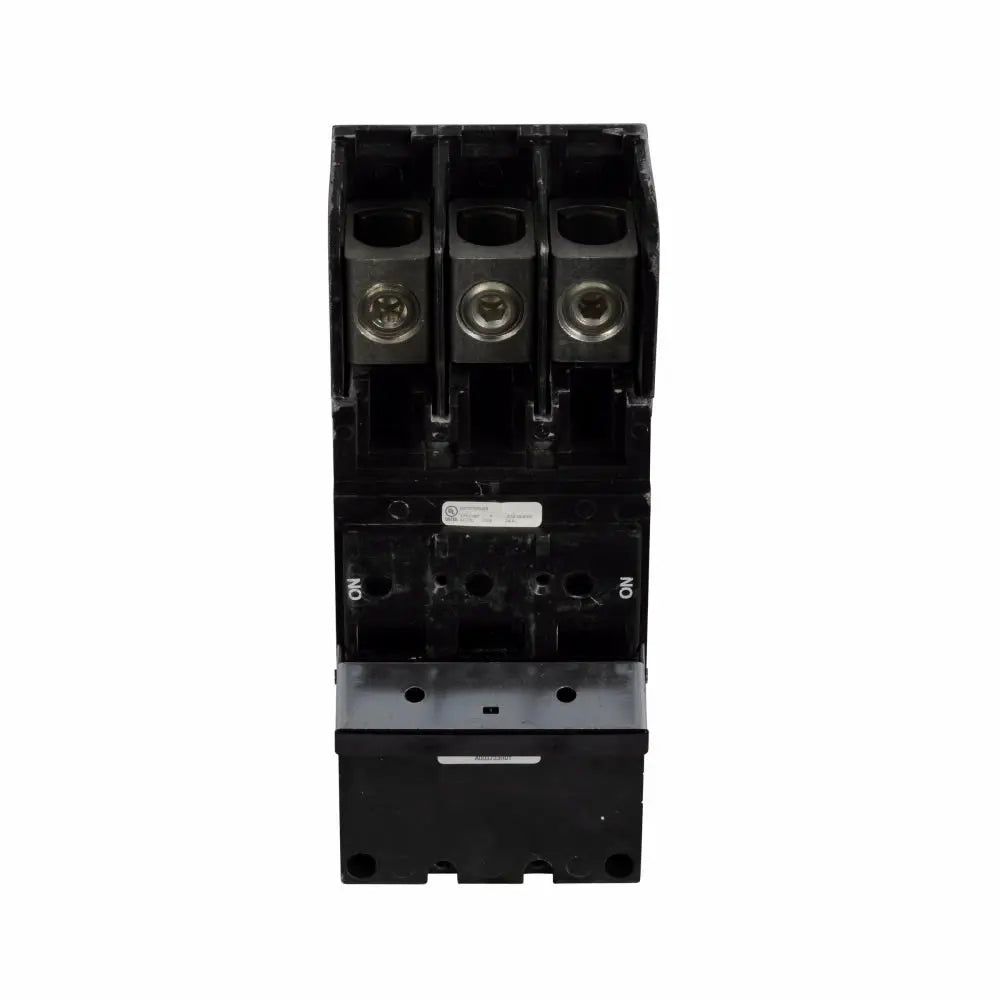

BJ3200 is a Cutler Hammer 3-pole, 200 amp, 240 volt plug-on circuit breaker from the BJ Series designed for residential load centers.
This circuit breaker features a thermal magnetic trip unit with a fixed trip and a 10kA interrupt rating at 240VAC. It requires a minimum 150A load center and occupies six pole spaces (three on each side). The BJ3200 is UL, CSA, and CE approved, providing reliable protection with a common trip mechanism for all three poles.
- Key Specifications
- Amperage: 200A
- Voltage: 240 VAC
- Poles: 3
- Mounting Type: Plug-On
- Interrupt Rating: 10,000 AIC (10kA)
- Series/Frame: BJ
- Trip Unit: Thermal Magnetic, Fixed Trip
- Approvals: UL, CSA, CE
- Application: Residential Load Centers
- Space Occupied: 6 pole spaces
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: BJ3200
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : BJ Series
- Type : BJ
- Voltage : 240
- Amperage : 200
- Phase : 3
- Poles : 3
- AIC rating : 10kA@240V
- Connection : Plug-In
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 786676368452
- GTIN : 00786676368452
- Country of Origin : Dominican Republic
- Dimensions : 8 in x 3.5 in x 3.5 in (Length/Depth x Height x Width)
- Weight : 3.2
- Certification : UL 489,Federal Specifications Classification W-C375
- Wire Size : 2 AWG To 300 Kcmil (Aluminum/Copper)
