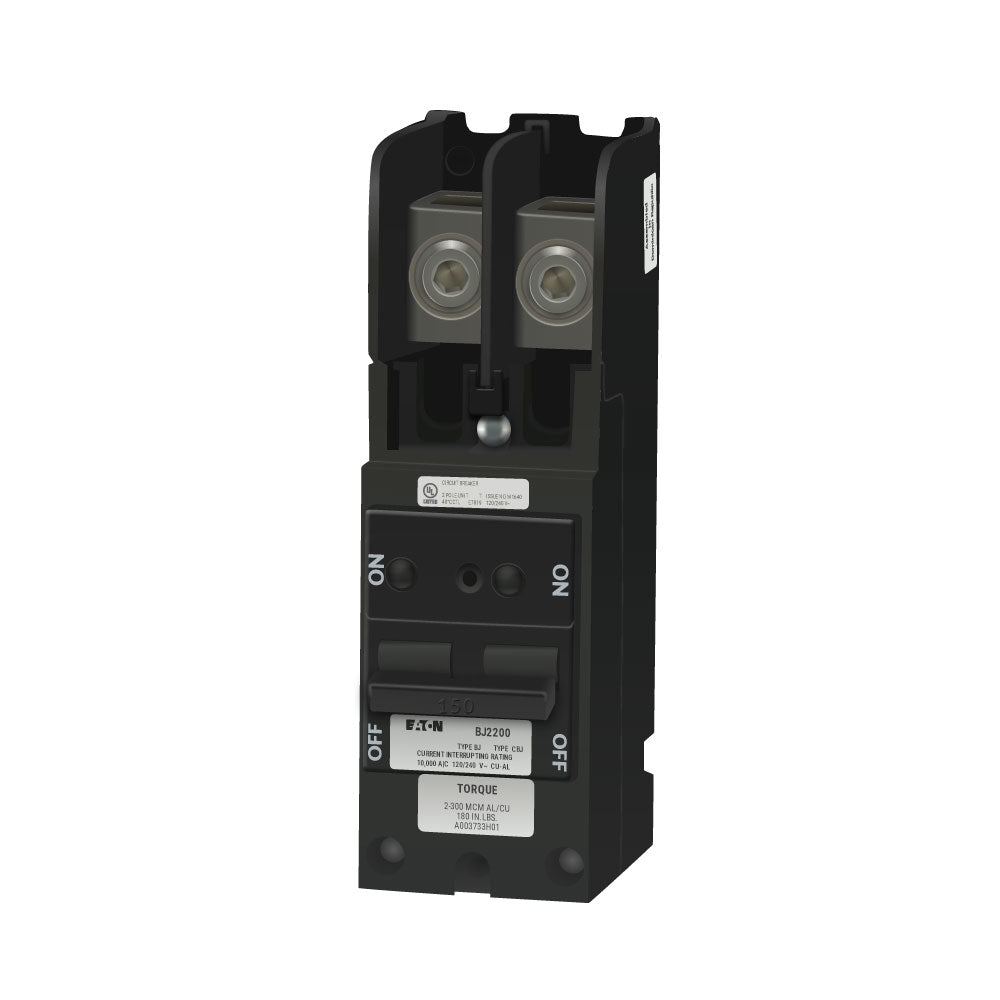

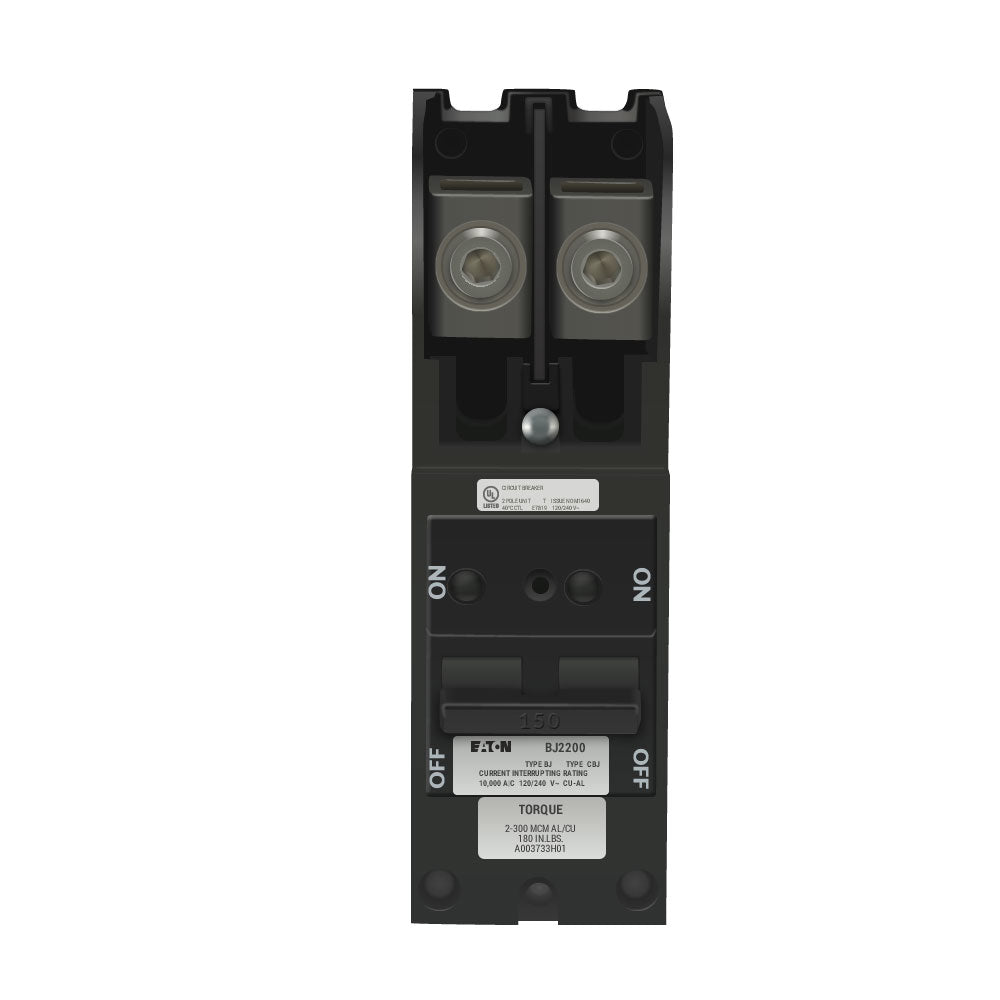

BJ2200 - Eaton Cutler-Hammer 200 Amp 2-Pole 120/240V Plug-On Main Circuit Breaker, BJ Series, 10kAIC, Thermal Magnetic Trip, UL 489, CSA

BJ2200

BJ2200 is a 200 Amp, 2-pole, plug-on main circuit breaker from Eaton Cutler-Hammer, designed for reliable protection in residential and light commercial applications.

This thermal magnetic molded case circuit breaker features a 120/240V voltage rating, a 10kA interrupting capacity at 240V, and a compact, easy-to-install design. It is UL 489 and CSA certified, ensuring compliance with North American safety standards. The BJ2200 uses a common trip mechanism and is part of the BJ series, compatible with load centers rated for at least 150A. It accepts #2 AWG to 300 kcmil copper or aluminum wire, making it versatile for various installations.

Key Specifications
• Amperage: 200A
• Voltage: 120/240V
• Poles: 2
• Mounting Type: Plug-on
• Interrupt Rating: 10kAIC at 240V
• Series/Frame: BJ
• Trip Unit: Thermal magnetic, common trip
• Certifications: UL 489, CSA
• Connection: Plug-in
• Wire Size: #2 AWG to 300 kcmil (Cu/Al)
• Dimensions: 6.5" x 3.5" x 2.5"
• Weight: 1.8 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BJ2200
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BJ Series
• Type : BJ
• Voltage : 240
• Amperage : 200
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786676367202
• GTIN : 00786676367202

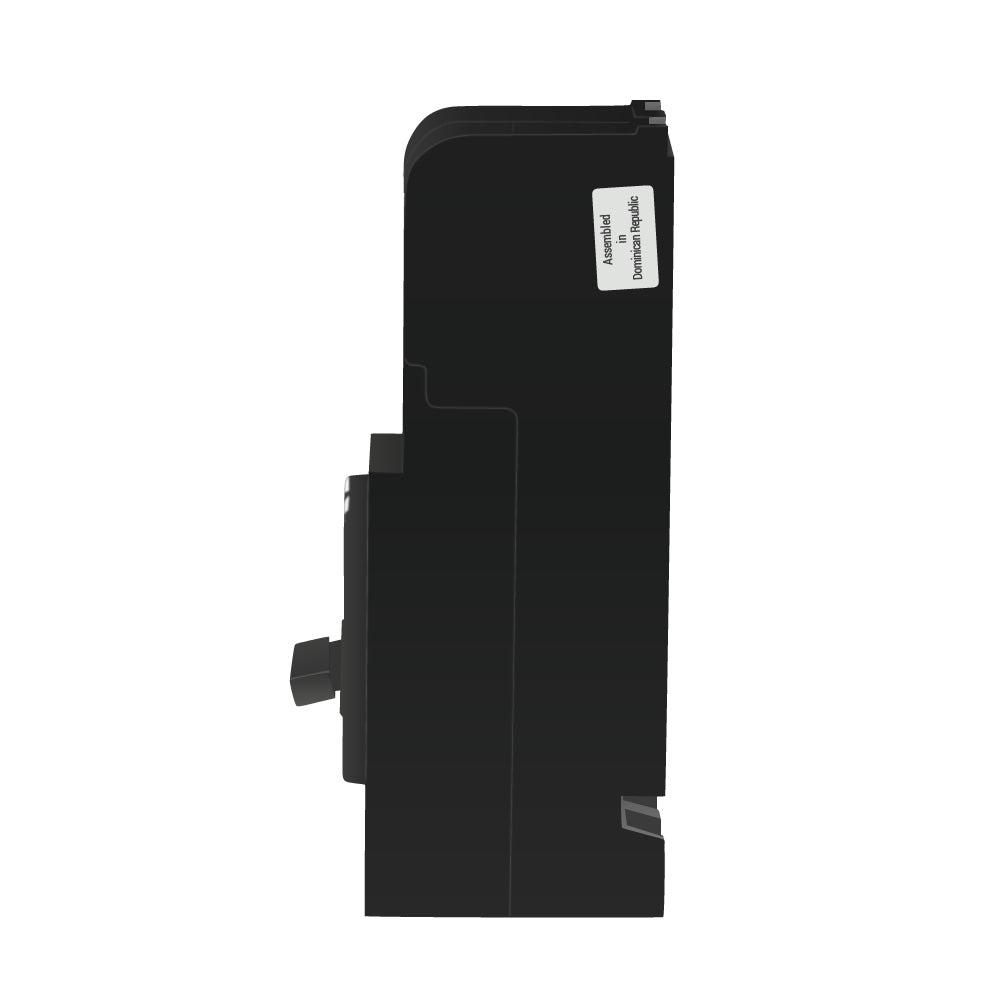

• Country of Origin : Dominican Republic
• Dimensions : 6.5 in x 2.5 in x 3.5 in (Length/Depth x Height x Width)
• Weight : 1.8 lb
• Certification : UL 489,Federal Specifications Classification W-C375
• Wire Size : AWG 2 to 300KCmil, Cu/Al
