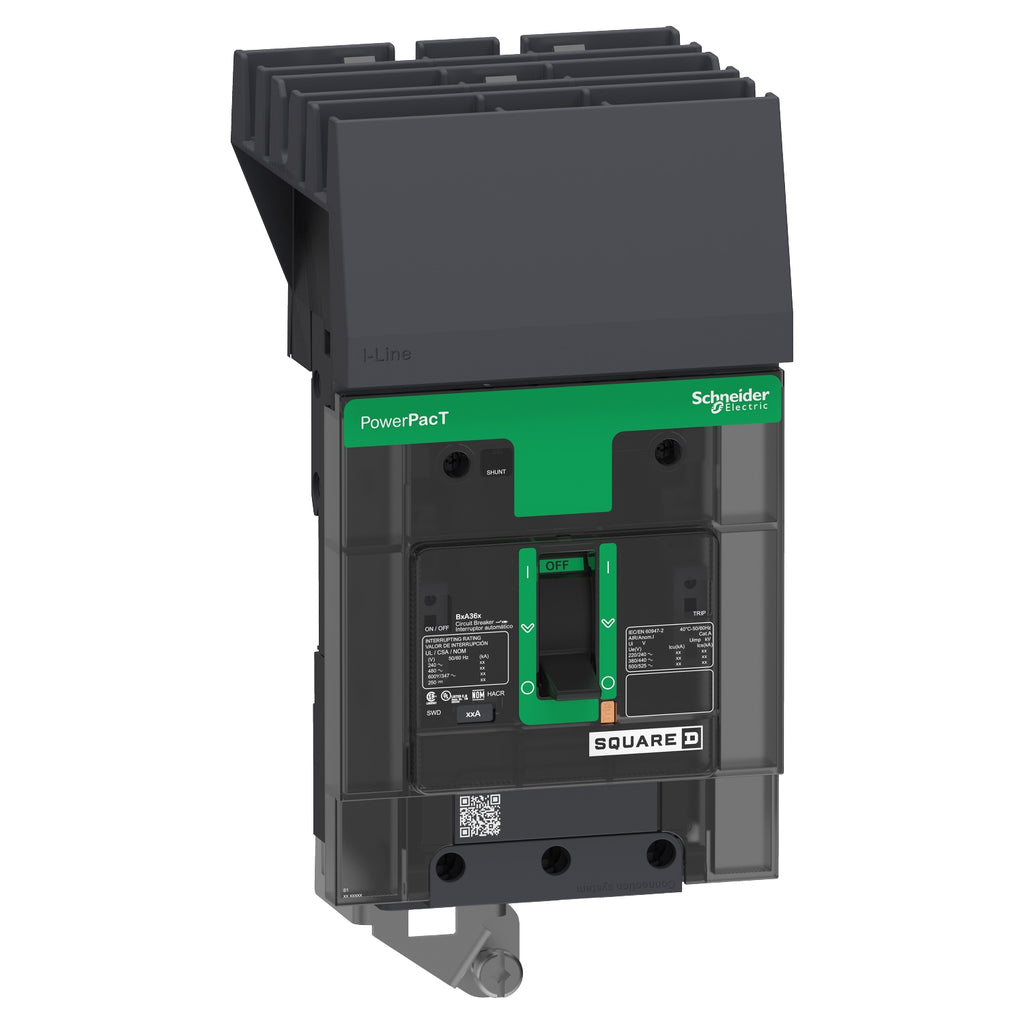

BGA34125Y - Square D 125A 480Y/277V 3 Pole PowerPact B Molded Case Circuit Breaker

BGA34125Y

BGA34125Y is a Square D PowerPact B series molded case circuit breaker rated for 125 amps and 480Y/277 volts with 3 poles.This thermal magnetic circuit breaker features a 35 kA interrupt rating at 480Y/277 VAC and is designed for I-Line mounting. It provides reliable overcurrent protection with a thermal/magnetic trip unit and meets UL 489 certification standards.

• Amperage: 125 A
• Voltage: 480Y/277 VAC
• Poles: 3
• Interrupt Rating: 35 kA at 480Y/277 VAC
• Series/Frame: PowerPact B
• Trip Unit: Thermal Magnetic
• Mounting Type: I-Line
• Certifications: UL 489
• Type: Molded Case Circuit Breaker

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BGA34125Y
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BGA
• Voltage : 480
• Amperage : 125
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Al Mechanical Lug OFF End, I-Line ON End
• Frame Size : 125A/BG
• Temp Rating : Minimum Operating Temp -13 Degrees F Max. Operating Temp.158 Degrees F
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 2 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901069553
• GTIN : 00785901069553
• Country of Origin : Mexico
• Dimensions : 5.4 in (137 mm) x 3.2 in (81 mm) x 3.5 in (89 mm) (Height x Width x Depth)
• Weight : 3.79
• Panel Type : Electrical Distribution Equipment, Industrial Control Panels
• Standards : GB 14048.2, CSA C22.2 No 5, NEMA AB1, EN/IEC 60947-5-1, UL 489, EN/IEC 60947-2, NMX J-266
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 14...AWG 2/0 aluminium/copper
