BGA34015Y - Square D 3 Pole 15A 480Y/277VAC Circuit Breaker I-Line Plug-In

Save $222.44
SKU: BGA34015Y-New
Condition: New
Price:
$982.56 $1,205.00
Stock:
Low inventory, please call for stock check

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

BGA34015Y - Essential Electric Supply
BGA34015Y - Square D I-Line Style Plug-In 480V 15A 3 pole circuit breaker 18kA@480V - Essential Electric Supply

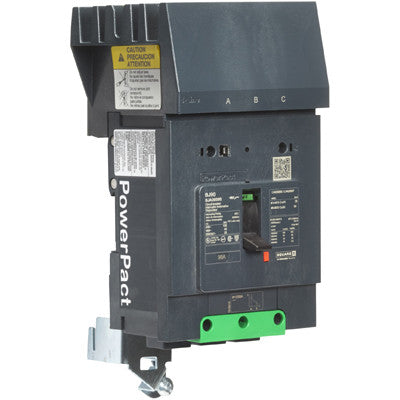

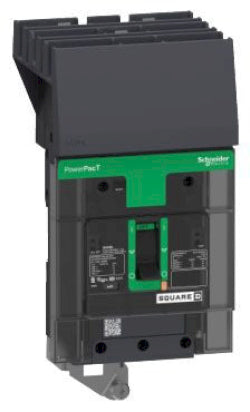

Roll over image to zoom in Click on image to zoom Images are for reference only
BGA34015Y - Essential Electric Supply
BGA34015Y - Square D I-Line Style Plug-In 480V 15A 3 pole circuit breaker 18kA@480V - Essential Electric Supply

Description

BGA34015Y


BGA34015Y is a 3 pole, 15A, 480Y/277VAC molded case circuit breaker designed for I-Line plug-in mounting applications. This Square D PowerPact B series breaker features a thermal magnetic trip unit and is suitable for use in commercial and industrial power distribution systems. The BGA34015Y offers reliable protection with a 35kA interrupt rating at 480VAC and is built to meet UL standards. Its compact design and I-Line compatibility make it ideal for panel upgrades and new installations where space and reliability are critical.
  • Part Number: BGA34015Y
  • Manufacturer: Square D
  • Series/Frame: PowerPact B, BGA Frame
  • Number of Poles: 3
  • Amperage: 15A
  • Voltage Rating: 480Y/277VAC
  • Mounting Type: I-Line Plug-In
  • Interrupt Rating: 35kA @ 480VAC
  • Trip Unit: Thermal Magnetic
  • Standards: UL Listed
  • Weight: 1.71 kg
  • Country of Origin: Mexico
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: BGA34015Y
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerpact
  • Type : BGA
  • Voltage : 480
  • Amperage : 15
  • Phase : 3
  • Poles : 3
  • AIC rating : 18kA@480V
  • Connection : I-Line Style Plug-In
  • Functions : Long Time and Instantaneous Trip
  • Terminal Connection : Al Mechanical Lug OFF End, I-Line ON End
  • Frame Size : 125A/BG
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 14 AWG Max. Wire Size 2 AWG
  • Breaker Type : Standard
  • Protection : Thermal Magnetic
  • Phase Connection : ABC

Product Data

  • UPC : 785901068372
  • GTIN : 00785901068372
  • Country of Origin : Mexico
  • Dimensions : 5.4 in (137 mm) x 3.2 in (81 mm) x 3.5 in (89 mm) (Height x Width x Depth)
  • Weight : 3.79
  • Panel Type : Electrical Distribution Equipment, Industrial Control Panels
  • Standards : UL 489, GB 14048.2, EN/IEC 60947-5-1, EN/IEC 60947-2, NEMA AB1, CSA C22.2 No 5, NMX J-266
  • Certification : UL, IEC, CCC, EAC, CSA, NOM
  • Wire Size : AWG 14...AWG 2/0 aluminium/copper
