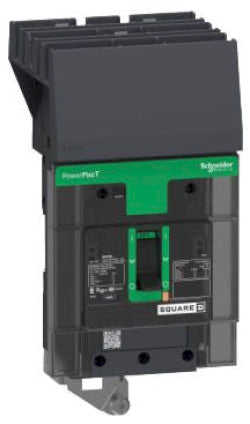

BGA34090Y - Schneider Electric 90A 3-Pole PowerPact B Frame Circuit Breaker, 480Y/277V AC, 35kA Interrupt Rating, I-Line Mount

BGA34090Y

BGA34090Y is a Schneider Electric PowerPact B Frame circuit breaker rated for 90 amps, 3 poles, and designed for 480Y/277V AC applications with a 35kA interrupt rating.This molded case circuit breaker features thermal magnetic trip units and is designed for I-Line mounting. It supports multiple interrupt ratings including 65kA at 208Y/120V and 240V, 35kA at 480/277V, and 18kA at 600Y/347V AC. The breaker is UL 489 listed and suitable for commercial and industrial power distribution systems.

• Amperage: 90A
• Poles: 3
• Voltage Rating: 480Y/277V AC
• Interrupt Rating: 35kA at 480/277V AC
• Frame Type: PowerPact B
• Mounting Type: I-Line
• Trip Unit: Thermal Magnetic
• UL Listed: UL 489
• Interrupt Ratings: 65kA at 208Y/120V and 240V AC, 18kA at 600Y/347V AC
• Manufacturer: Schneider Electric (Square D)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BGA34090Y
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BGA
• Voltage : 480
• Amperage : 90
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : I-Line Style Plug-In
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Al Mechanical Lug OFF End, I-Line ON End
• Frame Size : 125A/BG
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 2 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901069515
• GTIN : 00785901069515
• Country of Origin : Mexico
• Dimensions : 5.4 in (137 mm) x 3.2 in (81 mm) x 3.5 in (89 mm) (Height x Width x Depth)
• Weight : 3.79
• Panel Type : Electrical Distribution Equipment, Industrial Control Panels
• Standards : NMX J-266, EN/IEC 60947-5-1, NEMA AB1, CSA C22.2 No 5, UL 489, EN/IEC 60947-2, GB 14048.2
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 14...AWG 2/0 aluminium/copper
