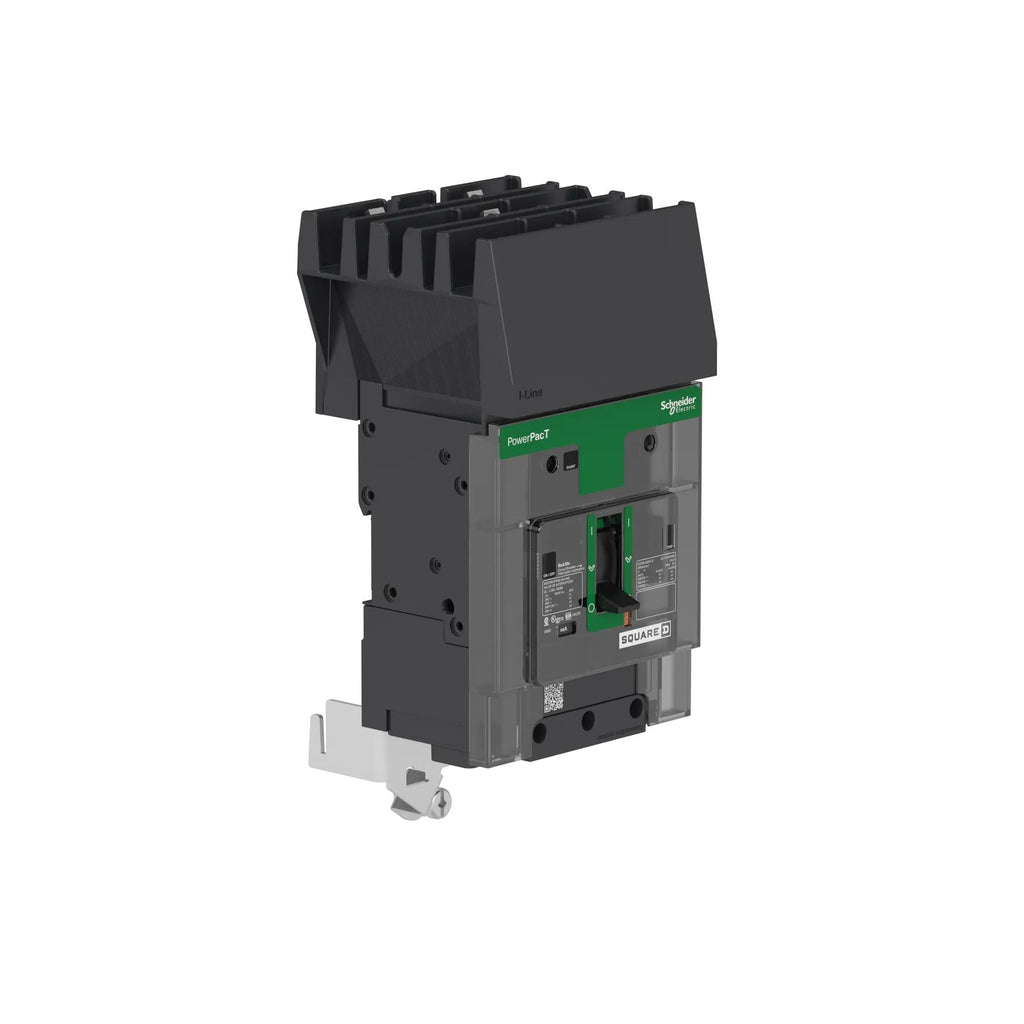

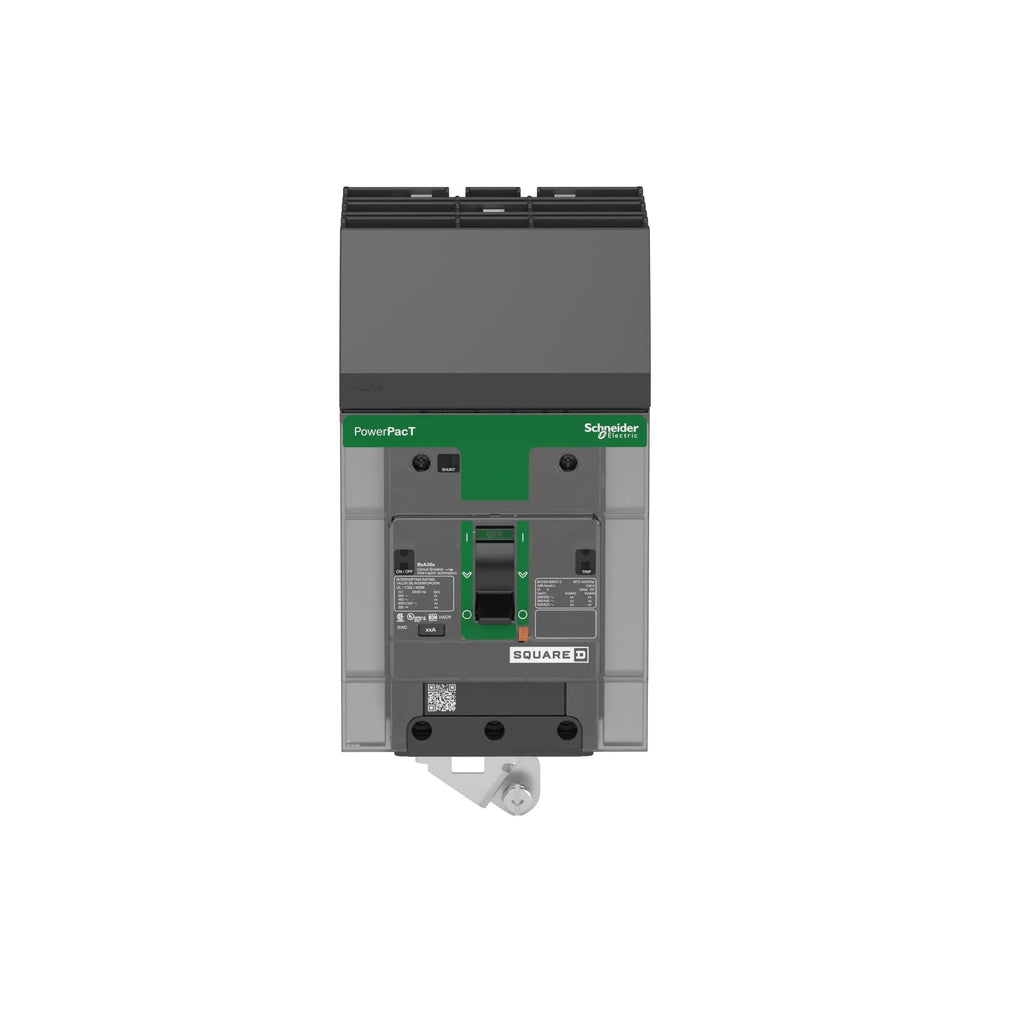

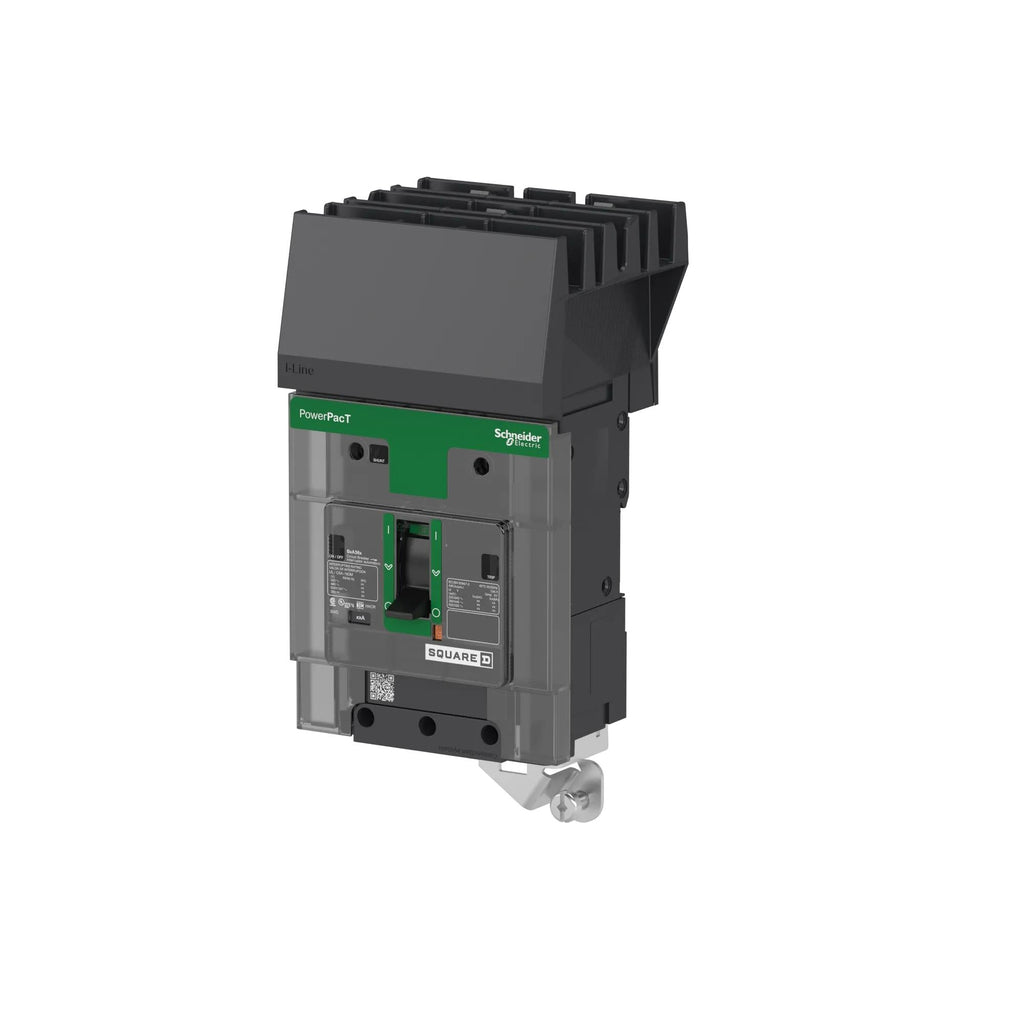

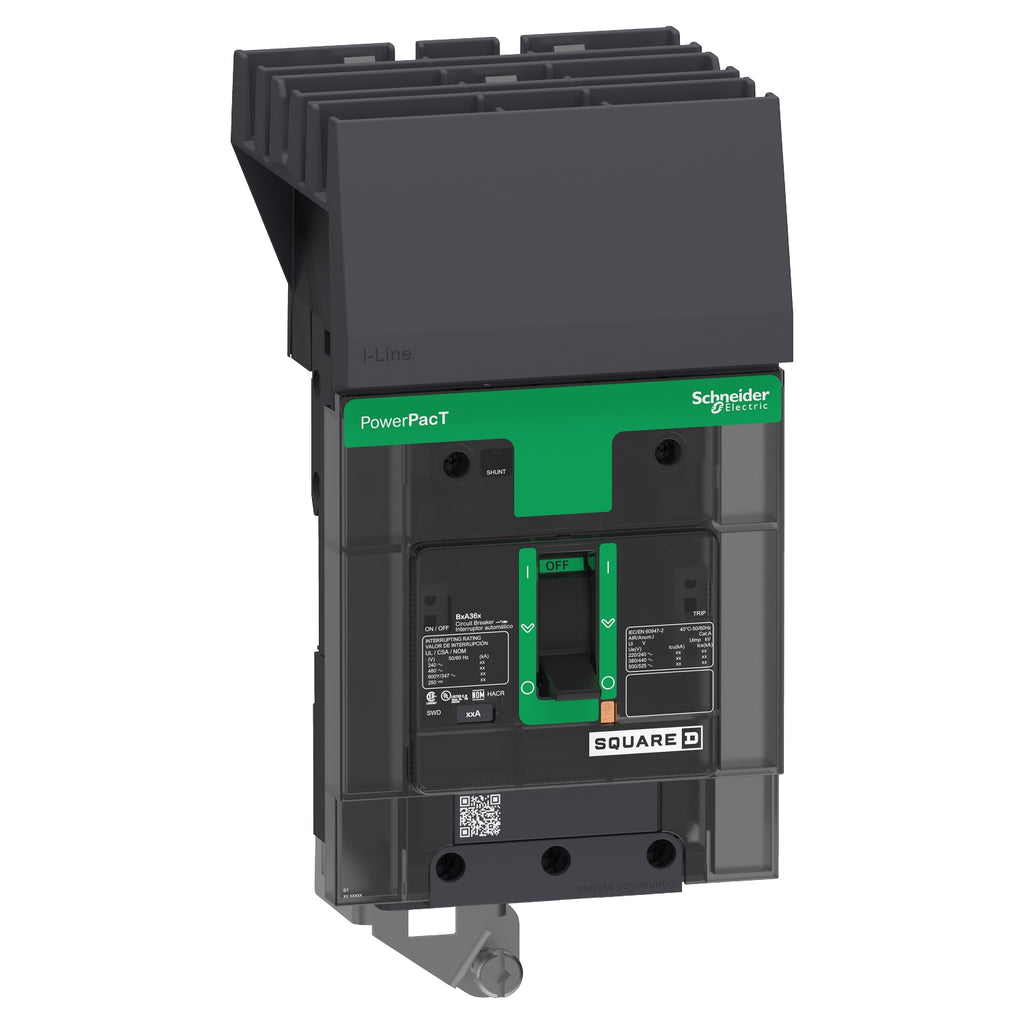

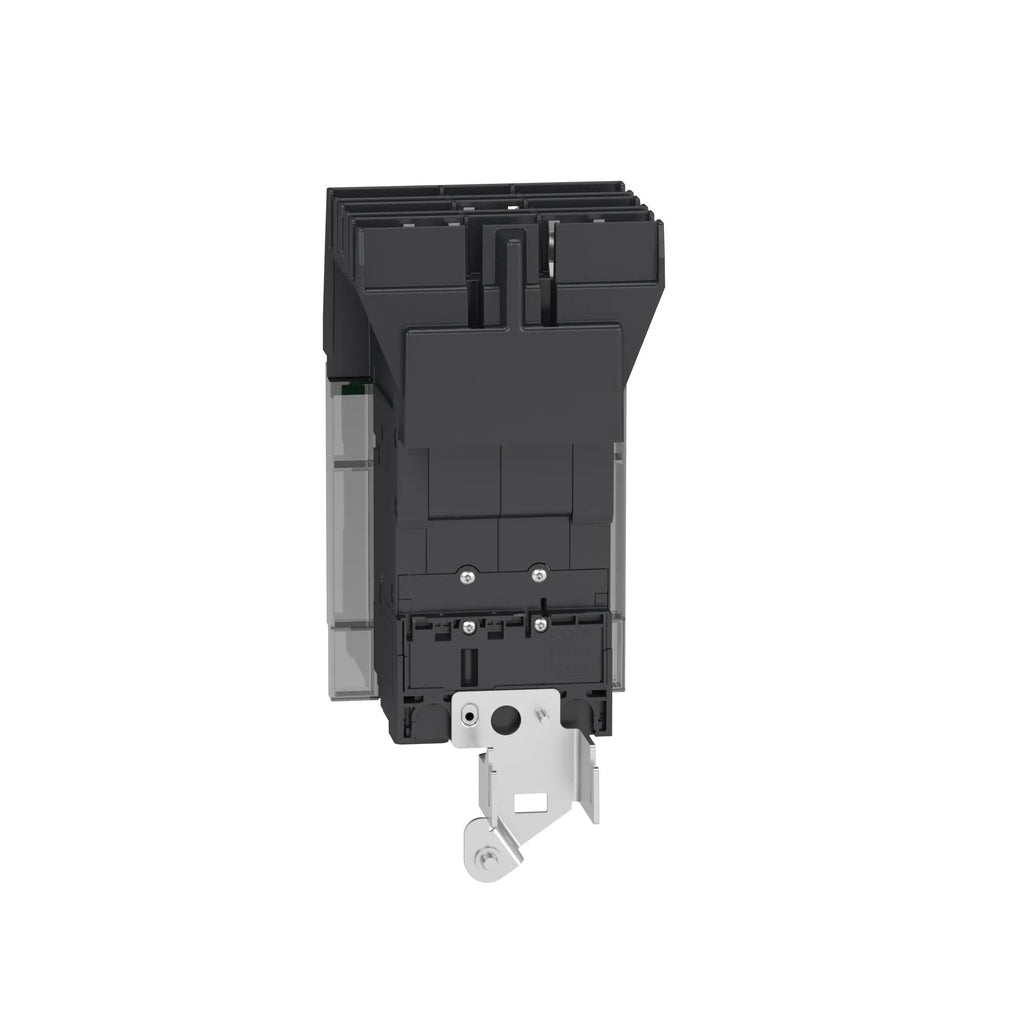

BGA34030Y - Square D 30A 480Y/277VAC 3 Pole PowerPact B I-Line Circuit Breaker

SKU: BGA34030Y-New
Condition: New
Price:
$1,272.24
Stock:
4 in stock
Limited availability — we'll confirm stock immediately after your order.

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

BGA34030Y - Square D I-Line Style Plug-In 480V 30A 3 pole circuit breaker 18kA@480V - Essential Electric Supply
BGA34030Y - Square D 30A 480Y/277VAC 3 Pole PowerPact B I-Line Circuit Breaker - Essential Electric Supply
BGA34030Y - Square D 30A 480Y/277VAC 3 Pole PowerPact B I-Line Circuit Breaker - Essential Electric Supply
BGA34030Y - Square D 30A 480Y/277VAC 3 Pole PowerPact B I-Line Circuit Breaker - Essential Electric Supply
BGA34030Y - Square D 30A 480Y/277VAC 3 Pole PowerPact B I-Line Circuit Breaker - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
BGA34030Y - Square D I-Line Style Plug-In 480V 30A 3 pole circuit breaker 18kA@480V - Essential Electric Supply
BGA34030Y - Square D 30A 480Y/277VAC 3 Pole PowerPact B I-Line Circuit Breaker - Essential Electric Supply
BGA34030Y - Square D 30A 480Y/277VAC 3 Pole PowerPact B I-Line Circuit Breaker - Essential Electric Supply
BGA34030Y - Square D 30A 480Y/277VAC 3 Pole PowerPact B I-Line Circuit Breaker - Essential Electric Supply
BGA34030Y - Square D 30A 480Y/277VAC 3 Pole PowerPact B I-Line Circuit Breaker - Essential Electric Supply

Description

BGA34030Y


BGA34030Y is a Square D 3 pole thermal magnetic molded case circuit breaker rated for 30 amps and 480Y/277VAC voltage.This PowerPact B series breaker features an I-Line mounting type with a 35kA interrupt rating, designed for reliable circuit protection in commercial and industrial applications.
    Key Specifications
    • Amperage: 30 Amps
    • Voltage: 480Y/277VAC
    • Poles: 3
    • Mounting Type: I-Line
    • Interrupt Rating: 35kA
    • Series/Frame: PowerPact B
    • Trip Unit: Thermal Magnetic
    • Continuous Current Rating: 80%
    • Certifications: UL Listed, CSA Certified (typical for Square D breakers)
    At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

    Specifications

    • Part Number: BGA34030Y
    • Manufacturer : Schneider Electric
    • Brand : Square D
    • Category : Circuit Breaker
    • Item Subcategory : Molded Case
    • Family : Powerpact
    • Type : BGA
    • Voltage : 480
    • Amperage : 30
    • Phase : 3
    • Poles : 3
    • AIC rating : 18kA@480V
    • Connection : I-Line Style Plug-In
    • Functions : Long Time and Instantaneous Trip
    • Terminal Connection : Al Mechanical Lug OFF End, I-Line ON End
    • Frame Size : 125A/BG
    • Temp Rating : -13–158 °F (-25–70 °C)
    • MCM Size : Min. Wire Size 14 AWG Max. Wire Size 2 AWG
    • Breaker Type : Standard
    • Protection : Thermal Magnetic
    • Phase Connection : ABC

    Product Data

    • UPC : 785901068945
    • GTIN : 00785901067788
    • Country of Origin : Mexico
    • Dimensions : 5.4 in (137 mm) x 3.2 in (81 mm) x 3.5 in (89 mm) (Height x Width x Depth)
    • Weight : 3.79
    • Panel Type : Electrical Distribution Equipment, Industrial Control Panels
    • Standards : UL 489, GB 14048.2, EN/IEC 60947-5-1, NEMA AB1, EN/IEC 60947-2, NMX J-266, CSA C22.2 No 5
    • Certification : UL, IEC, CCC, EAC, CSA, NOM
    • Wire Size : AWG 14...AWG 2/0 aluminium/copper
