Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
BF230

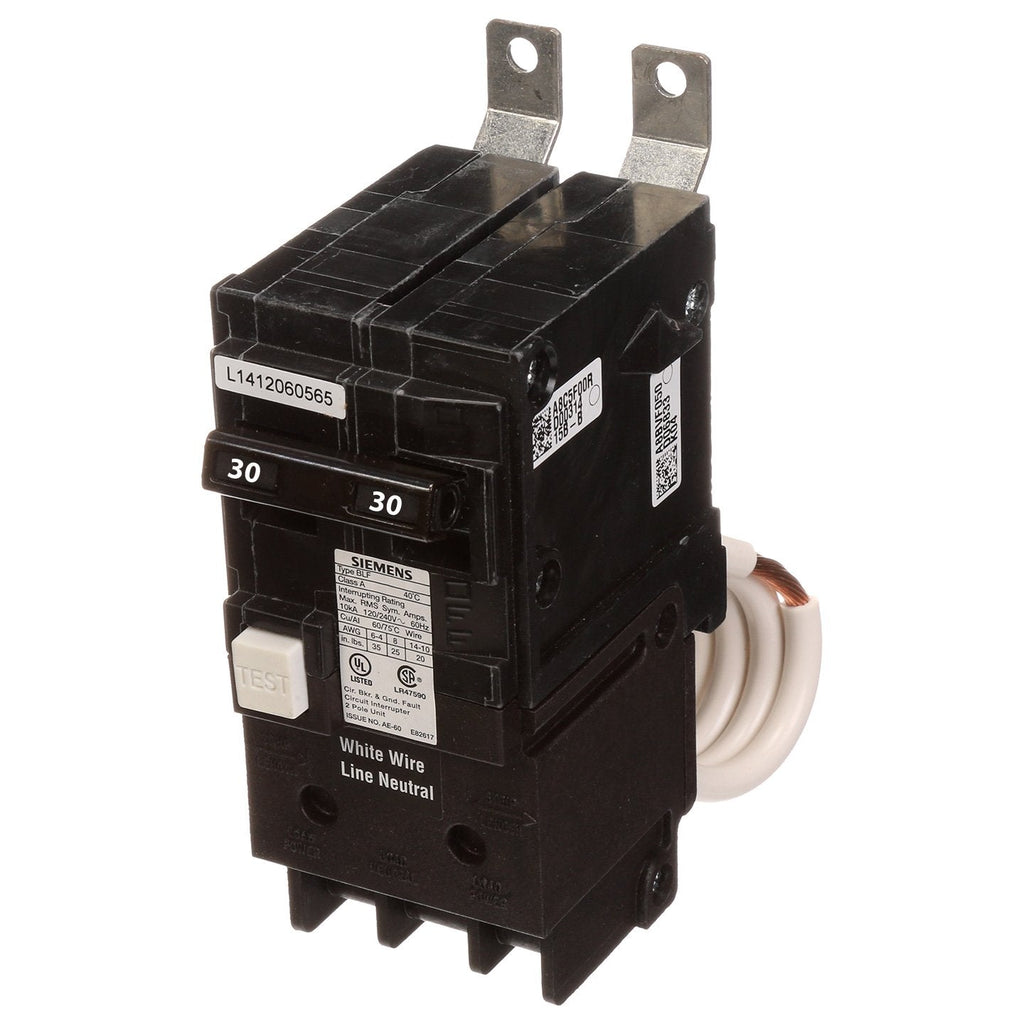

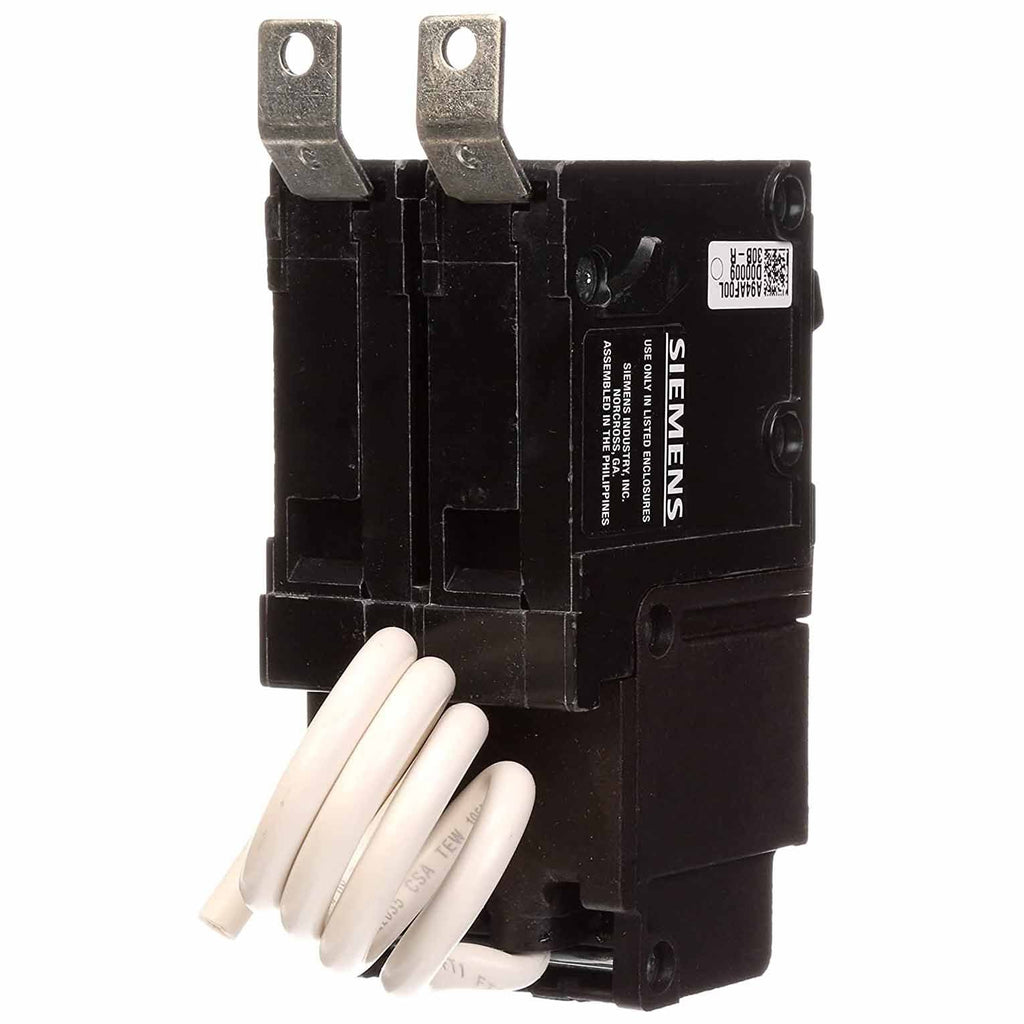

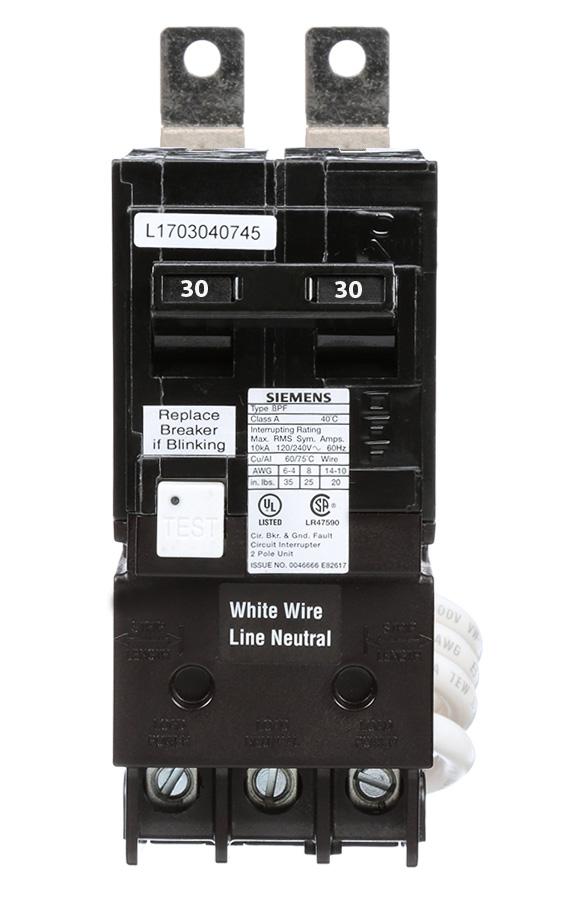

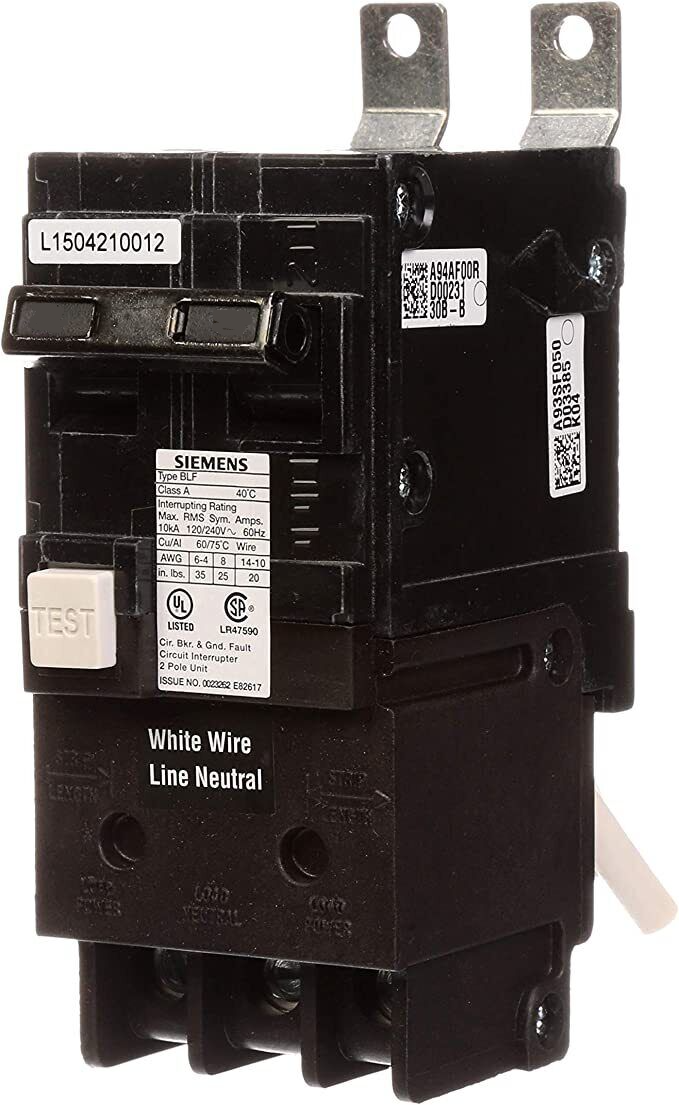

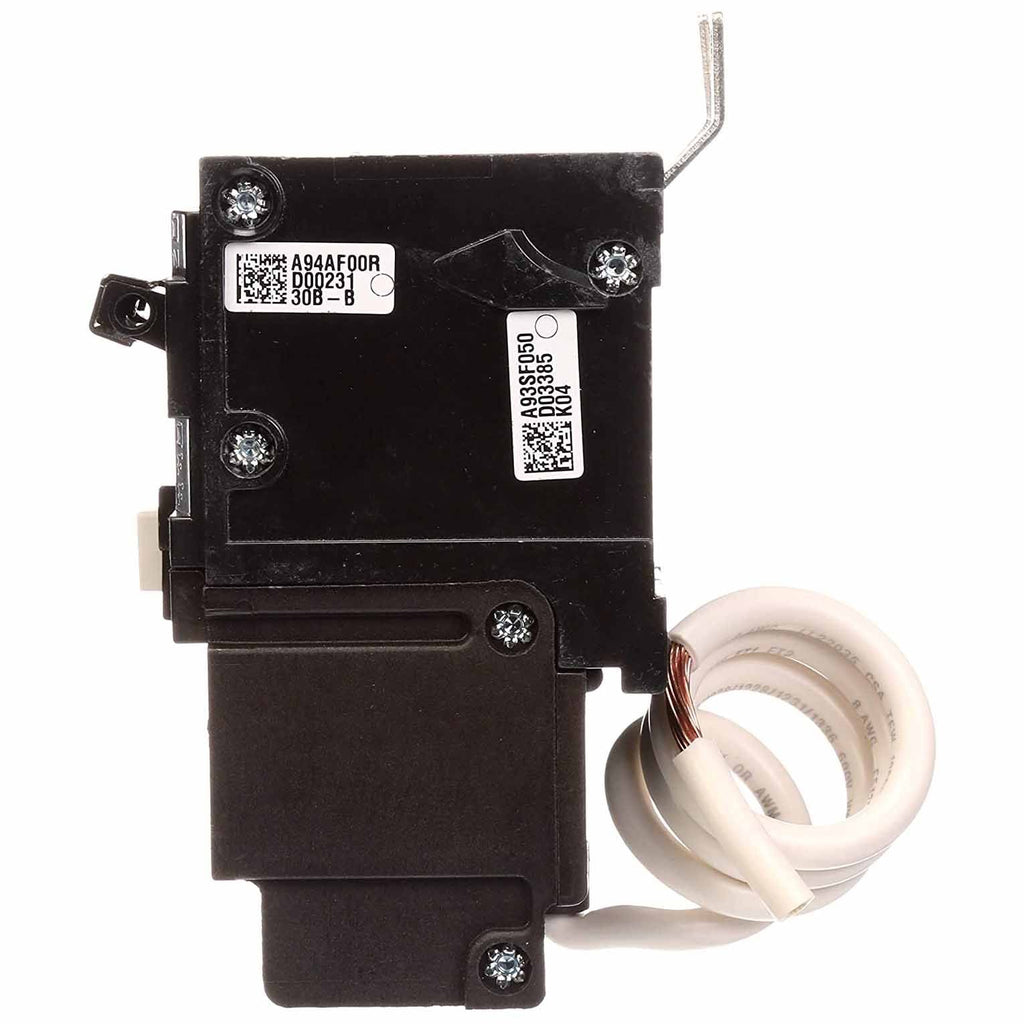

BF230 is a Siemens 30 amp, 2-pole, 240 Volt bolt-on ground fault circuit breaker designed for reliable protection in residential and commercial panelboards.BF230 features a thermal magnetic trip unit with a 10,000 amp interrupting rating, UL listed and CSA certified for safety and performance. It mounts securely with a bolt-on connection and supports wire sizes from #14 to #8 AWG.
- Key Specifications
- Manufacturer: Siemens
- Amperage: 30 Amps
- Voltage Rating: 120/240 VAC
- Number of Poles: 2
- Mounting Type: Bolt-On
- Interrupting Rating: 10,000 Amps
- Trip Unit: Thermal Magnetic
- Phase: Single
- Terminal Type: Fixed Lug
- Wire Size Range: #14-8 AWG
- Certifications: UL Listed, CSA Certified
- Dimensions (HxWxD): Approx. 3.5" x 2" x 3"
Specifications
- Part Number: BF230
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : BL Series
- Type : BLF
- Voltage : 240
- Amperage : 30
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783643274006
- GTIN : 00783643274006
- Country of Origin : Philippines
- Dimensions : 1.969 x 3.937 x 5.906 inch
- Weight : 0.066
