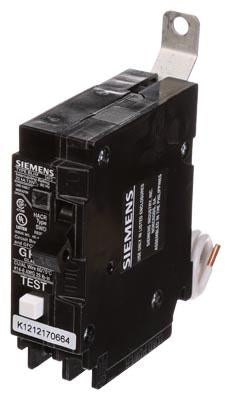

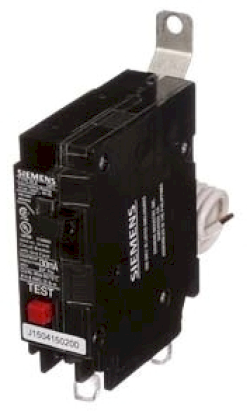

BF115H - Siemens 15A 1P 120V GFCI Bolt-On Circuit Breaker BLHF Series 22kA Interrupt

BF115H

BF115H is a Siemens 15A 1-pole ground fault circuit breaker designed for 120V AC applications, featuring a bolt-on mounting style and high interrupting capacity. This Siemens BF115H BLHF series breaker provides reliable protection with thermal magnetic trip technology and personnel GFCI protection at 5mA. It is engineered for use in commercial and industrial power distribution systems requiring fast, safe interruption of ground faults.

• Part Number: BF115H
• Manufacturer: Siemens
• Amperage: 15A
• Poles: 1
• Voltage: 120V AC
• Mounting Type: Bolt-On
• Interrupt Rating: 22kA
• Series/Frame: BLHF
• Trip Unit: Thermal Magnetic, GFCI 5mA
• Application: Personnel GFCI Protection
• Standards: UL Listed
• Weight: 3 lb

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BF115H
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : BLHF
• Voltage : 120
• Amperage : 15
• Phase : 1
• Poles : 1
• AIC rating : 22kA@120V
• Connection : Bolt-on
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : 60A/BLHF
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
• Breaker Type : Ground Fault Circuit Interrupter (Class A - 5mA)
• Protection : Thermal Magnetic

Product Data

• UPC : 783643069596
• GTIN : 00783643069596
• Country of Origin : Philippines
• Dimensions : 4.724 x 3.937 x 0.787 inch
• Weight : 0.441
• Panel Type : Siemens Panelboards
• Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
