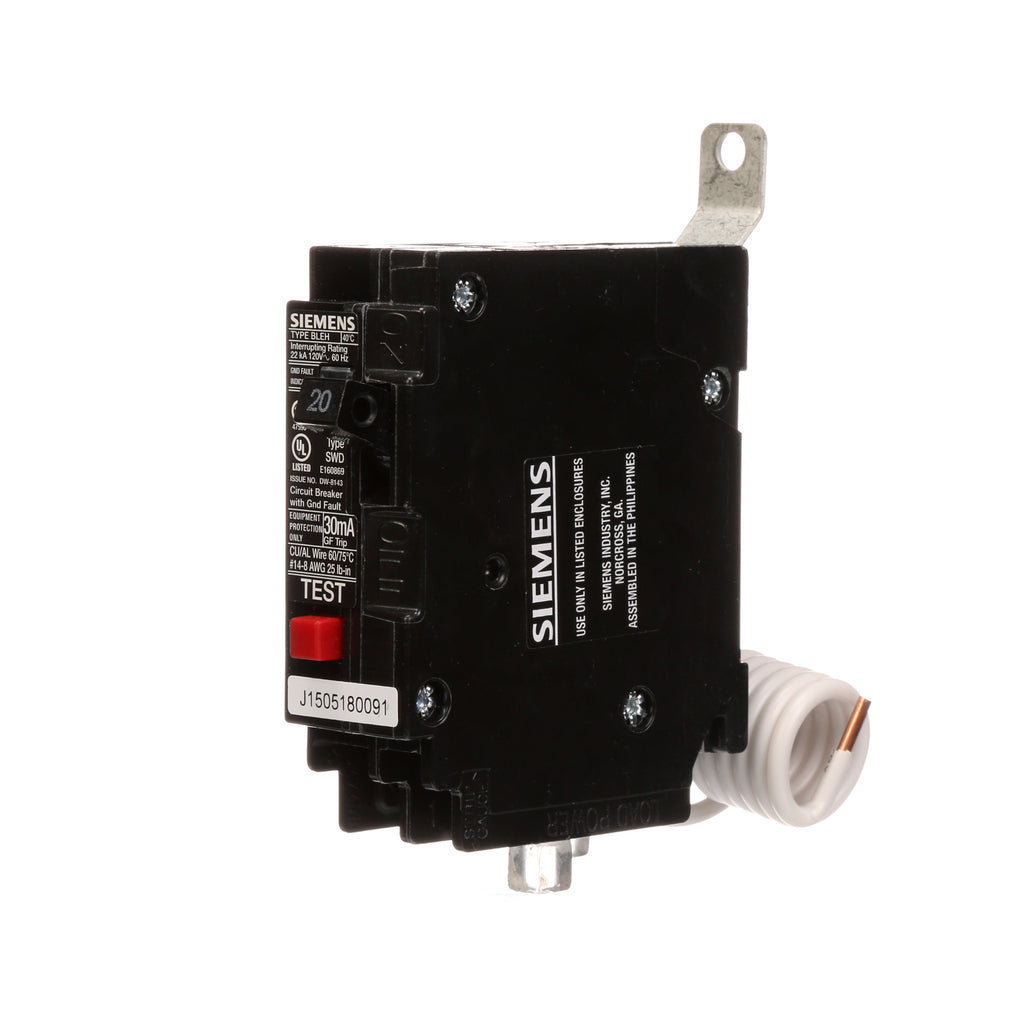

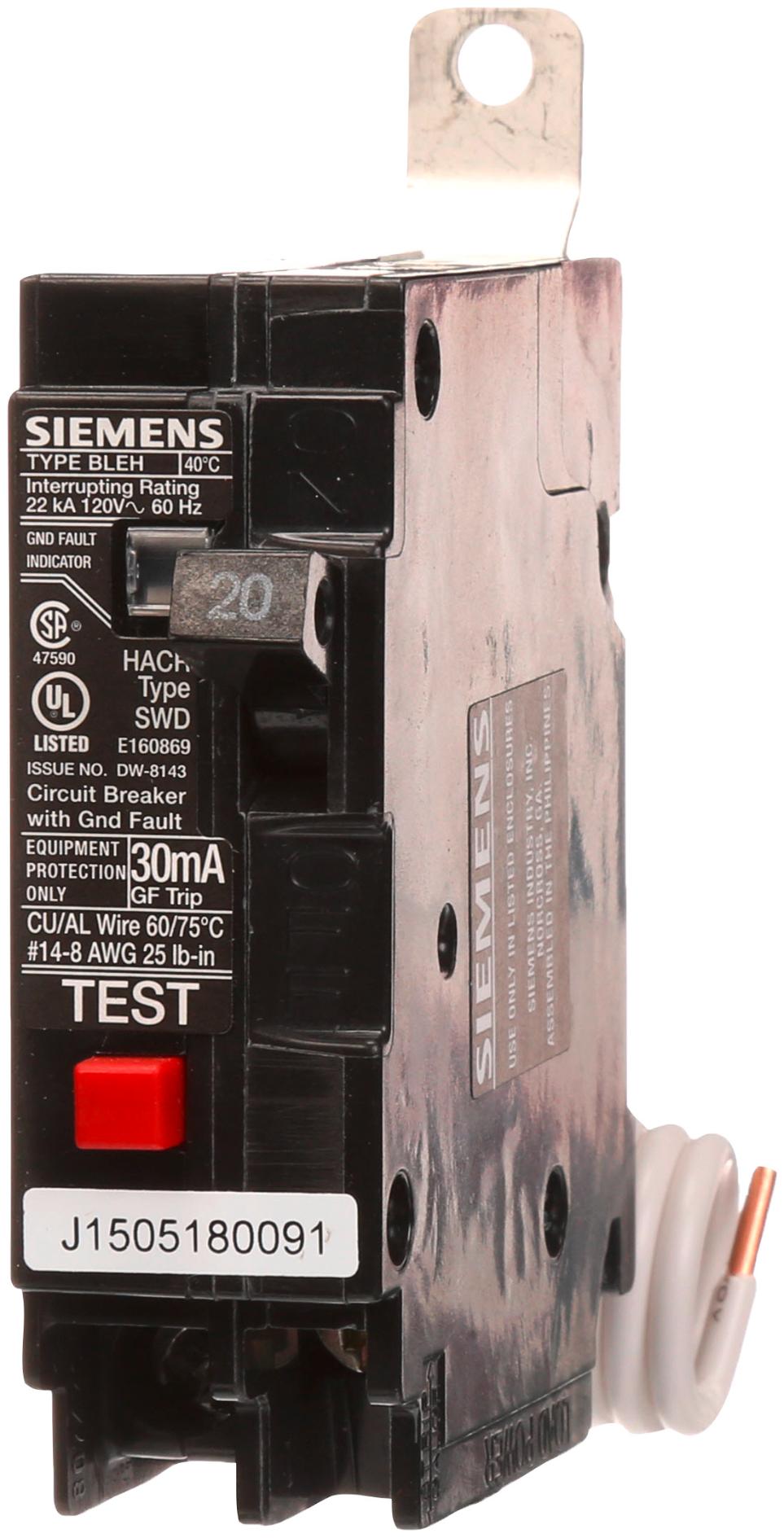

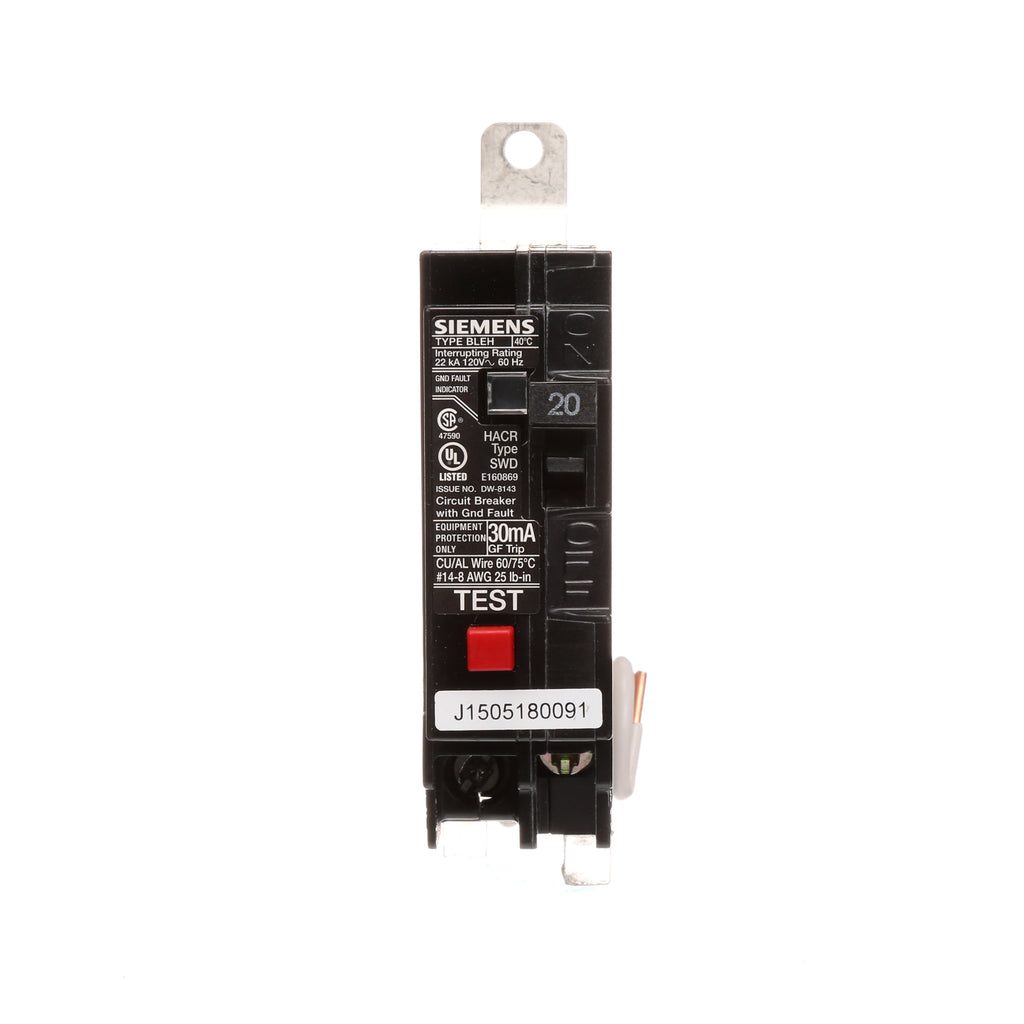

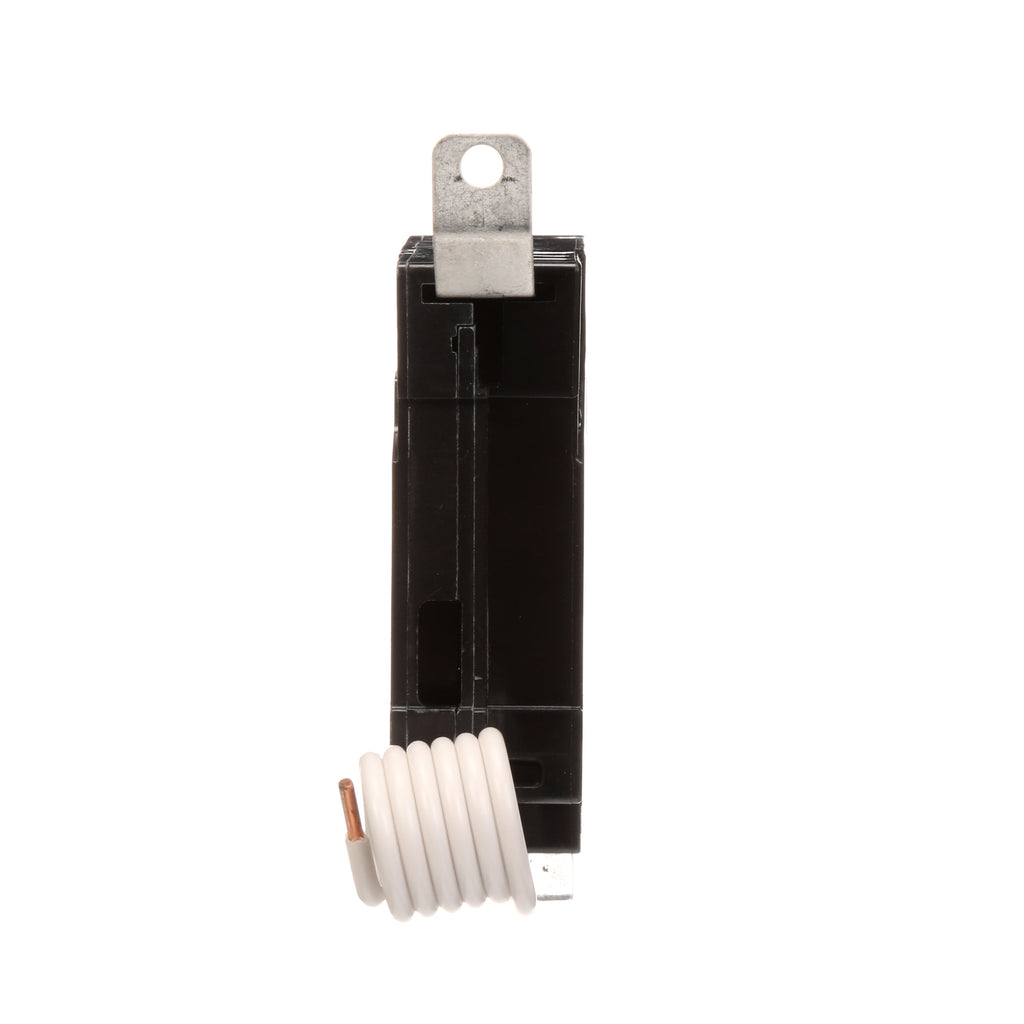

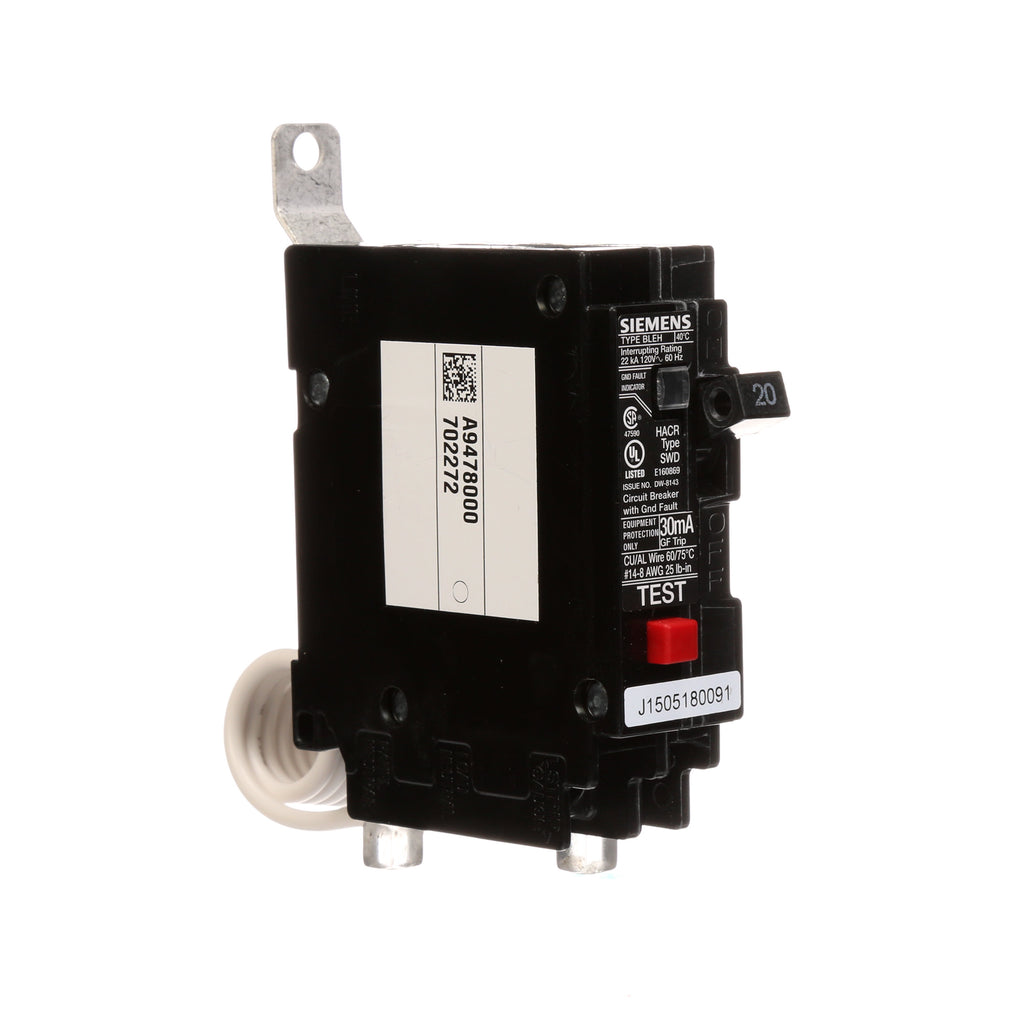

BE120H - Siemens 20 Amp 120 Volt 1-Pole Bolt-On Molded Case Circuit Breaker BLEH Series

BE120H

BE120H is a Siemens 20 Amp, 120 Volt, 1-Pole bolt-on molded case circuit breaker designed for panelboard mounting and ground fault protection.This Siemens BLEH series circuit breaker features thermal-magnetic trip technology, a 22 kA interrupt rating, and is UL 489 certified. It provides reliable electrical distribution protection with a bolt-on mounting type and is suitable for low voltage applications.

• Amperage: 20A
• Voltage Rating: 120V
• Number of Poles: 1
• Mounting Type: Bolt-On
• Interrupt Rating: 22 kAIC
• Series/Frame: BLEH
• Trip Unit: Thermal Magnetic
• Certifications: UL 489
• Application: Electrical Distribution
• Ground Fault Protection: Yes (30mA)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BE120H
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : BLEH
• Voltage : 120
• Amperage : 20
• Phase : 1
• Poles : 1
• AIC rating : 22kA@120V
• Connection : Bolt-on
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 60A/BLEH
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
• Breaker Type : Ground Fault Equipment Protection
• Protection : Thermal Magnetic

Product Data

• UPC : 783643266131
• GTIN : 00783643266131
• Country of Origin : Philippines
• Dimensions : 0.787 x 3.937 x 4.724 inch
• Weight : 0.507
• Panel Type : Siemens P1 Panelboards
• Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
