BDA34100Y - Schneider Electric PowerPacT B 100A 3P 480Y/277V AC 18kA I-Line Thermal Magnetic Molded Case Circuit Breaker

Save $391.34
SKU: BDA34100Y-New
Condition: New
Price:
$654.66 $1,046.00
Stock:
9 In stock, ready to be shipped

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

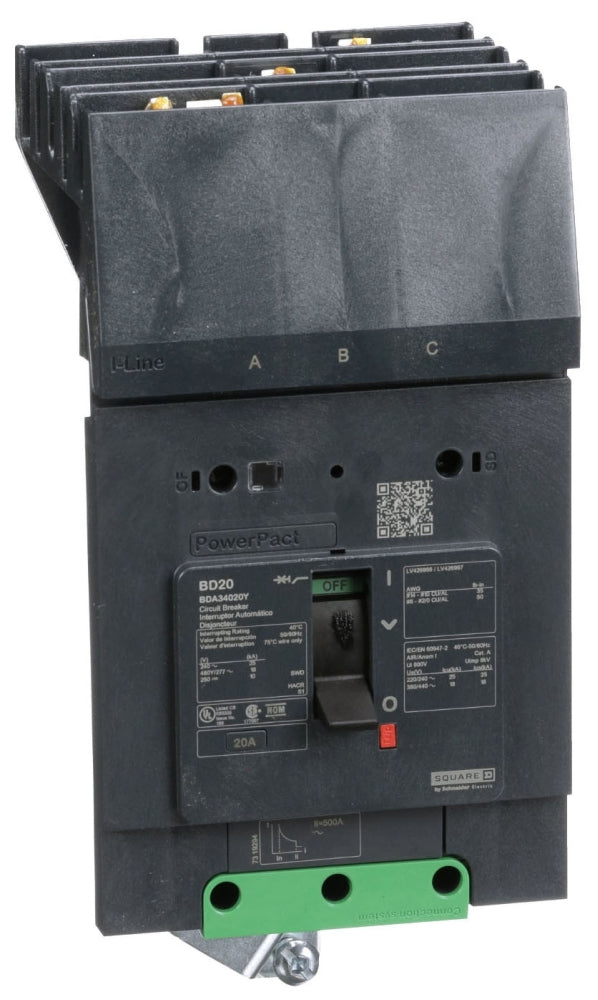

BDA34100Y - Essential Electric Supply
BDA34100Y - Schneider Electric I-Line 480V 100A 3 pole circuit breaker 18kA@480V - Essential Electric Supply
BDA34100Y - Schneider Electric PowerPacT B 100A 3P 480Y/277V AC 18kA I-Line Thermal Magnetic Molded Case Circuit Breaker - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
BDA34100Y - Essential Electric Supply
BDA34100Y - Schneider Electric I-Line 480V 100A 3 pole circuit breaker 18kA@480V - Essential Electric Supply
BDA34100Y - Schneider Electric PowerPacT B 100A 3P 480Y/277V AC 18kA I-Line Thermal Magnetic Molded Case Circuit Breaker - Essential Electric Supply

Description

BDA34100Y


BDA34100Y Schneider Electric PowerPacT B molded case circuit breaker delivers reliable thermal magnetic protection for industrial and commercial applications.

This 3-pole, 100A circuit breaker is rated for 480Y/277V AC and 250V DC, with an interrupting capacity of 18kA at 480Y/277V AC. It features an I-Line mounting style, B frame, and is suitable for use in a wide range of electrical distribution equipment. The breaker is UL 489 listed and designed for easy integration into panelboards and switchboards.

    Key Specifications
  • Part Number: BDA34100Y
  • Manufacturer: Schneider Electric
  • Amperage: 100A
  • Voltage: 480Y/277V AC, 250V DC
  • Poles: 3
  • Mounting Type: I-Line
  • Interrupt Rating: 18kA at 480Y/277V AC
  • Series/Frame: PowerPacT B
  • Trip Unit: Thermal Magnetic
  • Certifications: UL 489
  • Wire Size: 14 to 2/0 AWG (Aluminum/Copper)
  • Enclosure: IP40/IK07
  • Dimensions: 5.39 in H x 3.19 in W x 3.5 in D

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: BDA34100Y
  • Manufacturer : Schneider Electric
  • Brand : Schneider Electric
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerpact
  • Type : BDA
  • Voltage : 480
  • Amperage : 100
  • Phase : 3
  • Poles : 3
  • AIC rating : 18kA@480V
  • Connection : I-Line
  • Functions : Long Time and Instantaneous Trip
  • Terminal Connection : Al Mechanical Lug OFF End, I-Line ON End
  • Frame Size : 125A/BD
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 14 AWG Max. Wire Size 2 AWG
  • Breaker Type : Standard
  • Protection : Thermal Magnetic
  • Phase Connection : ABC

Product Data

  • UPC : 785901065869
  • GTIN : 03606481152473
  • Country of Origin : Mexico
  • Dimensions : 5.4 in (137 mm) x 3.2 in (81 mm) x 3.5 in (89 mm) (Height x Width x Depth)
  • Weight : 4.28
  • Panel Type : Electrical Distribution Equipment, Industrial Control Panels
  • Standards : EN/IEC 60947-5-1, NMX J-266, CSA C22.2 No 5, NEMA AB1, UL 489, GB 14048.2, EN/IEC 60947-2
  • Certification : UL, IEC, CCC, EAC, CSA, NOM
  • Wire Size : AWG 14...AWG 2/0 aluminium/copper
