BDA34040Y - Schneider Electric PowerPact B Circuit Breaker 40A 3 Pole 480Y/277VAC 18kA I-Line Thermal Magnetic

Save $305.25
SKU: BDA34040Y-New
Condition: New
Price:
$586.75 $892.00
Stock:
45 In stock, ready to be shipped

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

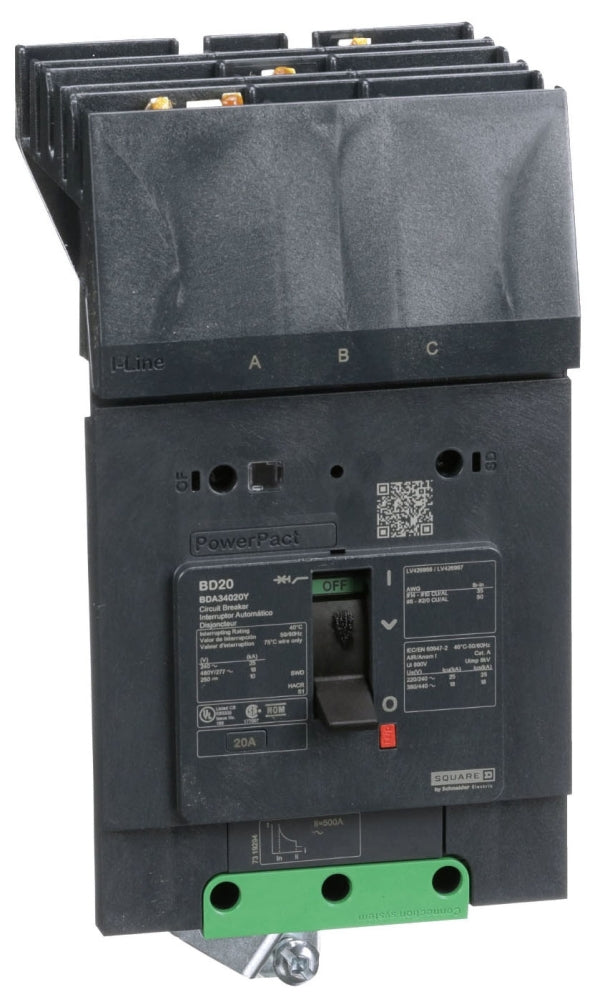

BDA34040Y - Essential Electric Supply

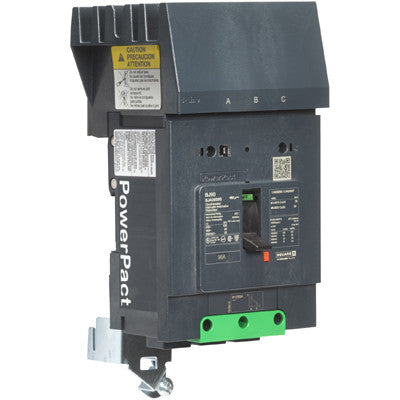

BDA34040Y - Schneider Electric I-Line 480V 40A 3 pole circuit breaker 18kA@480V - Essential Electric Supply

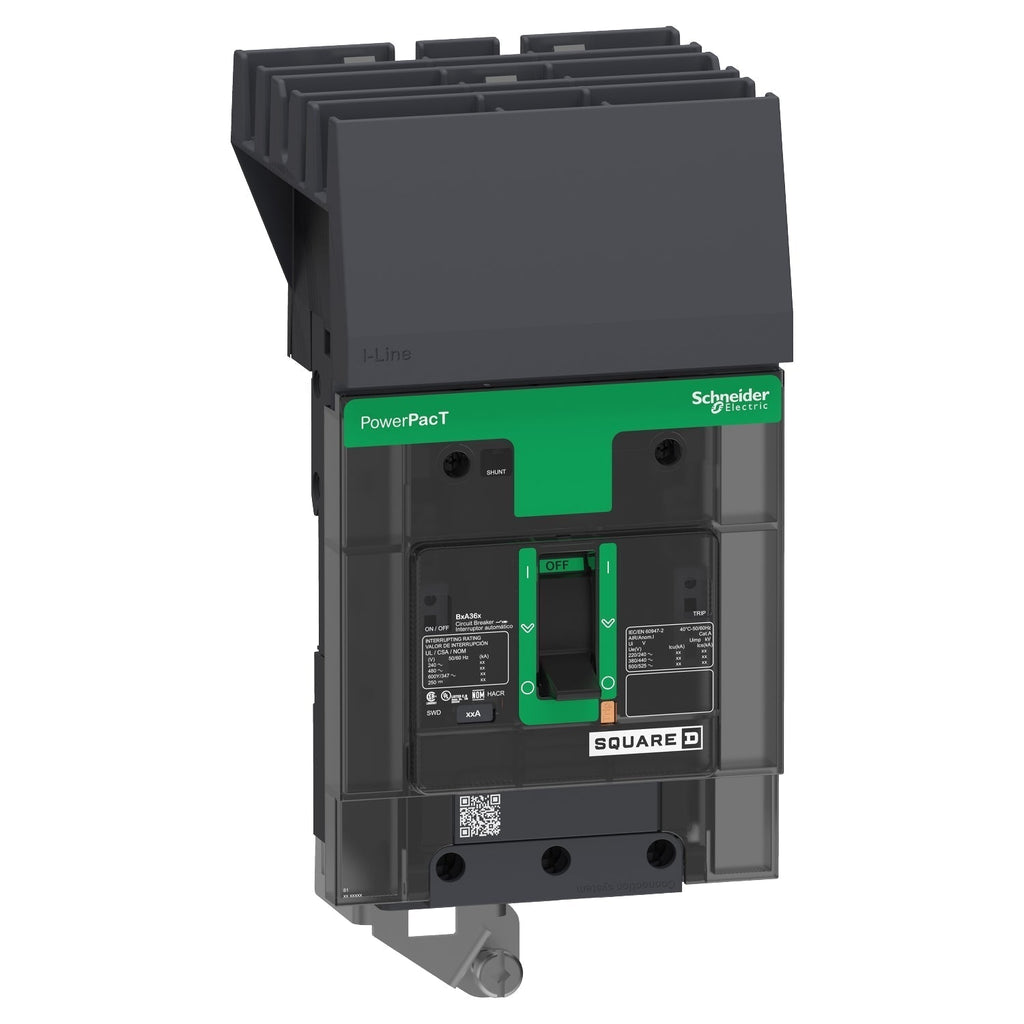

BDA34040Y - Schneider Electric PowerPact B Circuit Breaker 40A 3 Pole 480Y/277VAC 18kA I-Line Thermal Magnetic - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
BDA34040Y - Essential Electric Supply
BDA34040Y - Schneider Electric I-Line 480V 40A 3 pole circuit breaker 18kA@480V - Essential Electric Supply
BDA34040Y - Schneider Electric PowerPact B Circuit Breaker 40A 3 Pole 480Y/277VAC 18kA I-Line Thermal Magnetic - Essential Electric Supply

Description

BDA34040Y


BDA34040Y is a Schneider Electric PowerPact B circuit breaker designed for reliable power distribution protection.This 40 amp, 3 pole circuit breaker features a 480Y/277 VAC voltage rating and an 18kA interrupt rating at 480/277 VAC. It uses I-Line mounting and a thermal magnetic trip unit with 80% continuous current rating and ABC trip curve. The breaker is UL, CSA, NOM, IEC, CCC certified, and CE marked, ensuring compliance with major safety standards. It is part of the PowerPact B series and suitable for industrial and commercial applications.
    Key Specifications
    • Amperage: 40A
    • Poles: 3
    • Voltage Rating: 480Y/277 VAC
    • Interrupt Rating: 18kA at 480/277 VAC
    • Mounting Type: I-Line
    • Trip Unit: Thermal Magnetic, 80% continuous rating
    • Series/Frame: PowerPact B
    • Certifications: UL, CSA, NOM, IEC, CCC, CE
    • Trip Curve: ABC
    At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

    Specifications

    • Part Number: BDA34040Y
    • Manufacturer : Schneider Electric
    • Brand : Schneider Electric
    • Category : Circuit Breaker
    • Item Subcategory : Molded Case
    • Family : Powerpact
    • Type : BDA
    • Voltage : 480
    • Amperage : 40
    • Phase : 3
    • Poles : 3
    • AIC rating : 18kA@480V
    • Connection : I-Line
    • Functions : Long Time and Instantaneous Trip
    • Terminal Connection : Al Mechanical Lug OFF End, I-Line ON End
    • Frame Size : 125A/BD
    • Temp Rating : -13–158 °F (-25–70 °C)
    • MCM Size : Min. Wire Size 14 AWG Max. Wire Size 2 AWG
    • Breaker Type : Standard
    • Protection : Thermal Magnetic
    • Phase Connection : ABC

    Product Data

    • UPC : 785901002857
    • GTIN : 03606481152404
    • Country of Origin : Mexico
    • Dimensions : 5.4 in (137 mm) x 3.2 in (81 mm) x 3.5 in (89 mm) (Height x Width x Depth)
    • Weight : 4.14
    • Panel Type : Electrical Distribution Equipment, Industrial Control Panels
    • Standards : EN/IEC 60947-5-1, NMX J-266, EN/IEC 60947-2, UL 489, GB 14048.2, CSA C22.2 No 5, NEMA AB1
    • Certification : UL, IEC, CCC, EAC, CSA, NOM
    • Wire Size : AWG 14...AWG 2/0 aluminium/copper
