2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description

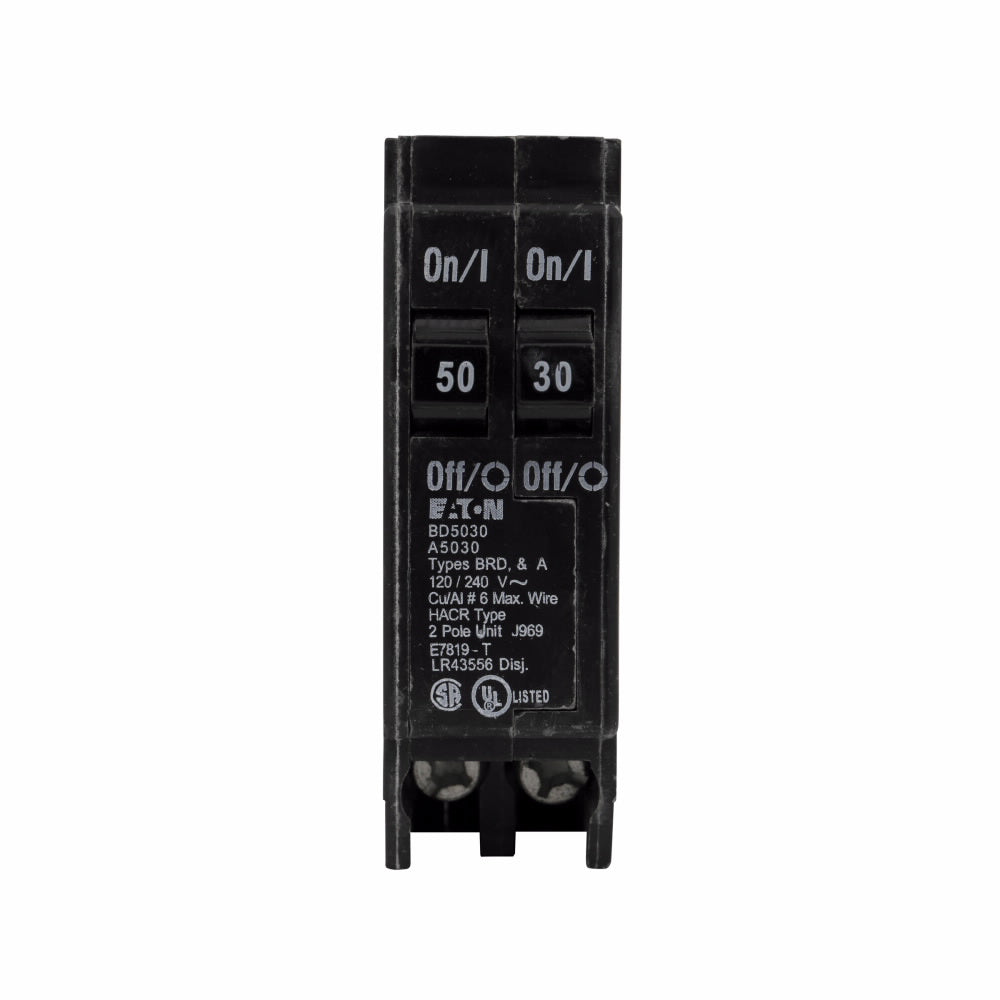

BD5030
BD5030 is a single-pole, 120V, 50/30A thermal magnetic circuit breaker designed for residential and light commercial applications. This Eaton Type BD breaker features a plug-on mounting style and is compatible with BR load centers. The breaker provides reliable protection with a 10kA interrupt rating at 120V and includes a rejection tab for added safety. The BD5030 is a molded case circuit breaker with a feed-thru connection and is rated for use with #14-4 AWG copper or aluminum wire. Its compact design and plug-on mounting make it easy to install and replace in standard BR panels. The breaker is switch duty rated for 15 and 20 amp single poles and is suitable for general branch circuit protection.
- Part Number: BD5030
- Manufacturer: Eaton
- Type: Thermal Magnetic
- Series/Frame: Type BD
- Mounting: Plug-On
- Poles: 1
- Amperage: 50/30A
- Voltage: 120V
- Interrupt Rating: 10kAIC @ 120V
- Wire Size: #14-4 AWG Cu/Al
- Connection: Feed-Thru
- Rejection Tab: Included
Specifications
- Part Number: BD5030
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Voltage : 120
- Amperage : 30
- Phase : 1
- Poles : 2
- AIC rating : 10kA@120V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 786676369602
- GTIN : 00786676369602
- Country of Origin : Dominican Republic
- Dimensions : 2.5 in x 3.2 in x 1 in (Length/Depth x Height x Width)
- Weight : 0.4
- Certification : UL 489,Federal Specifications Classification W-C375
