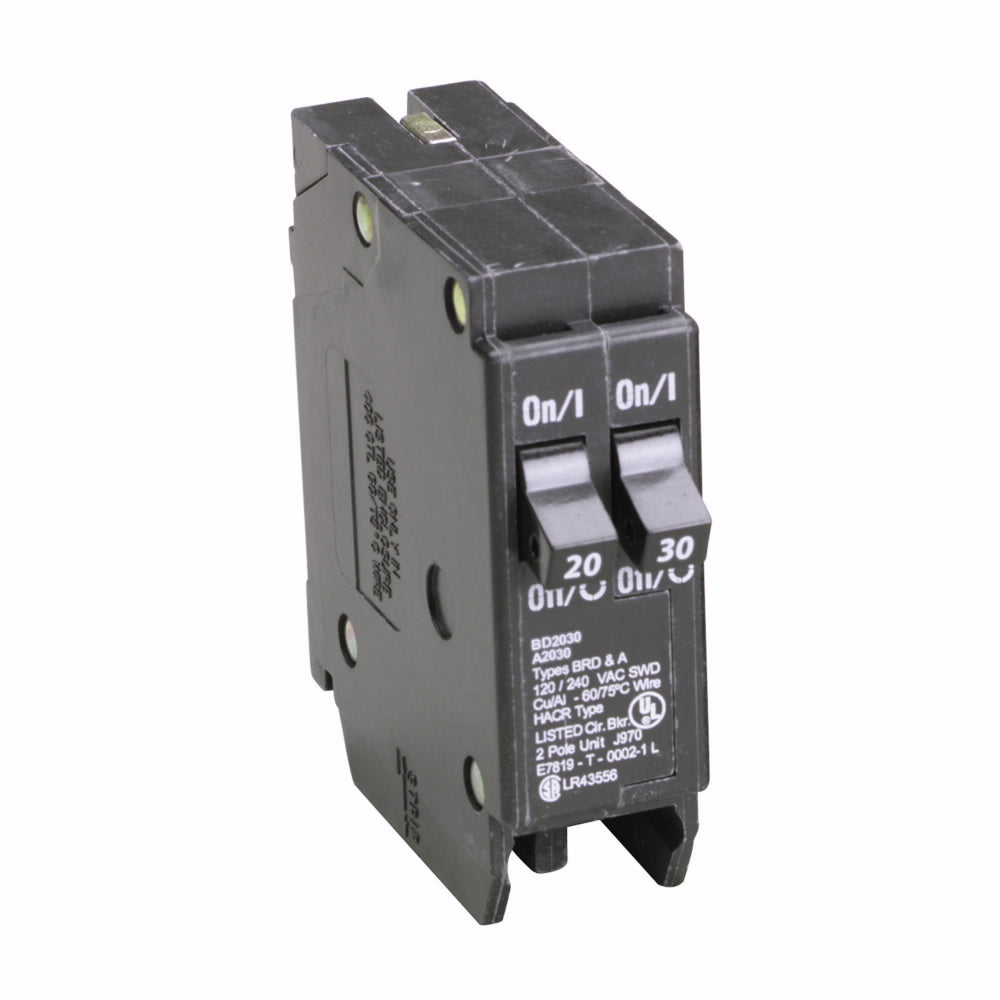

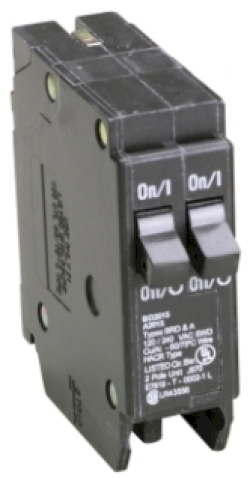

BD2030 - Eaton Cutler Hammer 20/30A 120V 1-Pole Plug-On Circuit Breaker, 10 kAIC, Type BD

BD2030

BD2030 is a single-pole, plug-on circuit breaker designed for Eaton BR load centers, featuring a rejection tab for safe installation. This BD2030 circuit breaker is rated for 20 and 30 amps at 120V, with a 10 kAIC interrupt rating. It is compatible with #14-4 AWG copper or aluminum wire and is designed for use in residential and light commercial applications. The breaker features a thermal magnetic trip unit and is part of the Type BD series.

• Part Number: BD2030
• Manufacturer: Eaton, Cutler Hammer
• Amperage: 20/30A
• Voltage: 120V
• Poles: 1
• Mounting Type: Plug-On
• Interrupt Rating: 10 kAIC
• Series/Frame: Type BD
• Wire Size: #14-4 AWG Cu/Al
• Rejection Tab: Yes
• Trip Unit: Thermal Magnetic
• Application: BR Load Centers

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BD2030
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BD Series
• Type : BD
• Voltage : 120
• Amperage : 30
• Phase : 1
• Poles : 2
• AIC rating : 10kA@120V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 4 AWG (Cu/Al)
• Breaker Type : BD
• Protection : Thermal Magnetic

Product Data

• UPC : 078667636930
• GTIN : 00786676369305
• Country of Origin : Dominican Republic
• Dimensions : 3 in x 3 in x 1 in (Length/Depth x Height x Width)
• Weight : 0.37
• Panel Type : Type BR Loadcenters
• Standards : UL 489
• Certification : UL 489
• Wire Size : AWG 14 to AWG 4, Cu/Al
