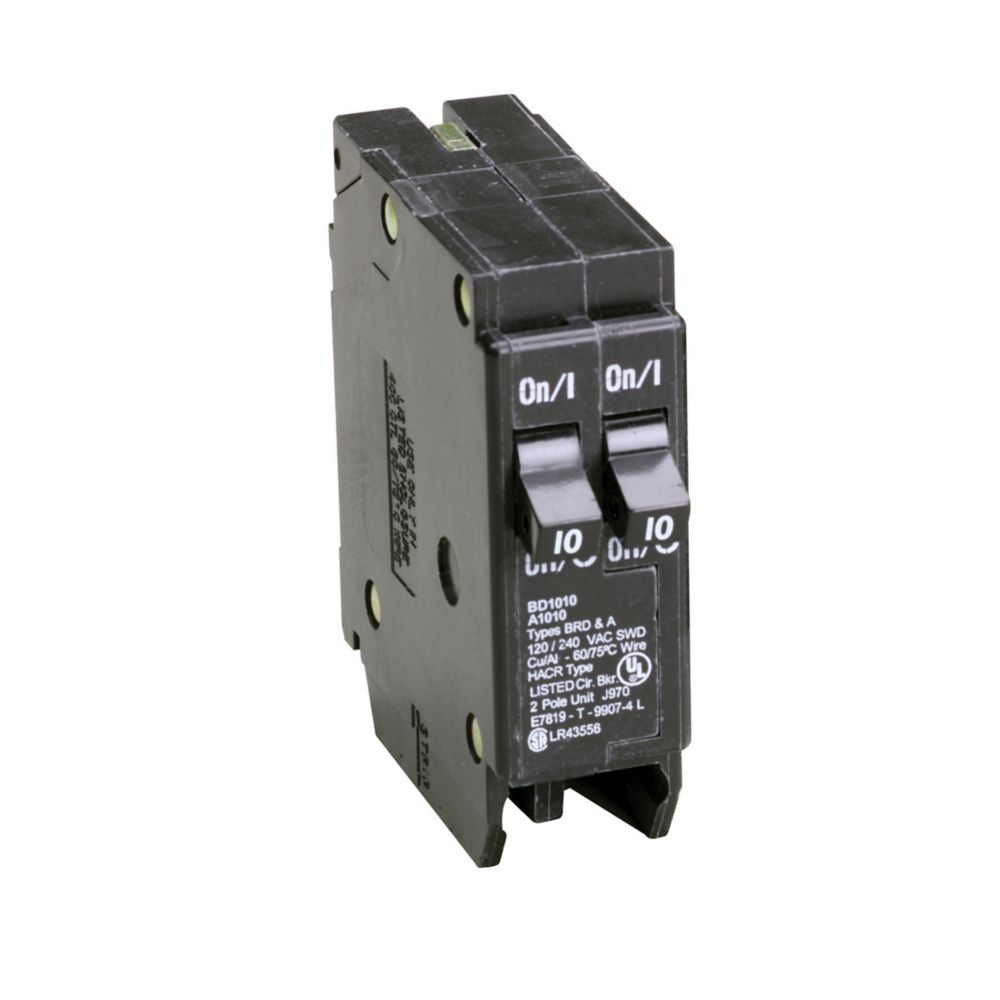

BD1010 - Cutler Hammer 10A 120V 1-Pole Type BR Plug-On Circuit Breaker

BD1010

BD1010 is a 1-inch plug-on, single-pole, 10-amp circuit breaker rated for 120V with a 10 kAIC interrupt rating, designed for use with Type BR loadcenters. This thermal magnetic circuit breaker features a rejection tab for secure installation and reliable protection in residential electrical systems. The BD1010 delivers consistent performance with thermal-magnetic trip characteristics suitable for standard branch circuit protection applications.

• Amperage: 10A
• Voltage: 120V
• Poles: 1
• Mounting Type: Plug-on (1-inch CTL)
• Interrupt Rating: 10 kAIC
• Series: Type BR
• Trip Unit: Thermal Magnetic
• Wire Size: #14-4 AWG Cu/Al
• Load Side Termination: Lugs
• Line Side Termination: Plug-in
• Features: Rejection Tab

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BD1010
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BD Series
• Type : BD
• Voltage : 120
• Amperage : 10
• Phase : 1
• Poles : 2
• AIC rating : 10kA@120V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 786676009010
• GTIN : 00786676009010
• Country of Origin : Dominican Republic
• Dimensions : 3 in x 3 in x 1 in (Length/Depth x Height x Width)
• Weight : 0.3
• Certification : UL 489,Federal Specifications Classification W-C375
