BABF1020 - Eaton BAB 20A 120/240V 1-Pole Fire Alarm Circuit Breaker Bolt-On 10kAIC

BABF1020

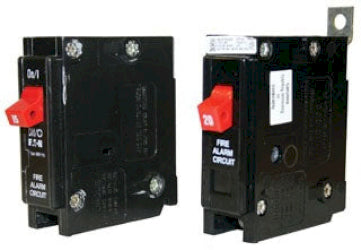

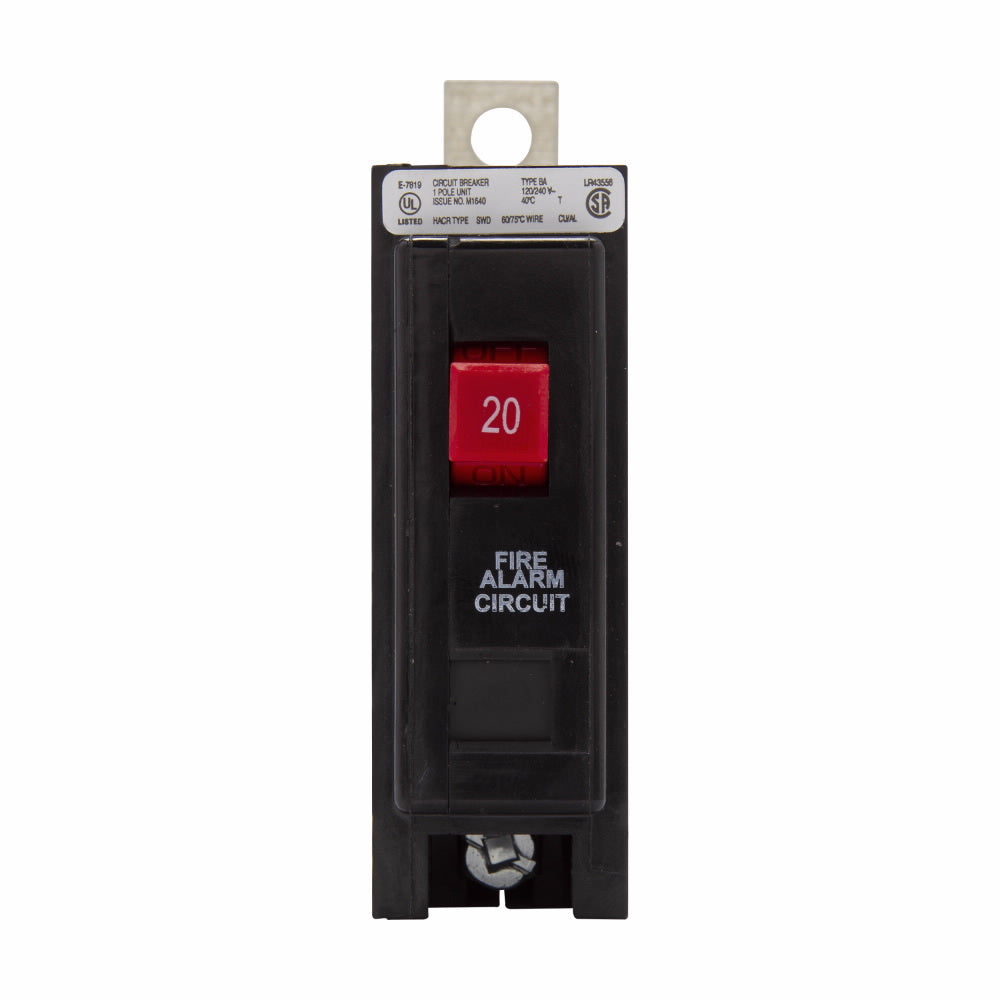

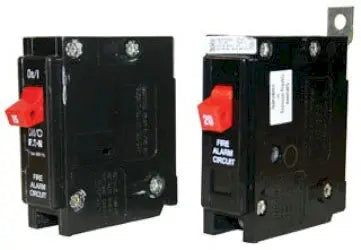

BABF1020 is a single-pole Eaton BAB series fire alarm circuit breaker designed for reliable protection in fire alarm and critical circuit applications. This bolt-on breaker features a 20A amperage rating, 120/240V AC voltage rating, and a 10kA interrupt capacity for robust performance. It is UL Listed and NFPA 72 HACR rated for compliance with fire alarm system requirements. The breaker is compatible with #14-8 AWG copper or aluminum wire and is engineered for easy installation in compatible panels. This Eaton BABF1020 breaker is ideal for use in fire alarm circuits, emergency systems, and other critical applications where dependable circuit protection is essential. Its thermal-magnetic trip unit provides reliable overcurrent protection, and the bolt-on mounting ensures secure installation. The breaker is designed for use in Eaton and compatible load centers, offering a compact footprint and long-lasting durability.

• Part Number: BABF1020
• Manufacturer: Eaton
• Series/Frame: BAB
• Amperage Rating: 20A
• Voltage Rating: 120/240V AC
• Number of Poles: 1
• Mounting Type: Bolt-On
• Interrupt Rating: 10kAIC

  Specifications

  • Part Number: BABF1020
  • Manufacturer : Eaton
  • Brand : Cutler Hammer
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Quicklag
  • Type : BABF
  • Voltage : 240
  • Amperage : 20
  • Phase : 1
  • Poles : 1
  • AIC rating : 10kA@240V
  • Connection : Bolt-On
  • Functions : LI - Long Time and Instantaneous Trip
  • Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
  • Protection : Thermal Magnetic



  Product Data

  • UPC : 786685405063
  • GTIN : 00786685405063
  • Country of Origin : Dominican Republic
  • Dimensions : 3.25 in x 3.5 in x 0.875 in (Length/Depth x Height x Width)
  • Weight : 0.2
  • Standards : HACR rated
  • Certification : UL Listed,CSA Certified
  • Wire Size : AWG 14 to AWG 8, Cu/Al
