BA33P - Cutler Hammer Eaton 19-90 Amp 600 VAC 3-Pole Thermal Overload Relay Panel Mount

BA33P

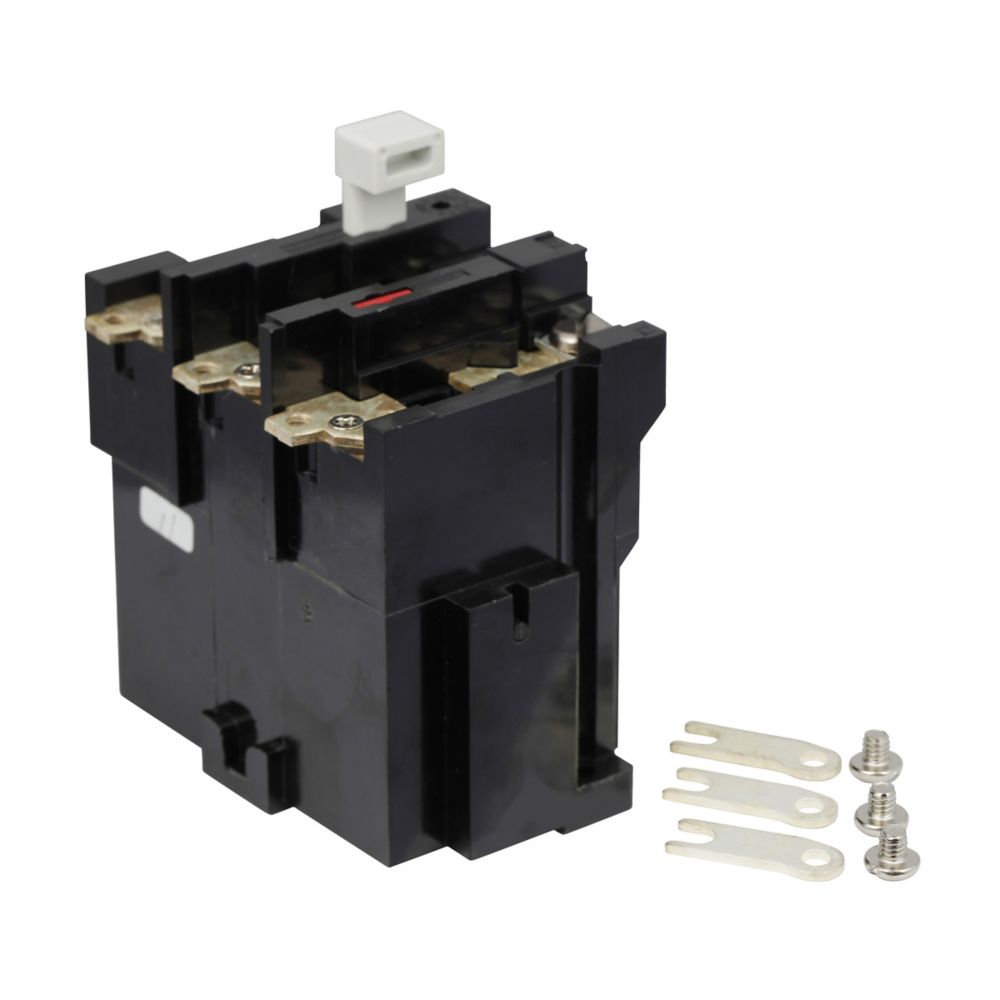

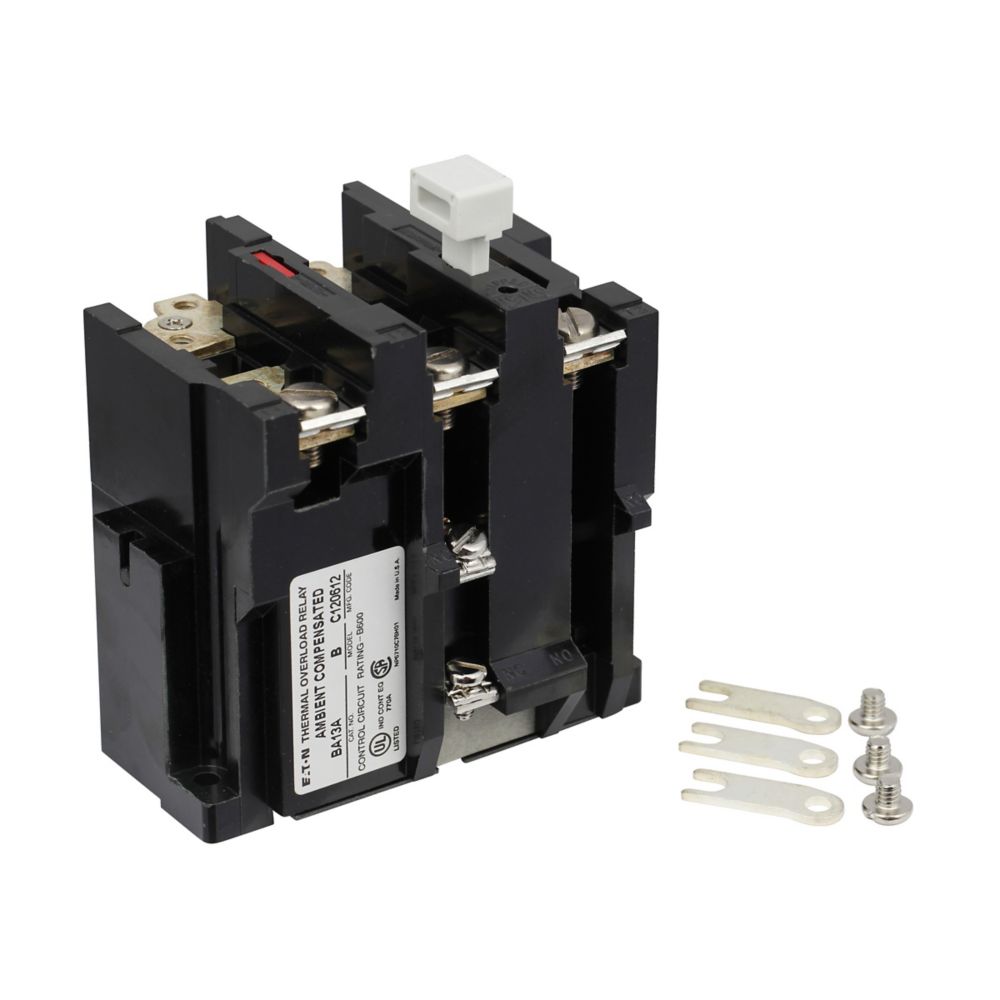

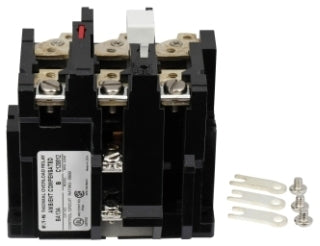

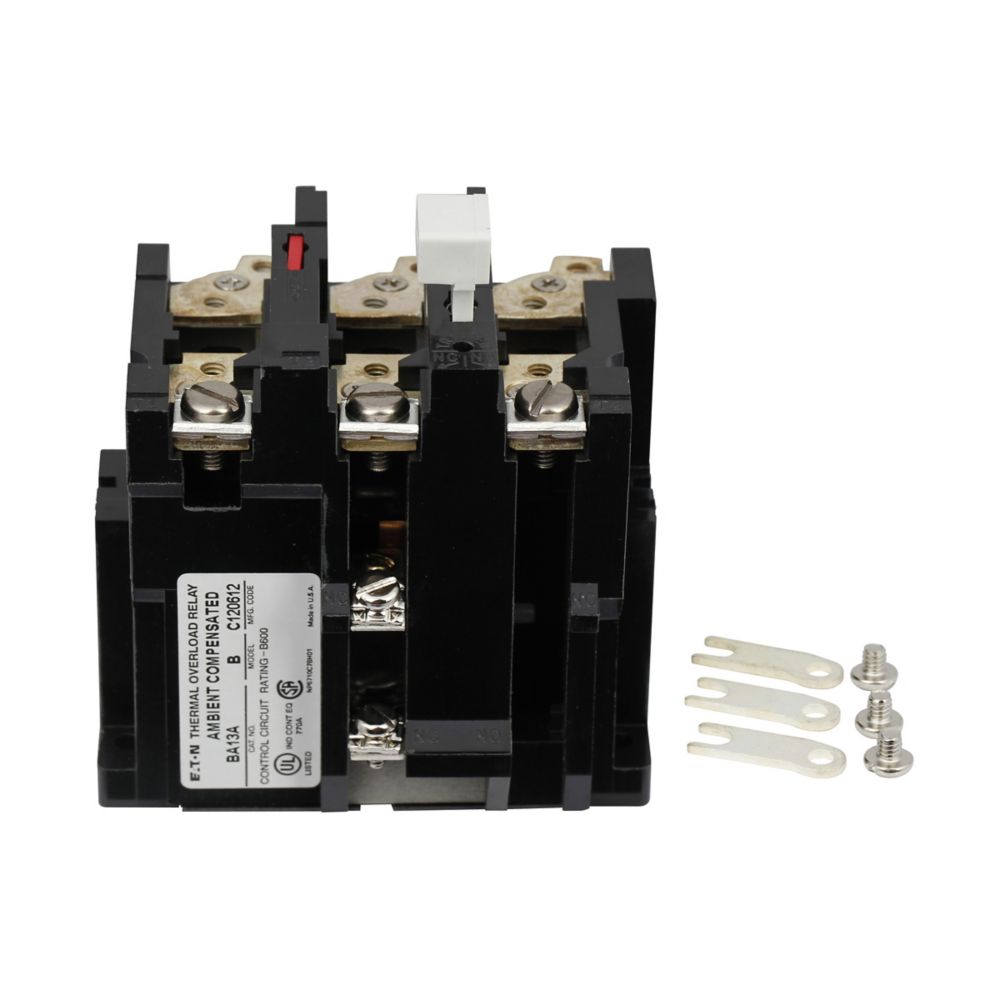

BA33P is a Cutler Hammer Eaton thermal overload relay designed for motor control applications with a 19 to 90 amp range and 600 VAC rating.BA33P features a three-pole design with a panel mount configuration, NEMA A200 frame, and a Class 20, Thermal Type B trip unit. It includes a 1NC auxiliary contact and is ambient compensated for reliable motor protection. This relay is UL and CSA certified for safety and performance.

Key Specifications
• Amperage: 19 to 90 Amps
• Voltage: 600 VAC
• Poles: 3
• Mounting Type: Panel Mount
• Interrupt Rating: NEMA A200
• Trip Unit: Thermal Type B, Class 20
• Auxiliary Contact: 1NC
• Ambient Compensated
• Certifications: UL, CSA

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BA33P
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Overload Relay
• Family : A200 Series
• Type : B
• Relay Style : Thermal
• Amperage Maximum : 90
• Amperage Minimum : 19

Product Data

• UPC : 786678003061
• GTIN : 00786678003061
• Country of Origin : United States
• Dimensions : 8.2 in x 5.1 in x 6.1 in (Length/Depth x Height x Width)
• Weight : 1.7
• Certification : UL Listed,CSA Certified
