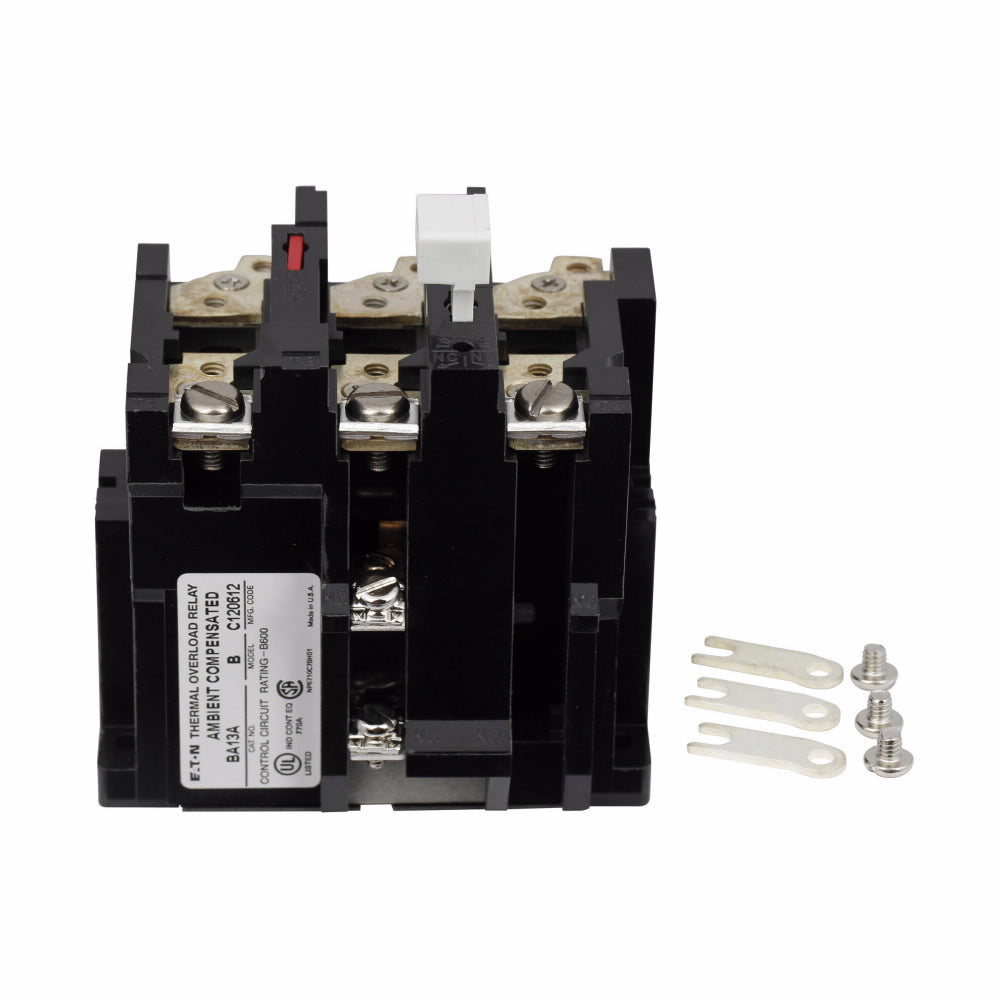

BA13JP - Cutler Hammer 3-Pole NEMA A200 Thermal Overload Relay 0.25-26.2A Panel Mounted Class 20

BA13JP

BA13JP is a Cutler Hammer thermal overload relay designed for motor control applications with a 3-pole configuration and adjustable amperage range from 0.25 to 26.2 amps.This NEMA A200 series overload relay features a Type B thermal trip unit with Class 20 trip rating, manual reset, and ambient temperature compensation. It is panel mounted and includes one normally closed (1NC) auxiliary contact. The device is UL listed and CSA certified, ensuring compliance with safety standards.

• Manufacturer: Cutler Hammer (Eaton)
• Part Number: BA13JP
• Type: Thermal Overload Relay, Type B
• Poles: 3
• Amperage Range: 0.25 to 26.2 A adjustable
• Mounting: Panel Mounted
• Series/Frame: NEMA A200
• Trip Class: 20
• Auxiliary Contact: 1NC (Normally Closed)
• Ambient Temperature Compensated
• Certifications: UL Listed, CSA Certified
• Reset: Manual

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BA13JP
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Overload Relay
• Family : A200 Series
• Type : B
• Relay Style : Thermal
• Amperage Maximum : 26.2
• Amperage Minimum : 0.25

Product Data

• UPC : 786678002972
• GTIN : 00786678002972
• Country of Origin : United States
• Dimensions : 5 in x 3.4 in x 3.6 in (Length/Depth x Height x Width)
• Weight : 0.9 lb
• Certification : UL Listed,CSA Certified
