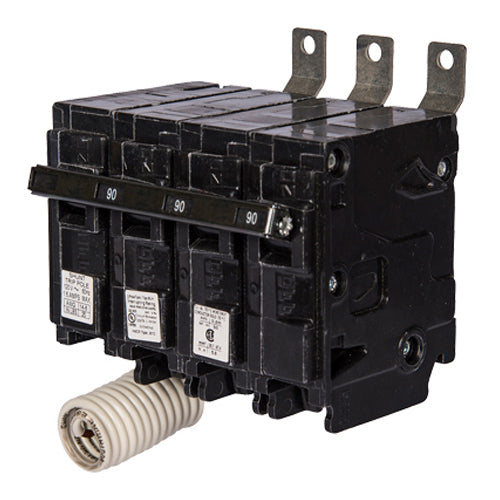

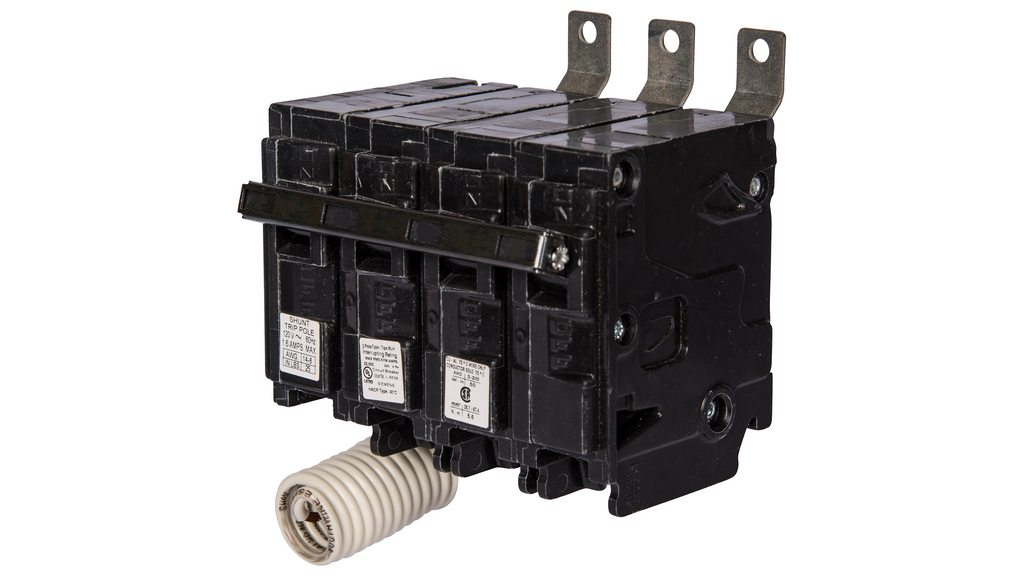

B390HH00S01 - Siemens 90 Amp 3 Pole 240V Molded Case Circuit Breaker BL Series with Shunt Trip 65kA Interrupt Rating

B390HH00S01

This circuit breaker is designed for panelboard mounting and provides reliable protection for low voltage electrical systems. It supports a 3-pole configuration suitable for three-phase applications and has a 240V AC rating. The shunt trip feature allows remote tripping for enhanced safety and control. The breaker is UL listed and built to meet industry standards for performance and durability.

Key Specifications
• Amperage: 90 Amp
• Voltage: 240 Volt AC
• Number of Poles: 3
• Interrupt Rating: 65kA at 240V
• Series/Frame: BL Series
• Trip Unit: Shunt Trip
• Mounting Type: Panelboard Mounting
• Certification: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.




Additional Information

complete with 120V shunt trip




Specifications

• Part Number: B390HH00S01
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : HBL
• Voltage : 240
• Amperage : 90
• Phase : 3
• Poles : 3
• AIC rating : 65kA@240V
• Connection : Bolt-on
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : 125A/HBL
• MCM Size : Min. Wire Size 8 AWG Max. Wire Size 4 AWG (Al), 6 AWG (Cu)
• Breaker Type : Shunt Trip
• Protection : Thermal Magnetic



Product Data

• UPC : 783643269439
• GTIN : 00783643269439
• Country of Origin : Mexico
• Dimensions : 5.906 x 4.724 x 3.937 inch
• Weight : 1.554
• Panel Type : Siemens P1 Panelboards
• Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
