B36000S01 - Siemens 60 Amp 3 Pole 240 Volt Bolt-On Shunt Trip Circuit Breaker Type BL 10kA Interrupt

B36000S01

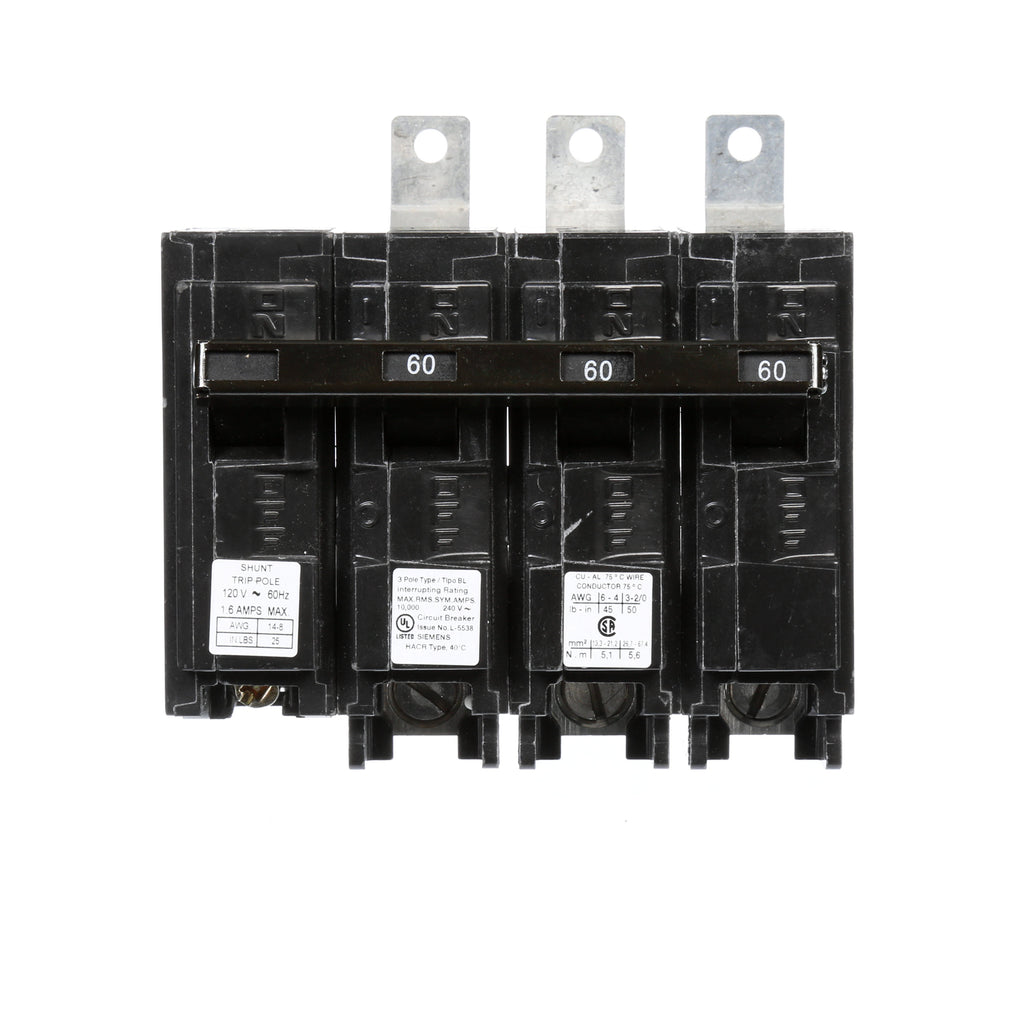

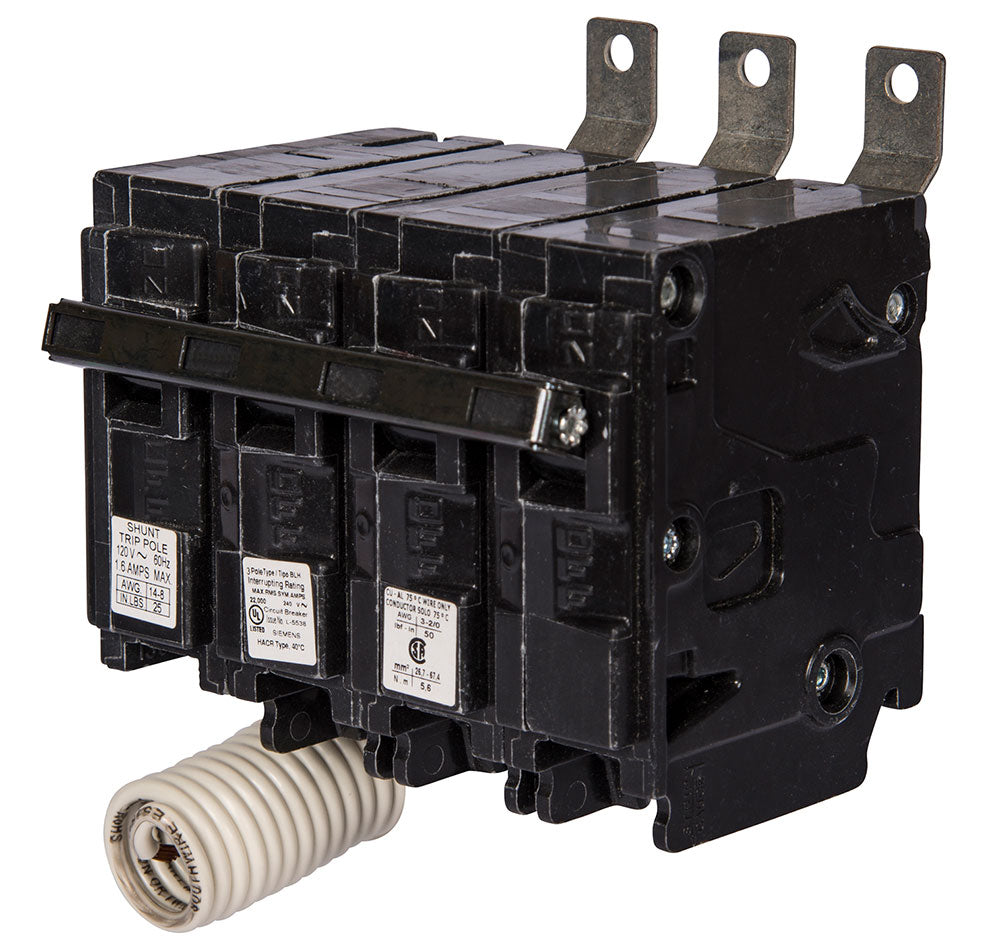

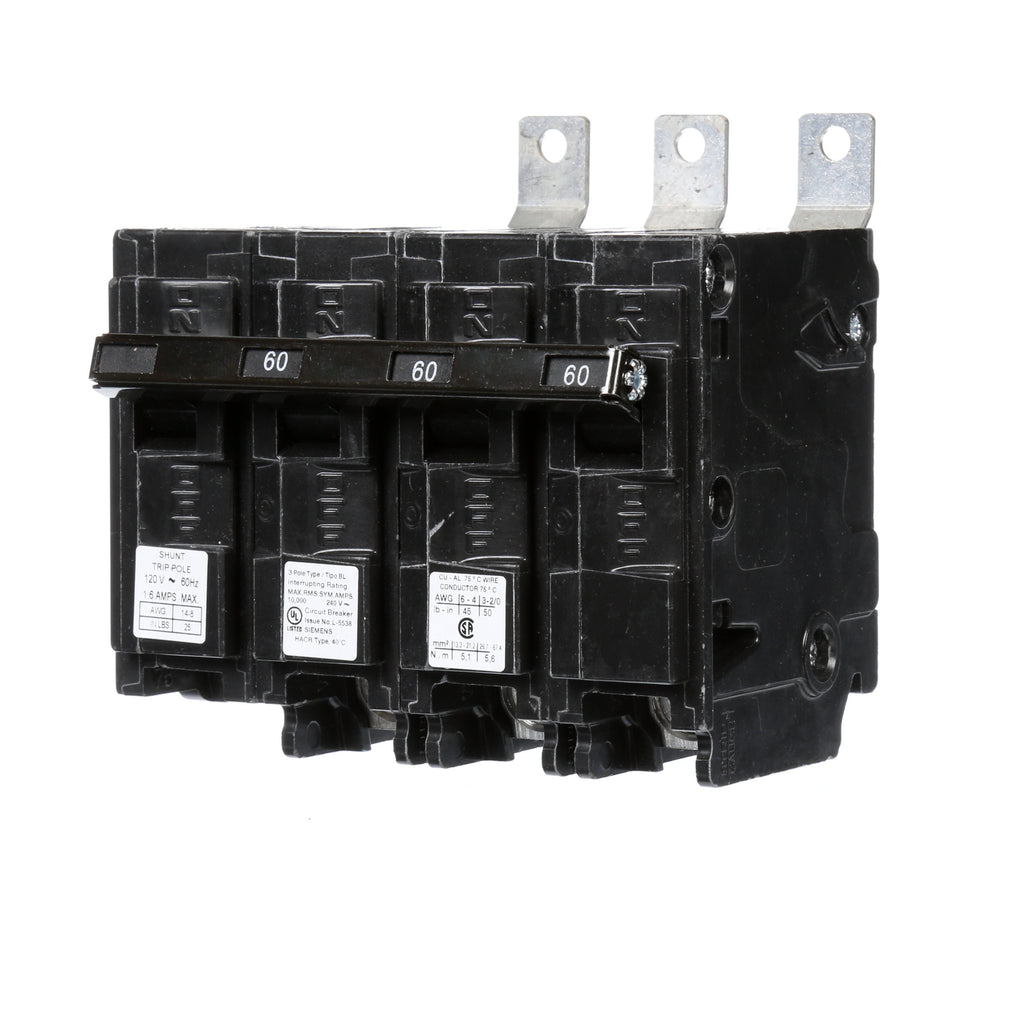

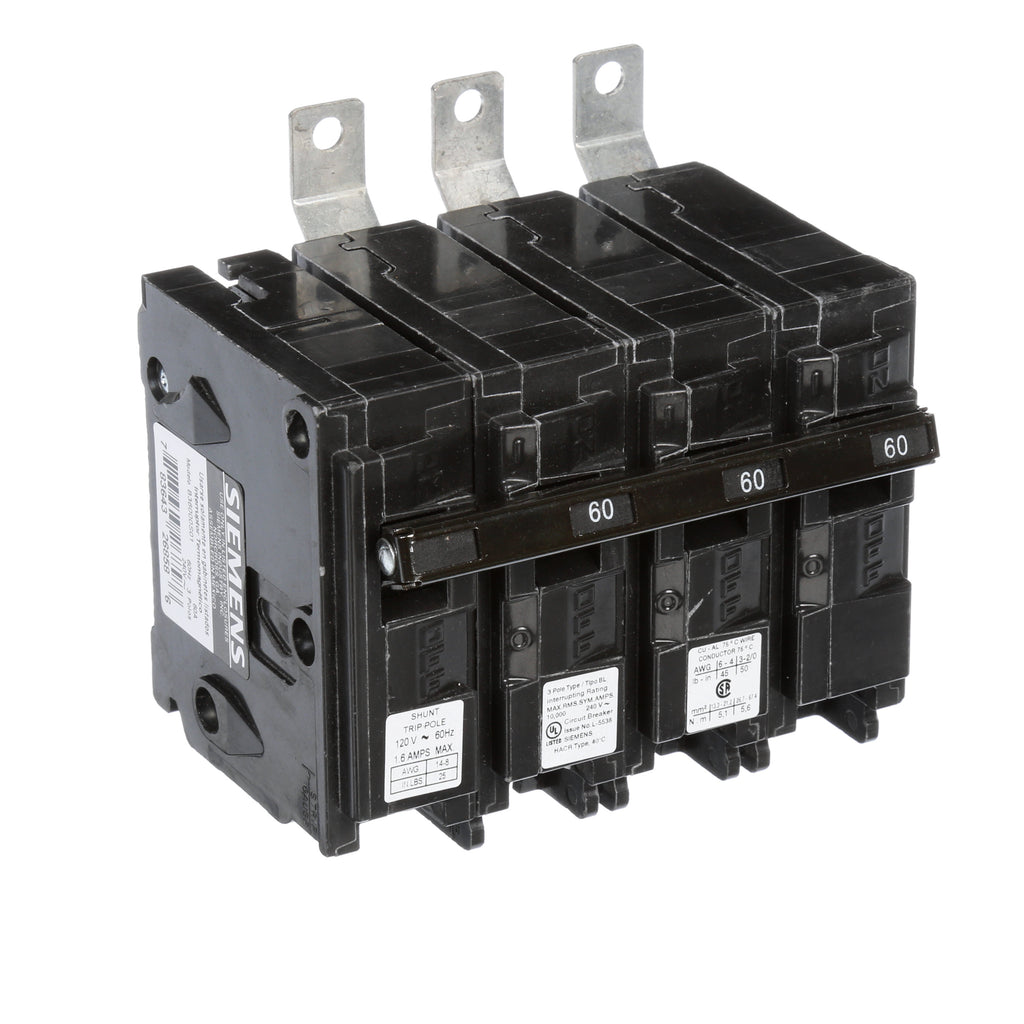

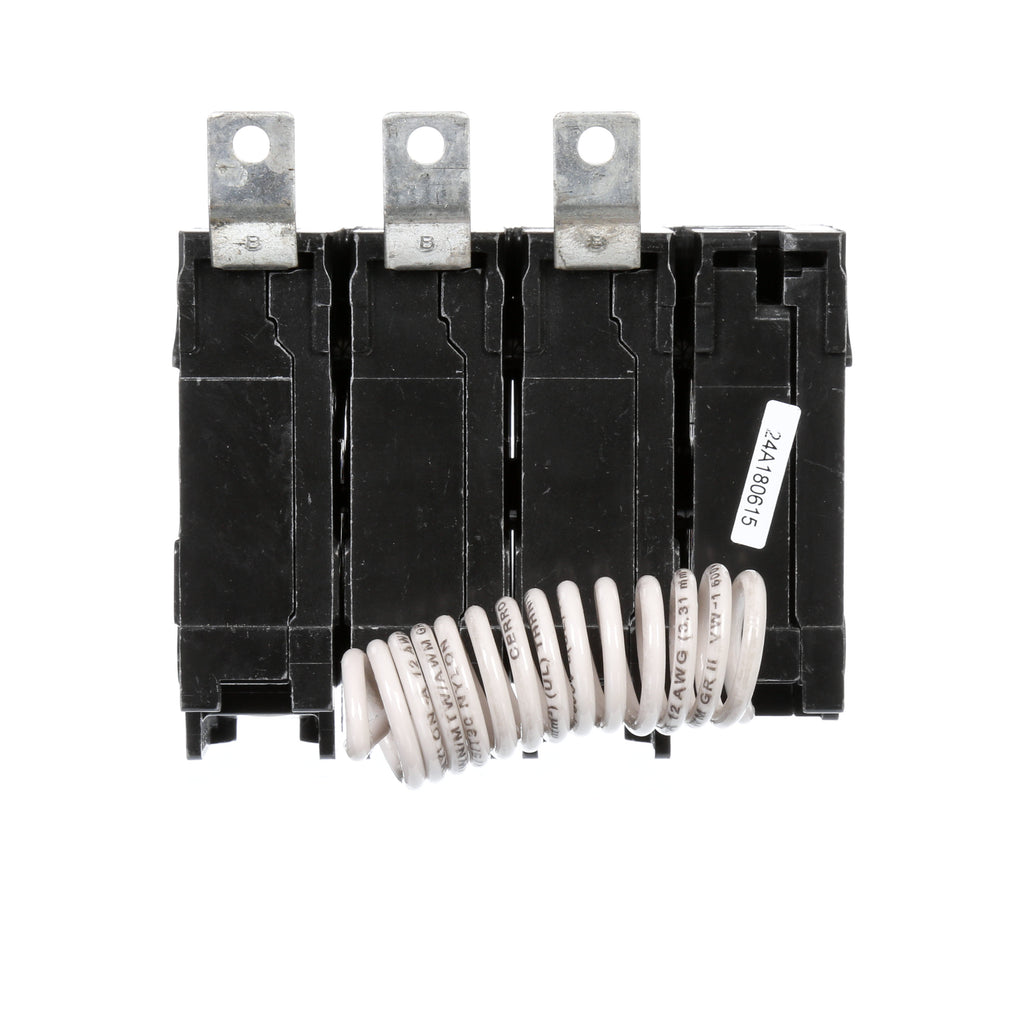

B36000S01 is a Siemens 60 Amp 3 Pole 240 Volt Bolt-On Shunt Trip Circuit Breaker designed for reliable circuit protection.This Siemens Type BL molded case circuit breaker features a 60 Amp current rating, 240 Volt AC voltage rating, and a 10 kilo-Amp interrupting rating. It includes a shunt trip and thermal magnetic trip unit, with bolt-on mounting for secure installation. The breaker is suitable for low voltage applications and provides robust protection against overcurrent conditions.

• Amperage: 60 Amps
• Voltage: 240 Volts AC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 10 kA
• Series/Frame: Type BL
• Trip Unit: Shunt Trip with Thermal Magnetic
• Application: Low Voltage Circuit Protection
• Certifications: Siemens OEM Standard

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: B36000S01
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : BL
• Voltage : 240
• Amperage : 60
• Phase : 3
• Poles : 3
• AIC rating : 10kA@240V
• Connection : Bolt-on
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : 125A/BL
• MCM Size : Min. Wire Size 2 AWG (Al), 4 AWG (Cu) Max. Wire Size 1/0 AWG
• Breaker Type : Shunt Trip
• Protection : Thermal Magnetic

Product Data

• UPC : 783643268586
• GTIN : 00783643268586
• Country of Origin : Mexico
• Dimensions : 2.563 x 4.00 x 3.122 inch
• Weight : 1.257
• Panel Type : Siemens P1 Panelboards
• Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
