B350H00S01 - Siemens 50 Amp 240V 3 Pole Bolt-On Circuit Breaker with 120V Shunt Trip, 22kA Interrupt Rating

B350H00S01

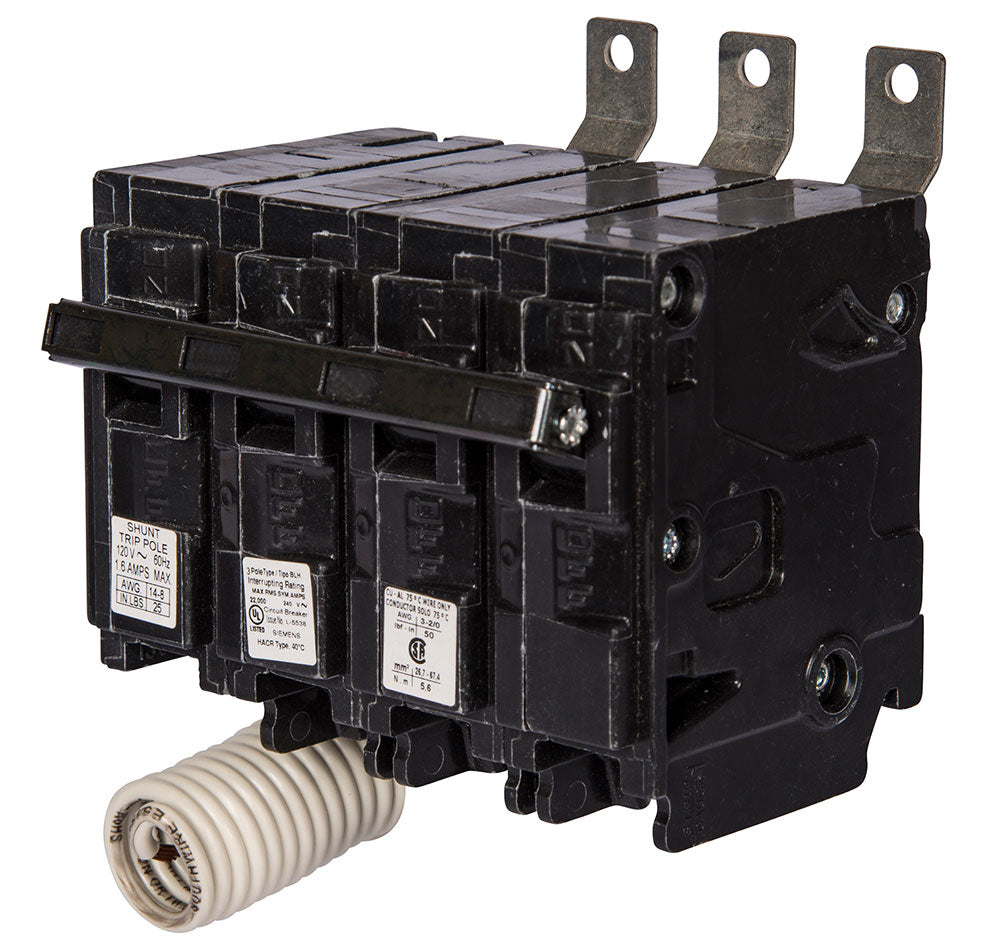

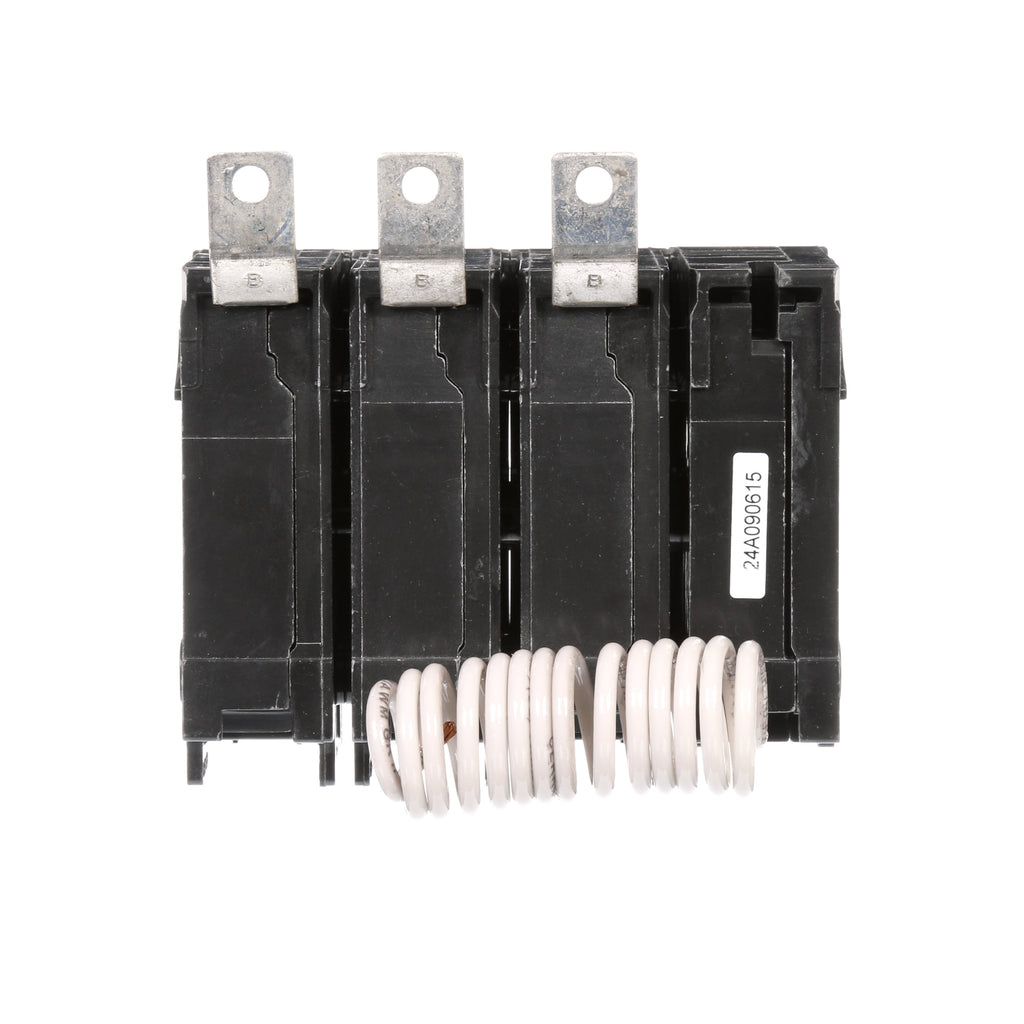

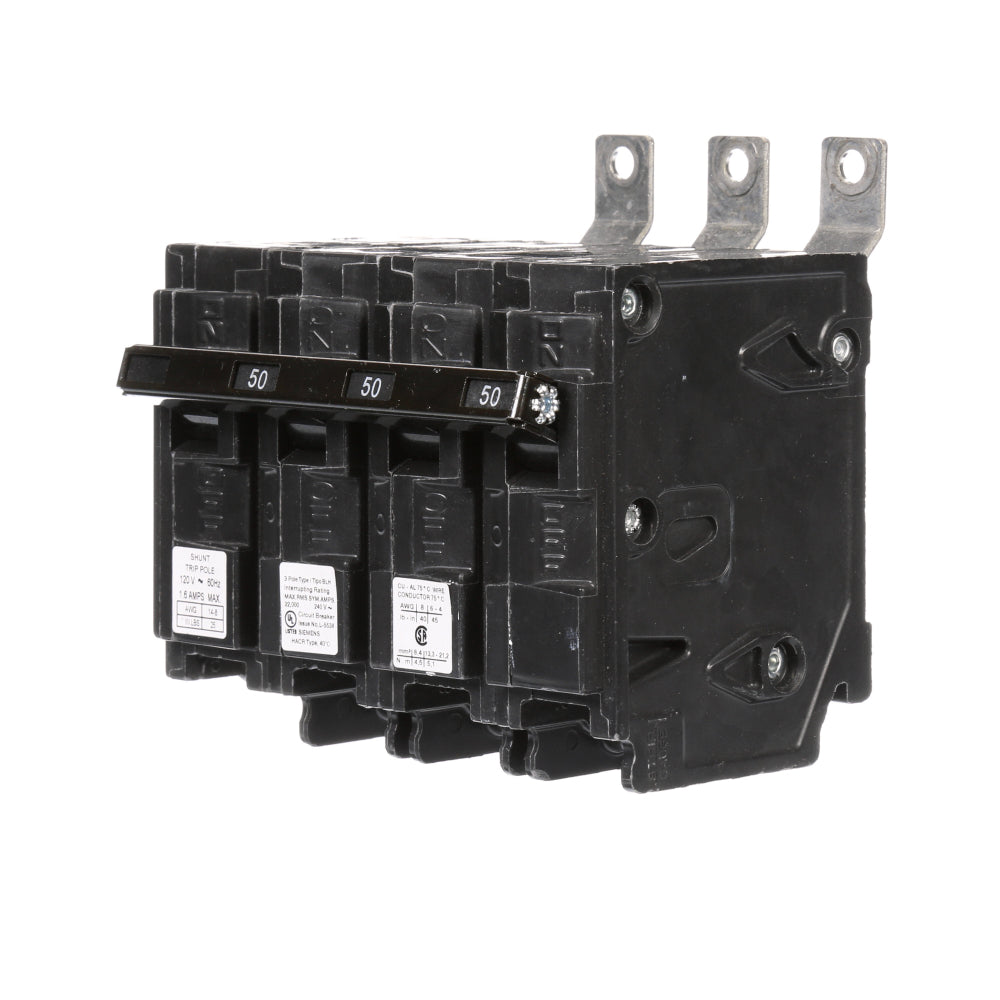

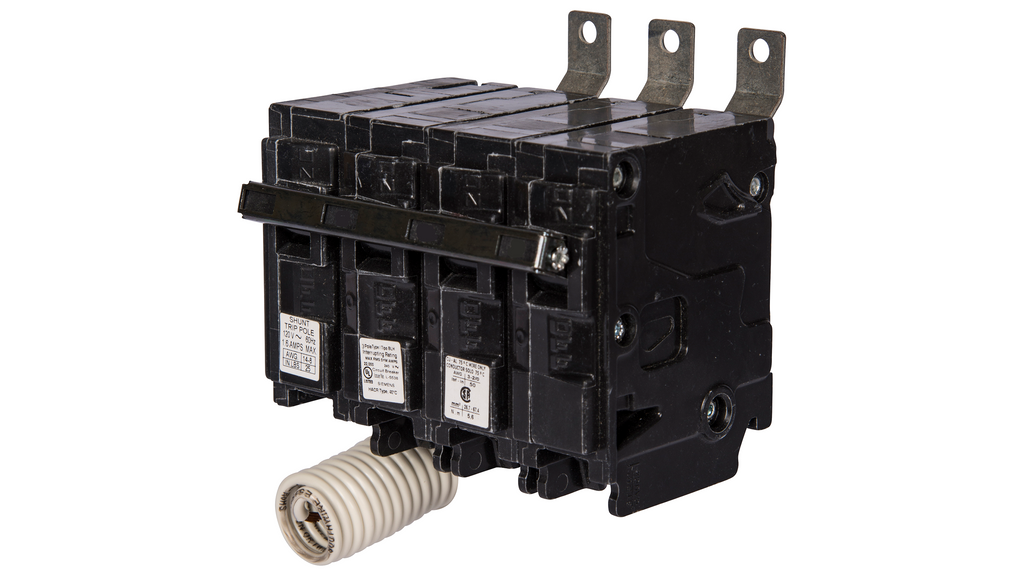

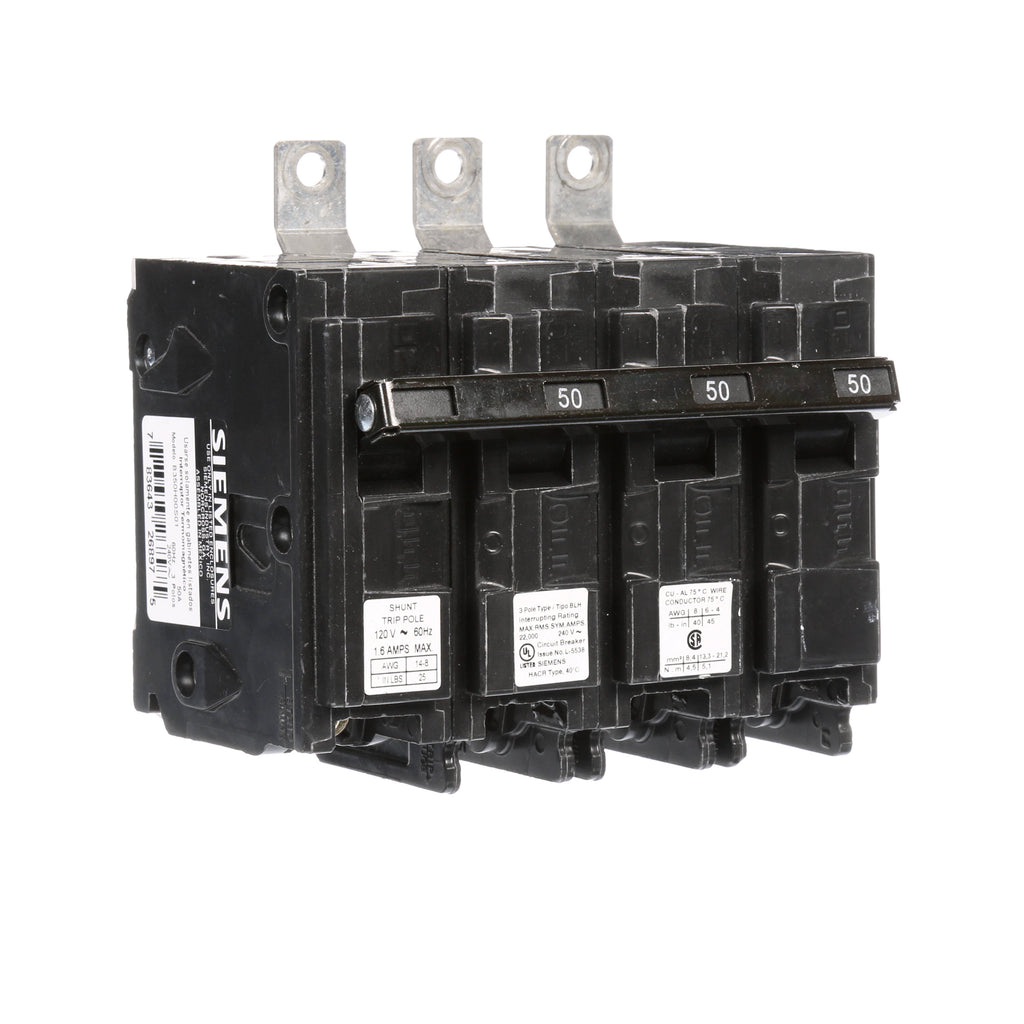

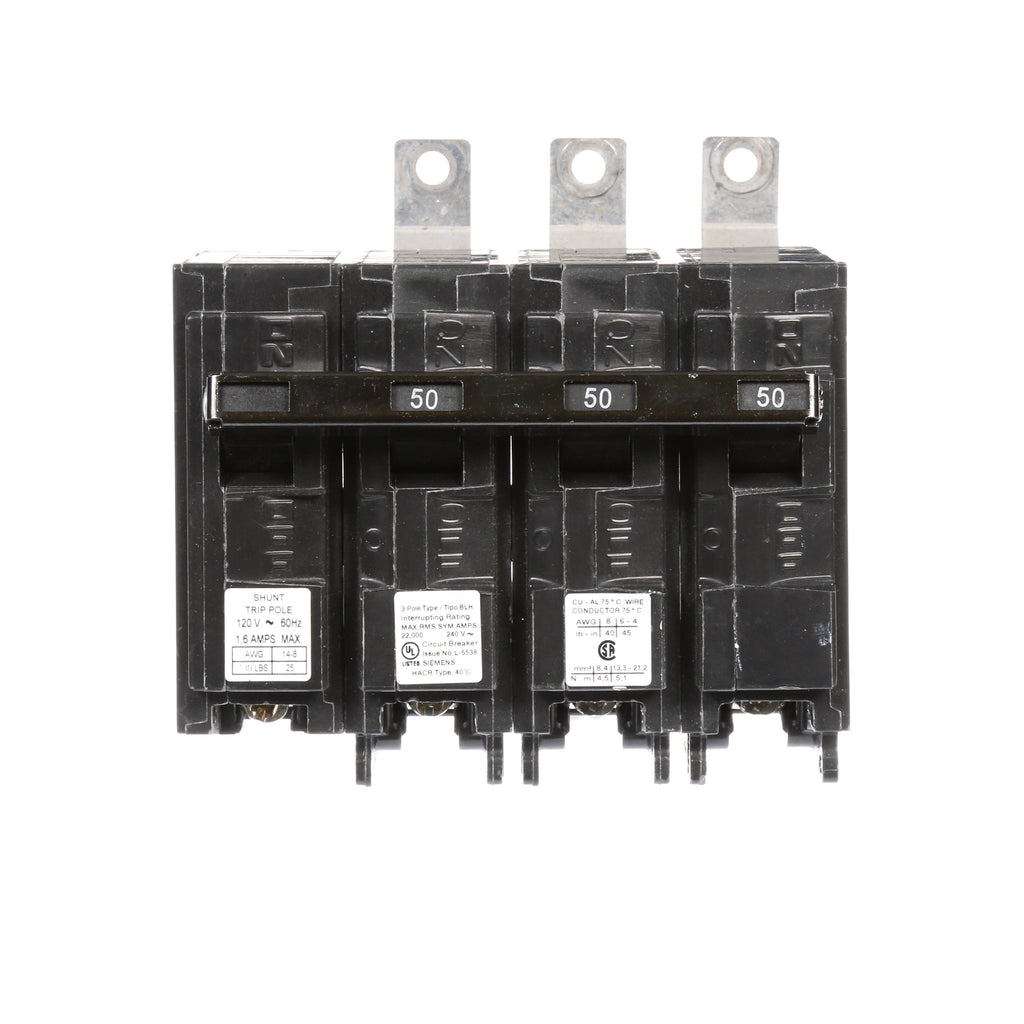

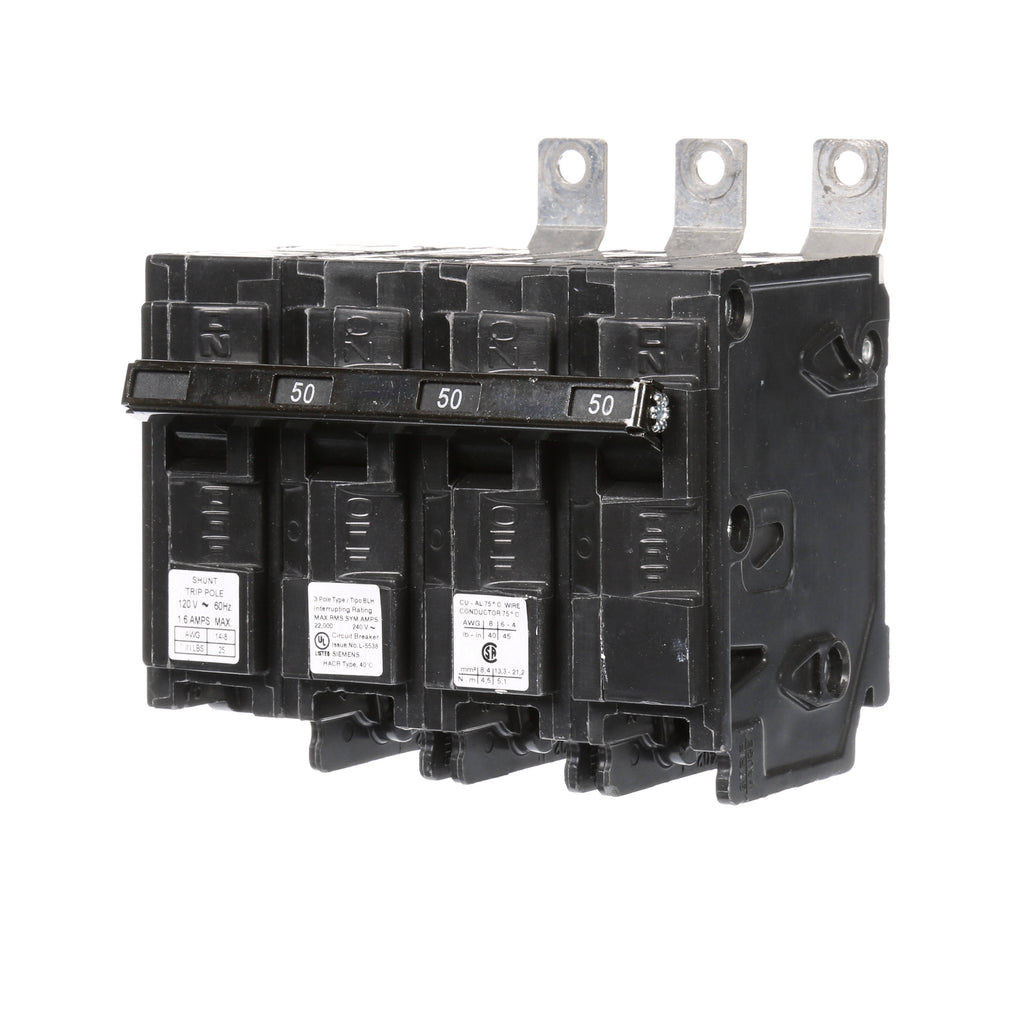

B350H00S01 is a Siemens 3 pole, 50 amp, 240 Volt AC bolt-on circuit breaker with a 120 Volt shunt trip feature and high interrupting capacity.This Siemens B Series BLH type molded case circuit breaker offers thermal magnetic trip protection with long time and instantaneous trip functions. It has an interrupting rating of 22,000 amps at 240 Volts AC, suitable for demanding industrial and commercial applications. The breaker mounts via bolt-on frame and is designed for three-phase power distribution.

• Amperage: 50 Amp
• Voltage: 240 Volts AC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 22,000 Amps (22 kA) at 240V AC
• Series/Frame: B Series, Type BLH
• Trip Unit: Thermal Magnetic with 120V Shunt Trip
• Phase: 3 Phase
• High Interrupting Capacity
• Manufacturer: Siemens

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

complete with 120V shunt trip

Specifications

• Part Number: B350H00S01
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : BLH
• Voltage : 240
• Amperage : 50
• Phase : 3
• Poles : 3
• AIC rating : 22kA@240V
• Connection : Bolt-on
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : 125A/BLH
• MCM Size : Min. Wire Size 8 AWG Max. Wire Size 2 AWG (Al), 4 AWG (Cu)
• Breaker Type : Shunt Trip
• Protection : Thermal Magnetic

Product Data

• UPC : 783643268975
• GTIN : 00783643268975
• Country of Origin : Mexico
• Dimensions : 2.563 x 4.00 x 3.122 inch
• Weight : 1.257
• Panel Type : Siemens P1 Panelboards
• Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
