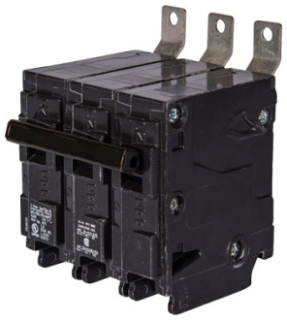

B345HH00S01 - Siemens 45A 240V 3-Pole Molded Case Circuit Breaker BL Series Bolt-On

B345HH00S01

This BL Series bolt-on breaker features a thermal magnetic trip unit, a 65kA interrupt rating at 240VAC, and a shunt trip rated for 120V. It mounts via bolt-on style and includes lug load side terminals and busbar line side terminals, suitable for panel mounting applications.

Key Specifications
• Amperage: 45 Amps
• Voltage: 120/240 VAC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 65kA at 240 VAC
• Series/Frame: BL Series
• Trip Unit: Thermal Magnetic with 120V Shunt Trip
• Line Side Termination: Busbar
• Load Side Termination: Lug (Included)
• Application: Molded Case Circuit Breaker

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.




Additional Information

complete with 120V shunt trip




Specifications

• Part Number: B345HH00S01
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : HBL
• Voltage : 240
• Amperage : 45
• Phase : 3
• Poles : 3
• AIC rating : 65kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• Breaker Type : Shunt Trip
• Protection : Thermal Magnetic



Product Data

• UPC : 783643529649
• GTIN : 00783643529649
• Country of Origin : Mexico
• Weight : 2.205
• Panel Type : Siemens P1 Panelboards
• Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
